Attributs
/Précision
316/316LMatériel
GermanyPoint d'origine
SIEMENSMarque nom
OEMSupport personnalisé
1 ANGarantie

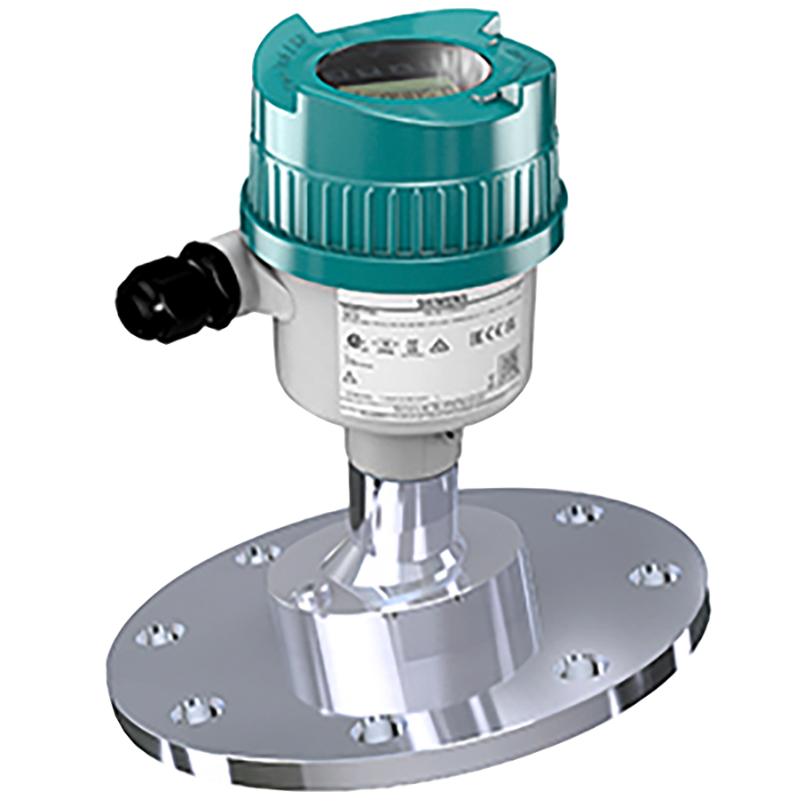

model number:LR500
Measuring Principle:Radar level measurement
Frequency:W band (80 GHz nominal)
Minimum Detectable Distance:0 mm from end of the antenna (antenna dependent, reference conditions)
Maximum Measuring Range:120 m (394 ft), antenna dependent
Output:HART 4 ... 20 mA
Update Time:Up to 3 measurements per second
Maximum Measured Error:1 mm (0.039 inch)
Influence Of Ambient Temperature:Less than 3 mm/10 K and maximum ±5 mm
Process Temperature:-196 ... 250 °C (-321 ... 482 °F)
