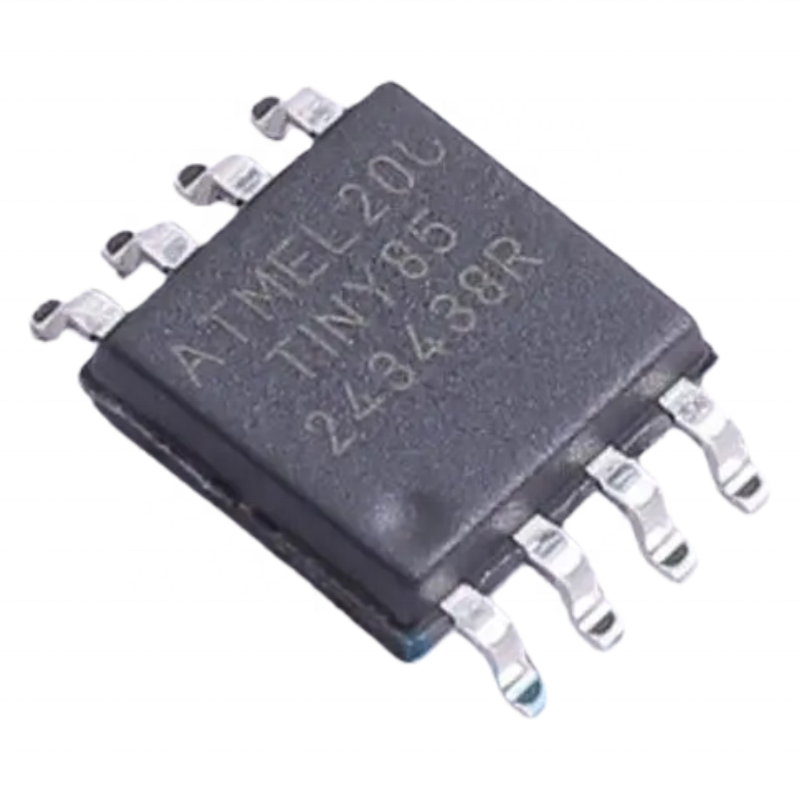

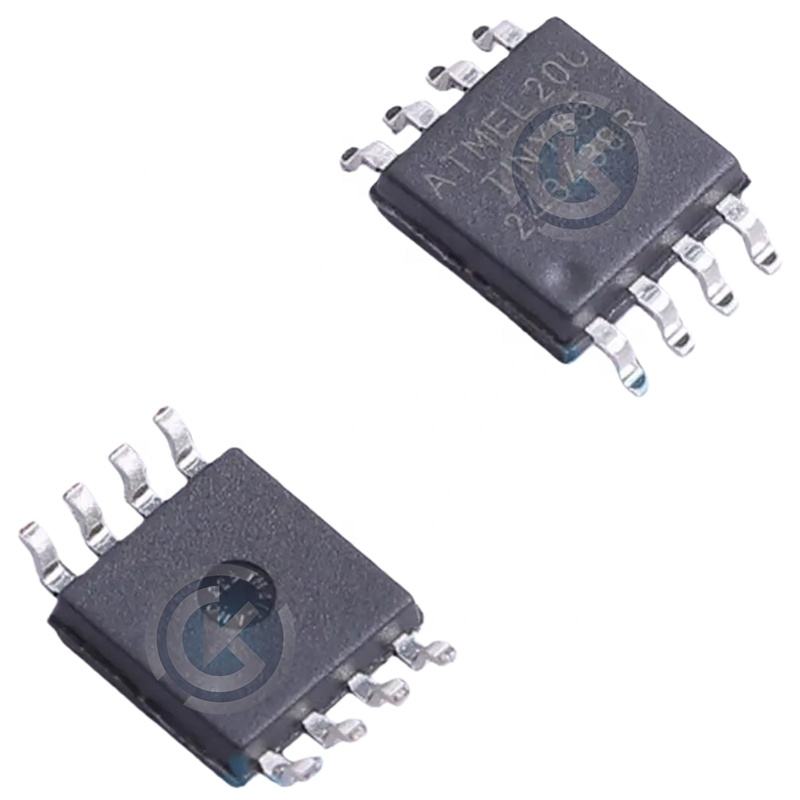

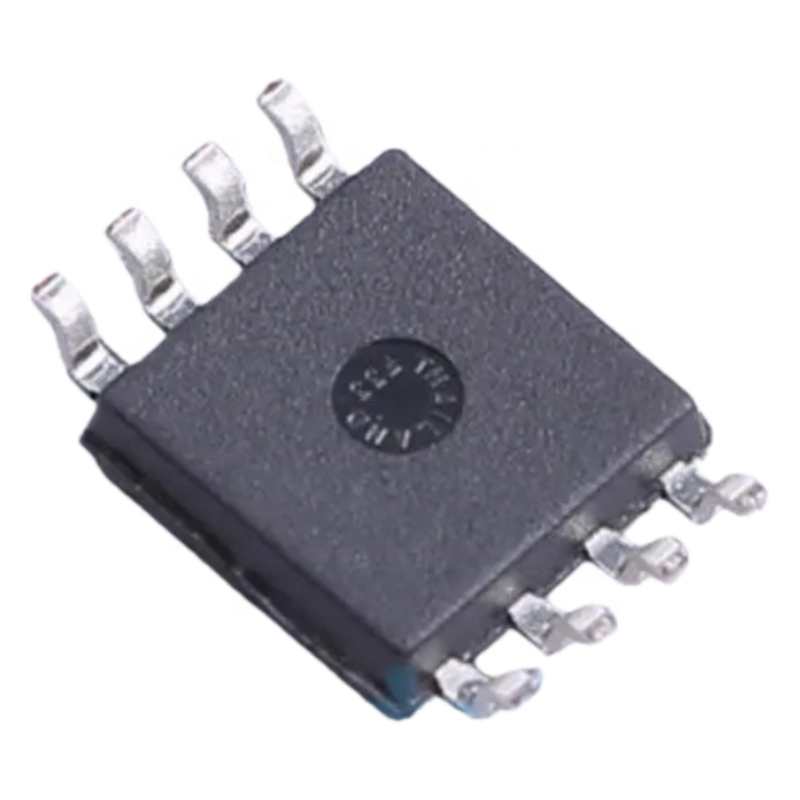

100% Only New Original ATTINY85-20SU 8-bit Ultra-Low-Power AVR Tiny Core Microcontroller (MCU) SOIC-8-208mil IC Chip

Name: 100% Only New Original ATTINY85-20SU 8-bit Ultra-Low-Power AVR Tiny Core Microcontroller (MCU) SOIC-8-208mil IC Chip
Brand: Shenzhen Chikongxin Technology Co., Ltd.
SKU: 1601644548957
Price: 1.25 USD
Availability: InStock

No reviews yet

$133

1-99 pieces

$130

100-999 pieces

$125

≥1,000 pieces

Select now

Specification

ATTINY85-20SU

Key attributes

Brand Name

CKX

Manufacturer Part Number

ATTINY85-20SU

Mounting Type

Surface Mount Device (SMD)

Place of Origin

Guangdong, China

Type

8-bit Ultra-Low-Power Microcontroller (MCU)

Series

ATtiny

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Output Type

Digital (TTL/CMOS-Compatible); Analog Input (4-channel 10-bit ADC, No DAC)

Internal Switch(s)

Technology

CMOS

Fault Protection

Watchdog Timer (WDT) for Timeout Protection

Interface

No (SMD Package, No Buckle Structure

Mounting Type

Surface Mount Device (SMD)

Type

8-bit Ultra-Low-Power Microcontroller (MCU)

Number of Outputs

6 (Configurable I/O Pins, Including Multifunctional Peripheral Pins)

Description

8-bit AVR RISC-based CMOS MCU with 8KB In-System Programmable (ISP) Flash Memory, 512B SRAM, 512B EEPROM, 4-channel 10-bit ADC, optimized for compact, high-performance, low-power embedded control applications

Brand Name

CKX

Manufacturer Part Number

ATTINY85-20SU

Place of Origin

Guangdong, China

Series

ATtiny

Packaging Type

SOIC-8 (Small Outline Integrated Circuit, 8 Pins,

Application

Battery-Powered Wearables, Miniature Sensor Nodes,

Operating Temperature

-40°C to 85°C (Industrial Grade)

Voltage - Input (max)

5.5V DC

Package / Case

SOIC-8-208mil

Voltage - Supply

1.8V DC to 5.5V DC (Extended Low-Voltage Range)

Current - Supply

Active Mode (20MHz, 5V): Typical 4mA; Active Mode (8MHz, 3.3V): Typical 1.5mA; Idle Mode (3.3V): Typical 0.3mA; Power-Down Mode (3.3V): Typical 0.01μA

Current - Output

Per Pin (Sink/Source): Maximum 40mA; Total Package (Combined Sink/Source): Maximum 200mA

Output Configuration

Software-Configurable Push-Pull / Open-Drain; Integrated Pull-Up Resistors (Configurable)

Voltage - Output (Max)

VDD (Up to 5.5V DC)

Features

AVR Tiny Core (131 Single-Cycle Instructions), 8KB

Cross Reference

ATTINY85-20PU, ATTINY45-20SU, PIC16F684, STM8S103F

Voltage - Output (Min/Fixed)

Minimum (Low Level): 0.4V DC (Maximum); Fixed (High Level): VDD - 0.4V DC (Minimum) [TTL/CMOS-Compatible]

Number of Cells

N/A (Powered by Coin Cell, Thin-Film Battery or Ex

Function

Compact Embedded Control, USB Low-Speed Device Imp

Voltage - Input

1.8V DC to 5.5V DC (Same as Supply Voltage Range)

Frequency - Switching

Maximum Clock Frequency: 20MHz (External Crystal)

Number of channels

4 (Analog Input Channels, 10-bit ADC); 6 (Digital

Current - Charging

N/A (Not a Battery Charger IC)

Packaging and delivery

Selling Units

Single item

Single package size

15X15X10 cm

Single gross weight

0.100 kg

Lead time
