14 Harmonic Reducer Harmonic Drive Reducer 6 Axis Reducer Gear Box Servo Drive Harmonic

No reviews yet
$170
2-49 pieces
$160
50-99 pieces
$150
≥100 pieces
Sample price: $167
Select now

Model Number

SHD-05

Rated Power

Depends
Customization options
Customized logo (Min. order: 100 pieces)
Customized packaging (Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)

Key attributes

Gearing Arrangement

Harmonic

Output Speed

2000r/min

Output Torque

0.23/0.38/0.5N.m

Applicable Industries

Robotic arms, Collaborative Robot

Place of Origin

China

Maximum Input Horsepower

0.5 HP

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Gearing Arrangement
Harmonic
Output Speed
2000r/min
Output Torque
0.23/0.38/0.5N.m
Applicable Industries
Robotic arms, Collaborative Robot
Place of Origin
China
Maximum Input Horsepower
0.5 HP
Mounting Orientation
Horizontal
Ratio
1:1
Input Speed
10000rpm
Brand Name
TINSMITH
Customized support
OEM, ODM, OBM
Gear Type
Harmonic
Output Shaft Type
Hollow Shaft
Warranty
1year
Weight (KG)

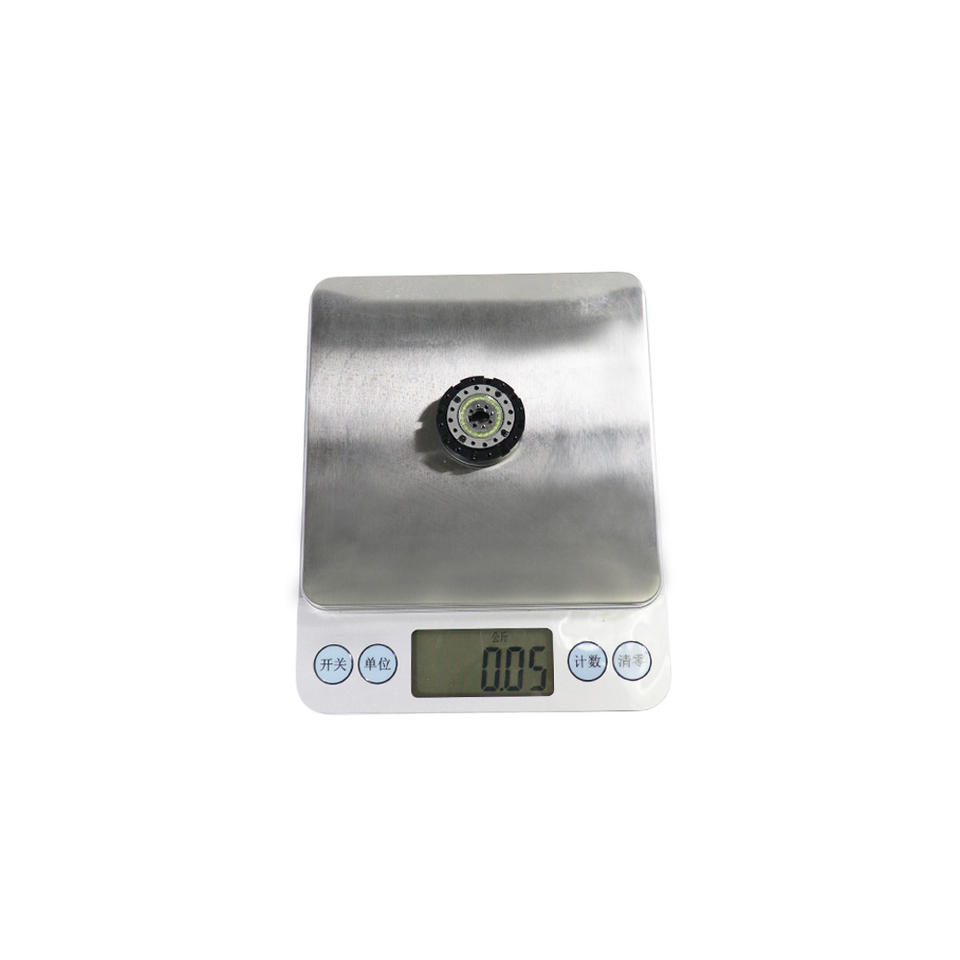

0.04 KG
Product name

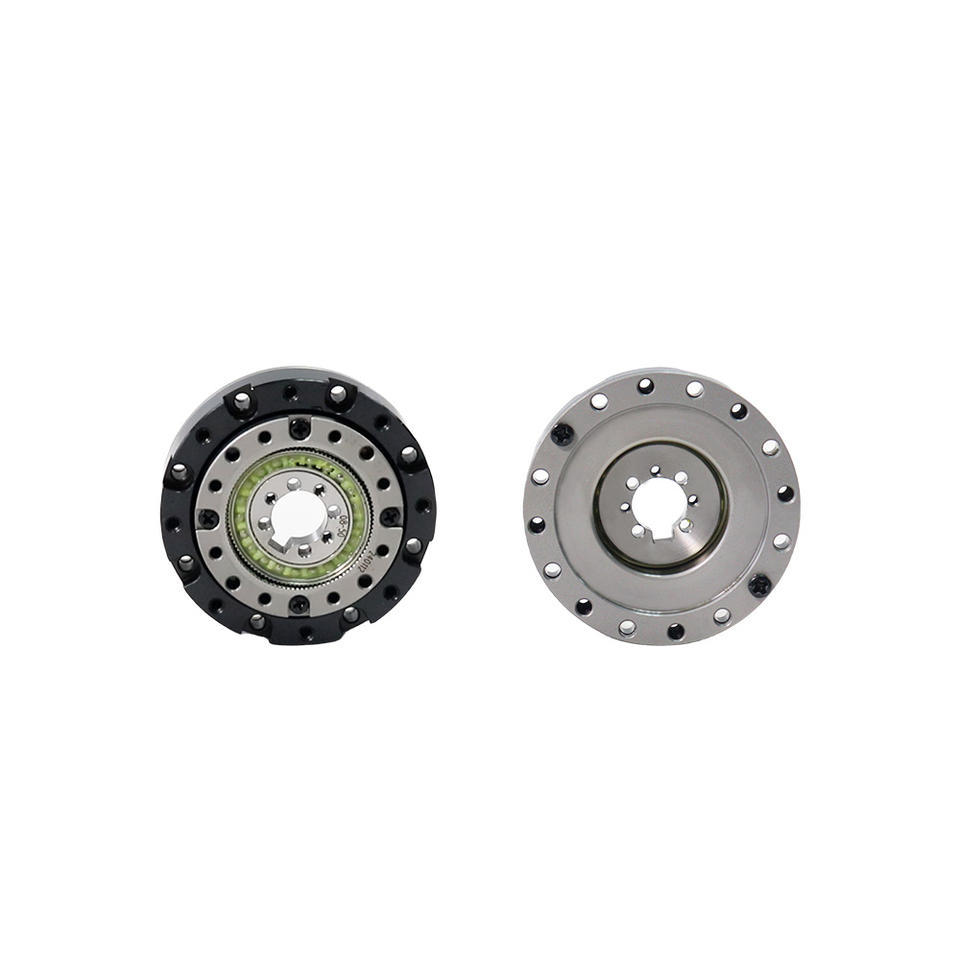

Hollow harmonic reducer
Reduction ratio
30/50/80
Rated speed when input 2000r/min
0.23/0.38/0.5N.m
Peak torque at start stop
0.47/0.87/1.2Nm
Maximum allowable load torque on average
0.35/0.5/0.82Nm
Maximum allowable moment torque
0.85/1.7/2.2Nm
Backlash
20/20/10arcsec
Allowable maximum input speed
10000rpm
Allowable average input speed
6500rpm

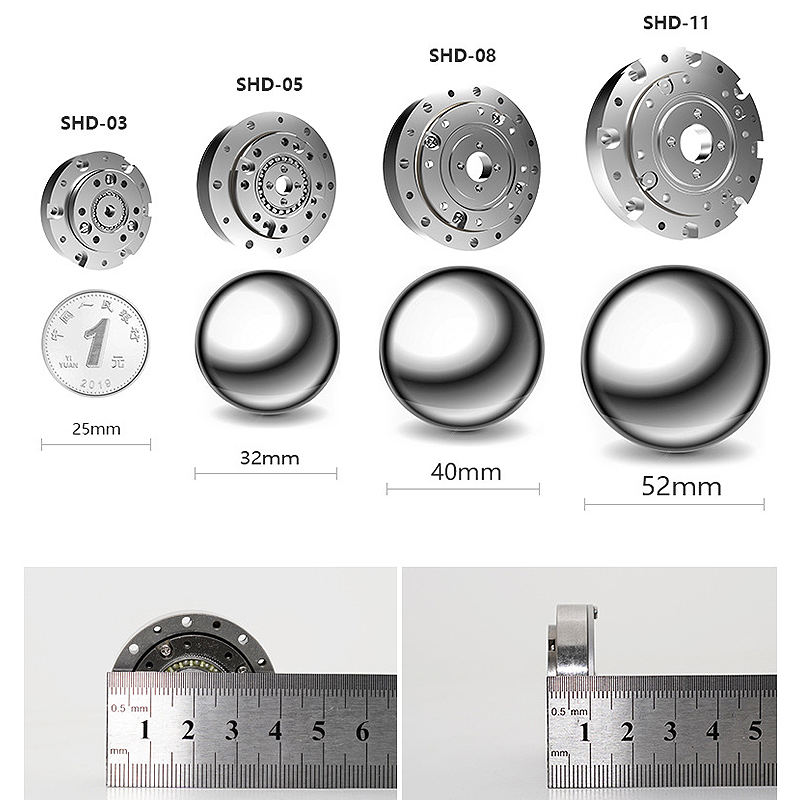

Outer diameter
32mm

Packaging and delivery

Selling Units
Single item
Single package size
20X20X15 cm
Single gross weight
1.0 kg

Lead time

Customization options

Customized logo(+ from /Min. order: 100 pieces)
Customized packaging(+ from /Min. order: 100 pieces)
Graphic customization(+ from /Min. order: 100 pieces)
