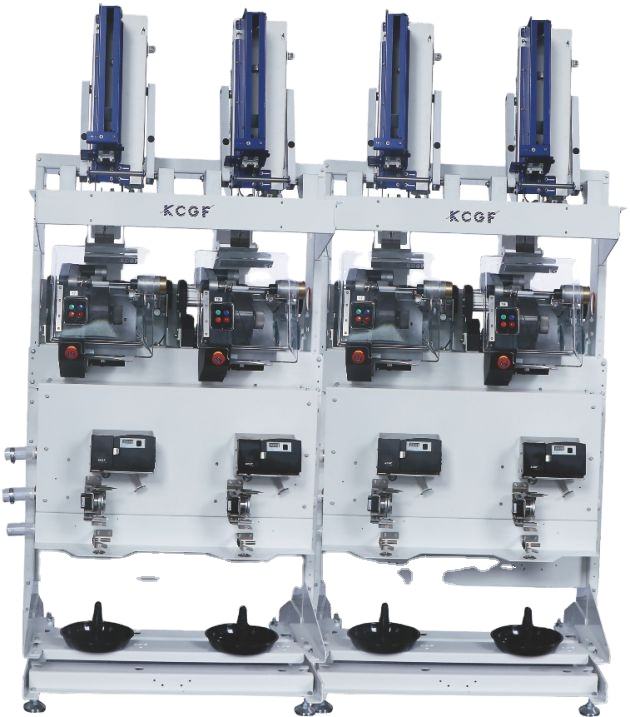

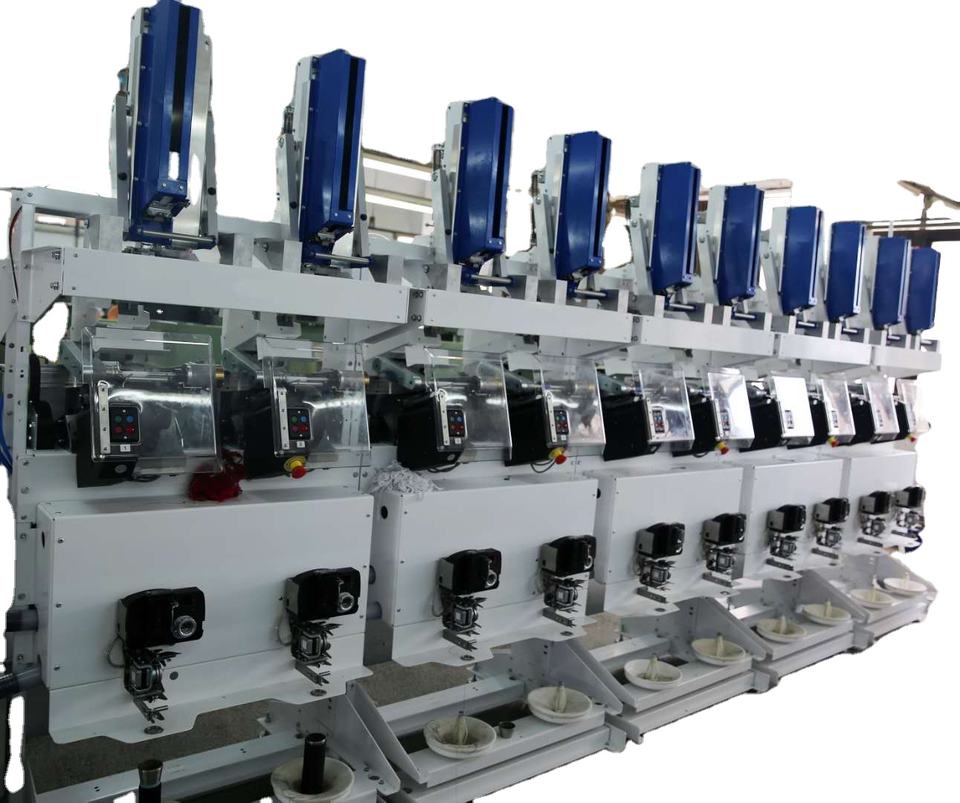

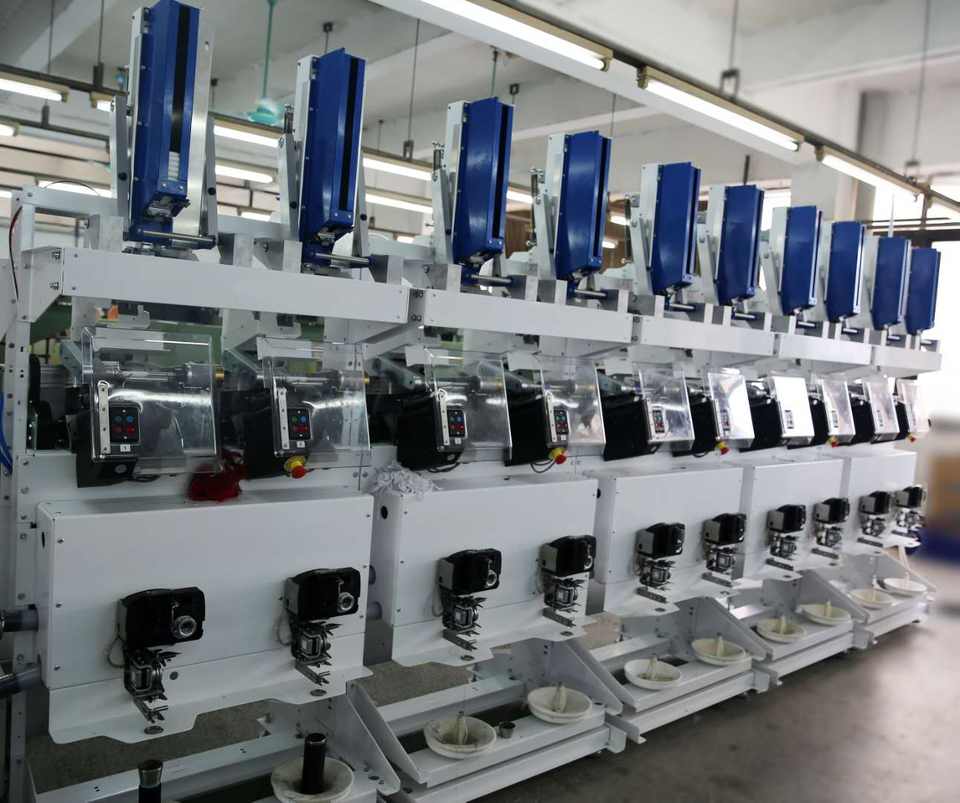

2026 Good KC522C High Speed Automatic Straight Tube Winder 6000 RPM
Store rating:5.0
(149 reviews)Complies with EU standards
Complies with EU standards
Attributes
Customizedvoltage
Automaticautomatic grade
300Wpower(w)
Motor, Pressure Vessel, Pumpcore components
1 YearWarranty
Providedmachinery test report
place of origin:Zhejiang, China
Weight (KG):500
video outgoing-inspection:Provided
production capacity:300 sets/month
brand name:KCGF

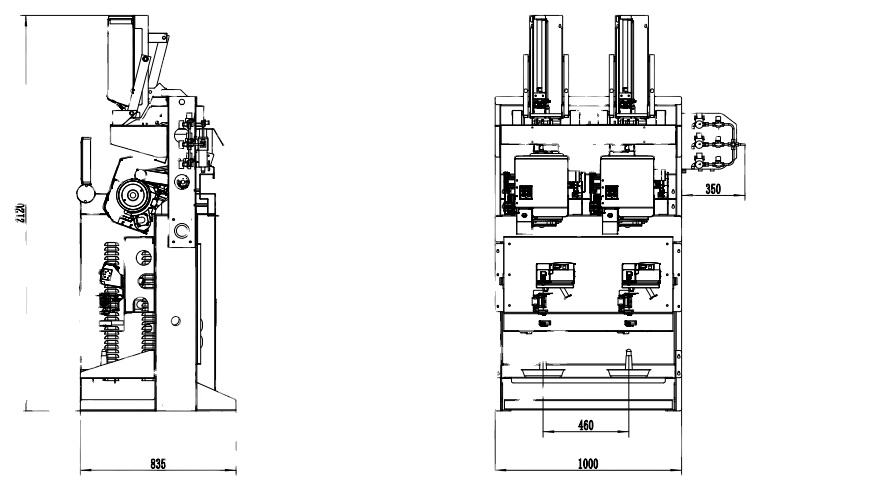

dimension(l*w*h):2675*835*2140 mm
Machine structure:Single side , single layer
Spindle gauge:460mm
Min./Max. No. of spindles:4/20 (Max. number of spindles per oil feeding system: 20)
Take-up tubes:A tube: cone; Y tube: King spool
Linear speed:Up to 1100m/min (depend on the process parameters)
Traverse:76mm~152mm(±3.5mm,depend on the tank size)
Yarn count:Up to 3300D
Take-up package diameter:Up to 105mm (85-105mm)
Supply package diameter:Up to 320mm
Rated power:300W/spindle
Service
Free replacement parts & online technical support
Key attributes
voltage
Customized
automatic grade
Automatic
power(w)
300W
core components
Motor, Pressure Vessel, Pump
Warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
place of origin
Zhejiang, China
Weight (KG)
500
production capacity
300 sets/month
brand name
KCGF
dimension(l*w*h)
2675*835*2140 mm
Machine structure
Single side , single layer
Spindle gauge
460mm
Min./Max. No. of spindles
4/20 (Max. number of spindles per oil feeding system: 20)
Take-up tubes
A tube: cone; Y tube: King spool
Linear speed
Up to 1100m/min (depend on the process parameters)
Traverse
76mm~152mm(±3.5mm,depend on the tank size)
Yarn count
Up to 3300D
Take-up package diameter
Up to 105mm (85-105mm)
Supply package diameter
Up to 320mm
Rated power
300W/spindle
Packaging and delivery
Selling Units
Single item
Single package size
60X60X60 cm
Single gross weight
60.000 kg
Lead time
Product descriptions from the supplier
4 - 59 units
$4,675
60 - 199 units
$4,575
200 - 499 units
$4,475
>= 500 units
$3,850
Sample price: $3,850
Variations
Select nowmodel number: KC522C
KC522C
no.of spindles
4
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
