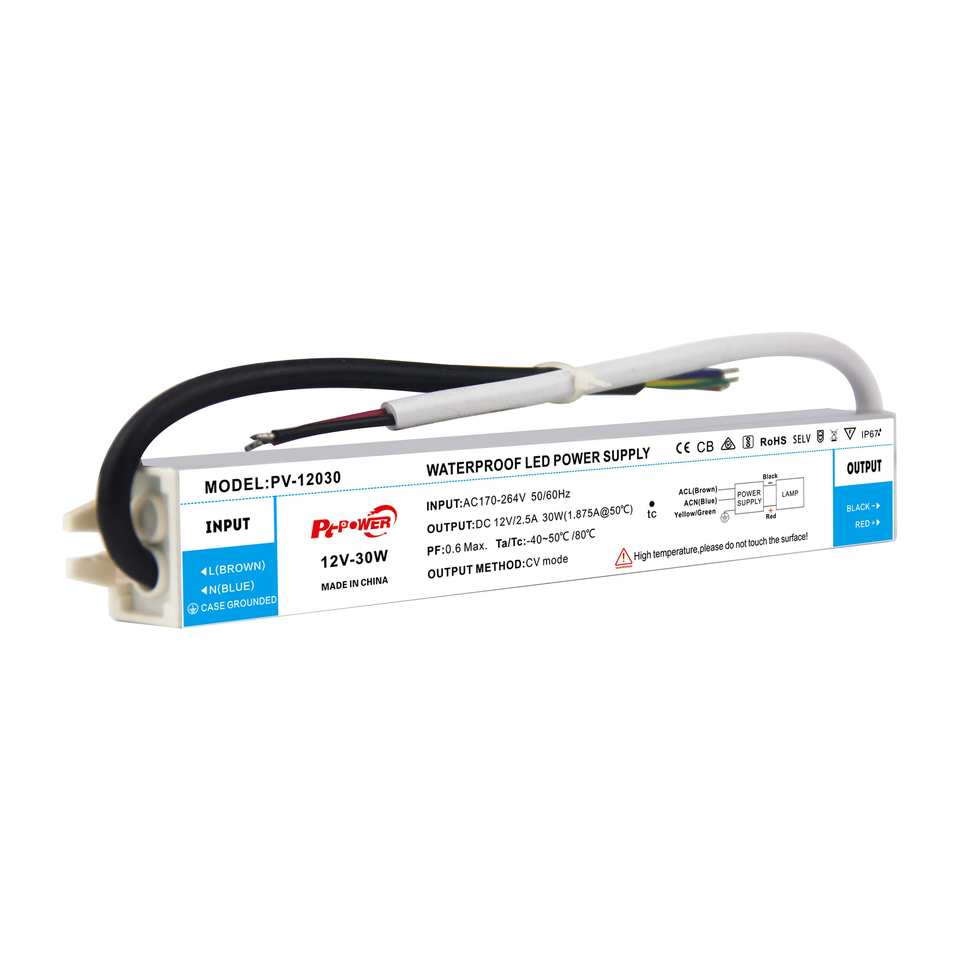

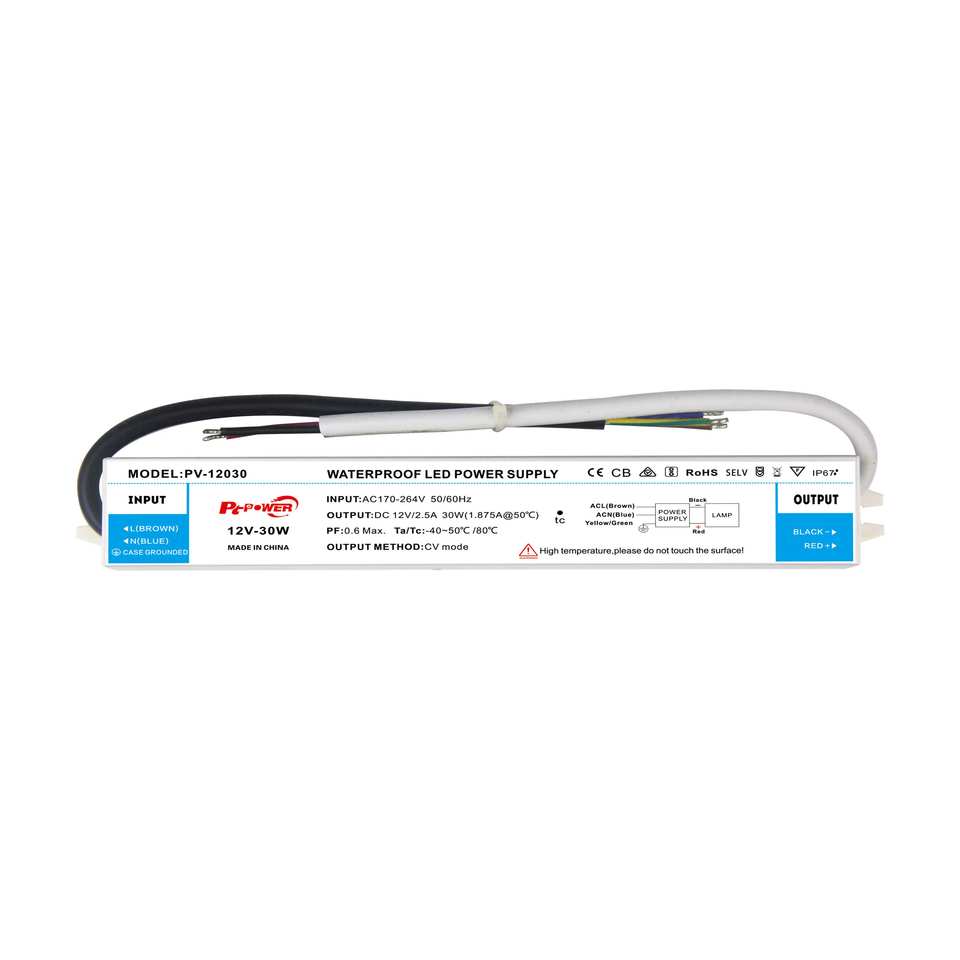

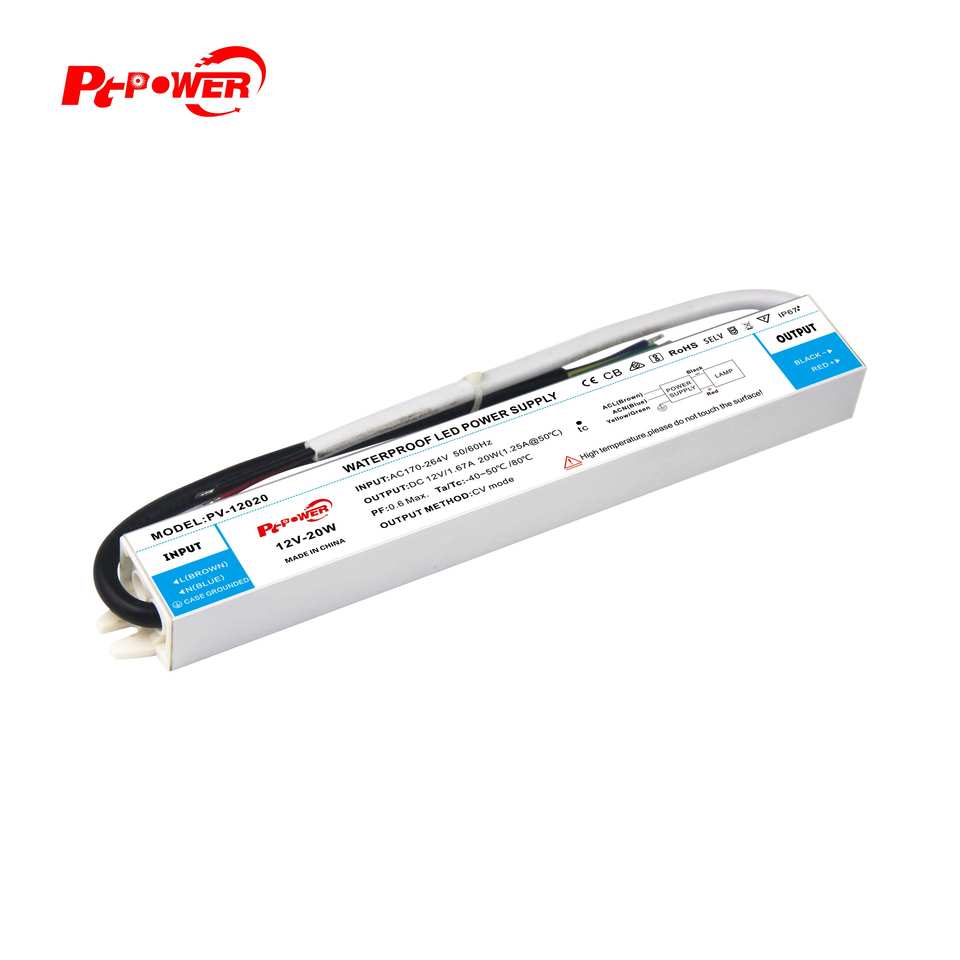

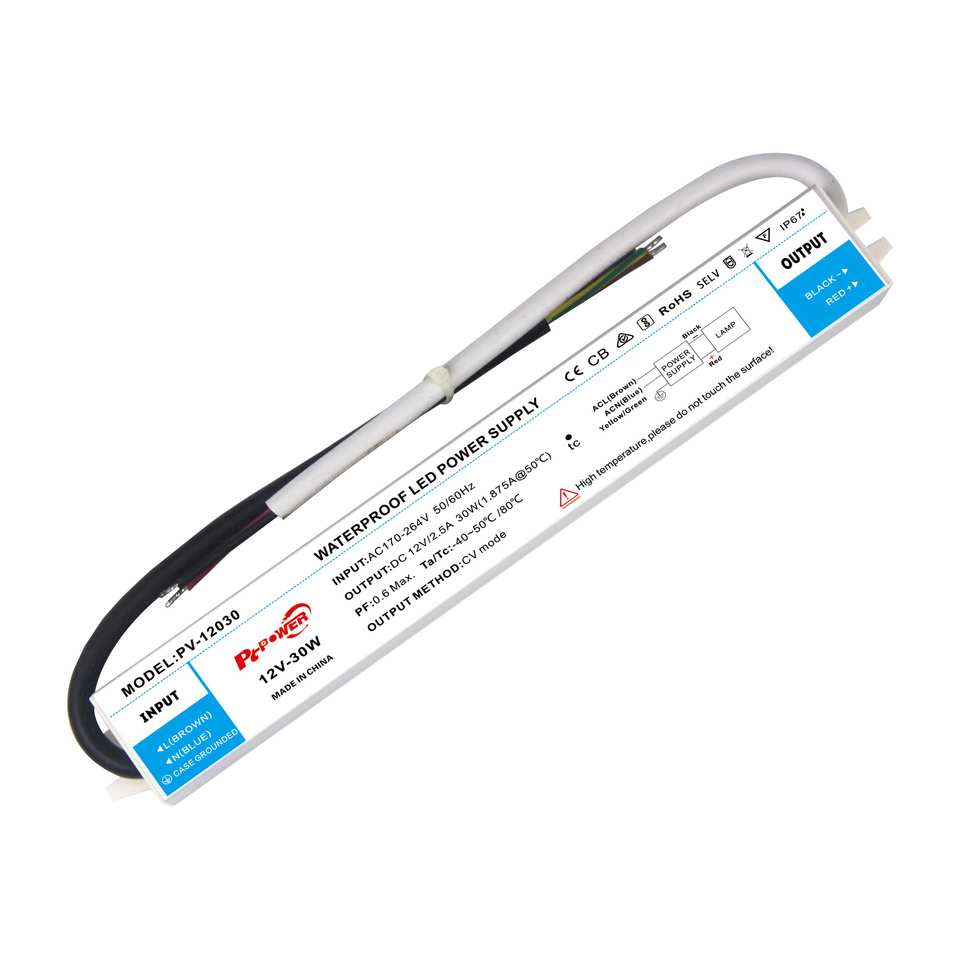

20W 30W Flicker Free Constant Voltage EMC LED Strip Driver 170-264V AC-DC 12V 24V IP67 Waterproof light box LED Power Supply
No reviews yet
Attributes
Led Lighting, Outdoor LightingApplication
AC170-264VInput Voltage
20W/30WOutput Power
0-1.67A, 0-0.83A, 0-2.5A, 0-1.25AOutput Current
IP67 WaterproofType
AC-DCEnergy Transfer
Warranty(Year):3-Year
Place of Origin:Guangdong, China
Model Number:PV-12020/PV-24020/PV-12030/PV-24030
Brand Name:Pt POWER
Case Material:Aluminum
Dimming:Non-dimmable
Dimming Mode:Non-dimmable
Efficiency:83~85%
Lighting solutions service:Lighting And Circuitry Design, Project Installation, Other
Output Frequency:50~60 Hz
Output Type:Single
Product Weight（kg）:0.18
Topology:Ac-Dc Converter
IP Rate:IP67 waterproof
Certification:CE/FCC/RoHS
OEM/ODM:Yes
Size:180*30*20mm
Protection:Short circuit, overload protection
Withstand voltage:I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature:-40°C~+70°C
EMC Standard:EN55032,EN61000-3-2,EN61000-3-3,EN55024
Safety standard:EN61347-1,EN61347-2-13
Feature:Flicker Free
Key attributes
Application
Led Lighting, Outdoor Lighting
Input Voltage
AC170-264V
Output Power
20W/30W
Output Current
0-1.67A, 0-0.83A, 0-2.5A, 0-1.25A
Type
IP67 Waterproof
Energy Transfer
AC-DC
Output Type
Single
Dimming Mode
Non-dimmable
Dimming
Non-dimmable
Efficiency
83~85%
Topology
Ac-Dc Converter
Case Material
Aluminum
Warranty(Year)
3-Year
Lighting solutions service
Lighting And Circuitry Design, Project Installation, Other
Place of Origin
Guangdong, China
Model Number
PV-12020/PV-24020/PV-12030/PV-24030
Brand Name
Pt POWER
Output Frequency
50~60 Hz
Product Weight（kg）
0.18
IP Rate
IP67 waterproof
Certification
CE/FCC/RoHS
OEM/ODM
Yes
Size
180*30*20mm
Type
Constant Voltage LED driver
Protection
Short circuit, overload protection
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature
-40°C~+70°C
EMC Standard
EN55032,EN61000-3-2,EN61000-3-3,EN55024
Safety standard
EN61347-1,EN61347-2-13
Feature
Flicker Free
Packaging and delivery
Selling Units
Single item
Single package size
25X5X4 cm
Single gross weight
0.450 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 500 pieces)
Customized packaging(+ from /Min. order: 500 pieces)
Graphic customization(+ from /Min. order: 500 pieces)
View details
Product descriptions from the supplier
FREE shipping capped at $20
Lower priced than similar
Minimum order quantity: 2 pieces
$330-380
Variations
Select nowInput Voltage(V): AC170-264V
AC170-264V
Lamp Power(W): 20
20
30
Output Voltage
12 V
24 V
