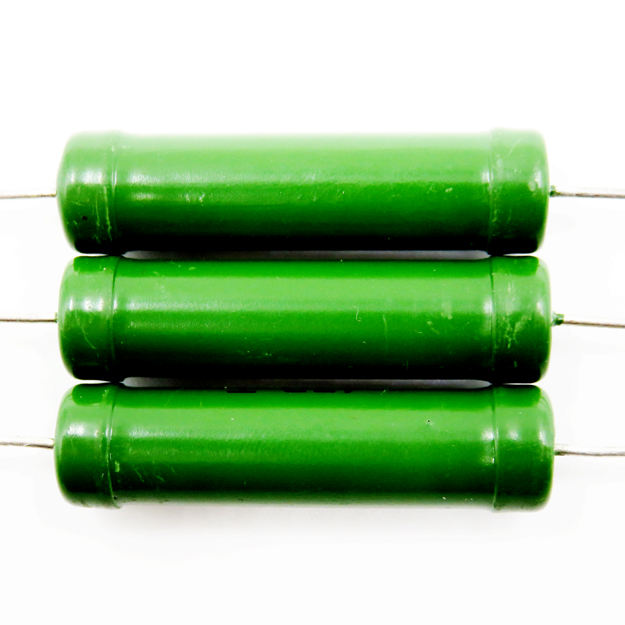

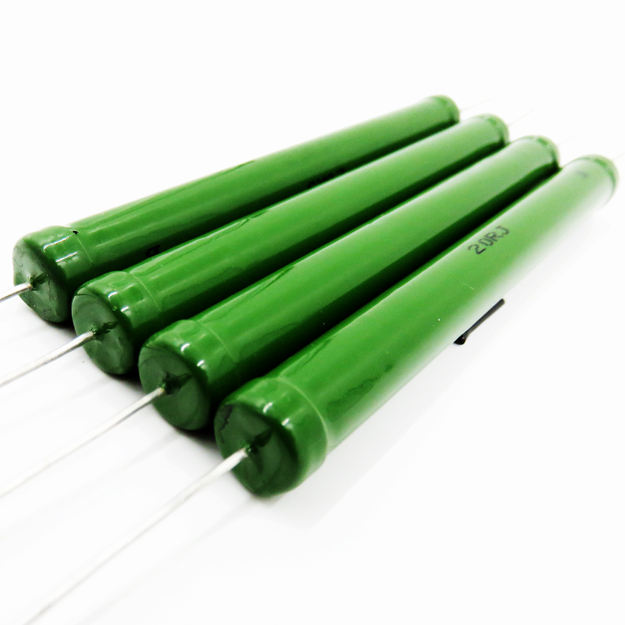

20W 30W High Voltage Thick Film Resistors With Resistance value 10M Ohm 20M Ohm 50M Ohm With Rohs Compliant

No reviews yet

Xianyang Qinhua Special Electronic Components Co., Ltd.

Custom Manufacturer

13 yrs

CN

Attributes

QinHuaBrand Name

RI80AModel Number

Shaanxi, ChinaPlace of Origin

/Package / Case

greencolor

ceramic rodtube

film:metal glaze film,thick film

cap:lead mould,cap mould

technology standard:GB/T 5729-2003

technology standard 2:Q/QH 1618-2007

coating form:painted

certification:ISO9001:2008

resistor type:fixed resistor

resistor:film resistor

Type:Fixed Resistor

Supplier Type:original manufacturer

Technology:Thick Film

Package Type:Throught Hole

Composition:Thick Film

Coating, Housing Type:Silicone Coated

Description:High Voltage Resistor

Number of Resistors:/

Height - Seated (Max):/

Resistance Tolerance:±1%-±10%

Temperature Coefficient:±50PPM

Number of Pins:/

Number of Terminations:/

Lead Style:axiel

Operating Temperature:25-125°C

Applications:Divider

Size / Dimension:11*71m

Mounting Type:through the hole

Resistance:100 ohm ~100G ohm

Power (Watts):20W

D/C:qh923

Rated Power:5W~25W

Application:High Voltage Testing

Key attributes

Brand Name

QinHua

Model Number

RI80A

Place of Origin

Shaanxi, China

Package / Case

/

color

green

tube

ceramic rod

film

metal glaze film,thick film

cap

lead mould,cap mould

technology standard

GB/T 5729-2003

technology standard 2

Q/QH 1618-2007

coating form

painted

certification

ISO9001:2008

resistor type

fixed resistor

resistor

film resistor

Type

Fixed Resistor

Supplier Type

original manufacturer

Technology

Thick Film

Package Type

Throught Hole

Composition

Thick Film

Coating, Housing Type

Silicone Coated

Description

High Voltage Resistor

Number of Resistors

/

Height - Seated (Max)

/

Resistance Tolerance

±1%-±10%

Temperature Coefficient

±50PPM

Number of Pins

/

Number of Terminations

/

Lead Style

axiel

Operating Temperature

25-125°C

Applications

Divider

Size / Dimension

11*71m

Mounting Type

through the hole

Resistance

100 ohm ~100G ohm

Power (Watts)

20W

D/C

qh923

Rated Power

5W~25W

Application

High Voltage Testing

Packaging and delivery

Packaging Details

1.Encapsulated with plastic film first; 2.With a foam box packaging second; 3.Then use carton packaging. 4.Last use wooden box. Note:According to the difference of the contour dimensions,the packaging will be different. Please in kind prevail.

Port of dispatch

Tianjin/Shanghai

Selling Units

Single item

Supply capacity

Supply Ability

1000 pieces per Week film resistor
