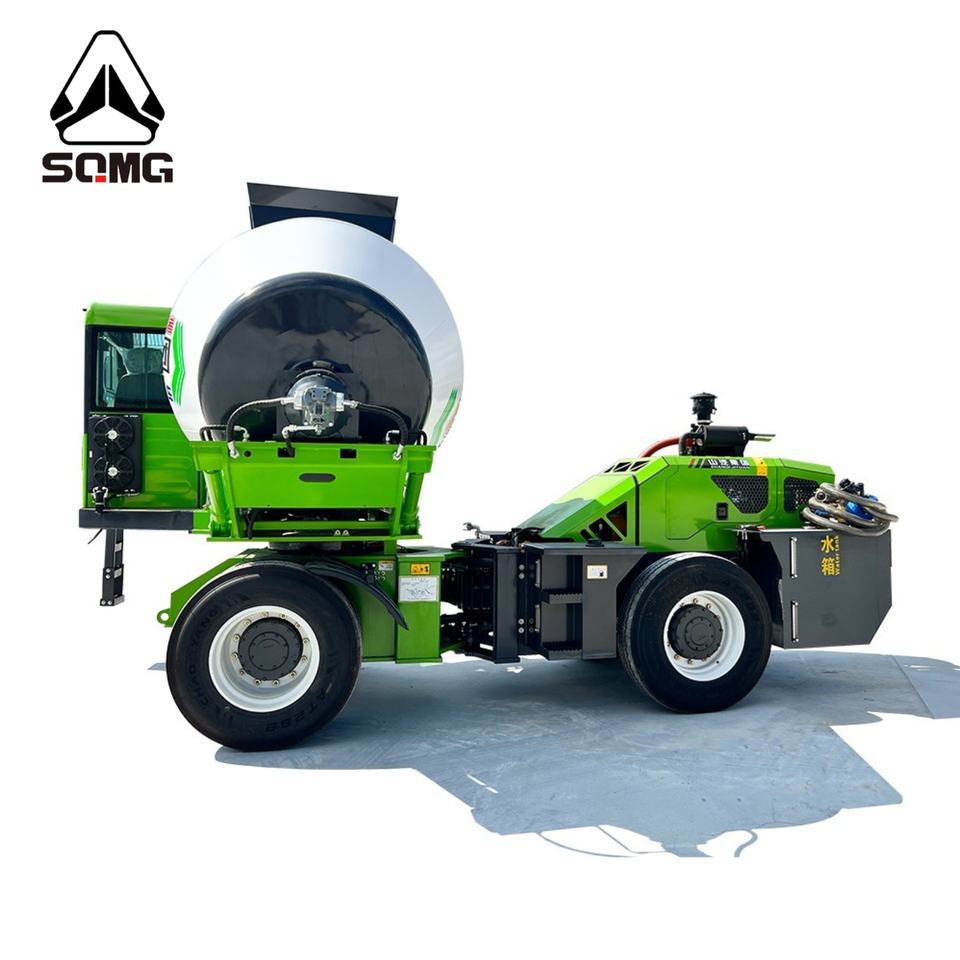

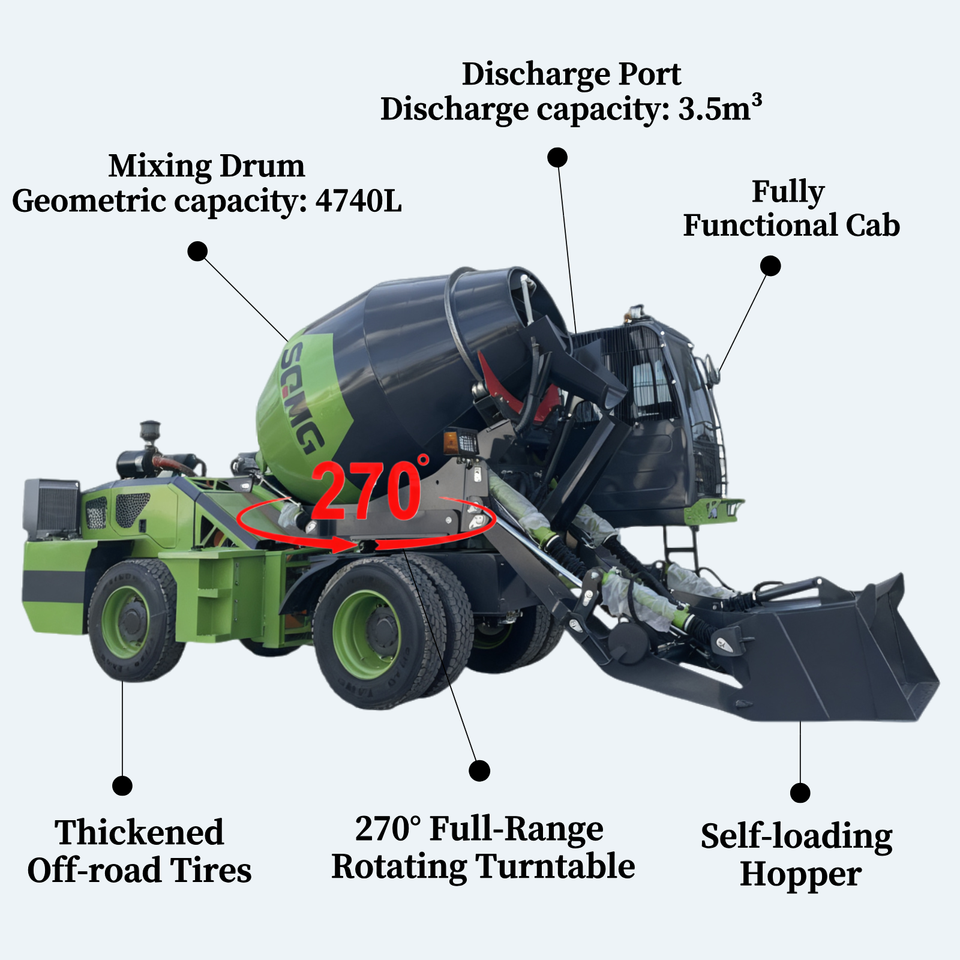

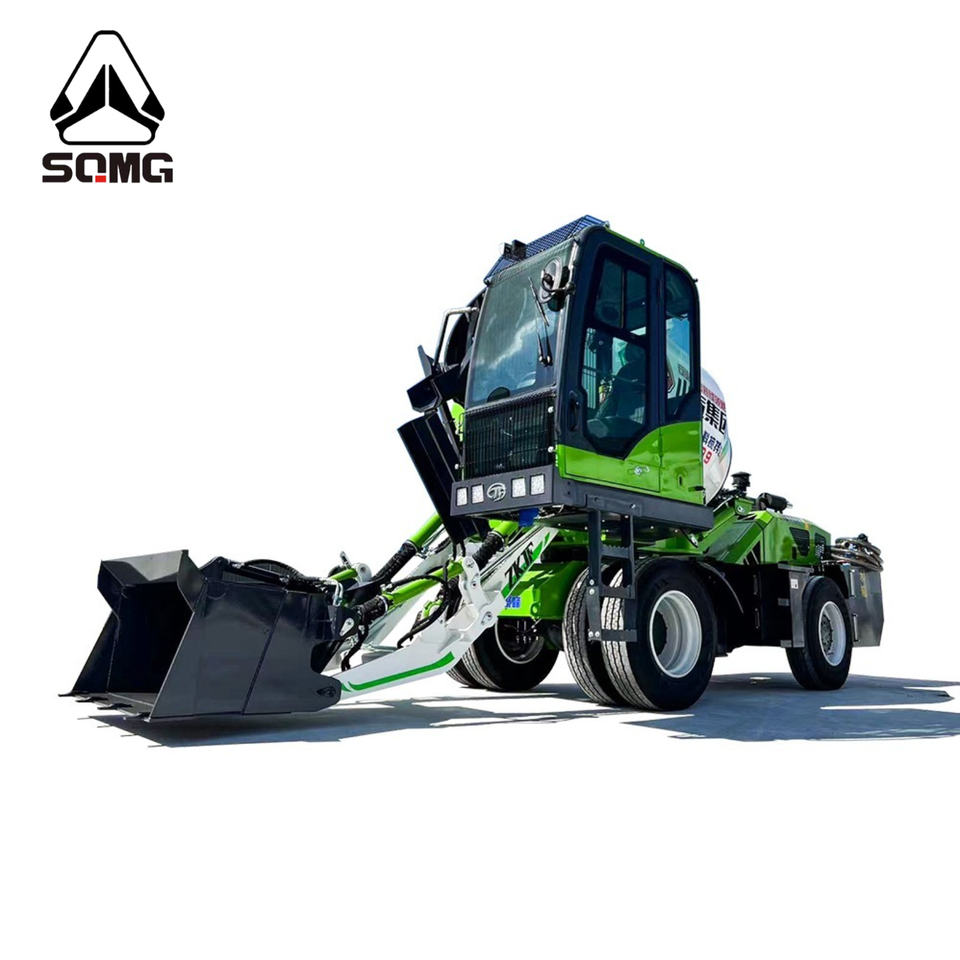

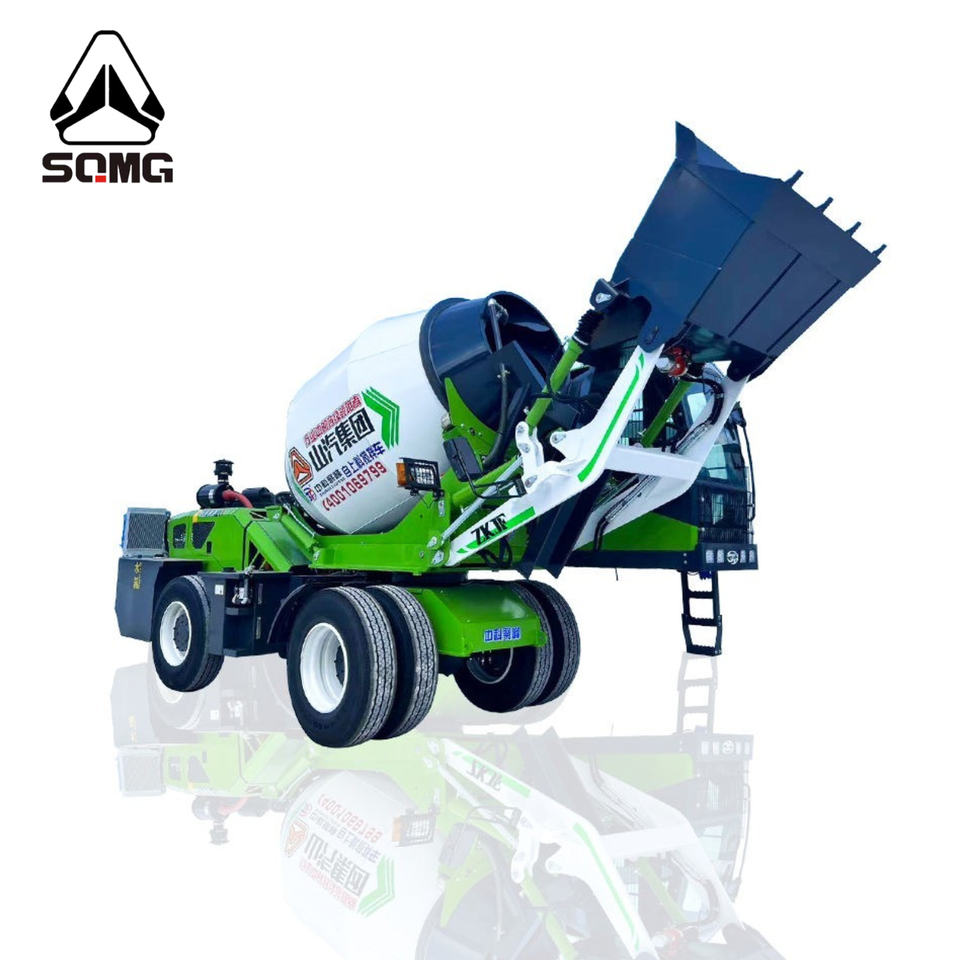

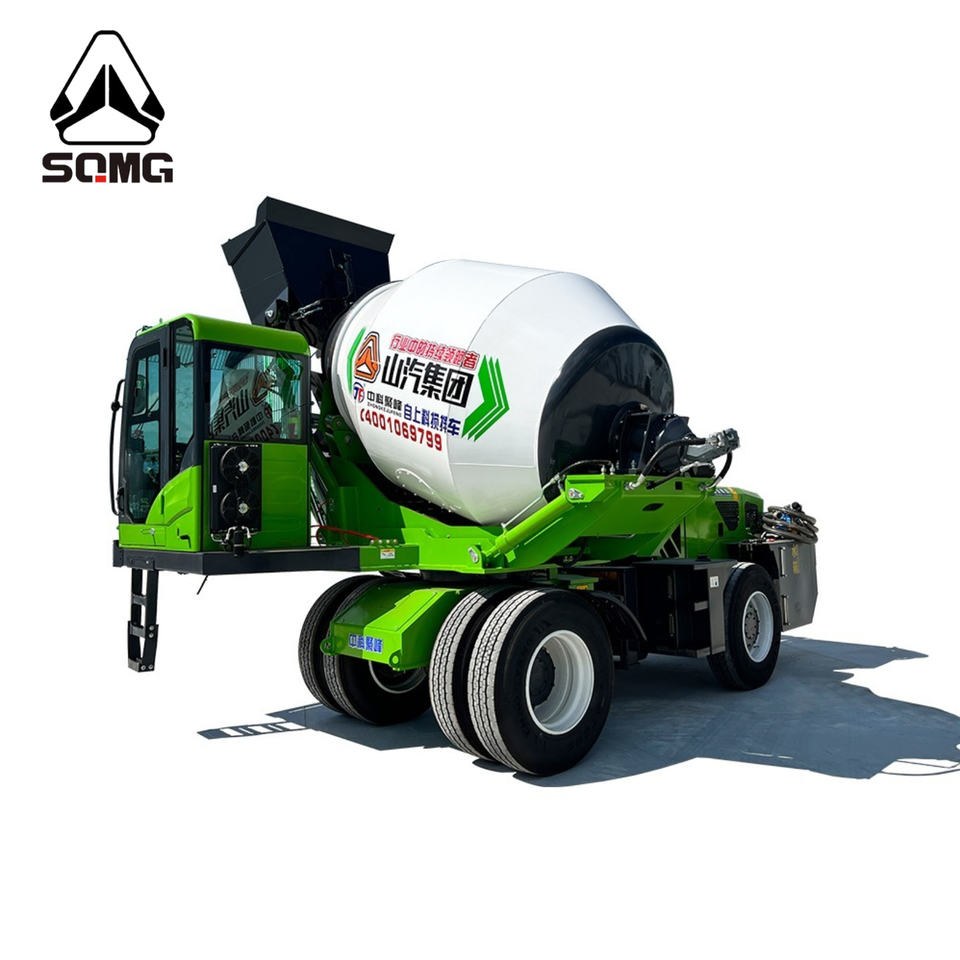

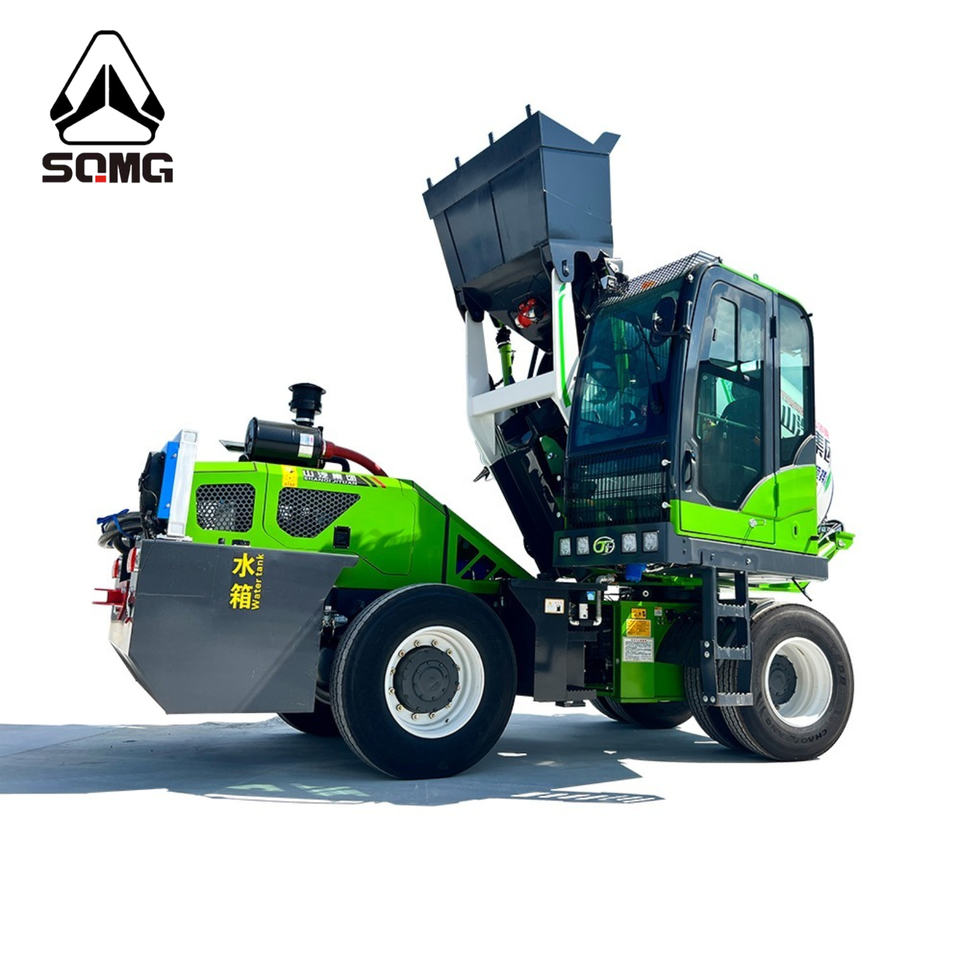

3.5m³ Portable Self-Loading Concrete Mixer Truck Rugged Design Cement Mixer for Mining Quarry Infrastructure Project
3.5m³ Portable Self-Loading Concrete Mixer Truck Rugged Design Cement Mixer for Mining Quarry Infrastructure ProjectNo reviews yetEU Machinery Compliance
EU Machinery Compliance
Attributes
14M³/HProductivity
85 KWMixing Power
SQMG/CustomizedMake
ProvidedMachinery Test Report
1 YearWarranty
Imported engineUNIQUE SELLING POINT
Brand Name:SQMG
Charging Capacity:4740 L
Reclaiming capacity:3500 L
Speed of Mixing Drum:18-21 rpm
Place of Origin:Shandong, China
Core Components:Gear, Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine
Weight (KG):8300 kg
Color:Blue, Black, Green, Yellow, White, Customized
Motor Power:85 KW
Water Supply Mode:Time Relay
Working Cycle Period:12~15 mins per batch
Discharge Way:Self-discharging
Outline Dimension:7600*2800*4180 mm
Video outgoing-inspection:Provided
Engine Brand:Changchai/Yuchai/Yunnei
Emission Standard:Euro 5/EPA 4/National 2
Maximum Horsepower:120HP
Fuel:Diesel
Concrete Output:3.5cbm//batch
Drive Form:Torque Converter
Drive Type:4X4 Wheel Drive
Gearshift:4 Forward 4 Back
Vehicle Structure:Articulated Frame
Application:Building+Road+Bridge+Canal+Rural+Dam Construction
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
Productivity
14M³/H(494.41ft3/h)
Mixing Power
85 KW(113.99hp)
Make
SQMG/Customized
Machinery Test Report
Provided
Warranty
1 Year
UNIQUE SELLING POINT
Imported engine
Core Components
Gear, Pressure Vessel, Motor, Bearing, Pump, Gearbox, Engine
Video outgoing-inspection
Provided
Color
Blue, Black, Green, Yellow, White, Customized
Working Cycle Period
12~15 mins per batch
Brand Name
SQMG
Charging Capacity
4740 L(1252.18gal)
Reclaiming capacity
3500 L(924.60gal)
Speed of Mixing Drum
18-21 rpm
Place of Origin
Shandong, China
Weight (KG)
8300 kg(18298.37lb)
Motor Power
85 KW(113.99hp)
Water Supply Mode
Time Relay
Discharge Way
Self-discharging
Outline Dimension
7600*2800*4180 mm(299.21*110.24*164.57in)
Engine Brand
Changchai/Yuchai/Yunnei
Emission Standard
Euro 5/EPA 4/National 2
Maximum Horsepower
120HP
Fuel
Diesel
Concrete Output
3.5cbm//batch
Drive Form
Torque Converter
Drive Type
4X4 Wheel Drive
Gearshift
4 Forward 4 Back
Vehicle Structure
Articulated Frame
Application
Building+Road+Bridge+Canal+Rural+Dam Construction
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Color(+ from /Min. order: 1 set)
Logo/graphic design(+ from /Min. order: 1 set)
Motor Power(+ from /Min. order: 1 set)
Core Components(+ from /Min. order: 1 set)
View details
5% off $2,000 | 8% off $5,000 | 10% off $10,000
Customizable
Minimum order quantity: 1 set
$6,900
Variations
Select nowModel Number: SQMG Self Loading Concrete Mixer Truck
SQMG Self Loading Concrete Mixer Truck
Discharging Capacity
3.5M³
Customization options
Color (Min. order: 1 set)
Logo/graphic design (Min. order: 1 set)
Motor Power (Min. order: 1 set)
+1 more options
Supplier’s customization ability
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
