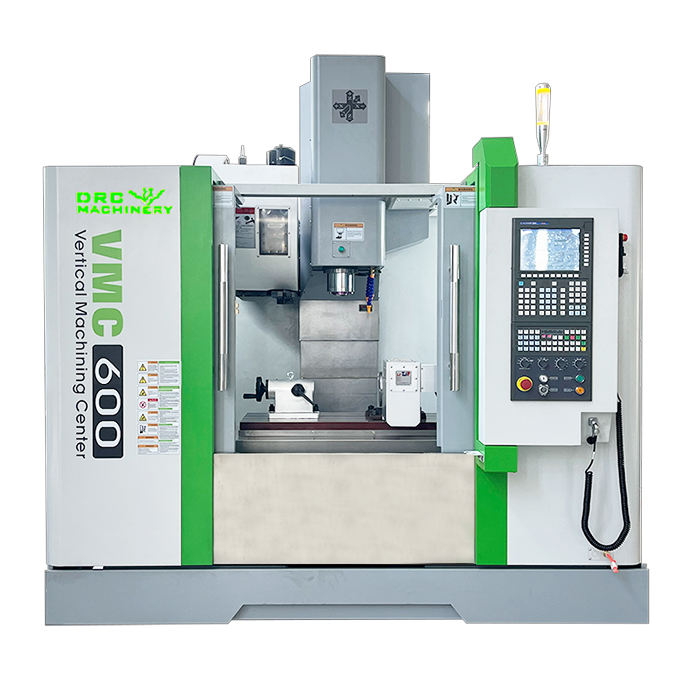

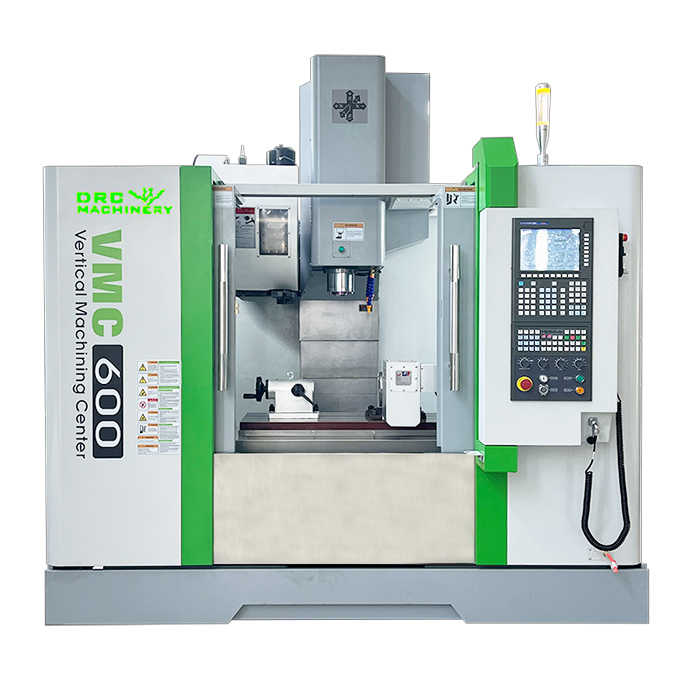

3 Axis Vmc 600 Mini Cnc Milling Machine Vertical Machining Center Machine Centre Vmc600
No reviews yetComplies with EU standards
Complies with EU standards
Attributes
VERTICALtype
3, 4number of axes
500table travel (x) (mm)
320table travel (y) (mm)
450table travel (z) (mm)
0.005repeatability (x/y/z) (mm)
positioning accuracy:0.008
spindle taper:BT40
no. of spindles:Single
tool magazine capacity:16

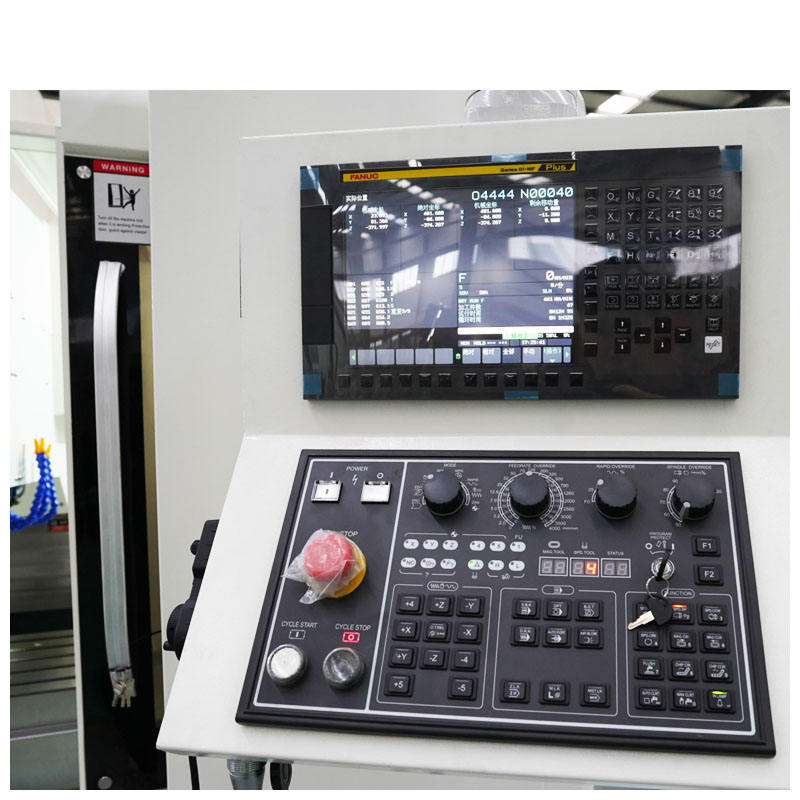

cnc control system:GSK, Siemens
voltage:220/380V
table size:800*260
warranty:1 Year
machinery test report:Provided
video outgoing-inspection:Provided
min. time of tool change(s):2
key selling points:High-Accuracy
weight (t):2.4 T
max. table load(kg):400 kg
place of origin:Shandong, China
dimension(l*w*h):2200*2100*2260mm
range of spindle speed:50 - 8000 r.p.m
spindle motor power:5.5
brand name:DRC
Product name:Cnc Milling Machine
X/Y/Zaxis travel:500/320/450mm
X/Y/Z Motor Torque:6/6/7.7N.m
Spindle face to table distance:90-510mm
Worktable size:800*260mm
X/Y/Z axis rapid movement rate:24/24/16 m/min
Feed moving velocity X, Y, Z:1-10m/min
Spindle taper:BT40-120
Range of spindle speed:8000rpm(Optional:10000 )
Small Machining Centre:Free spare parts
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
type
VERTICAL
number of axes
3, 4
table travel (x) (mm)
500
table travel (y) (mm)
320
table travel (z) (mm)
450
repeatability (x/y/z) (mm)
0.005
positioning accuracy
0.008
spindle taper
BT40
no. of spindles
Single
tool magazine capacity
16
cnc control system
GSK, Siemens
voltage
220/380V
table size
800*260
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
min. time of tool change(s)
2
key selling points
High-Accuracy
weight (t)
2.4 T
max. table load(kg)
400 kg
place of origin
Shandong, China
dimension(l*w*h)
2200*2100*2260mm
range of spindle speed
50 - 8000 r.p.m
spindle motor power
5.5
brand name
DRC
Product name
Cnc Milling Machine
X/Y/Zaxis travel
500/320/450mm
X/Y/Z Motor Torque
6/6/7.7N.m
Spindle face to table distance
90-510mm
Worktable size
800*260mm
X/Y/Z axis rapid movement rate
24/24/16 m/min
Feed moving velocity X, Y, Z
1-10m/min
Spindle taper
BT40-120
Range of spindle speed
8000rpm(Optional:10000 )
Small Machining Centre
Free spare parts
Packaging and delivery
Packaging Details
Sea worthy packing
The Package of small vertical machining center is export standard plywood case with iron pallet below ,very strong and durable .
The vertical machining center will be shipped to customers by land freight or sea freight
3 Axis Vmc 600 Small Mini Cnc Milling Machine
Port of dispatch
qingdao
Selling Units
Single item
Packaging examples
Supply capacity
Supply Ability
Vertical Machining Center 4th Axis 5th Axis Machine Centre
Lead time
Customization options
Customized packaging(+ from /Min. order: 1 set)
Customized logo(+ from /Min. order: 1 set)
Graphic customization(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
1 - 2 sets
$13,800
≥ 3 sets
$13,000
