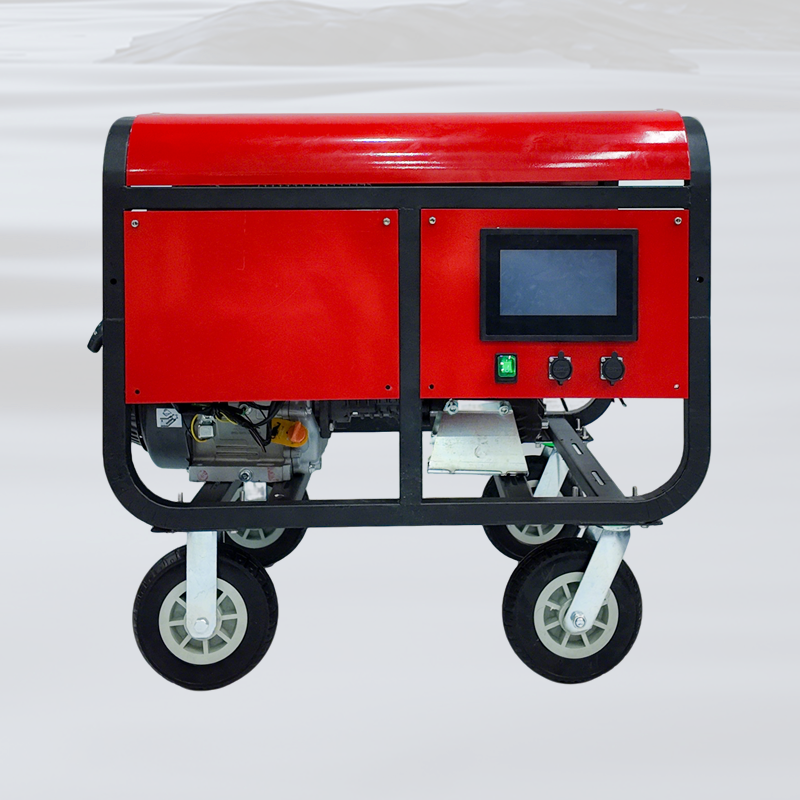

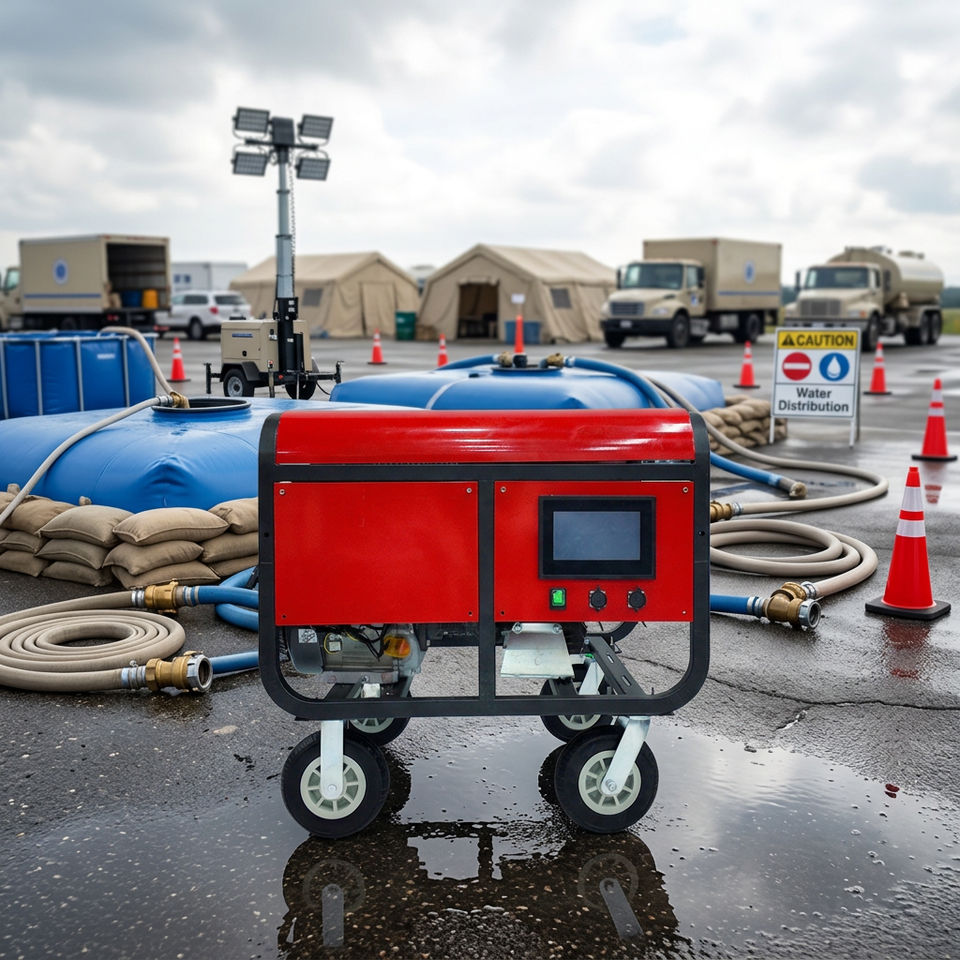

Timecore WBS-CM40 Emergency Diaphragm Water Pump 155L/min High Pressure Gasoline Pump for Rescue and Temporary Water Supply

No reviews yet
$6,086
1-9 pieces
$6,075
≥10 pieces
Sample price: $6,086
Select now

Flow Rate

155 L/min

maximum head

86.5 m

type

Diaphragm Pumps

+ 1 more variants

Key attributes

application

Emergency Rescue / Temporary Water Supply

pressure

8.65 MPa (Max Working Pressure)

customized support

ODM, OEM

place of origin

China

power source

Gasoline-Powered

warranty

Negotiations between the two parties

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

application
Emergency Rescue / Temporary Water Supply
pressure
8.65 MPa (Max Working Pressure)
customized support
ODM, OEM
place of origin
China
power source
Gasoline-Powered
warranty
Negotiations between the two parties
model number
WBS-CM40
brand name
timecore
Applicable temperature
-10°C to 60°C
Chemical Compatibility
Compatible with Water, Fertilizer Solutions, Foam
Connection Type
Quick-Connect Stainless Steel (40 mm Inlet / 40 mm
Control Method
Electric Start + Manual Pull Start
Discharge Pipe Size
40 mm (1.6")
Filter material
Stainless Steel Mesh
Flow Meter Specification
Integrated Pressure Gauge
Hardness
High-Impact Resistant
horsepower
15HP (21kW Optional)
Impeller Material
Wear-Resistant Ceramic Alloy
Import Size
40 mm (1.6")
Inlet Height
≥7 m (Suction Head)
Max Flow Rate
155 L/min
Max Pressure
8.65 MPa
Membrane material
Synthetic Diaphragm
motor
4-Stroke Forced Air-Cooled Gasoline Engine
outlet size
40 mm (1.6")
Outlet Type
High-Pressure Nozzle (20 mm)
Outlet Water Oil Content
0% (Oil-Free Pumping)
Sealing Material
FKM
structure
Triple-Cylinder Hydraulic Diaphragm Pump
suction head
≥7 m
Surface Treatment
Powder-Coated (Red Oxidation Layer)
Material
Aluminum Alloy + Stainless Steel + FKM Seals
Flow Rate
155 L/min (Max) / 147 L/min (Rated)

Packaging and delivery

Selling Units
Single item
Single package size
85X55X70 cm
Single gross weight
120.0 kg
