6-10 Way Concealed Stainless Steel Row Box for Strong Current Lighting Household Power Distribution Equipment Distribution box

No reviews yet
$9.42
10-999 pieces
$8.97
1,000-99,999 pieces
$0.99
≥100,000 pieces
Select now

Color

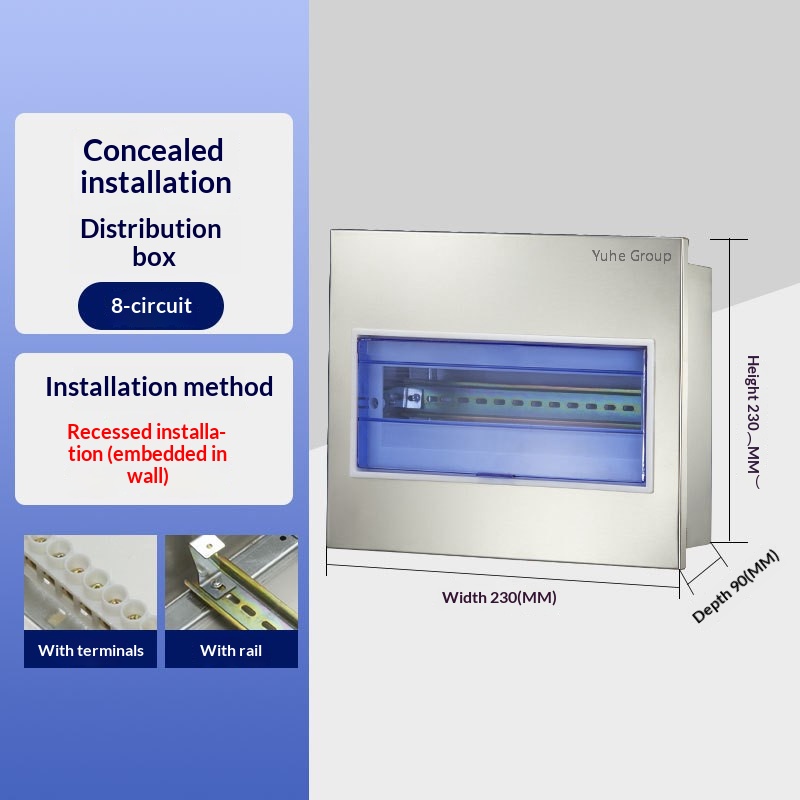

Concealed installation 6 Way
Concealed installation 8 Way
Concealed installation 10 Way

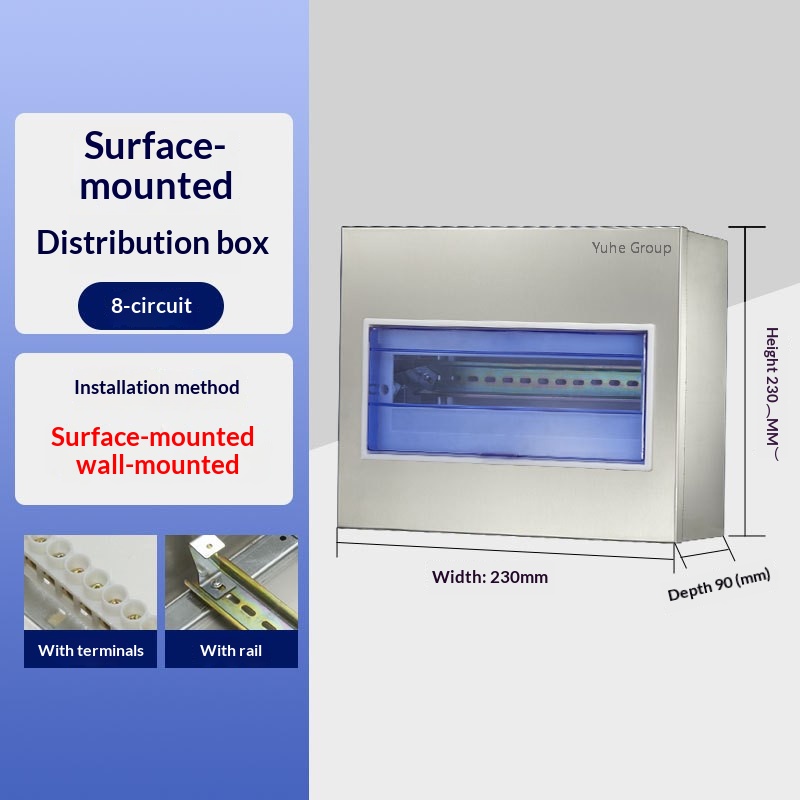

Surface mounting 6 Way
Surface mounting 8 Way
Surface mounting 10 Way

Size

Size

Key attributes

External Size

200*90*230mm, 230*90*230mm, 280*90*280mm

Material

Stainless Steel 304/201

IP level

-

Type

Distribution Box

Place of Origin

Guangdong, China

Model Number

YH-DMT023

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

External Size
200*90*230mm, 230*90*230mm, 280*90*280mm
Material
Stainless Steel 304/201
IP level
-
Type
Distribution Box
Place of Origin
Guangdong, China
Model Number
YH-DMT023
Brand Name
Yuhe
Surface Treatment
Passivation
Product Type
Stainless steel distribution box for electrical circuits.
Mounting Type
Surface mounted on wall or recessed into wall.
Enclosure Material
Grade 201 or 304 stainless steel, corrosion resistant.
Surface Finish
Brushed stainless steel or powder coated finish.
Number of Circuits
6, 8, 10, 12, 15, 18, 20, 24, 30, 36, 40, 45 circuits.
Overall Height
From 230mm to 640mm depending on circuit count.
Overall Width
From 200mm to 460mm depending on circuit count.
Overall Depth
90mm standard for both surface and recessed types.
Recessed Depth
90mm fits standard wall embedding.
Terminal Block
Includes neutral and ground terminal blocks.
DIN Rail
Pre-installed DIN rail for mounting breakers.
Door Type
Solid hinged door or transparent window door.
Lock Type
Cam lock or padlock hasp for security.
Cable Entry
Knock-out holes at top, bottom, and sides.
Internal Capacity
Holds MCB, RCD, RCBO, and other DIN devices.
Flush Mount Frame
Frame for embedding into wall prior to plastering.
Surface Mount Back
Solid backplate with mounting holes.
Thickness
0.8mm to 1.2mm stainless steel.
Protection Rating
IP30 to IP65 depending on model and sealing.
Operating Temp
-15°C to +40°C for indoor use.
Color
Natural stainless steel or custom RAL.
Window Material
Tempered glass or transparent PC (optional).
Accessory Included
Screws, terminal blocks, DIN rail, earthing bar.
Customizable
Circuit count, size, cutouts, logo available.
Application
Residential, commercial, industrial power distribution.
Wall Mounting
Keyhole slots or screw holes for wall fixing.
Grounding Terminal
Dedicated earthing terminal inside box.
Cable Clamp
Optional cable tie points or clamps.
Box Construction
Welded or folded seam, rigid and durable.
OEM Service
Custom dimensions, color, and branding.

Packaging and delivery

Selling Units
Single item
Single package size
32X28X90 cm
Single gross weight
2.5 kg

Lead time

Customization options

Graphic customization(+ from /Min. order: 10,000 pieces)
Customized packaging(+ from /Min. order: 100,000 pieces)
Customized logo(+ from /Min. order: 1,000 pieces)
