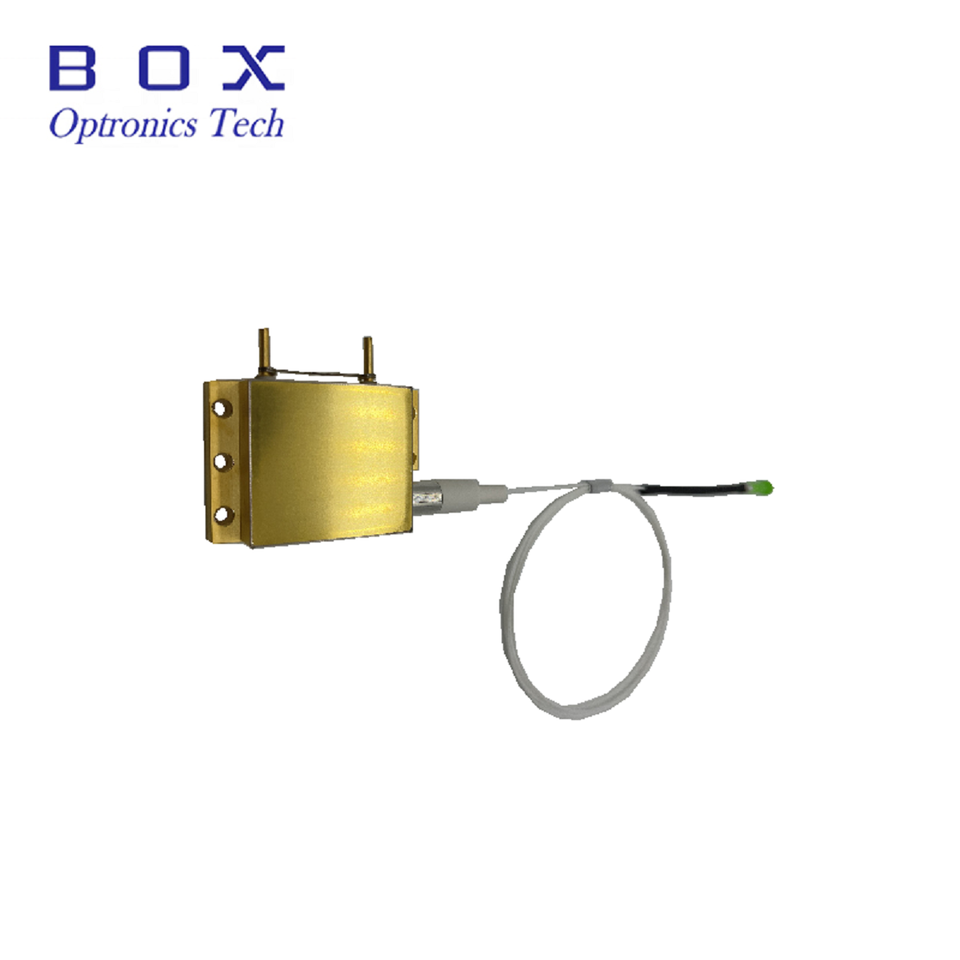

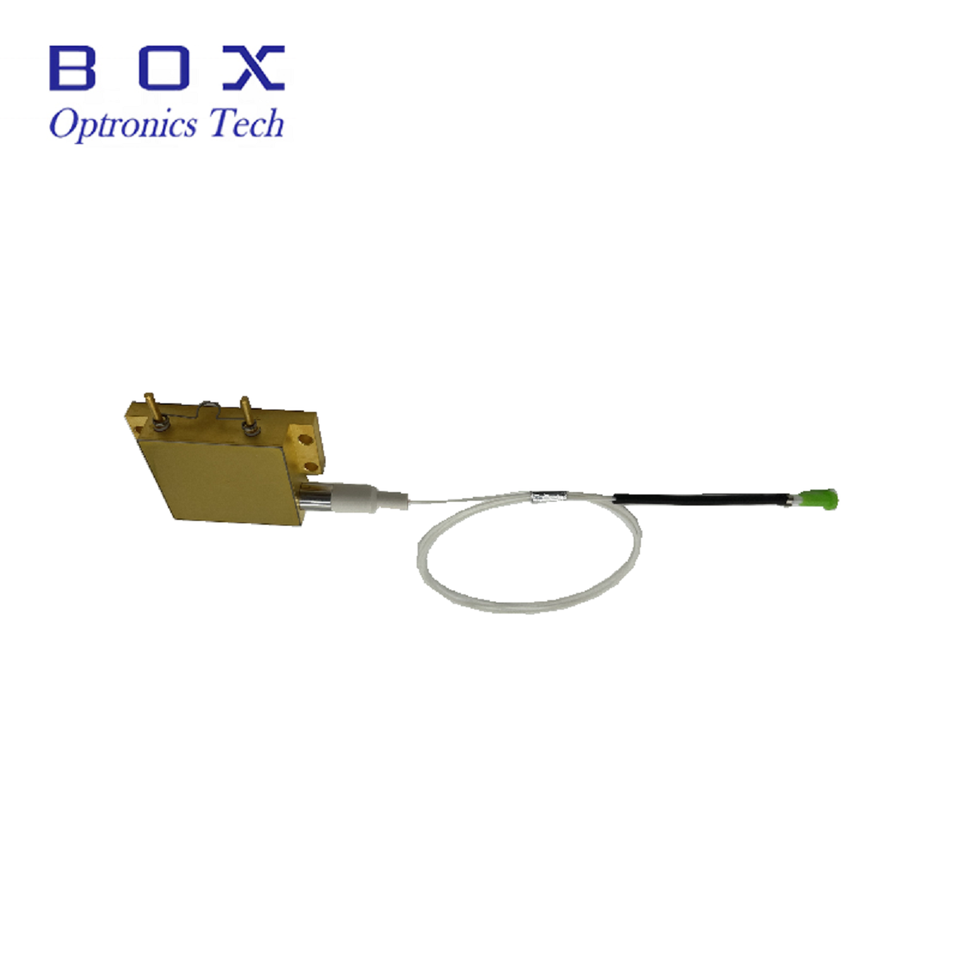

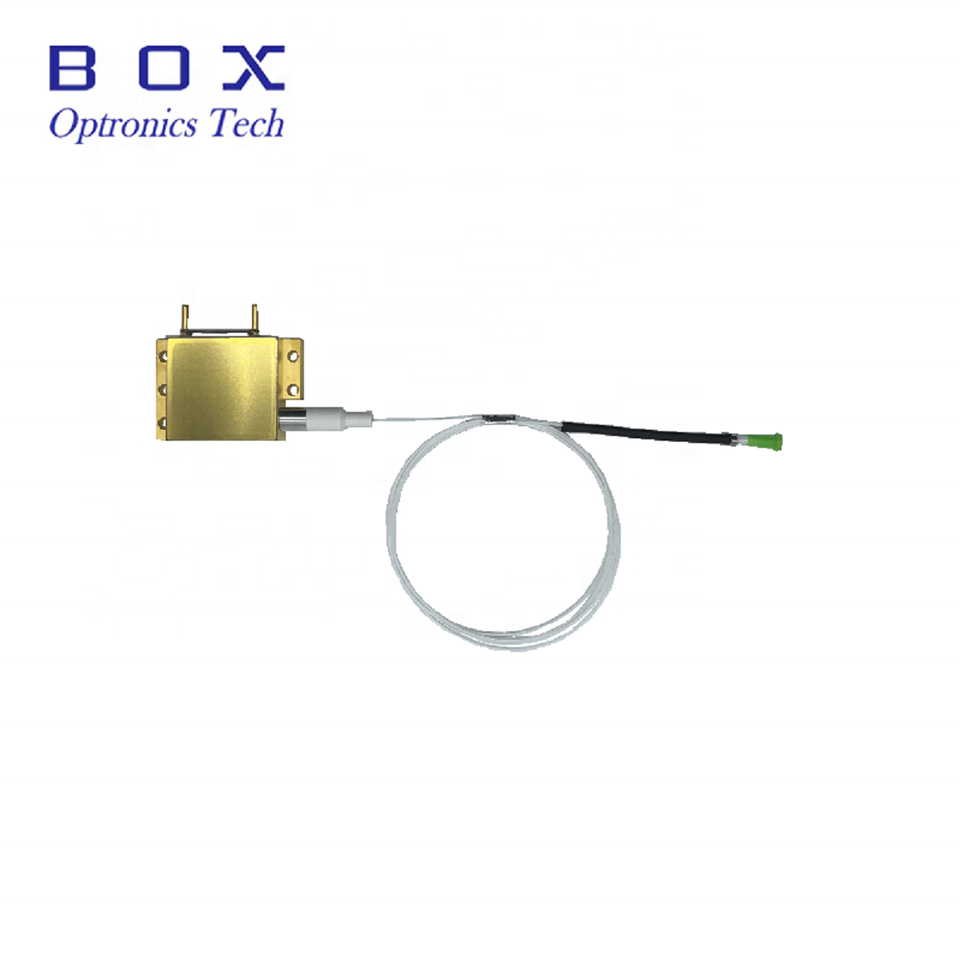

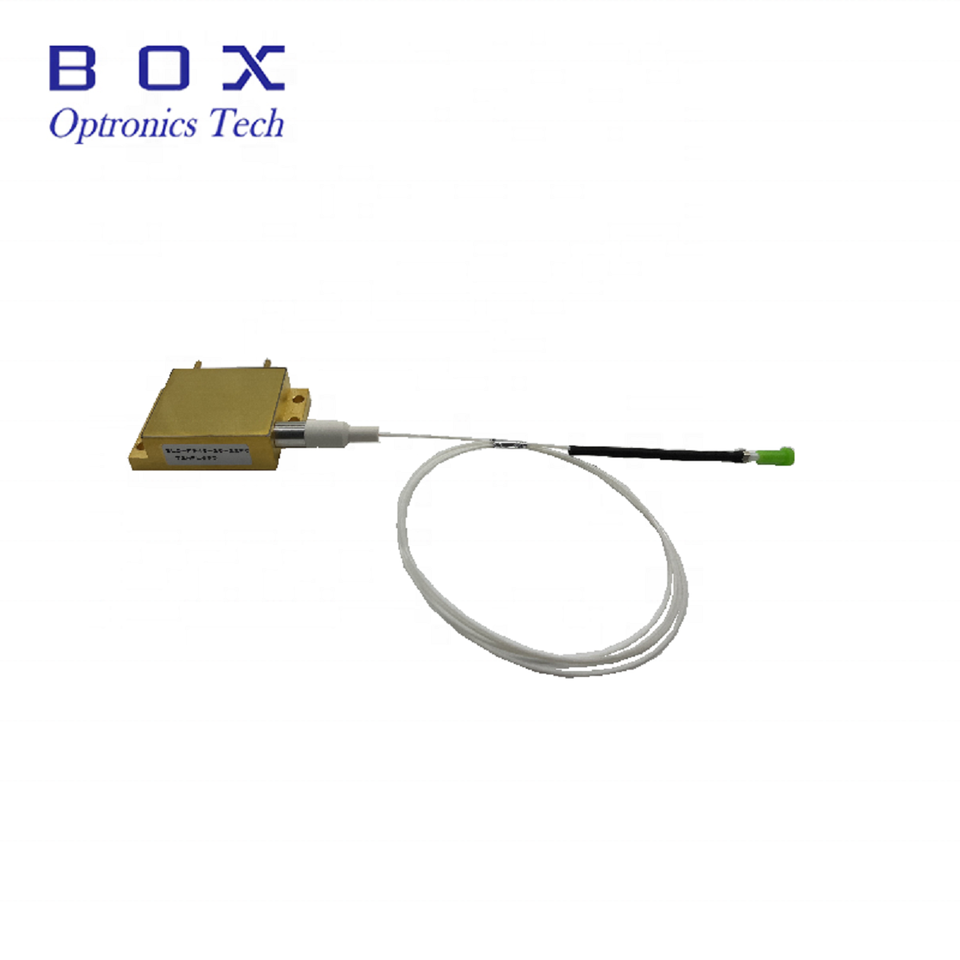

808nm 10W Fiber Coupled Diode Laser 105um 0.22NA SMA905 Connector for Medical and Pumping Applications

No reviews yet1 sold
$182
Minimum order quantity: 1 unit
Specification
Customization options
FIBER TYPE (Min. order: 1 unit)

Key attributes

Mounting Type

Butterfly Package

Manufacturer Part Number

BLD-F808-10-22N0

Brand Name

Box Optronics

Description

808nm 10W High Power Fiber Coupled Laser Diode 105μm Core SMA905 Connector

Type

Fiber Coupled Laser Diode

Place of Origin

Guangdong, China

Shipping
Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Key attributes

Mounting Type
Butterfly Package
Manufacturer Part Number
BLD-F808-10-22N0
Brand Name
Box Optronics
Description
808nm 10W High Power Fiber Coupled Laser Diode 105μm Core SMA905 Connector
Type
Fiber Coupled Laser Diode
Place of Origin
Guangdong, China
Package Type
Fiber Output Module Package
Package / Case
Module Package with SMA905 Output
Operating Temperature
-10℃ to +50℃
Application
Pumping Medical Beauty Industrial Processing
Supplier Type
Mass Production In Stock
Media Available
Datasheet Available Upon Request
Max. Forward Voltage
≤2.2V
Max. Reverse Voltage
2V
Max. Forward Current
8A
Max. Reverse Current
≤10μA
Diode Type
High Power Laser Diode
Technology
Fiber Coupling Packaging Technology
Voltage - Peak Reverse (max)
2V
Voltage - Forward (Vf) (Max) @ If
2.0V @ 7A
Current - Reverse Leakage @ Vr
≤10μA @ 2V
Diode Configuration
Single Chip
Voltage - DC Reverse (Vr) (Max)
2V
Current - Average Rectified (Io) (per Diode)
N/A
Speed
Industrial Grade
Capacitance @ Vr, F
≤100pF
Current - Max
8A
Resistance @ If, F
N/A
Power Dissipation (Max)
10W
Capacitance Ratio
N/A
Capacitance Ratio Condition
N/A
Q @ Vr, F
N/A
Configuration
With 105μm Fiber SMA905 Output
Tolerance
Wavelength ±5nm Output Power ±5%
Product Type
High Power Fiber Coupled Laser Diode
Center Wavelength
808nm
Rated Output Power
10W
Fiber Core Diameter
105μm
Connector Type
SMA905 Connector
Maximum Forward Current
≤8A
Package Type
Fiber Output Module Package
Wavelength Tolerance
±5nm
Operating Temp Range
-10℃ to +50℃
Typical Applications
Pumping Medical Aesthetics Industrial Processing
