8kw Single Phase Hybrid System Expandable 14kwh 15kwh 16kwh Lifepo4 Battery for Whole House Energy Solution All in One Machine

No reviews yet
certified
$3,500
1-19 pieces
$3,300
20-29 pieces
$2,950
≥30 pieces
Select now

Color

White

Output voltage

AC 120V / 240V
AC 120V/220V
AC 230V/400V
AC 220V/380V

Capacity

5KWH
10KWH
15KWH
20KWH
14kwh
16kwh

+ 1 more variants

Customization options
Logo/graphic design+$100/piece (Min. order: 10 pieces)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

System Voltage

51.2 V

Output Power Range

10-20Kw

Grid connection

Hybrid grid

Battery Type

Lithium Ion

Place of Origin

Guangdong, China

System Type

Stackable, Rack-mounted

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Service

Free replacement parts & online technical support
Free replacement parts & online technical support
Custom design in 3 days
Custom design in 3 days

Key attributes

System Voltage
51.2 V
Output Power Range
10-20Kw
Grid connection
Hybrid grid
Battery Type
Lithium Ion
Place of Origin
Guangdong, China
System Type
Stackable, Rack-mounted
Model Number
CES-JA1607-M
Brand Name
JApower

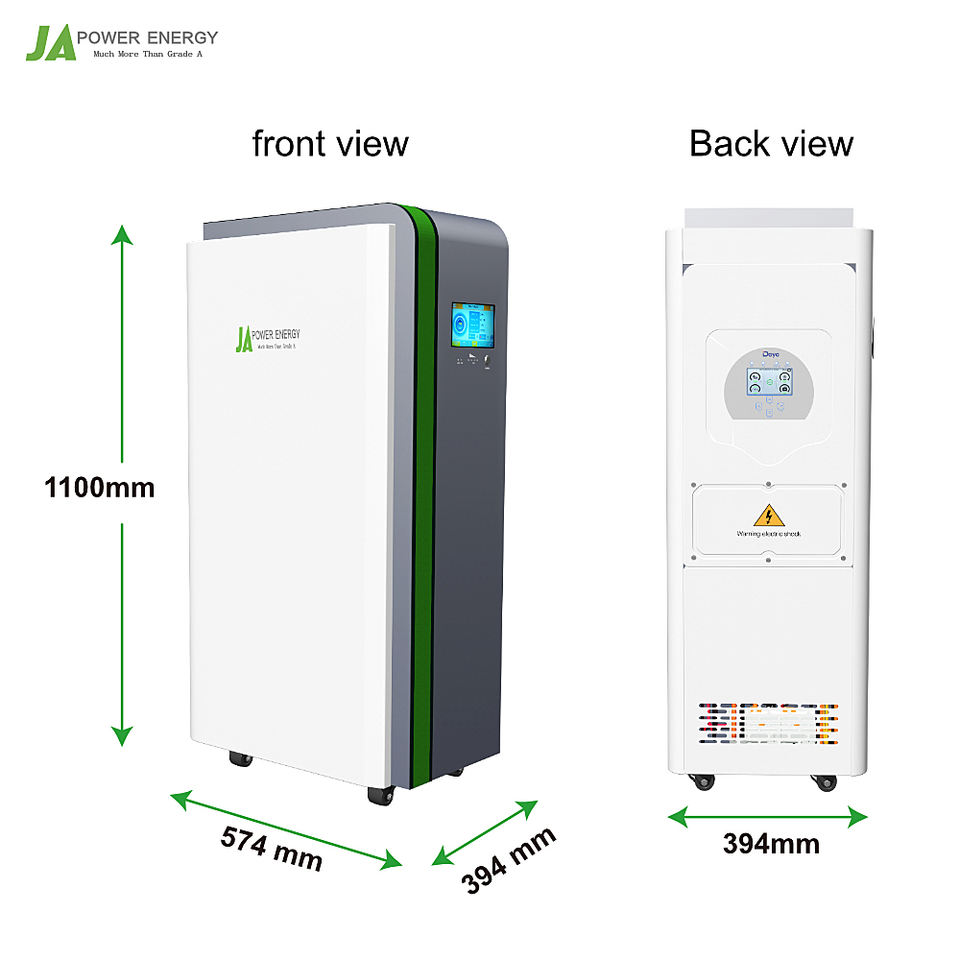

Dimension (L*W*H)
574*400*1200mm(contain inverter)
Weight
153KG
Type
All-In-One
Communication Port
CAN, RS-232, RS485
Protection Class
IP66, IP65
Max. charging/discharging efficiency
95%
Operating Temperature Range (°C)
-40-60(>45°℃ derating)
System Certification
UN38.3, IEC62619,CE,CEI 0-21.VDE-AR-N 4105,IEC 62109
Warranty
15 years
Peak Power (off grid)
1.5 time of rated power, 10s
Permissible Ambient Humidity
0~100%
Power Factor
0.8 leading to 0.8 lagging
DC injection current (mA)
<0.5%In
Total Current Harmonic Distortion THDi
<3%(of nominal power)
Max Parallel connection sets
16
