Attributes
ALTPKModel Number

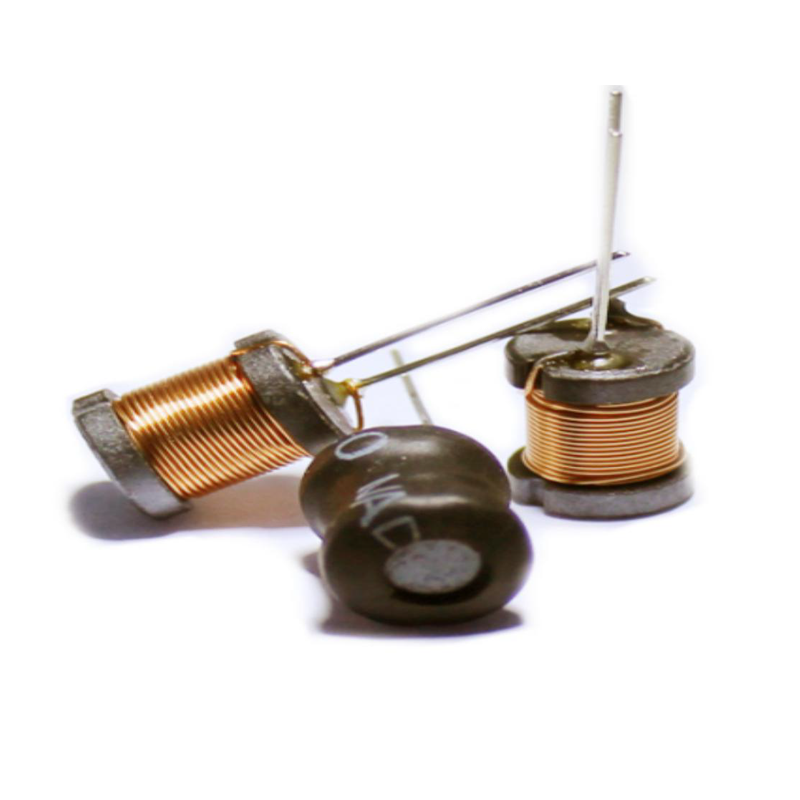

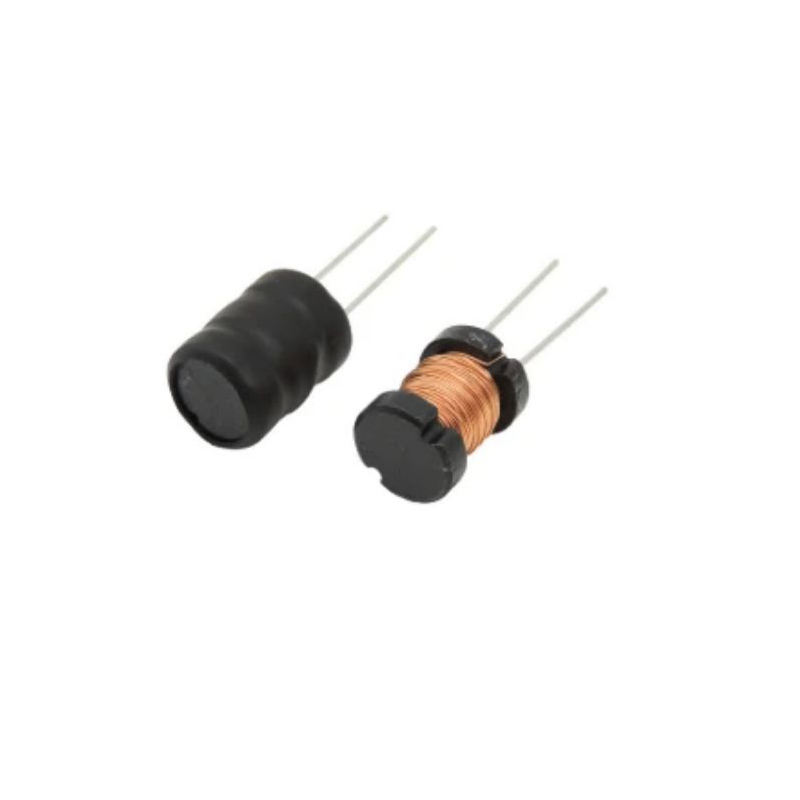

I-shaped InductorType
AolittelBrand Name
For TV, radios and radio transceivers, telephonesApplication
Not ApplicableRated Power
DIPMounting Type
Place of Origin:Guangdong, China
D/C:0.25
Brand:AOLITTEL
Supplier Type:DC AC
Cross Reference:ALT inductance
Tolerance:10%
Operating Temperature:-25~125
Package Type:Not Applicable
Resistance Tolerance:10%
Temperature Coefficient:55
Resistance:Not Applicable
Media Available:ALT
Frequency - Self Resonant:1khz
Features:choke
Height - Seated (max):32mm
Function:choke
Inductance:1uh to 22000uh
Q @ Freq:Not Applicable
Package / Case:copper wire
Size / Dimension:8x5.5mm
Heigh:5.5mm
Number of Coils:Not Applicable
Inductance - Connected In Parallel:1uh to 22000uh
Inductance - Connected In Series:1uh to 22000uh
Current Rating - Parallel:2000mA~24mA
Current Saturation - Parallel:2000mA~24mA
Current Saturation - Series:2000mA~24mA
DC Resistance (DCR) - Parallel:0.035~160
DC Resistance (DCR) - Series:0.035~160
Shielding:copper wire
Material - Core:copper wire
Current Rating (amps):2000mA~24mA
Current - Saturation:2000mA~24mA
DC Resistance (DCR):0.035~160
Packing:BOX
Material:Copper Wire
Inductance:1uh to 22000uh
Selling Units:Single item
Single package size:10X5X7 cm
Single gross weight:0.060 kg
