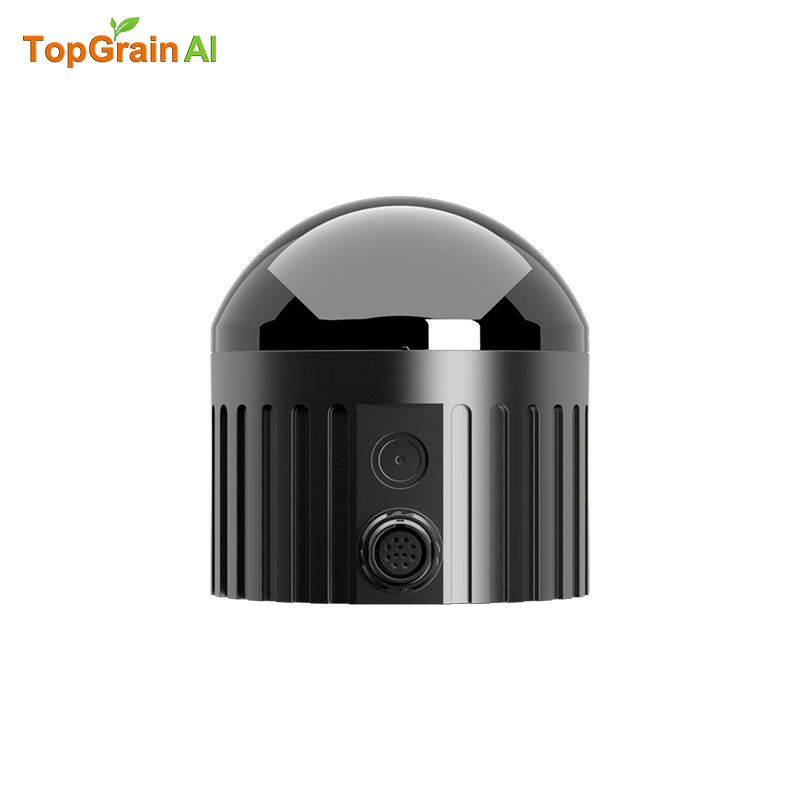

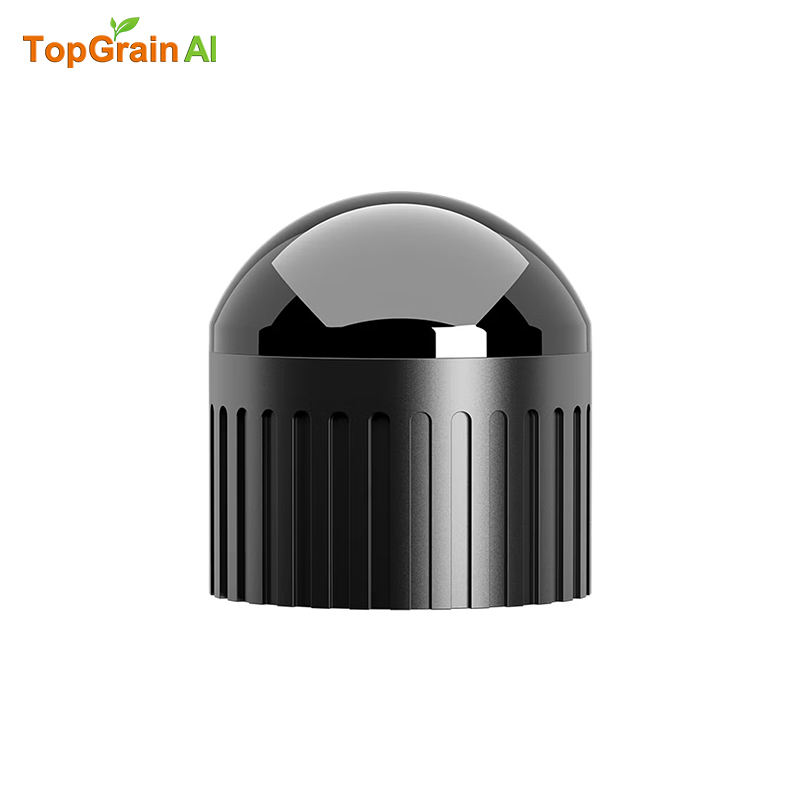

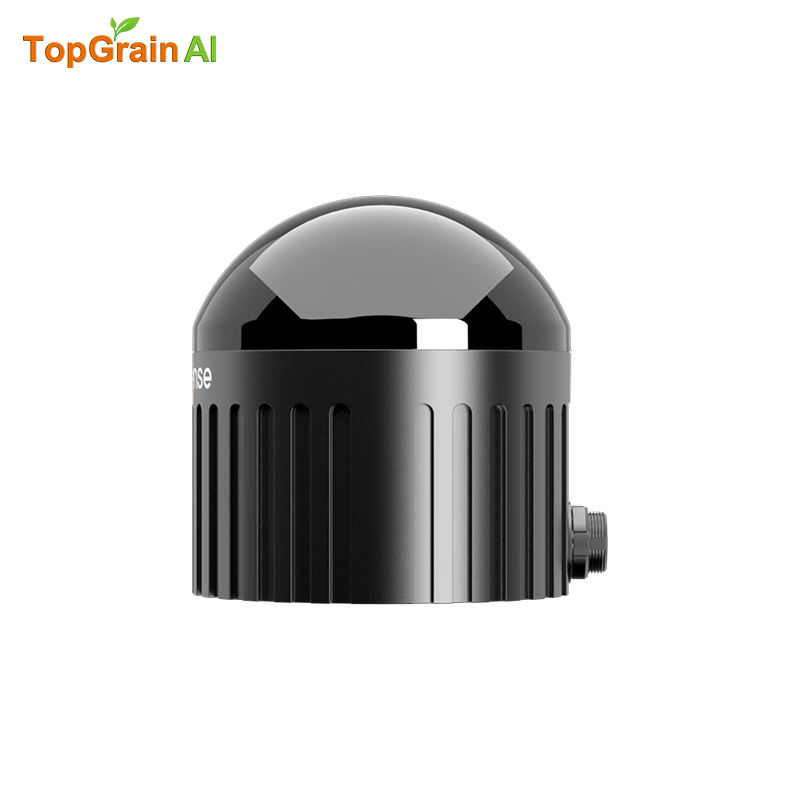

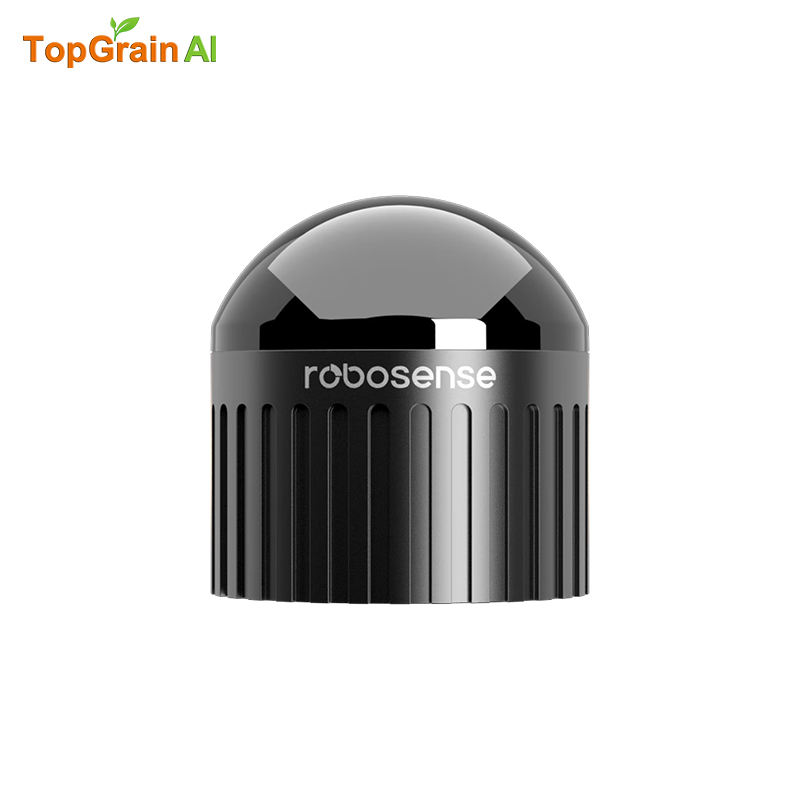

96-Beam RoboSense Airy 3D LiDAR Sensor Robot Obstacle Avoidance Scanner 360 FOV 30m Sensing Range Service Robots AMR AGV SLAM

No reviews yet
$1,010
Minimum order quantity: 1 piece
Sample price: $1,010
Select now

Specification

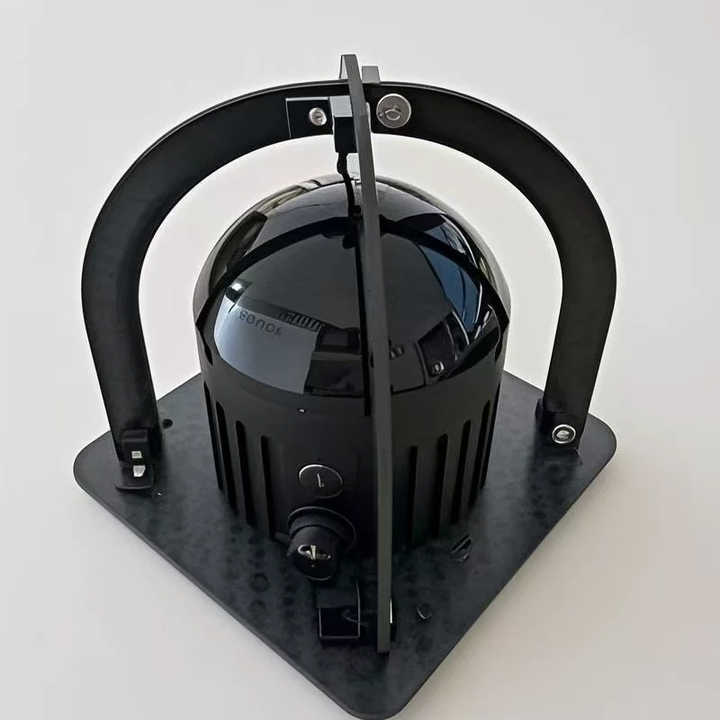

Airy+Accessory Kit (96-Beam)
Customization options
Customized packaging (Min. order: 200 pieces)

Key attributes

Mounting Type

Hemispherical

Manufacturer Part Number

Airy 96-Beam

Brand Name

RoboSense

Usage

Automatic Driving,ADAS,Robot,Train,Vehicle

Output

3D Data

Description

Original Robosense 96 beam LiDAR

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Mounting Type
Hemispherical
Manufacturer Part Number
Airy 96-Beam
Brand Name
RoboSense
Usage
Automatic Driving,ADAS,Robot,Train,Vehicle
Output
3D Data
Description
Original Robosense 96 beam LiDAR
Place of Origin
China
Series
Airy
Theory
LiDAR
Brand
Robosense
Amplifier Type
940nm laser transceiver scheme
Voltage - Supply
9V~32V
Output Type
3D spatial point cloud data
Current - Supply
9V - 32V
Operating Temperature
-40°C ~ +60°C
Resolution (Bits)
0.4° /0.947°
Features
High precision, high resolution, etc.
Current - Supply (Max)
9V - 32V
Packaging
Original
Frequency
10Hz
Output Configuration
~860000 points/s
Current
0.25A ~ 0.9A
Voltage Rating
9V - 32V
Operating Force
NO
Oxygen Range
NO
Humidity Range
Other
Size
LiDAR
Size / Dimension
60mm x 60mm x 63mm
Measuring Range
30m@10%
Resolution
0.4° /0.947°
Interface
Aviation connector
Technology
LiDAR
Sensing Range
30m@10%
Current - Output (Max)
9V - 32V
Bandwidth
NO
Function
3D Mapping, Obstacle Detection
Acceleration Range
NO
Sensitivity (LSB/g)
NO
Sensitivity (mV/g)
NO
Sensitivity (LSB/(°/s))
NO
Sensitivity (mV/°/s)
NO
Sensing Distance
30m@10%
Current - Output
9V - 32V
Power - Rated
8W
Voltage - Output Difference (Typ) @ Distance
NO
Voltage - Output (Typ) @ Distance
NO
Voltage - Max
9V - 32V
Voltage - DC Reverse (Vr) (Max)
9V - 32V
Power - Max
8W
Sensing Object
People,vehicles,obstacles,traffic signs etc.
Sensing Light
NO
Resistance
NO
Resistance Tolerance
NO
Sensing Temperature - Local
NO
Sensing Temperature - Remote
NO
Current Rating - AC
9V - 32V
Current Rating - DC
9V - 32V
Tolerance
NO
Voltage - Rated
9V - 32V
Flow Sensor Type
NO
Voltage - Input
9V - 32V
Application
robot navigation
Output Function
3D spatial point cloud data
Mfg Date Code
2026 and Newer
Cross Reference
NO
Product Name
Robosense 3D LiDAR
Item Number
Airy
Wavelength
Wavelength
Distance measurement capability
30m@10%
Field of view angle(horizontal*vertical)
360°*90°
Number of lines
196/96/48
Operation temperature
-40℃~+60℃
Weight (excluding data cable)
240g
