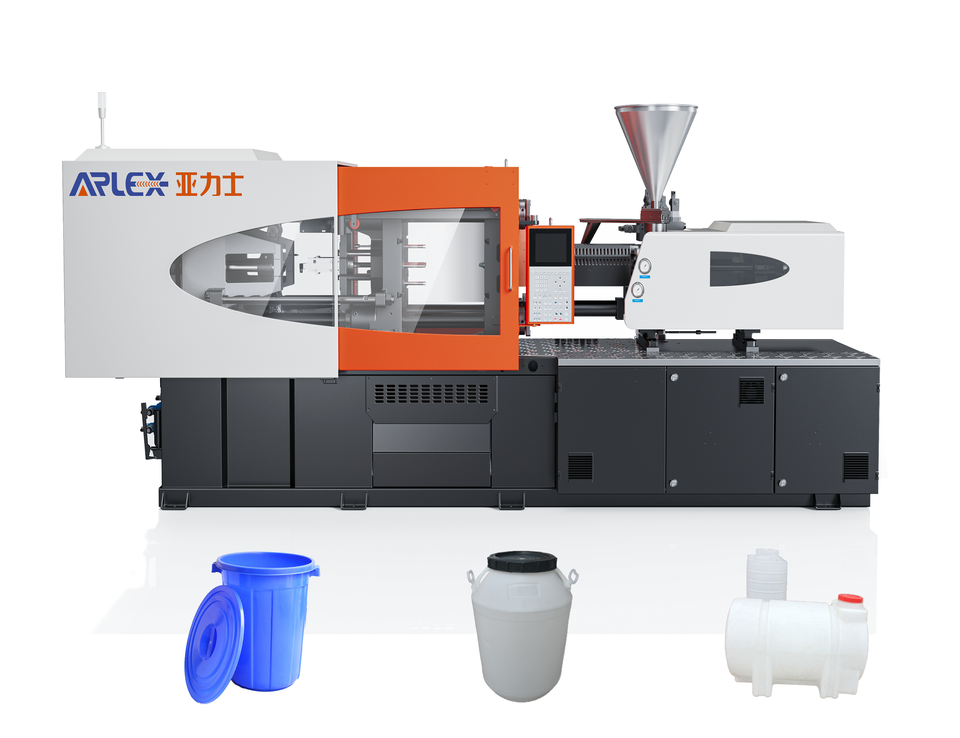

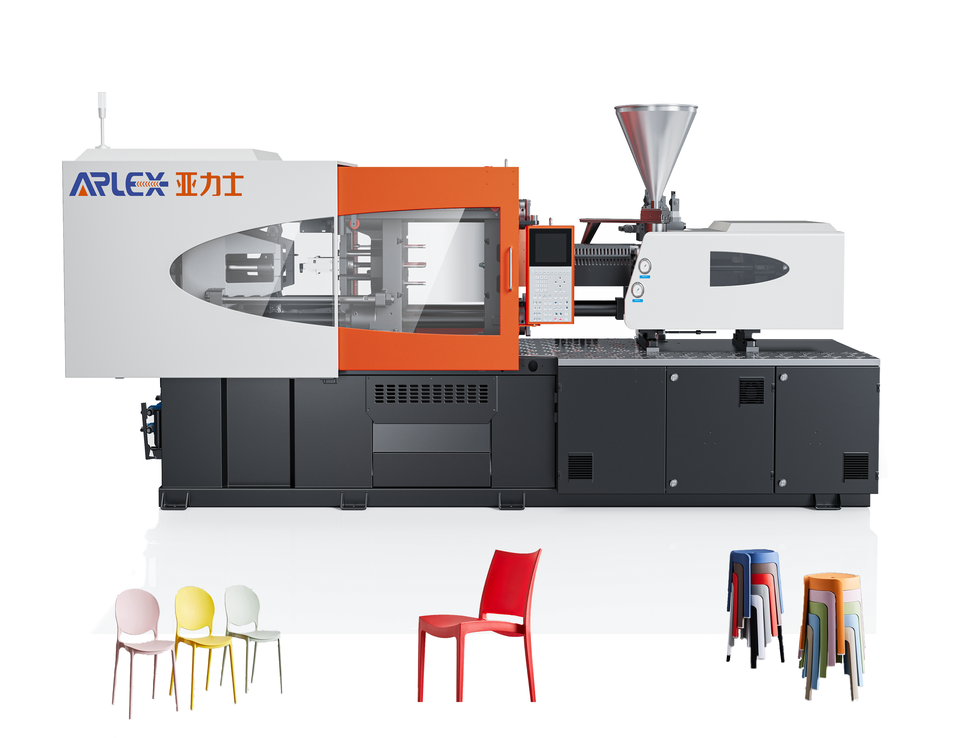

Arlex AX568 Energy Saving High Precision Automatic Horizontal Hydraulic Injection Molding Machine for PET/ABS/PP/PC/PA/EPS
No reviews yetEU Machinery Compliance
EU Machinery Compliance
Attributes
Hydraulicmachine type

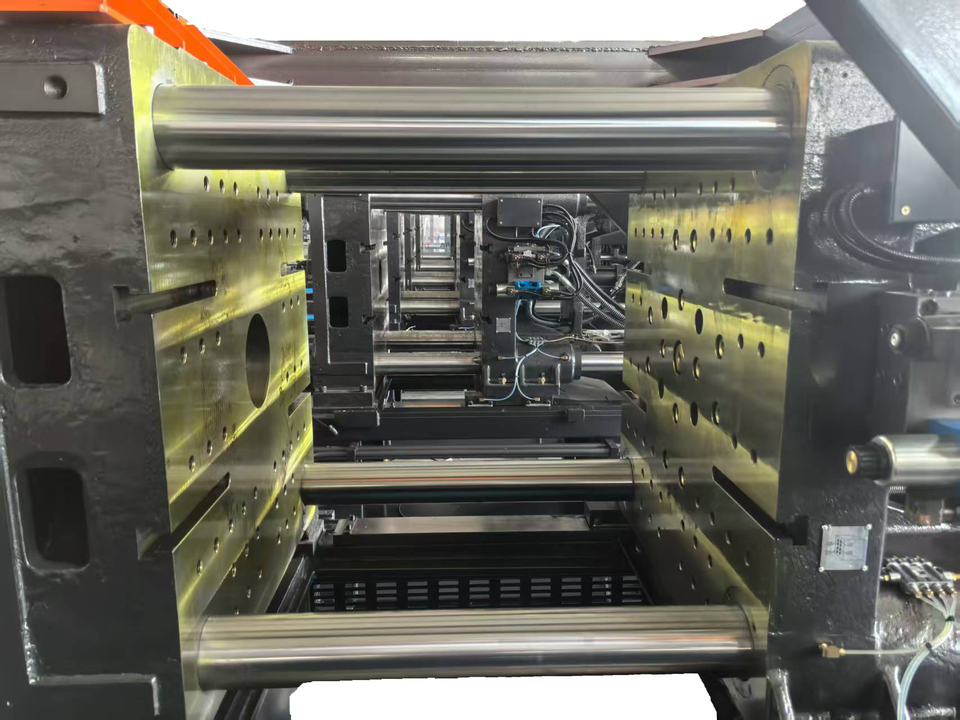

830*830 mmdistance between tie bars
PP, Silicon, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acidplastic processed
Horizontalstyle
Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly, Automatic, High Productivity, Long Service Life, Flexible Manufacturing, Low Noise Level, Remote Control, Wide Space Between Tie-Bars, Low Maintenance Costkey selling points
17ejector number
core components:Pump, Motor, Bearing, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, Other
warranty:2 Years
machinery test report:Provided
video outgoing-inspection:Provided
Raw Material:Polyethylene (Pe), Polypropylene (PP), Polyvinyl Chloride (PVC), Polyester (PET), Polyamide (Pa), Polyethylene Terephthalate Glycol (PETG), Polyvinylidene Chloride (PVDC)
plasticizing capacity(g/s):68
injection weight (g):2273
injection rate (g/s):482
weight (kg):22000
place of origin:Zhejiang, China
power (kw):76
mold height(mm):350 - 850
ejector stroke(mm):230
ejector force(kn):150
theoretical shot volume(cm³):2498
screw speed (rpm):0 - 155
screw diameter (mm):85
Screw L/D Ratio:21.7
open stroke(mm):820
model number:AX568-B
brand name:Arlex
Product name:Hydraulic Injection Molding Machine
Machine Dimension:9.42*2.20*2.90m
Machine Weight:22000KG
Oil Tank Capacity:950 L
Heater Power:35.5KW
Max Pump Pressure:16 Mpa
Injection Pressure:163 Mpa
Colour:Orange White
Usage:Plastic Product Molding
Application:PLASTIC ITEMS PRODUCING
Service
Free replacement parts & online technical support
Key attributes
machine type
Hydraulic
distance between tie bars
830*830 mm
plastic processed
PP, Silicon, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
style
Horizontal
key selling points
Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly, Automatic, High Productivity, Long Service Life, Flexible Manufacturing, Low Noise Level, Remote Control, Wide Space Between Tie-Bars, Low Maintenance Cost
ejector number
17
core components
Pump, Motor, Bearing, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, Other
warranty
2 Years
machinery test report
Provided
video outgoing-inspection
Provided
Raw Material
Polyethylene (Pe), Polypropylene (PP), Polyvinyl Chloride (PVC), Polyester (PET), Polyamide (Pa), Polyethylene Terephthalate Glycol (PETG), Polyvinylidene Chloride (PVDC)
plasticizing capacity(g/s)
68
injection weight (g)
2273
injection rate (g/s)
482
weight (kg)
22000
place of origin
Zhejiang, China
power (kw)
76
mold height(mm)
350 - 850
ejector stroke(mm)
230
ejector force(kn)
150
theoretical shot volume(cm³)
2498
screw speed (rpm)
0 - 155
screw diameter (mm)
85
Screw L/D Ratio
21.7
open stroke(mm)
820
model number
AX568-B
brand name
Arlex
Product name
Hydraulic Injection Molding Machine
Machine Dimension
9.42*2.20*2.90m
Machine Weight
22000KG
Oil Tank Capacity
950 L
Heater Power
35.5KW
Max Pump Pressure
16 Mpa
Injection Pressure
163 Mpa
Colour
Orange White
Usage
Plastic Product Molding
Application
PLASTIC ITEMS PRODUCING
Packaging and delivery
Selling Units
Single item
Lead time
Minimum order quantity: 1 set
$65,600
Variations
Select nowclamping force
5680KN
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
