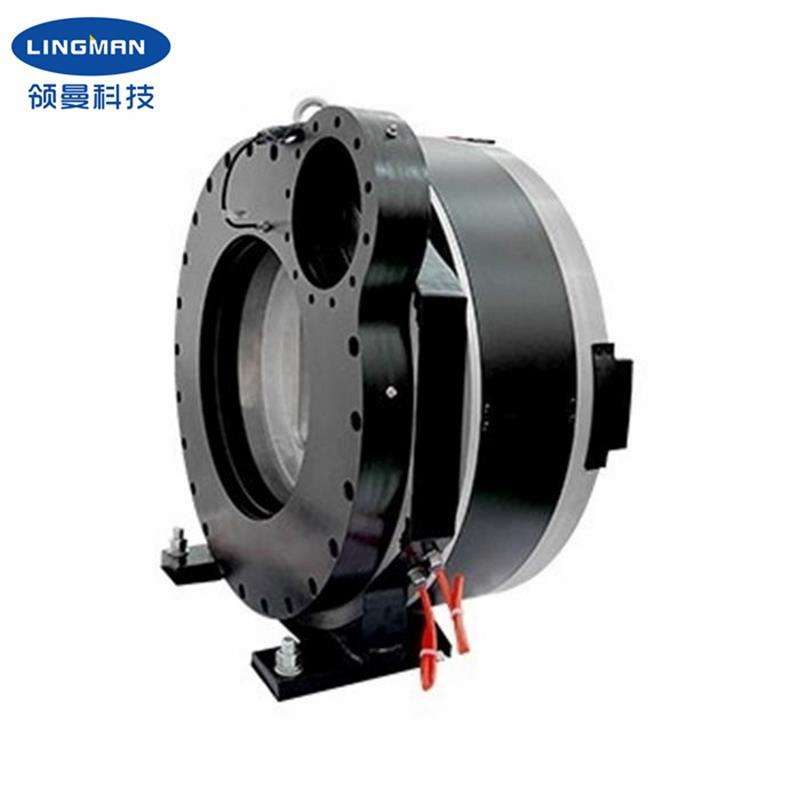

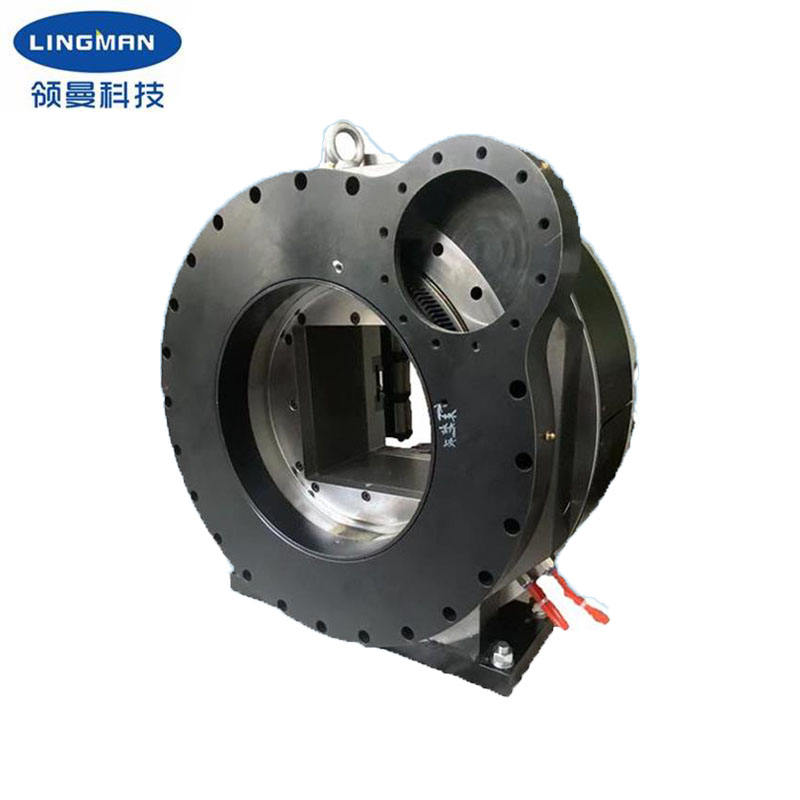

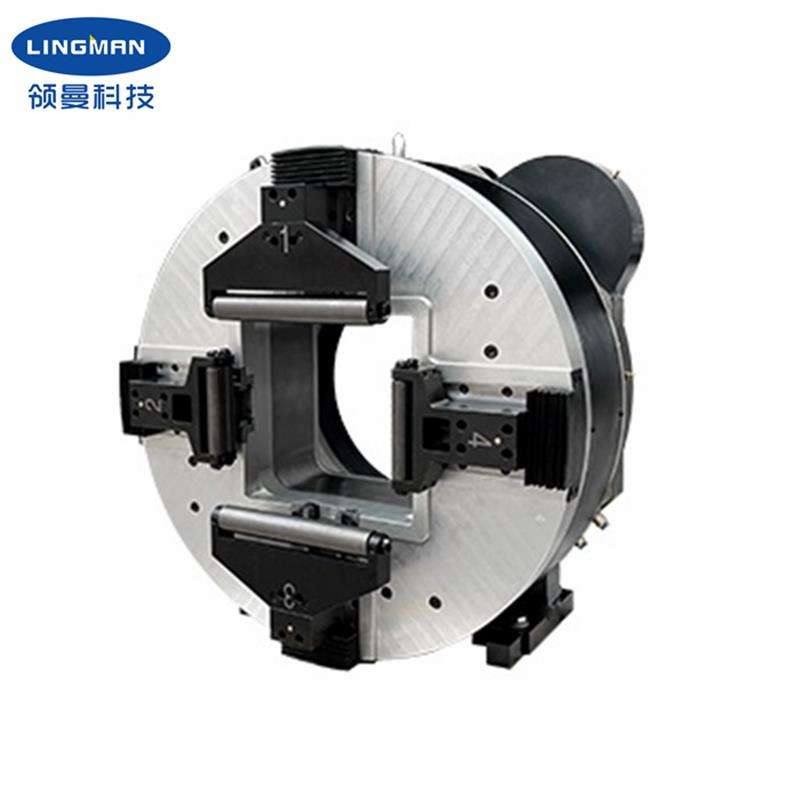

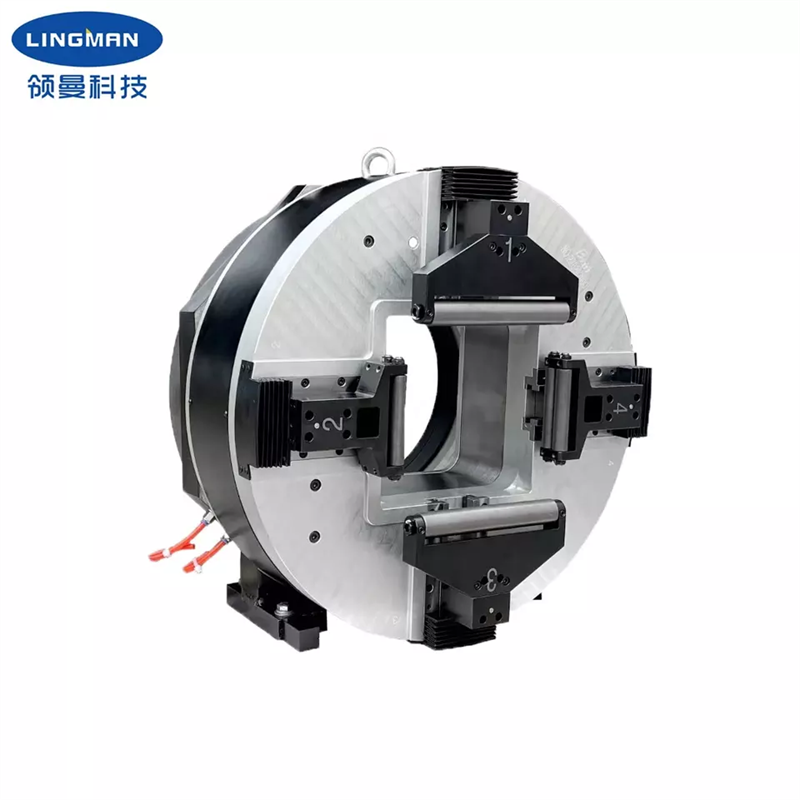

Automatic 4 Jaw Rotary Pneumatic Laser Chuck for Fiber Laser Pipe Cutting Machine for 160mm Pipes

No reviews yet5 sold
$2,100-4,300
Minimum order quantity: 1 set
Select now

size

100mm Hollow
130mm Hollow
175mm Hollow
245mm Hollow
365mm Hollow

Type

Laser Pneumatic Chuck

Key attributes

material

Steel

number of jaws

4

customized support

OEM, ODM, OBM

Application

Metal Cutting

brand name

Lingman

place of origin

Jiangsu, China

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

material
Steel
number of jaws
4
customized support
OEM, ODM, OBM
Application
Metal Cutting
brand name
Lingman
place of origin
Jiangsu, China
Accuracy
0.05 mm
Hardness
HRC 40
Overall Length
400 mm
model number
F175DF
Chuck type
Pneumatic Chuck
Clamping Method
Pneumatic Clamping
For Drill Chuck Mounting Type
Straight Shank
power
Pneumatic
warranty
1 YEAR
Product Name
Pneumatic Chuck
Stroke
170mm
Allowable pressure
0.3-0.9MPa
Clamping range
5-175mm
Central height
260mm
Rotational inertia
3.2kg.㎡
Whole unit weight
190kg
Central diameter
175mm
Application
Laser pipe cutting machine
clamping range
0-175MM

Packaging and delivery

Selling Units
Single item
Single package size
70X40X80 cm
Single gross weight
190.0 kg

Lead time
