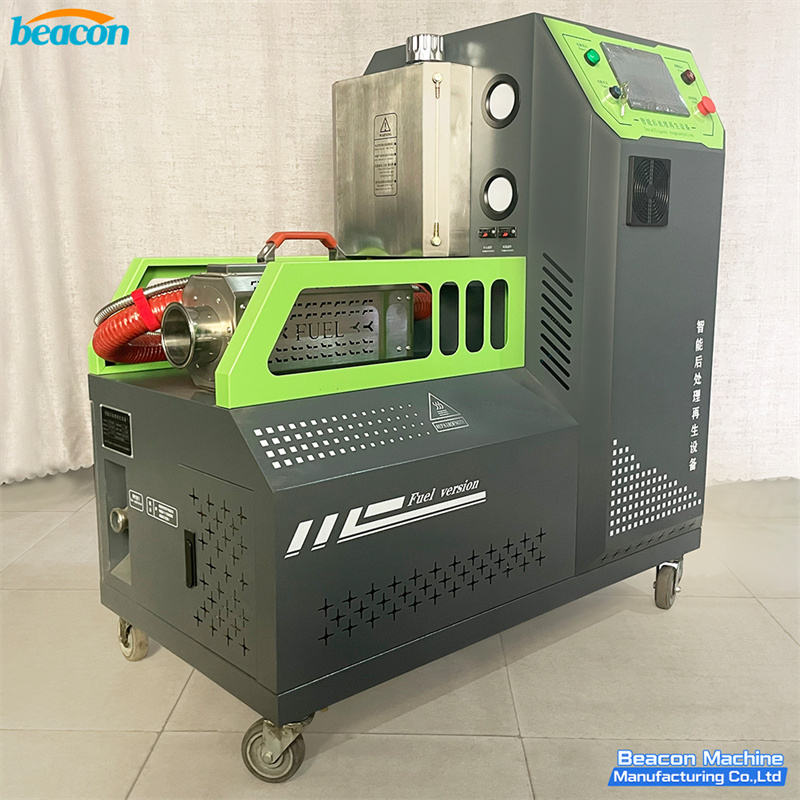

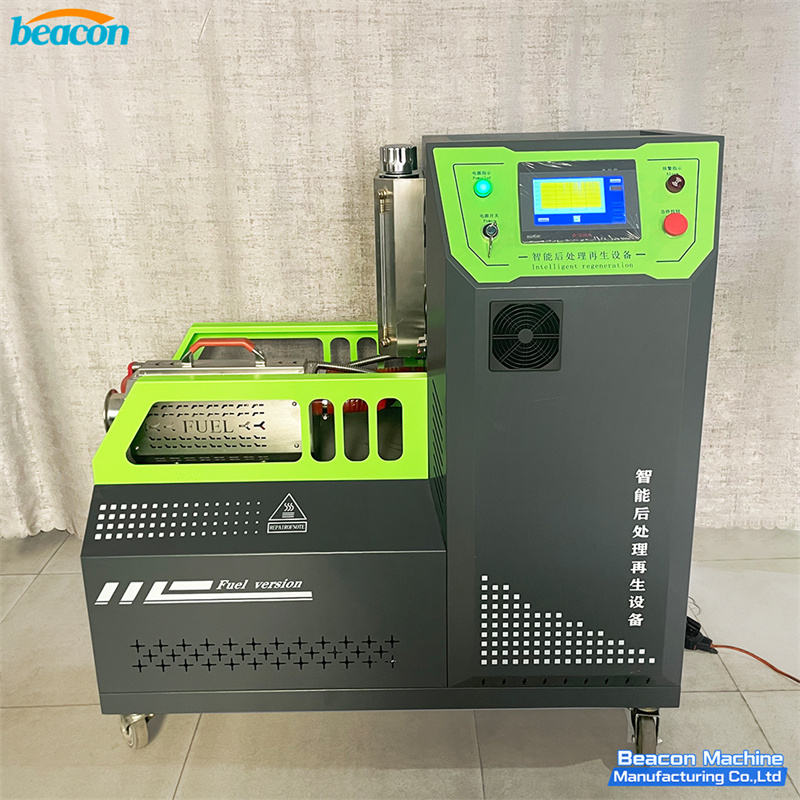

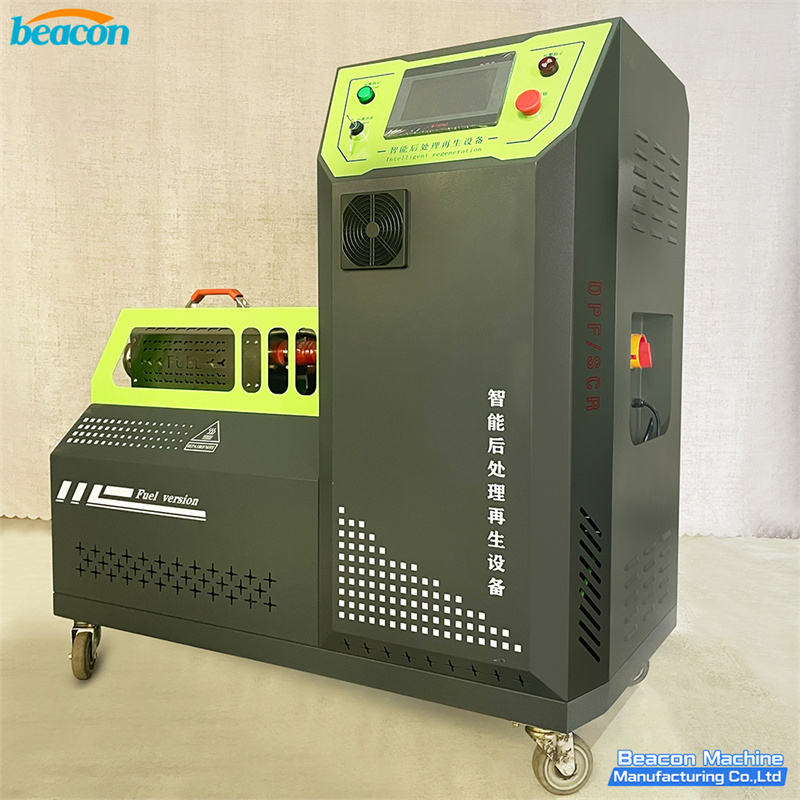

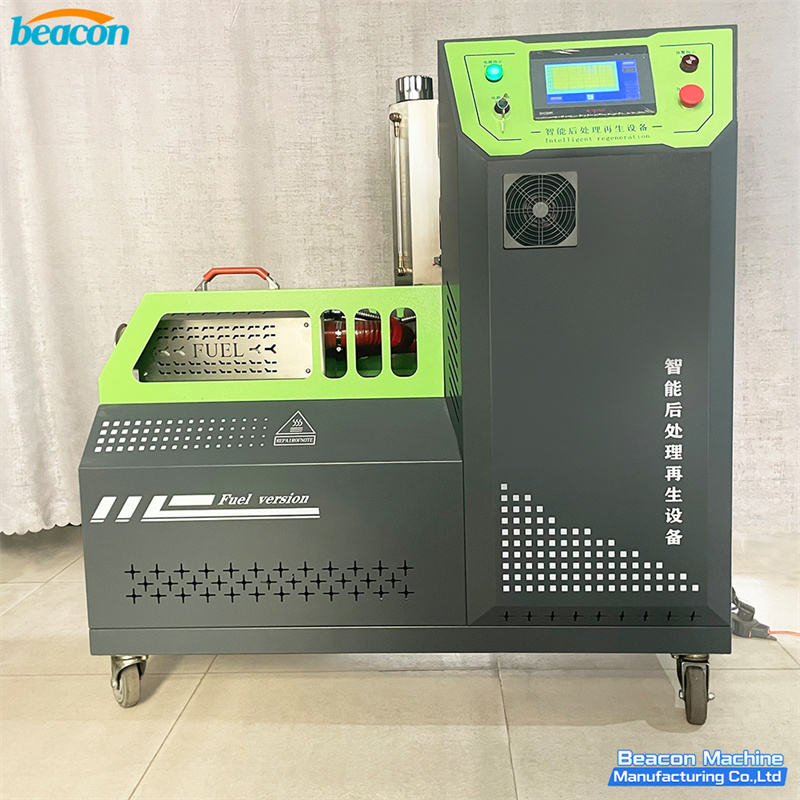

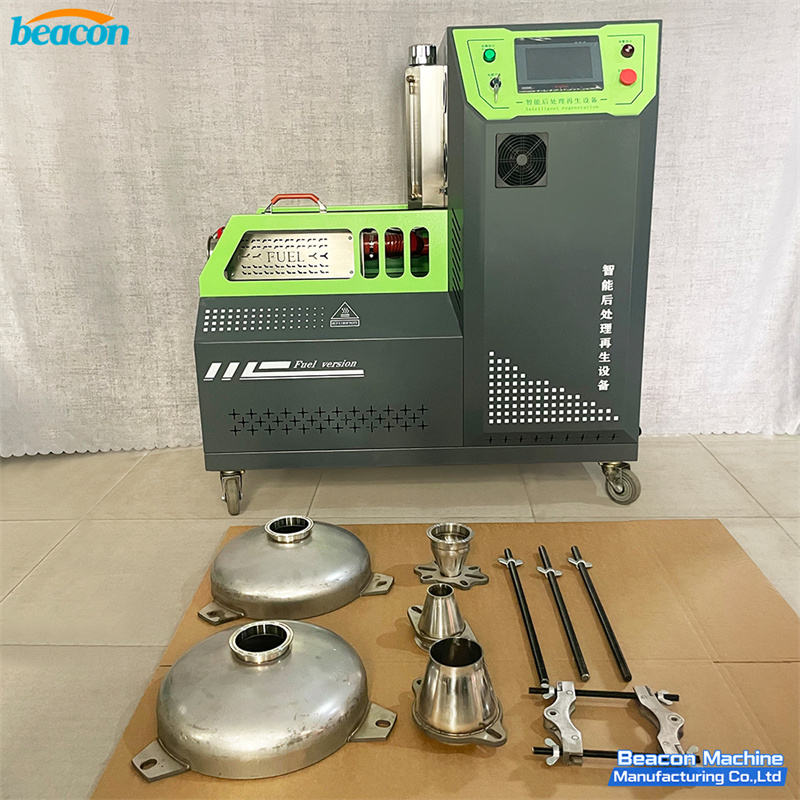

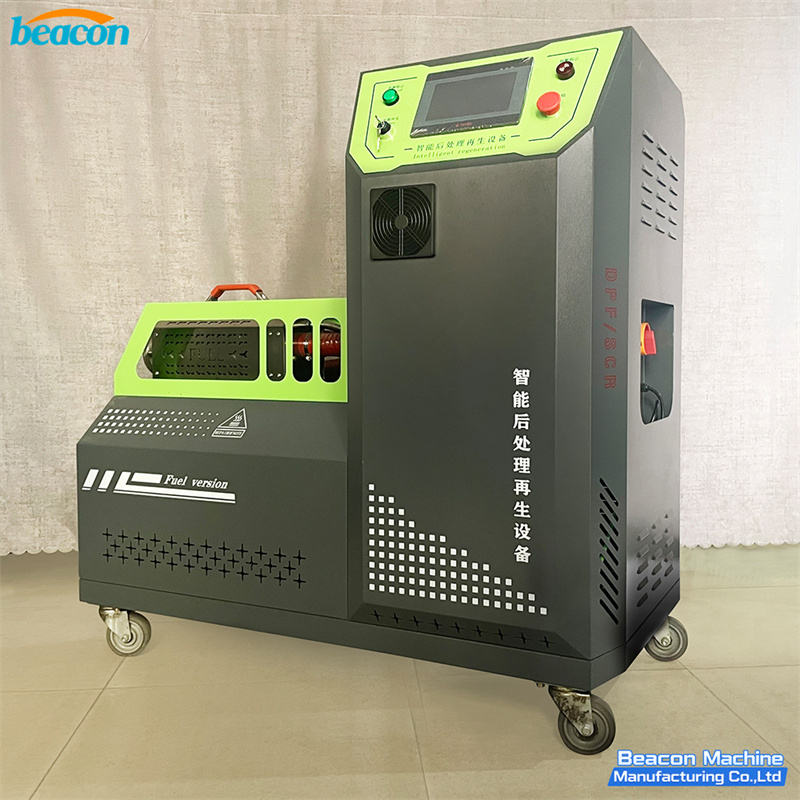

BEACON DPF-CL(FUEL) Machine de régénération de filtre à particules diesel avec démarrage/arrêt automatique pour le nettoyage rapide des systèmes d'échappement - 0-1000°C

Fonction

Simulates vehicle regeneration, 0-1000C heat output, Heats 0-1000C in 10min, High pressure blowing during regen, 96% regen completion rate, Touchscreen interface, Fast cooling to 40C in 10min, Explosive blowing after regen, PLC control with PID, Multi-stage temp control, Data storage function, 310S stainless steel parts, Quick connector for DPF, 50% energy saving vs heating tubes, Regen within 30min, Heats 0-1000C in 4min, Cools 1000C to 50C in 10min, Auto start and stop, Operating temp 600-1000C, Total power 1KW, Fuel consumption 1-3L/H diesel, Voltage 220V 50HZ, 1min wind pressure test before use, Check exhaust gas flow before regen, Adjust time and temp by blockage, Thermal converter angle <=45 deg, Avoid severe vibration or bump, External temp sensor max 800C, Explosive blowing required after regen, Urea crystals dissolve above 400C, Check carrier damage for urea issues, Manually cut large urea crystals, Back pressure alarm if exceeds set value, Explosion blowing pressure 6-8MPA, Check carrier washout or sintering, Replace carrier if no regen capability, Clean exhaust pipe to lower back pressure, Emergency stop reset after alarm, Works with U-shaped exhaust pipe, Works with five-way exhaust pipe, Works with circular exhaust pipe, Works with round long exhaust pipe, Works with National VI exhaust pipe, Works with removable DPF

Articles d&#39;essai

Pressure test before regeneration, Check gas discharge at tailpipe, Check leakage at each connection, Monitor regeneration back pressure alarm, Check carrier for water washout, Check carrier for displacement, Check carrier for sintering, Test carrier regeneration capability, Measure back pressure after cleaning, Run 1-minute wind pressure test, Check exhaust gas flow before regen, Check exhaust pipe not fully blocked, Diagnose exhaust pipe blockage cause, Check urea crystallization condition, Inspect carrier damage from urea, Manually cut big urea crystals (optional), Check alarm column when device alarms, Verify emergency stop reset function, Check converter angle <=45 deg (optional), Check temp sensor max 800C (optional), Check explosion pressure 6-8MPA (optional)

Type

Analyseur de moteurs

Point d'origine

Shandong, China

Alimentation

C.A. 220v

Numéro de Type

DPF-CL(FUEL)
