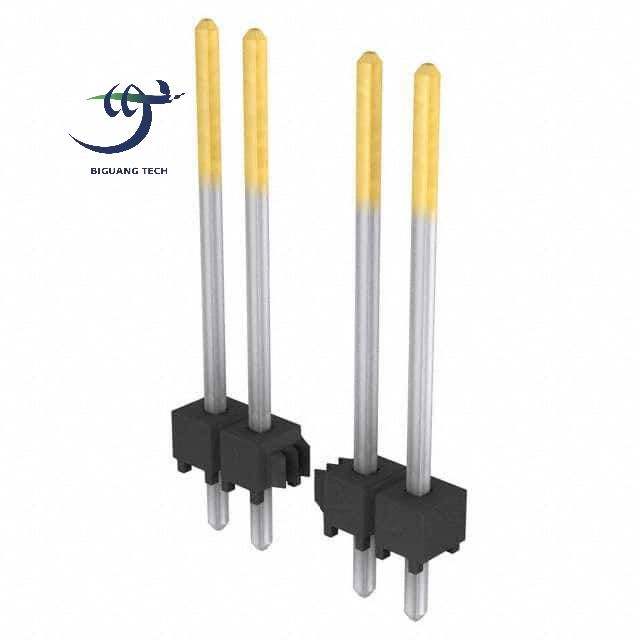

BOM Components Connectors CONN HEADER VERT 9POS 2.54MM TSW-109-17-L-S

No reviews yet
$0.153-1.84
Minimum order quantity: 2 pieces
Sample price: $1.84

Quantity

Customization options
Customized packaging (Min. order: 10,000 pieces)

Key attributes

Type

Header

Model Number

TSW-109-17-L-S

Place of Origin

China

Brand

TSW-109-17-L-S

Application

-

Interface Type

Male Pin

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Item subtotal
$0.00 - $0.00
Shipping total
To be negotiated
Subtotal
$0.00 - $0.00

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Type
Header
Model Number
TSW-109-17-L-S
Place of Origin
China
Brand
TSW-109-17-L-S
Application
-
Interface Type
Male Pin
Packaging
Bulk
Supplier Type
Agency
Cross Reference
-
Material
Phosphor Bronze
Media Available
-
Description
CONN HEADER VERT 9POS 2.54MM
Termination
Solder
Features
-
Number of Positions
9
Pitch
0.100 (2.54mm)
Number of Rows
1
Mounting Type
Through Hole
Current Rating (Amps)
Standard
Voltage Rating
Standard
Center Contact Plating
Gold
Board Size
Standard
Head Style
Board to Board or Cable
Mfg. Date Code
Newest
Number of Positions Loaded
All
Shrouding
Unshrouded
Fastening Type
Push-Pull
Contact Length - Mating
0.620 (15.75mm)
Contact Length - Post
0.110 (2.79mm)
Insulation Height
0.100 (2.54mm)
Contact Shape
Square
Contact Finish Thickness - Mating
10.0uin (0.25um)
Contact Finish - Post
Tin
Warranty
One Year

Packaging and delivery

Packaging Details
Standard package
Port of dispatch
Shenzhen/Shanghai/Hongkong
Selling Units
Single item
Single package size
1X1X1 cm
Single gross weight
0.01 kg

Supply capacity

Supply Ability
5000 pieces per Day

Lead time

Customization options

Customized packaging(+ from /Min. order: 10,000 pieces)
