Bench Type Vertical Drilling Milling ZAY7032FG ZAY7040FG ZAY7045FG Milling Machine Bench Drill

See reviews
$1,800
1-4 units
$1,700
5-9 units
$1,600
≥10 units
Select now

table size

800X240
Customization options
Customized logo (Min. order: 1 unit)
Customized packaging (Min. order: 1 unit)
Graphic customization (Min. order: 1 unit)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

type

VERTICAL

table travel (x) (mm)

500

table travel (y) (mm)

175

table travel (z) (mm)

130

voltage

220v/380v

spindle taper

MT4

At a glance

  • Table Size 800x240mm: The large table size of 800x240mm provides ample space for a wide range of machining tasks, enhancing productivity and versatility.

  • Spindle Taper MT3 or R8, MT4 or R8: The spindle taper options (MT3 or R8, MT4 or R8) ensure compatibility with a variety of tooling, allowing for flexible and precise machining operations.

  • Max Drilling Capacity 45mm: A maximum drilling capacity of 45mm allows for handling a wide range of materials and applications, ensuring robust and efficient performance.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

1-year warranty

Access to free parts replacement and repair coverage

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Service

Free replacement parts & online technical support
Free replacement parts & online technical support
1-year warranty
1-year warranty

Key attributes

type
VERTICAL
table travel (x) (mm)
500
table travel (y) (mm)
175
table travel (z) (mm)
130
voltage
220v/380v
spindle taper
MT4
machining capacity
Light Duty
key selling points
Competitive Price
warranty
13 months
video outgoing-inspection
Provided
machinery test report
Provided
range of spindle speed(r.p.m)
95 - 1420 r.p.m
weight (kg)
375
place of origin
Shandong, China
brand name
Luzhong Machine
model number
ZAY7032FG ZAY7040FG ZAY7045FG
dimension(l*w*h)
770x880x1160mm
Name

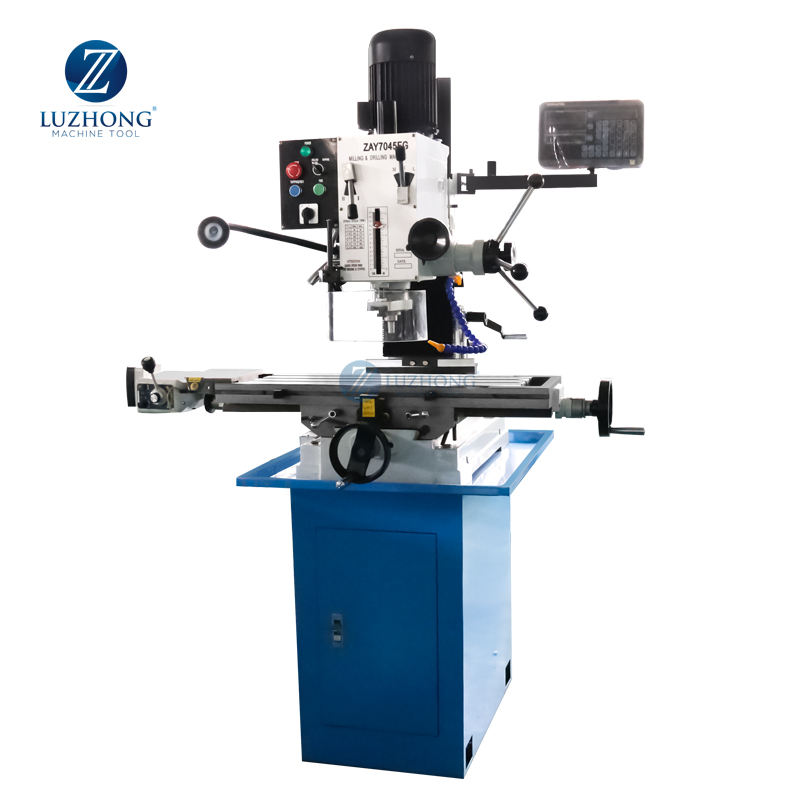

Bench Type Vertical Drilling and Milling Machine ZAY7045FG
Drilling capacity
45mm
Face milling capacity
80mm
End milling capacity
32mm
Spindle travel
130mm
Table size
800x240mm
Spindle taper
MT3 or R8 ,MT4 or R8
swivel angle of headstock
90°
Power (kW)
1.5

Packaging and delivery

Packaging Details
Type of package: Plywood case Packaging size: 770x880x1160MM(one set in one case) N.W./G.W.: 325/375 KGS
Port of dispatch
Any port in China
Selling Units
Single item
Single volume
0 cm³
Single gross weight
0.0 kg

Supply capacity

Supply Ability
100 units per Month Bench Type Vertical Drilling and Milling Machine ZAY7045F
