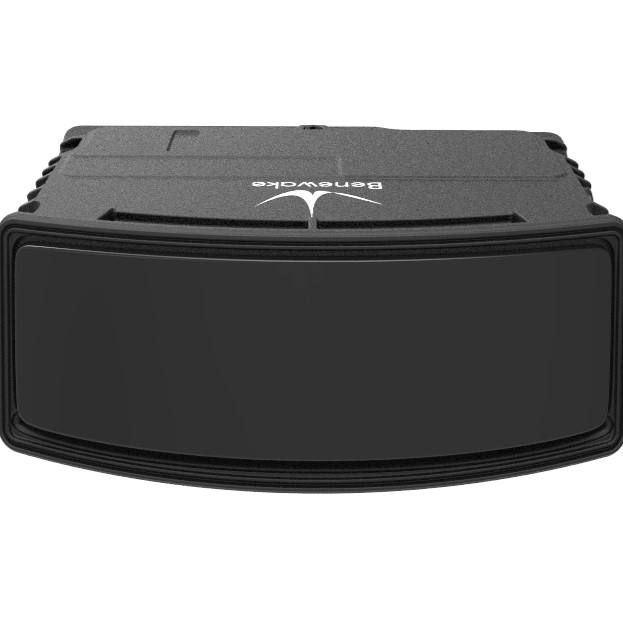

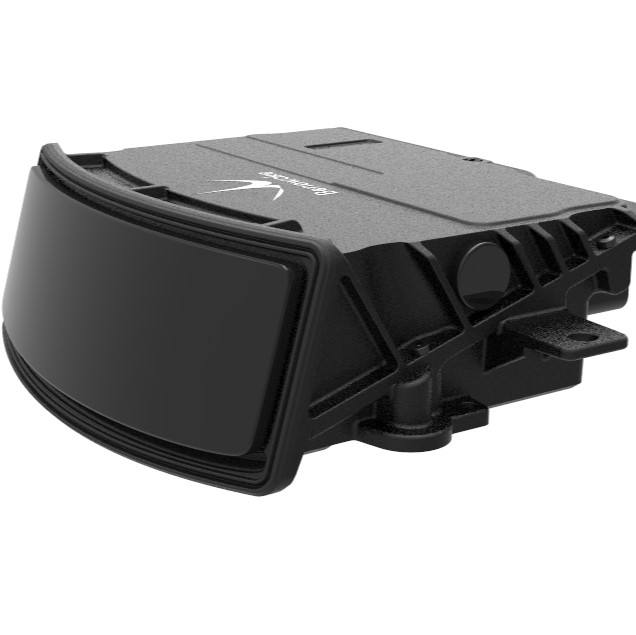

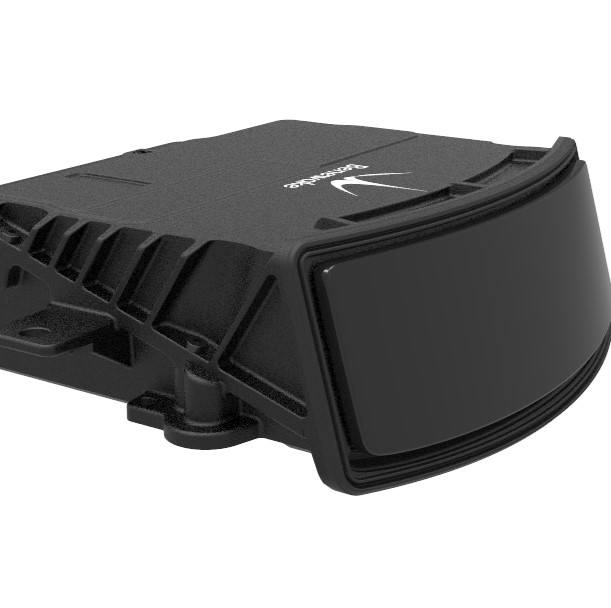

Benewake AD2-S-X3 3D 256-line LiDAR Railway Level Sensor IP67/IP6K9K Protection 200m Sensing Range 10Hz 905nm

No reviews yet

$6,280

1-19 units

$5,980

20-99 units

$5,780

100-999 units

$5,500

≥1,000 units

Specification

49 x 160 x 144 mm

Key attributes

Mounting Type

Interface installation

Manufacturer Part Number

AD2-S-X3

Brand Name

Benewake

Usage

Intelligent driving, Transportation, Industrial

Output

3D point cloud, reflectivity, timestamp

Description

Railway LiDAR 3D Lidar 3D level sensor

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Mounting Type

Interface installation

Manufacturer Part Number

AD2-S-X3

Brand Name

Benewake

Usage

Intelligent driving, Transportation, Industrial

Output

3D point cloud, reflectivity, timestamp

Description

Railway LiDAR 3D Lidar 3D level sensor

Place of Origin

Beijing, China

Series

AD2

Theory

Light Detection and Ranging

Brand

Benewake AD2-S-X3

Amplifier Type

000

Voltage - Supply

9-32V

Output Type

000

Current - Supply

000

Operating Temperature

-40°C ~ +85°C

Resolution (Bits)

0.1*0.1°(ROI)/0.2°x0.1°(Non-ROI)

Features

3D lidar

Current - Supply (Max)

000

Packaging

000

Frequency

10

Output Configuration

000

Current

000

Voltage Rating

9-32V

Operating Force

000

Oxygen Range

000

Humidity Range

000

Size

3D

Size / Dimension

49 x 160 x 144 mm

Measuring Range

200m @10% reflectivity

Resolution

0.1°x 0.1° / 0.2°x 0.1° ( ROl / Non-ROl )

Interface

Tyco 2446023-1

Technology

Ponit cloud

Sensing Range

200m @10% reflectivity

Current - Output (Max)

32V

Bandwidth

000

Function

000

Acceleration Range

000

Sensitivity (LSB/g)

000

Sensitivity (mV/g)

000

Sensitivity (LSB/(°/s))

000

Sensitivity (mV/°/s)

000

Sensing Distance

1.2m~200m

Current - Output

000

Power - Rated

≤15W

Voltage - Output Difference (Typ) @ Distance

9~32V

Voltage - Output (Typ) @ Distance

9~32V

Voltage - Max

9~32V

Voltage - DC Reverse (Vr) (Max)

9~32V

Power - Max

≤15W

Sensing Object

000

Sensing Light

000

Resistance

0000

Resistance Tolerance

000

Sensing Temperature - Local

000

Sensing Temperature - Remote

000

Current Rating - AC

000

Current Rating - DC

000

Tolerance

000

Voltage - Rated

9~32V

Flow Sensor Type

000

Voltage - Input

9~32V

Application

000

Output Function

000

Mfg Date Code

000

Cross Reference

000

Product name

AD2-S-X3

Frame rate

10Hz

Laser wavelength

905nm

Operation temperature

-40°C~ +85°C

Protection level

IP67 & IP6K9K

FOV (ROI region/Non-ROI region)

120°x8°/120°x25.6°

Ambient light immunity

100Klux

Operating voltage

9~32V

Weight

1.2Kg

Number of equivalent lines

256

Manufacturing Date Code

000

Packaging and delivery

Selling Units

Single item

Single volume

0 cm³

Single gross weight

0.0 kg

Lead time
