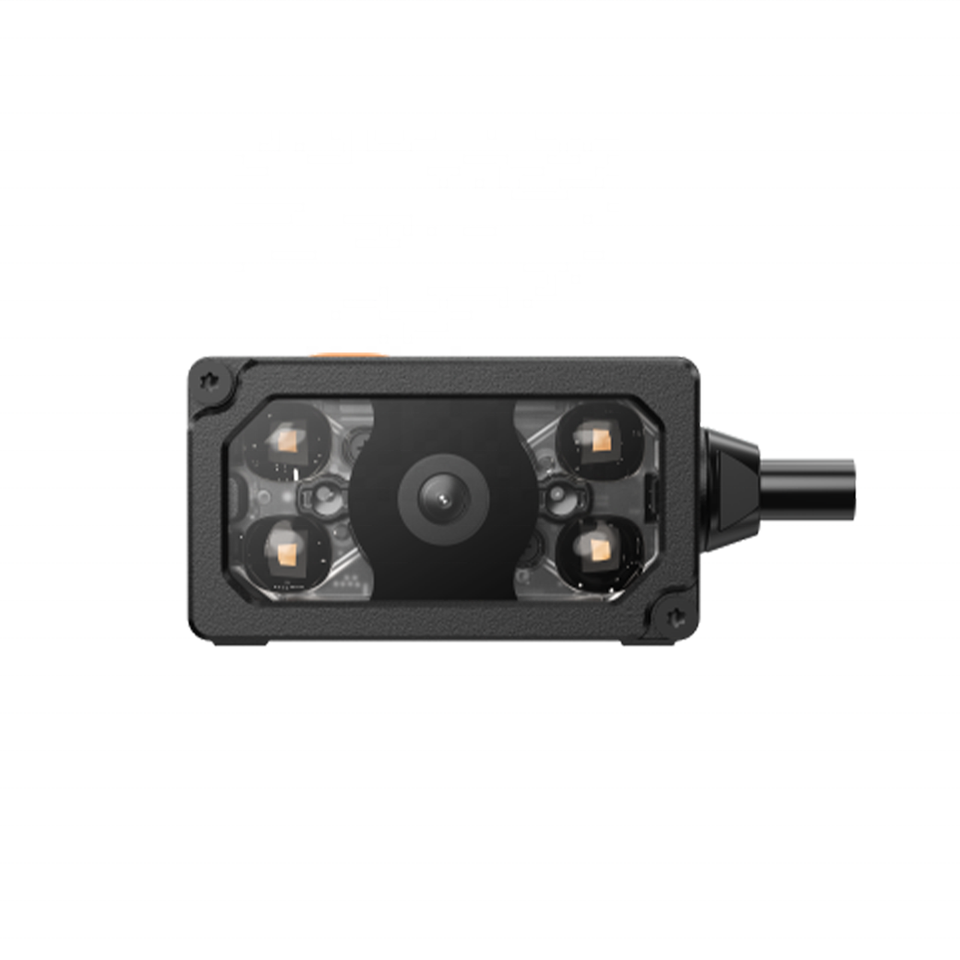

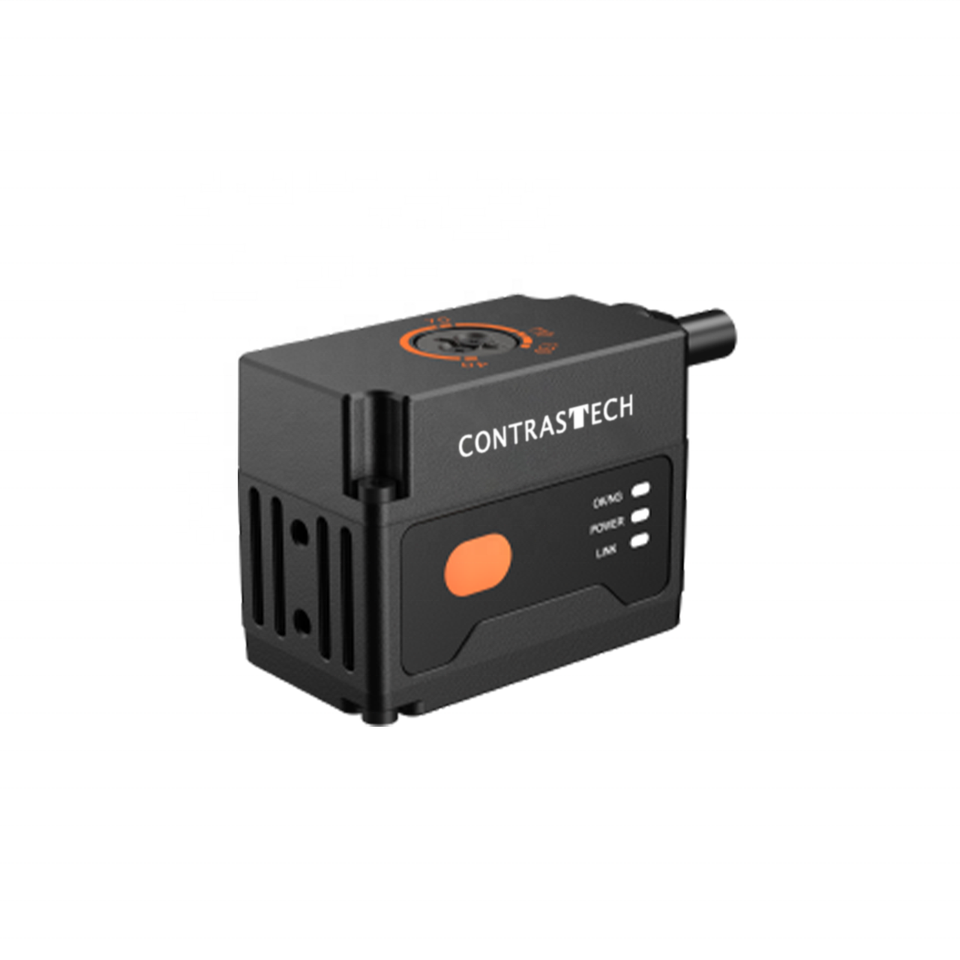

Built in AI 1440x1080 No Need PC Mono 8 Ethernet Global Shutter CMOS 3D Smart Vision Camera for OCR Recognition

5.0(1 review)2 sold

Hangzhou Contrastech Co., Ltd.

Multispecialty Supplier

13 yrs

CN

Attributes

1.6MPPixels

CMOSSensor

YesLens

Motion Detection, Existence, Count, Measurement, RecognitionSpecial Features

Ip67IP Rating

/Video Compression Format

Data Storage Options:Camera

Style:Box Camera

Aperture:Optional

Function:Built-in high-precision positioning algorithms, Built-in measurement and identification algorithms

Warranty:1 Year

Customized support:Online Technical Support, Customized Logo, Software Reengineering, OEM, ODM

Material:Aluminium

Model Number:iLOX-A1607M/CFW(P)

Viewing Angle:Optional

Place of Origin:Zhejiang, China

Brand Name:Contrastech

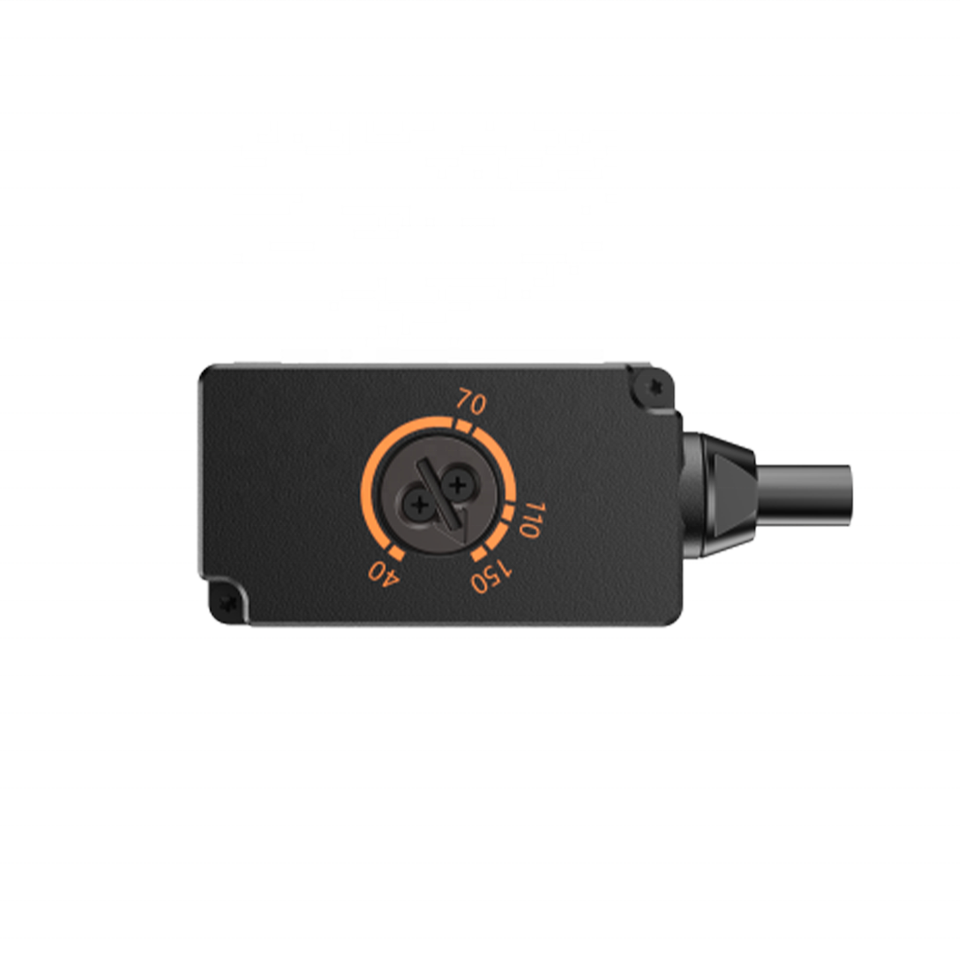

WD:40-150mm / 80-200mm

Light Source:White/Red Light[Polarized Optional]

Sensor Technology:Global, CMOS

Frame Rate:60fps

Focal Length:7mm 16mm

Lens Mount:M12-Mount

Exposure Time:16μs~1s

Image Format:Mono 8,RGB 8

Ethernet:Fast Ethernet(100Mbit/s)

Dimension:57.6 x 46 x 25 mm

Built-in AI Technology: This 3D Smart Vision Camera features built-in high-precision positioning algorithms and measurement and identification algorithms, enabling advanced OCR recognition capabilities without the need for a PC.
High-Quality Imaging: With a 1/2.9" CMOS sensor and a resolution of 1408x1024, this camera delivers high-quality images with a pixel size of 3.45μm/6.9μm, ideal for applications such as PCB inspection and logistics inspection.
Wide Compatibility: This camera offers a range of lens options (6mm, 8mm, 12mm, 15mm) and a M12-mount, making it suitable for various applications and environments.
Efficient Data Transmission: With fast Ethernet connectivity (100Mbps), this camera ensures seamless data transmission and efficient communication with the user.
Customized Support: As a valued customer, you can enjoy online technical support, customized logo options, software reengineering, OEM, and ODM services, ensuring a tailored solution for your specific needs.

Key attributes

Pixels

1.6MP

Sensor

CMOS

Lens

Yes

Special Features

Motion Detection, Existence, Count, Measurement, Recognition

IP Rating

Ip67

Video Compression Format

/

Data Storage Options

Camera

Style

Box Camera

Aperture

Optional

Function

Built-in high-precision positioning algorithms, Built-in measurement and identification algorithms

Warranty

1 Year

Customized support

Online Technical Support, Customized Logo, Software Reengineering, OEM, ODM

Material

Aluminium

Model Number

iLOX-A1607M/CFW(P)

Viewing Angle

Optional

Place of Origin

Zhejiang, China

Brand Name

Contrastech

WD

40-150mm / 80-200mm

Light Source

White/Red Light[Polarized Optional]

Sensor Technology

Global, CMOS

Frame Rate

60fps

Focal Length

7mm 16mm

Lens Mount

M12-Mount

Exposure Time

16μs~1s

Image Format

Mono 8,RGB 8

Ethernet

Fast Ethernet(100Mbit/s)

Dimension

57.6 x 46 x 25 mm

Packaging and delivery

Selling Units

Single item

Single package size

35X25X20 cm

Single gross weight

3.000 kg

Lead time

Customization options

Customized logo(+ from /Min. order: 100 pieces)

Customized packaging(+ from /Min. order: 100 pieces)

Graphic customization(+ from /Min. order: 200 pieces)

View details

5% off $2,000 | 8% off $5,000 | 10% off $10,000

Customizable

Easy Return

Minimum order quantity: 1 piece

$580

Sample price: $580

Variations

Network: White Light[Polarized]

White Light[Polarized]

White Light[Non-Polarized]

Red Light[Polarized]

Resolution

[Mono]1.6MP 60fps-7mm

[Color]1.6MP 60fps-7mm

[Mono]1.6MP 60fps-16mm

[Color]1.6MP 60fps-16mm

Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 200 pieces)

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
