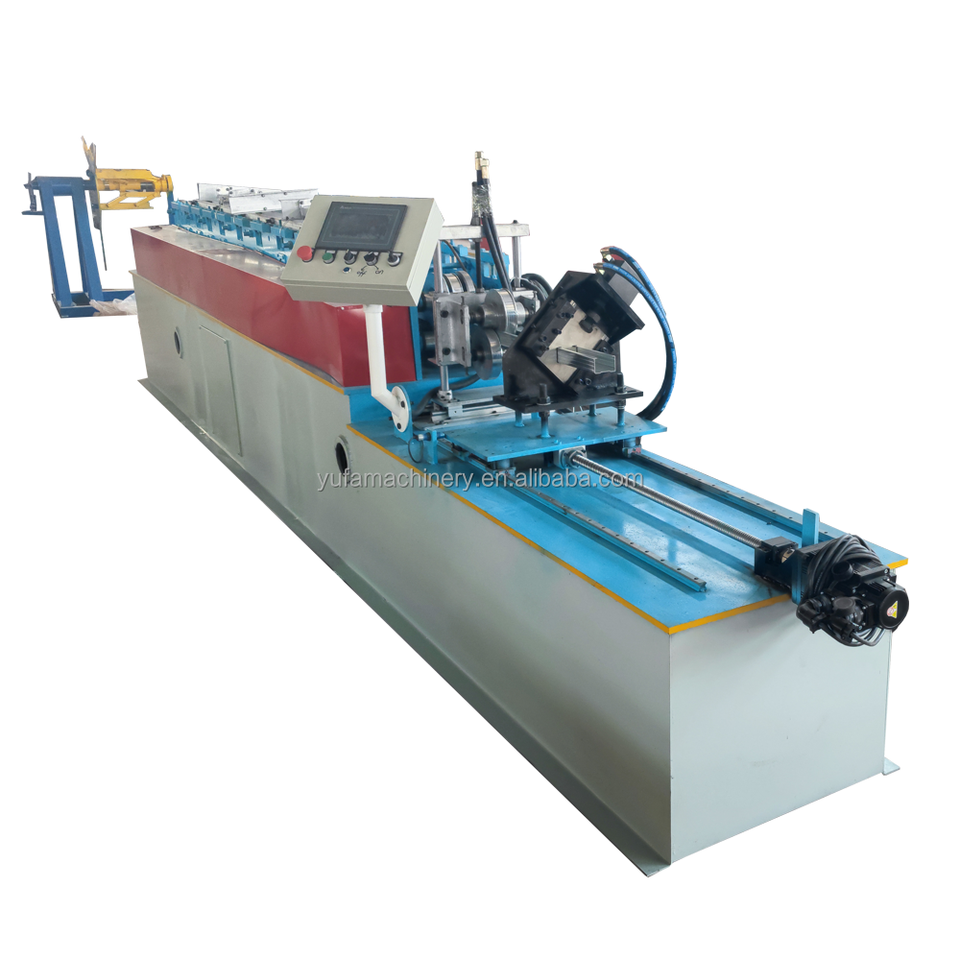

CD Truss Frame Galvanized Metal Channel Roll Former Making Equipment Colored Steel Tile Gear Core U Purlin Roll Forming Machine
Store rating:5.0
(114 reviews)Certificates:CE
Attributes
Tile Forming MachineType
SteelTile Type
customizedFeeding width
0.3-0.6mmRolling thinckness
380V 50Hz 3PhaseVoltage
PLCCore Components
Use:Ceiling
Warranty:More Than 5 Years
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Key Selling Points:Long Service Life
Place of Origin:Hebei, China
Weight:2500 kg
Brand Name:Yufa
Dimension(L*W*H):5500*1000*1300mm
Product name:CD truss frame c purlin roll forming machine c channel roll equipment
Thickness:0.3-0.6mm
Roller material:45#steel Chrome Plated
Cutting blade material:Cr12 Mould Steel
Control system:Auto Control
PLC:DETLA
Decoiler:Manual Decoiler
Cutting system:Automatic Hydyaulic Cutting
Shaft diameter(Solid):50mm
Main Motor Power:4-7.5kw
Service
Free replacement parts & online technical support
Key attributes
Type
Tile Forming Machine
Tile Type
Steel
Feeding width
customized
Rolling thinckness
0.3-0.6mm
Voltage
380V 50Hz 3Phase
Core Components
PLC
Use
Ceiling
Warranty
More Than 5 Years
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Key Selling Points
Long Service Life
Place of Origin
Hebei, China
Weight
2500 kg
Brand Name
Yufa
Dimension(L*W*H)
5500*1000*1300mm
Product name
CD truss frame c purlin roll forming machine c channel roll equipment
Thickness
0.3-0.6mm
Roller material
45#steel Chrome Plated
Cutting blade material
Cr12 Mould Steel
Control system
Auto Control
PLC
DETLA
Decoiler
Manual Decoiler
Cutting system
Automatic Hydyaulic Cutting
Shaft diameter(Solid)
50mm
Main Motor Power
4-7.5kw
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
$8,500
Variations
Select nowProduction Capacity: 40m/min(131.23ft/min)
40m/min(131.23ft/min)
Model Number: Type-C
Type-C
Power(W)
4kw+3kw
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
