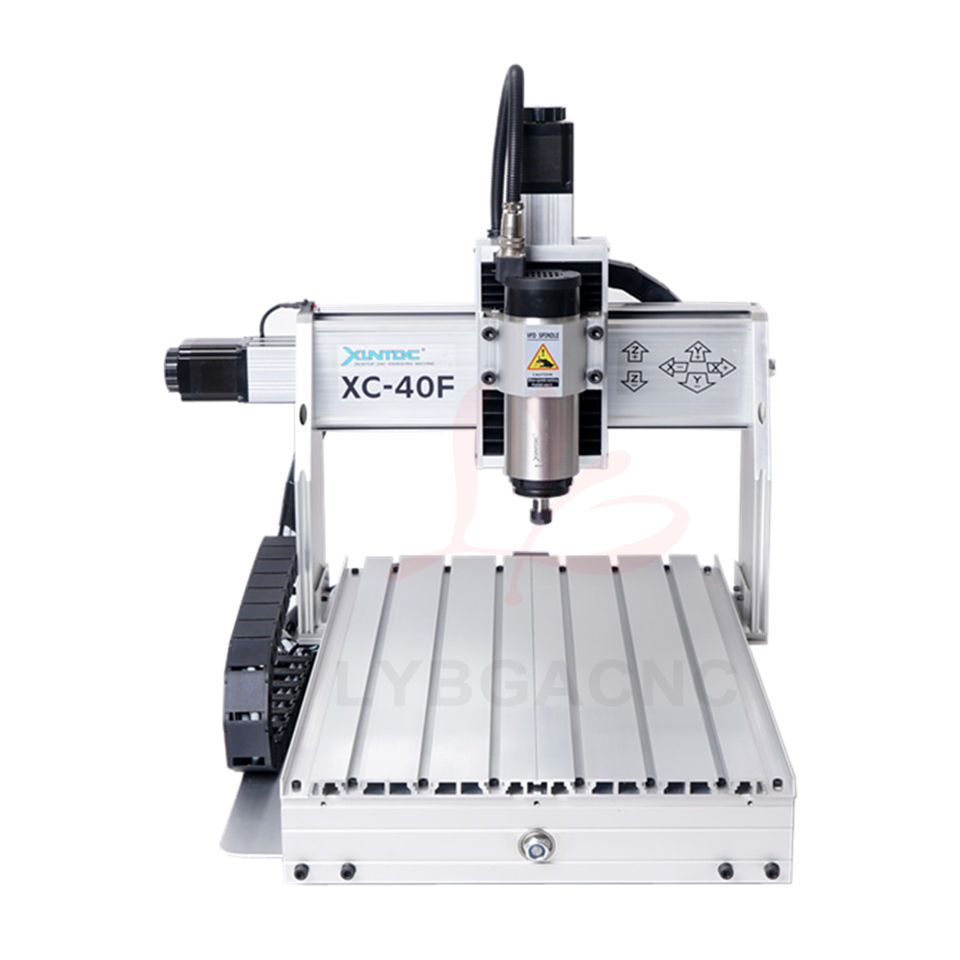

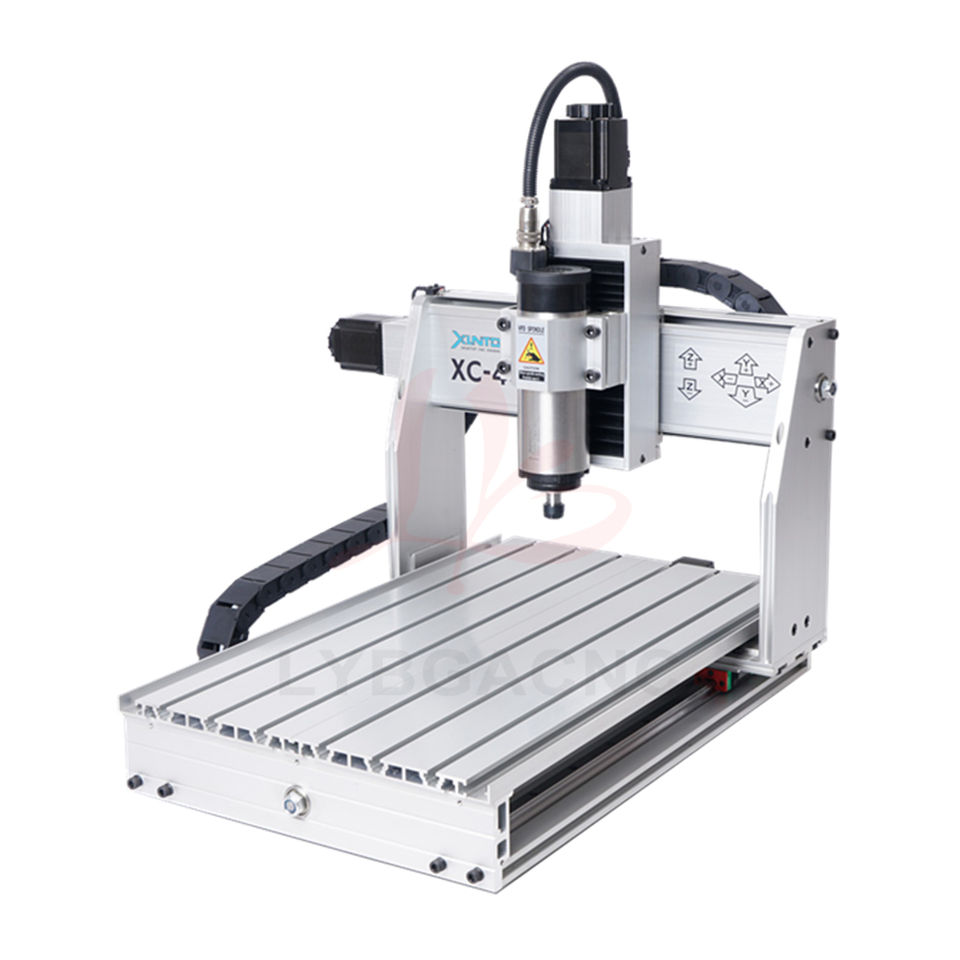

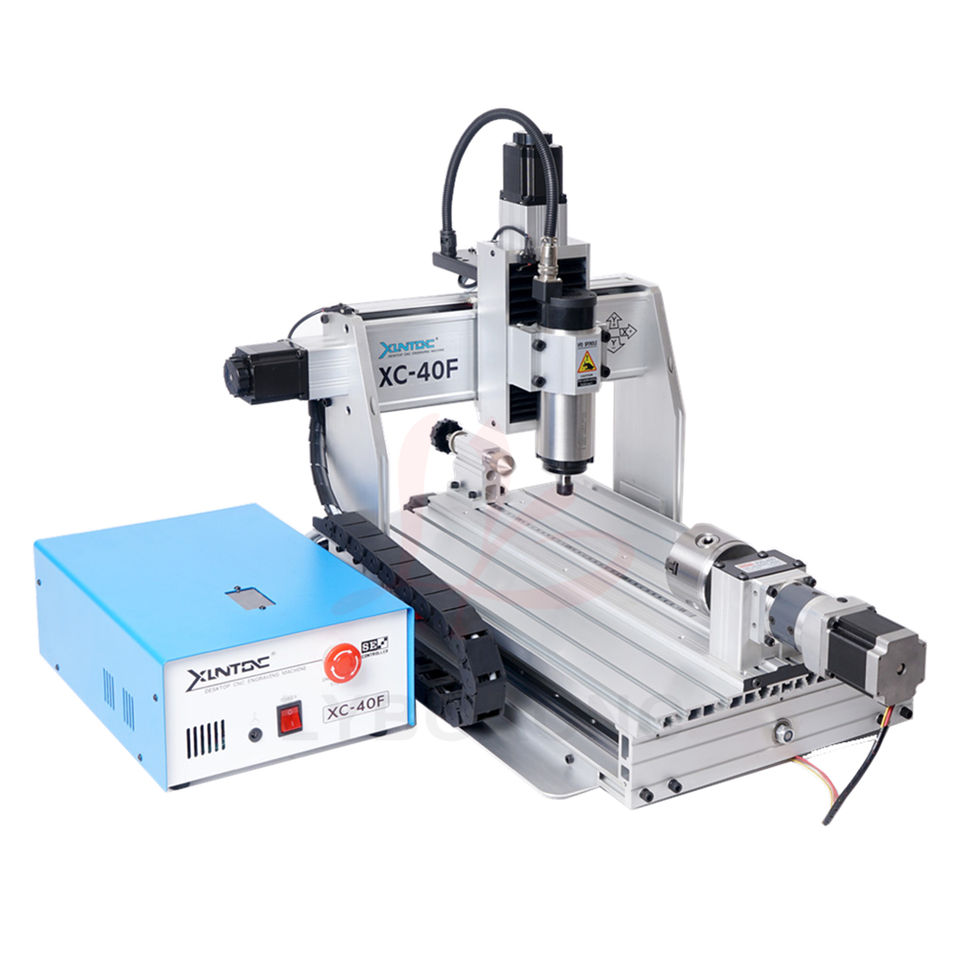

CNC Engraving Drilling and Milling Machine Router Engraver XC-40F Suitable for Industry Linear Guide DSP Digital Driver 0.8KW
No reviews yet
Attributes
-Working Table Size(mm)
-number of axes
380 Vvoltage
CNC Routermachine type
OtherNo. of Spindles
Easy To Operatekey selling points
core components:Bearing
warranty:1 Year
cnc or not:CNC
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:Guangdong, China
Power (kW):0.8
weight (kg):40
positioning accuracy (mm):0.01
travel (x axis)(mm):300
travel (y axis)(mm):500
repeatability (x/y/z) (mm):0.01

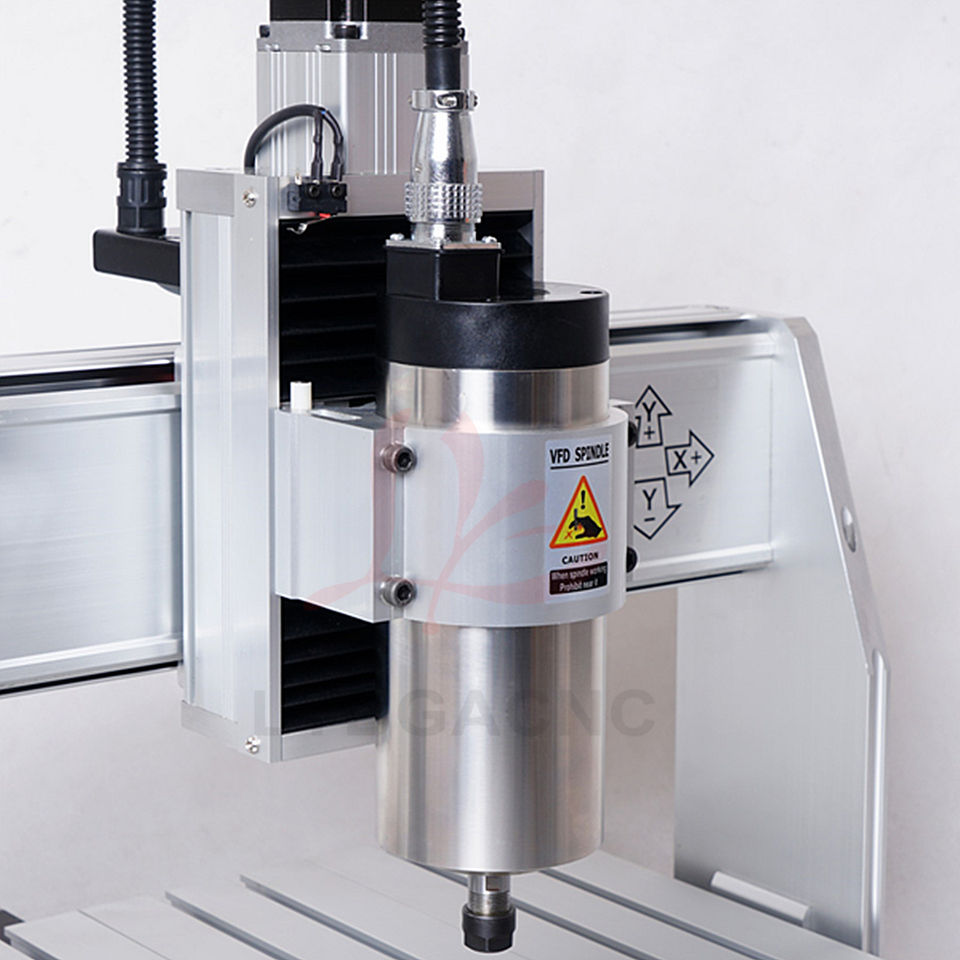

Spindle Motor Power (kw):0.8
brand name:LY
dimension(l*w*h):-
MODEL:XC-40F
Machine Dimensions::685X5520X560mm
Frame material::6061 and 6063-T5 extruded aluminum alloy
Engraving area::390X275mm(0.8KW)
Z-Axis Stroke::95mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:≤ 130mm
Rail type::Linear guide
Type of screw::Ball screw 1605, Pitch 5mm
Collet type::ER11,1/8"(3.175mm or 6mm) Collet
Repeat positioning Accuracy::0.03mm
Service
1-year warranty
Key attributes
Working Table Size(mm)
-
number of axes
-
voltage
380 V
machine type
CNC Router
No. of Spindles
Other
key selling points
Easy To Operate
core components
Bearing
warranty
1 Year
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Guangdong, China
Power (kW)
0.8
weight (kg)
40
positioning accuracy (mm)
0.01
travel (x axis)(mm)
300
travel (y axis)(mm)
500
repeatability (x/y/z) (mm)
0.01
Spindle Motor Power (kw)
0.8
brand name
LY
dimension(l*w*h)
-
MODEL
XC-40F
Machine Dimensions:
685X5520X560mm
Frame material:
6061 and 6063-T5 extruded aluminum alloy
Engraving area:
390X275mm(0.8KW)
Z-Axis Stroke:
95mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness
≤ 130mm
Rail type:
Linear guide
Type of screw:
Ball screw 1605, Pitch 5mm
Collet type:
ER11,1/8"(3.175mm or 6mm) Collet
Repeat positioning Accuracy:
0.03mm
Packaging and delivery
Selling Units
Single item
Single package size
67.0X64.0X55.0 cm
Single gross weight
40.000 kg
Lead time
