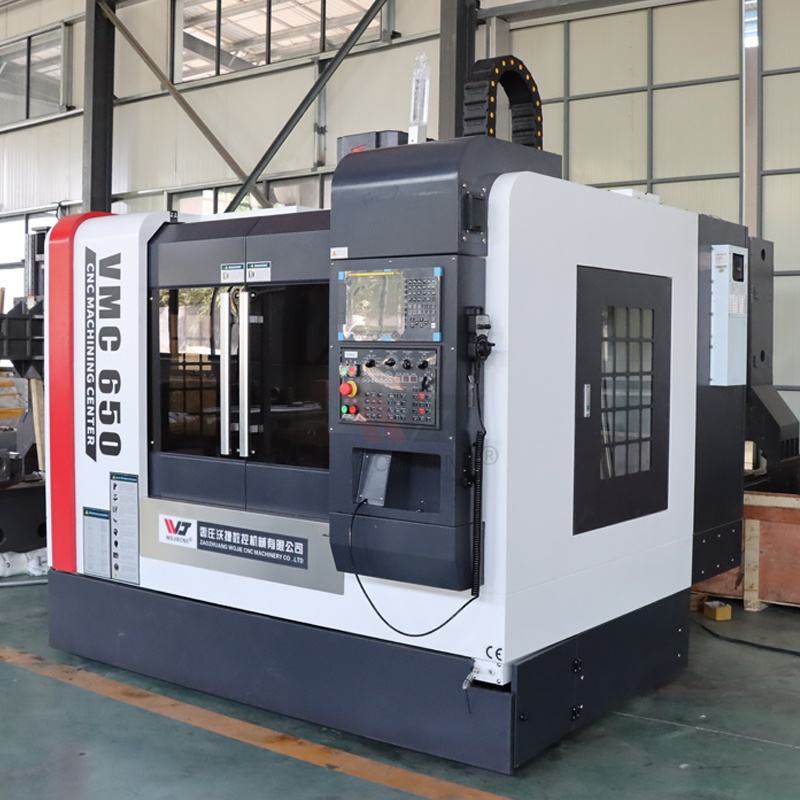

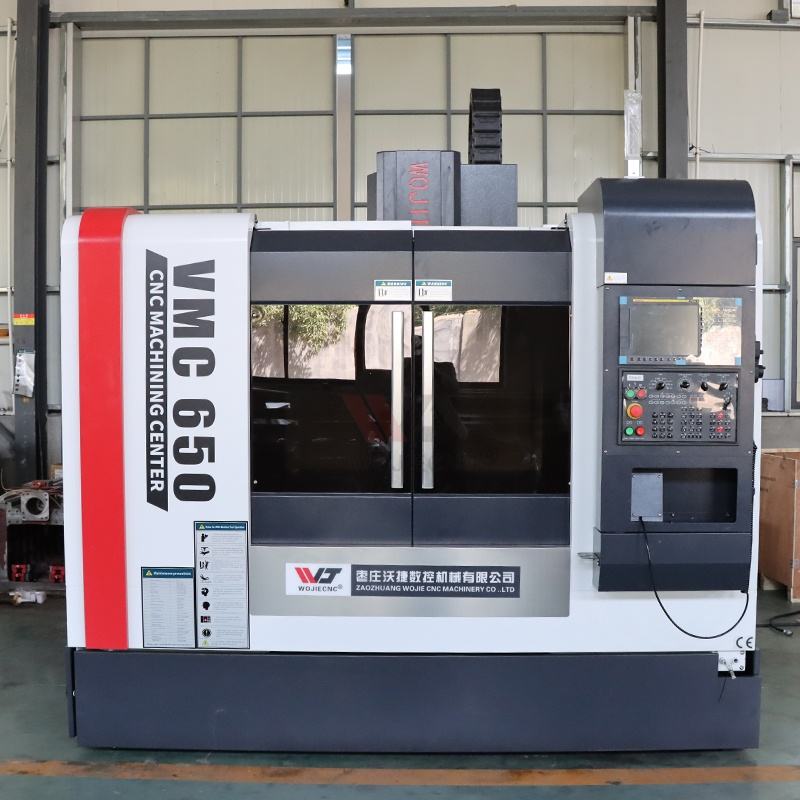

CNC Metal Milling Machine VMC 650 New Vmc Vertical Machining Center Machine Price
Store rating:5.0
(94 reviews)Certificates:EAC, ...
Attributes
VERTICALtype
650 mmtable travel (x) (mm)
400 mmtable travel (y) (mm)
500 mmtable travel (z) (mm)
0.005repeatability (x/y/z) (mm)
0.015positioning accuracy

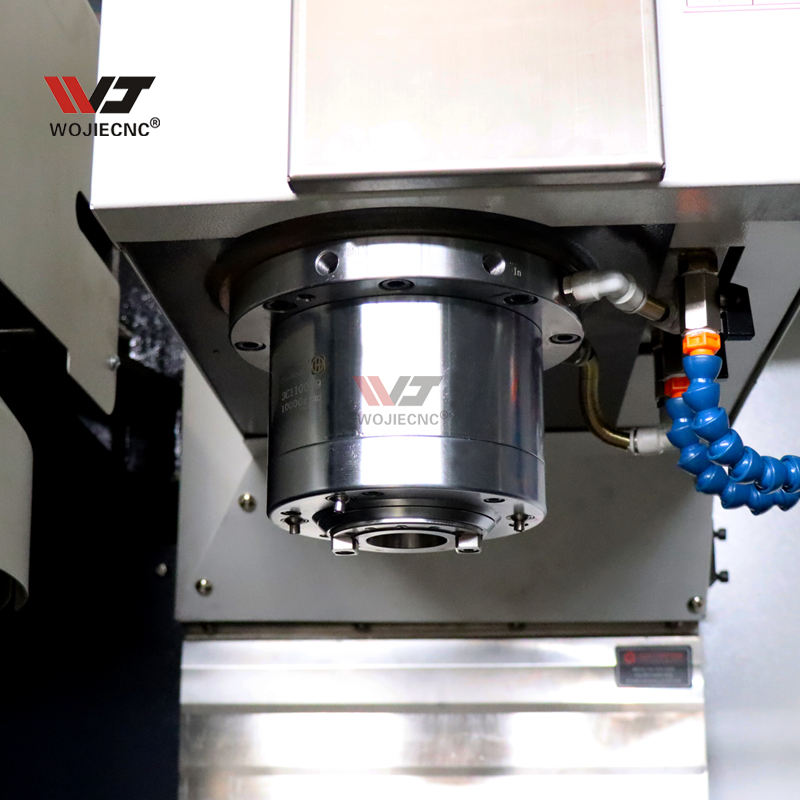

spindle taper:BT40
no. of spindles:Single
tool magazine capacity:16, 24

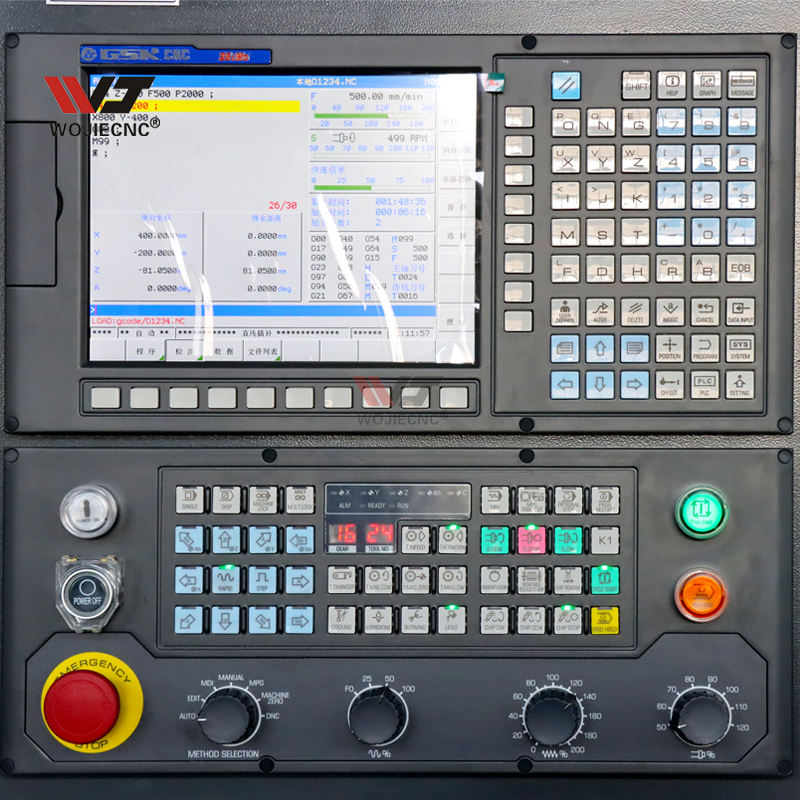

cnc control system:GSK
machining capacity:Medium Duty
voltage:380V
table size:900x400
warranty:2 Years
machinery test report:Provided
video outgoing-inspection:Provided
min. time of tool change(s):1
key selling points:Automatic
weight (t):5.5
max. table load(kg):400
place of origin:Shandong, China
dimension(l*w*h):2300*2200*2400mm
range of spindle speed:60 - 8000 r.p.m
brand name:WOJIE
rapid feed speed:1 - 10000
X/Y/Z axis travel:650*400*500mm
T slot:3-18*125
Spindle taper:BT40
X/Y/Z axis servo motor torque:10/10/15N.M

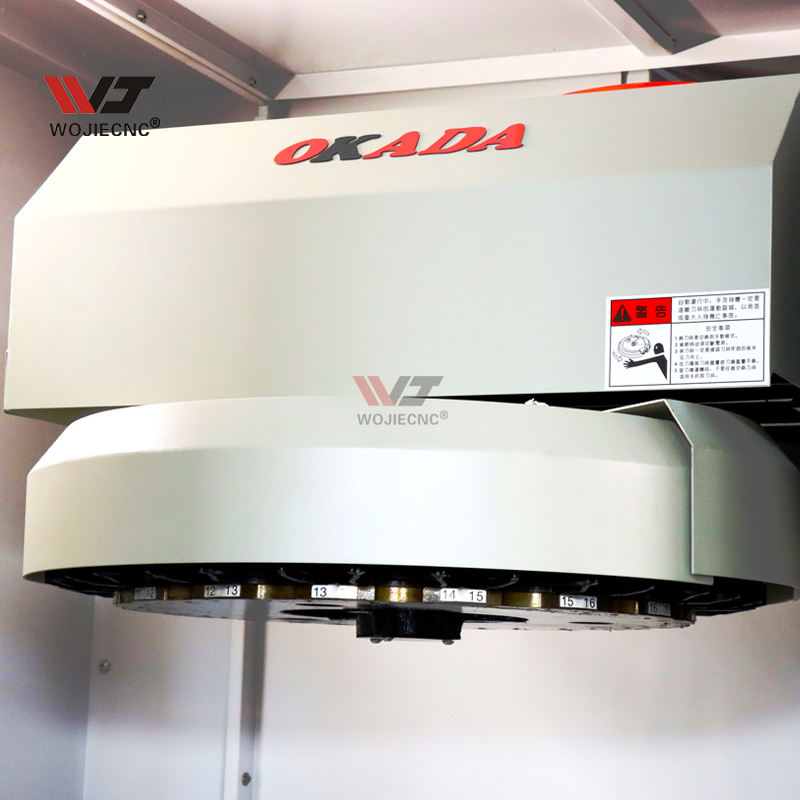

Automatic tools changer:16 Armless type(optional:24 arm
Tool length:250/350mm
Tool diameter:100(Adjacent)/150(Apart)
Cutting feed speed:10m/min
Machine Type:CNC Vertical Machining Center
Product name:CNC Machining Center VMC650
Service
Free replacement parts & online technical support
Key attributes
type
VERTICAL
table travel (x) (mm)
650 mm
table travel (y) (mm)
400 mm
table travel (z) (mm)
500 mm
repeatability (x/y/z) (mm)
0.005
positioning accuracy
0.015
spindle taper
BT40
no. of spindles
Single
tool magazine capacity
16, 24
cnc control system
GSK
machining capacity
Medium Duty
voltage
380V
table size
900x400
warranty
2 Years
machinery test report
Provided
video outgoing-inspection
Provided
min. time of tool change(s)
1
key selling points
Automatic
weight (t)
5.5
max. table load(kg)
400
place of origin
Shandong, China
dimension(l*w*h)
2300*2200*2400mm
range of spindle speed
60 - 8000 r.p.m
brand name
WOJIE
rapid feed speed
1 - 10000
X/Y/Z axis travel
650*400*500mm
T slot
3-18*125
Spindle taper
BT40
X/Y/Z axis servo motor torque
10/10/15N.M
Automatic tools changer
16 Armless type(optional:24 arm
Tool length
250/350mm
Tool diameter
100(Adjacent)/150(Apart)
Cutting feed speed
10m/min
Machine Type
CNC Vertical Machining Center
Product name
CNC Machining Center VMC650
Packaging and delivery
Selling Units
Single item
Single package size
3200X2320X2500 cm
Single gross weight
6000.000 kg
Lead time
Customization options
cnc control system(+ from /Min. order: 1 set)
spindle taper(+ from /Min. order: 1 set)
range of spindle speed(+ from /Min. order: 1 set)
voltage(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Customizable
1 - 2 sets
$22,000
3 - 4 sets
$21,000
>= 5 sets
$20,000
Variations
Select nowmodel number: VMC650
VMC650
number of axes: 3
3
4
5
spindle motor power
5.5 kW
Customization options
cnc control system (Min. order: 1 set)
spindle taper (Min. order: 1 set)
range of spindle speed (Min. order: 1 set)
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
