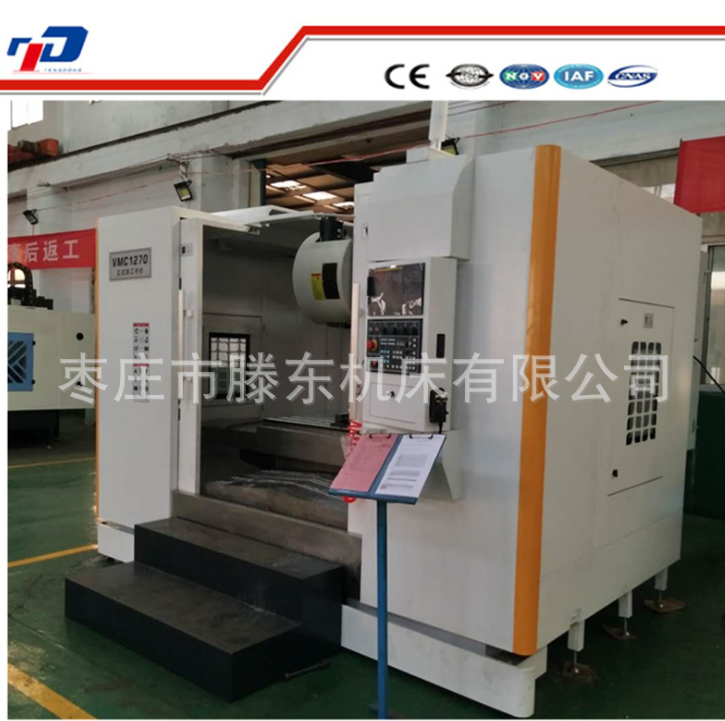

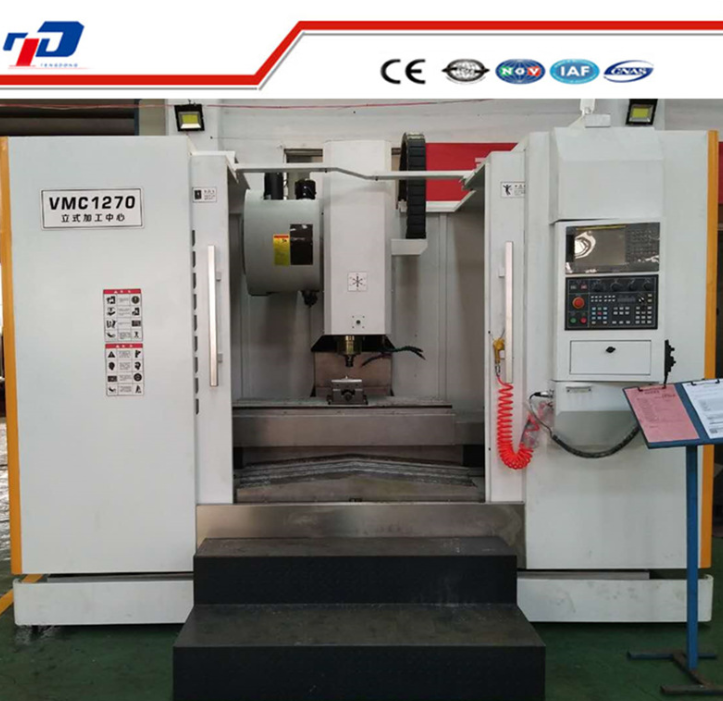

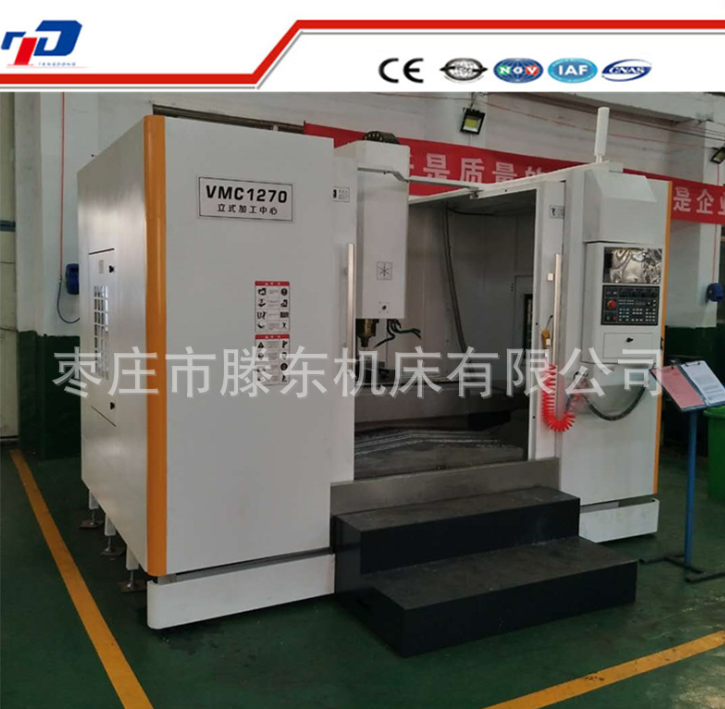

CNC Vertical Machining Center VMC 1270 BT50 Spindle FANUC Control 4 Spindles High-Accuracy 8000 RPM 0.01mm Positioning
No reviews yet
Zaozhuang City Tengdong Machine Tool Co., Ltd.
CN9 yrs on Alibaba.com
-/5.0(4 reviews)Response Time ≤ 2hOn-time delivery rate ≥ 100%
Attributes
VERTICALtype
1200table travel (x) (mm)
700table travel (y) (mm)
600table travel (z) (mm)
0.0075repeatability (x/y/z) (mm)
0.01positioning accuracy
spindle taper:BT50
no. of spindles:4
tool magazine capacity:24
cnc control system:FANUC
voltage:Customer's Requirement
table size:1400*700
warranty:1 Year
machinery test report:Not Available
video outgoing-inspection:Provided
min. time of tool change(s):1
key selling points:High-Accuracy
weight (t):10
max. table load(kg):1000
place of origin:Shandong, China
dimension(l*w*h):3400*2480*2960
range of spindle speed:1 - 8000 r.p.m
brand name:TENGDONG
X/Y/Z axis travel:1200/700/600mm
Spindle nose to the work surface:140-740mm
Workbench area:1400*700mm
Maximum load:1000Kg
T-slot:5-18-125
Spindle center to column surface:780mm
Rotating speed:8000Rpm
Fast-moving X / Y / Z:24/24/15m/min
Tool magazine capacity:24
Power (kW):15
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
type
VERTICAL
table travel (x) (mm)
1200
table travel (y) (mm)
700
table travel (z) (mm)
600
repeatability (x/y/z) (mm)
0.0075
positioning accuracy
0.01
spindle taper
BT50
no. of spindles
4
tool magazine capacity
24
cnc control system
FANUC
voltage
Customer's Requirement
table size
1400*700
warranty
1 Year
machinery test report
Not Available
video outgoing-inspection
Provided
min. time of tool change(s)
1
key selling points
High-Accuracy
weight (t)
10
max. table load(kg)
1000
place of origin
Shandong, China
dimension(l*w*h)
3400*2480*2960
range of spindle speed
1 - 8000 r.p.m
brand name
TENGDONG
X/Y/Z axis travel
1200/700/600mm
Spindle nose to the work surface
140-740mm
Workbench area
1400*700mm
Maximum load
1000Kg
T-slot
5-18-125
Spindle center to column surface
780mm
Rotating speed
8000Rpm
Fast-moving X / Y / Z
24/24/15m/min
Tool magazine capacity
24
Power (kW)
15
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
1 - 2 sets
$25,000
>= 3 sets
$24,000
Variations
Select nowmodel number: VMC1270
VMC1270
number of axes: 5
5
spindle motor power
22
