CWDM Laser Diode 2 5G 5mW 1290 1410nm and 650nm FP Laser High Reliability Uncooled TO56 TO18 Package

Name: Cwdm Laser Diode 2 5g 5mw 1290 1410nm And 650nm Fp Laser High Reliability Uncooled To56 To18 Package - Buy Product on Alibaba.com
Brand: Shenzhen Box Optronics Technology Co., Limited
SKU: 1601722809054
Price: 20 USD
Availability: InStock

No reviews yet

$20

Minimum order quantity: 1 unit

Select now

Specification

BAPD-50P10B-FA(M6)

Customization options

Customized logo (Min. order: 1,000 units)

Customized packaging (Min. order: 1,000 units)

Graphic customization (Min. order: 1,000 units)

Key attributes

Mounting Type

other

Manufacturer Part Number

BAPD-50P10B-FA(M6)

Brand Name

BOX

Description

2.5G CWDM Uncooled DFB Laser, Hermetic TO56 package with integrated monitor PD.

Type

Laser Diode / Photodiode

Place of Origin

Guangdong, China

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Mounting Type

other

Manufacturer Part Number

BAPD-50P10B-FA(M6)

Brand Name

BOX

Description

2.5G CWDM Uncooled DFB Laser, Hermetic TO56 package with integrated monitor PD.

Type

Laser Diode / Photodiode

Place of Origin

Guangdong, China

Package Type

Hermetic Metal Package / Coaxial Pigtail Module

Package / Case

DFB/FP: TO-CAN (TO56/TO-18) / APD: Coaxial with pigtail

Application

Telecom, Data Comm, SAN / Indication, Light Pen /

Supplier Type

New original in stock

Media Available

Product Datasheet

Max. Forward Voltage

DFB/FP Laser: 1.6V / 2.5V

Max. Reverse Voltage

DFB Laser(LD): 2V; Monitor PD: 15V / APD: 30V

Max. Forward Current

DFB Laser: 120mA / FP Laser: 105mA

Max. Reverse Current

DFB Monitor PD: ≤100nA / APD: 0.5nA (Typ.)

Diode Type

DFB Laser Diode / FP Laser Diode / APD Photodiode

Technology

InAlGaAs DFB / GaAs FP / InGaAs APD

Voltage - Peak Reverse (max)

Same as "Max Reverse Voltage"

Current - Average Rectified (Io)

Laser typical operating current: 50-65mA

Diode Configuration

DFB chip with integrated PD / FP LD (PD optional)

Voltage - DC Reverse (Vr) (Max)

DFB(LD): 2V; (PD): 15V / APD: 30V

Current - Average Rectified (Io) (per Diode)

Average operating current per laser diode

Speed

Industrial Grade, High Reliability

Capacitance @ Vr, F

APD: 0.6pF (Typ.) @5V, 1MHzx

Current - Max

DFB Laser: 120mA / FP Laser: 105mA

Resistance @ If, F

Dynamic resistance (See I-V curve)

Power Dissipation (Max)

Determined by Vf & If, typ. <0.3W

Capacitance Ratio

Not Applicable

Configuration

DFB: TO56 Flat Window / FP: TO-18 with Pigtail / A

Power - Max

other

Impedance (Max) (Zzt)

other

Product Type

CWDM DFB Laser / 650nm FP Laser / Coaxial APD Module

Wavelength

DFB: 1290-1410nm; FP: 650nm; APD: 1100-1650nm

Optical Output Power

DFB/FP: 5-6 mW; APD: 0.85 A/W @1310nm

Key Electrical/Optical Spec

DFB: SMSR >30dB; APD: Gain M=10, BW 1GHz

Operating Voltage/Current

DFB: Vop 1.2V; FP: Vf 2.1V; APD: Vr 5V

Package

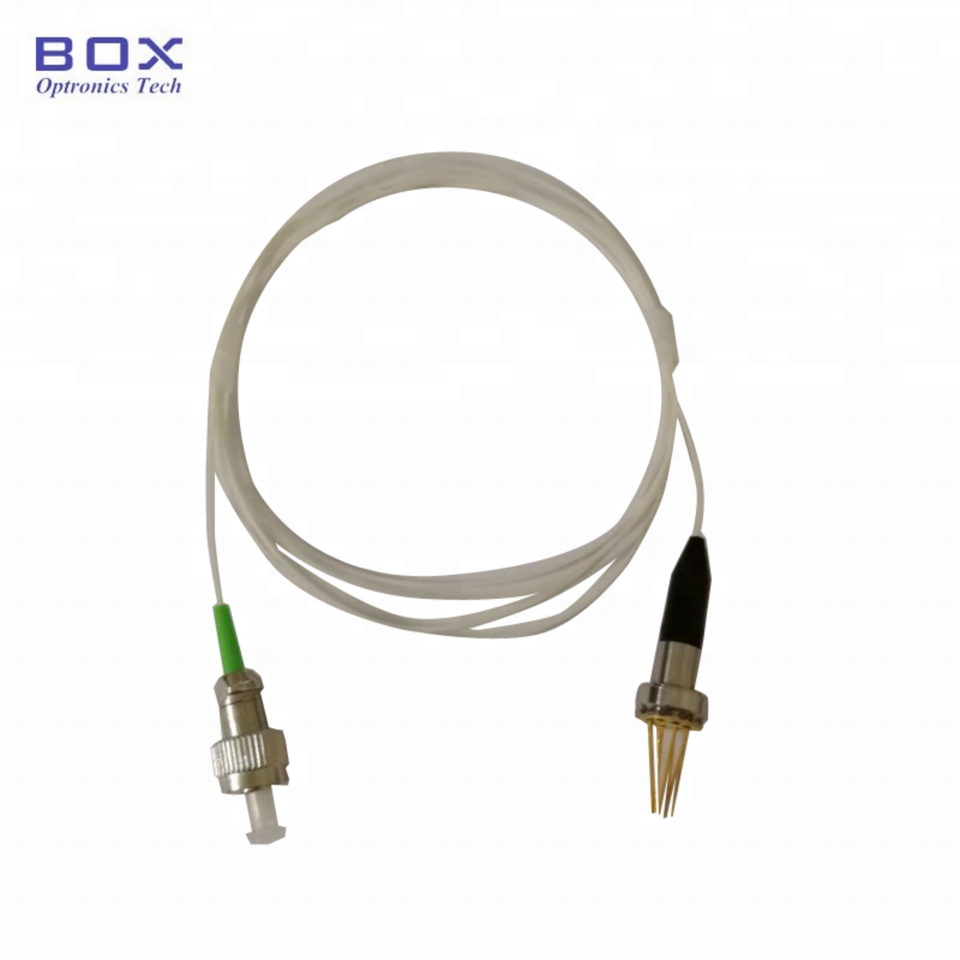

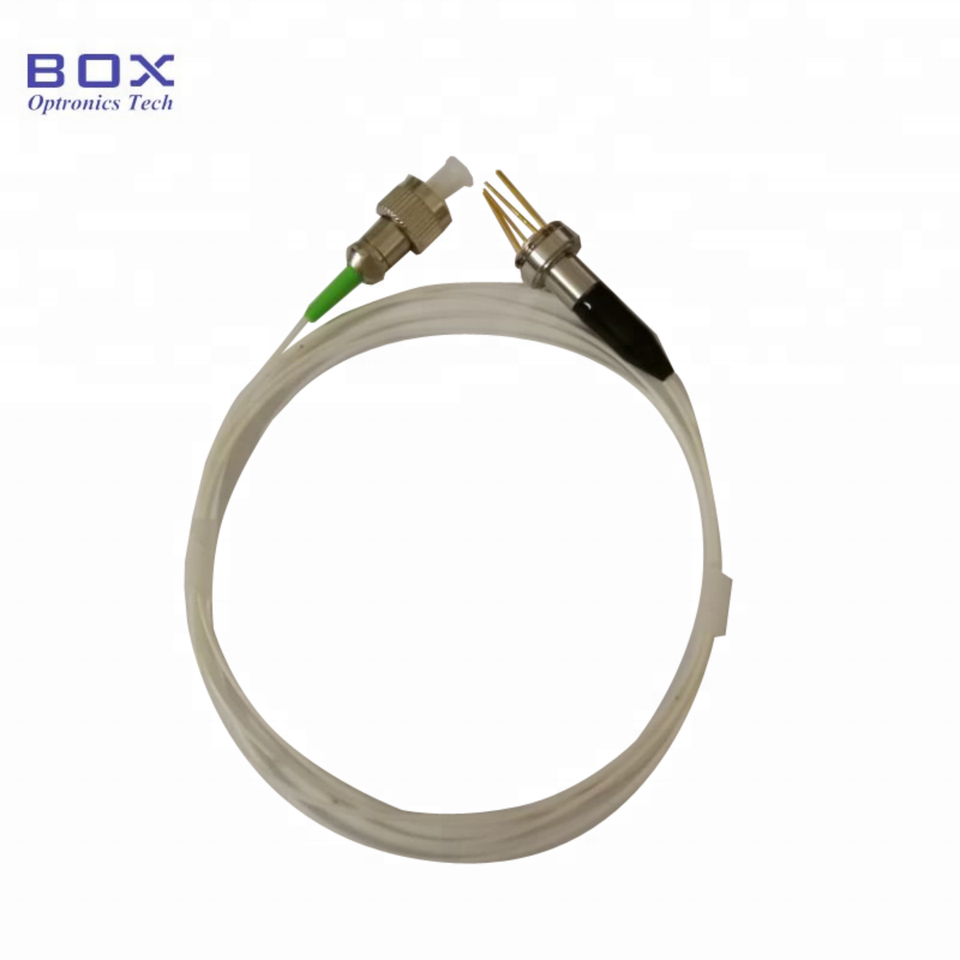

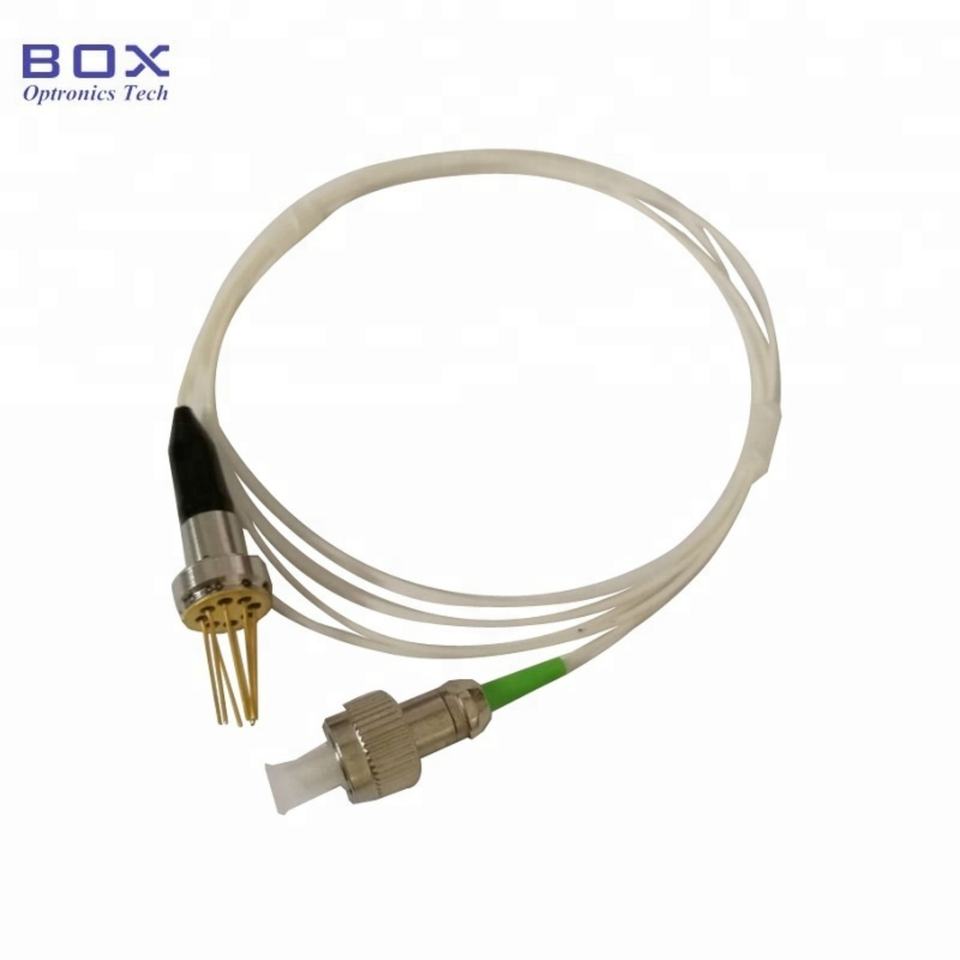

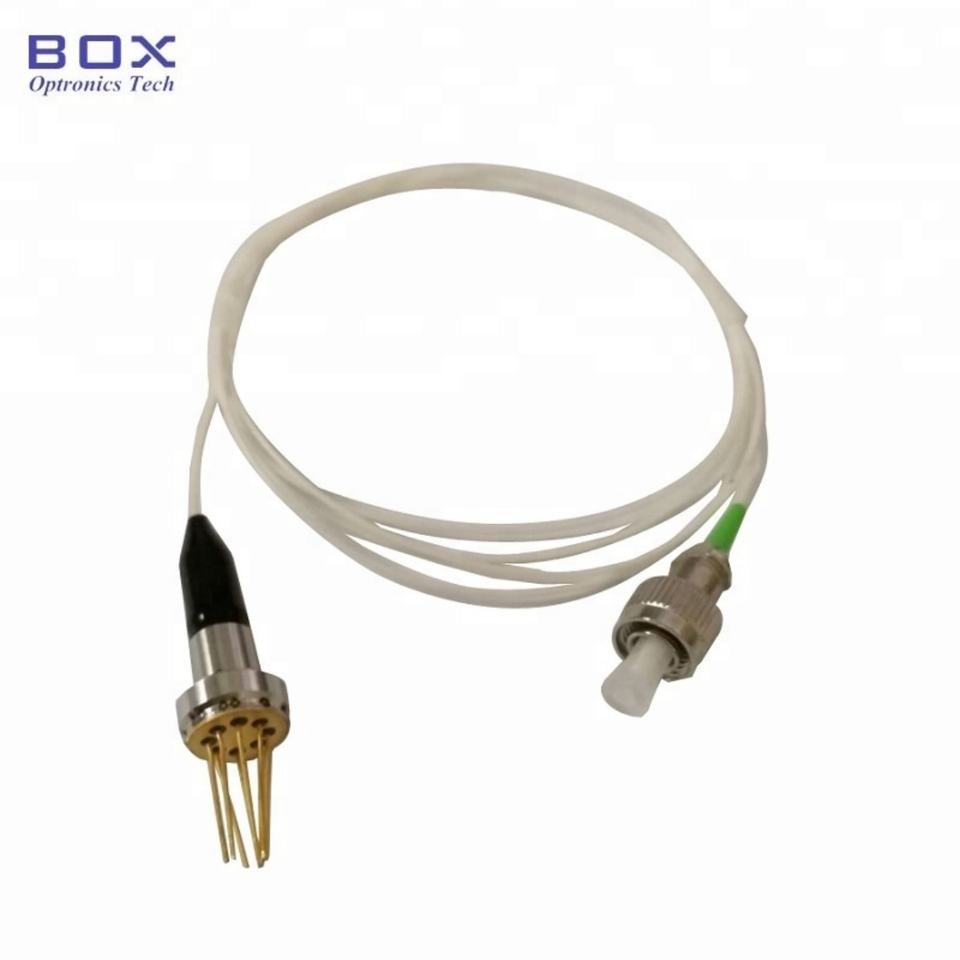

DFB: TO56 (TO-CAN); FP: TO-18 Pigtail; APD: Coaxial FC/APC

Operating Temperature

DFB: -20 to +85℃; FP: -10 to +80℃; APD: -40 to +85℃

Monitor Photodiode

DFB: Integrated; FP: Optional; APD: N/A

Key Feature

DFB: Buried Heterostructure; FP: Single Mode; APD: Low Dark Current

Primary Application

Telecom, Data Comm; Indication; Analog Receiver
