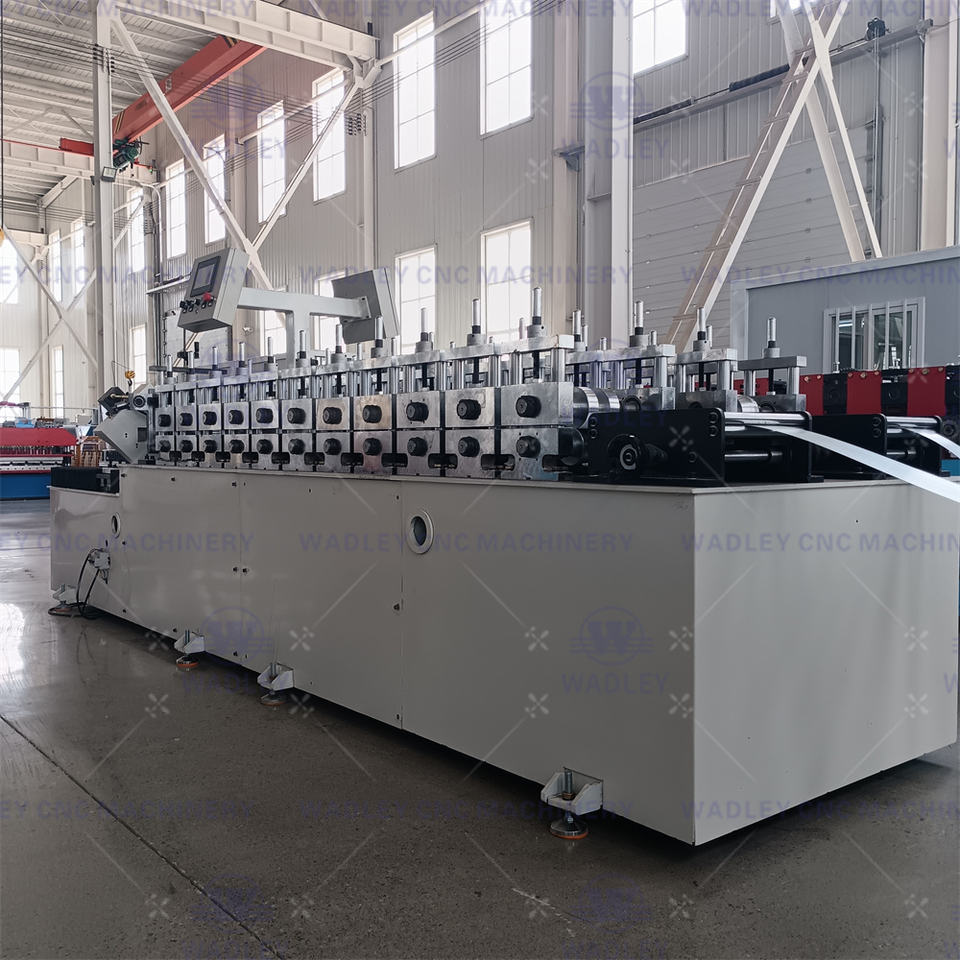

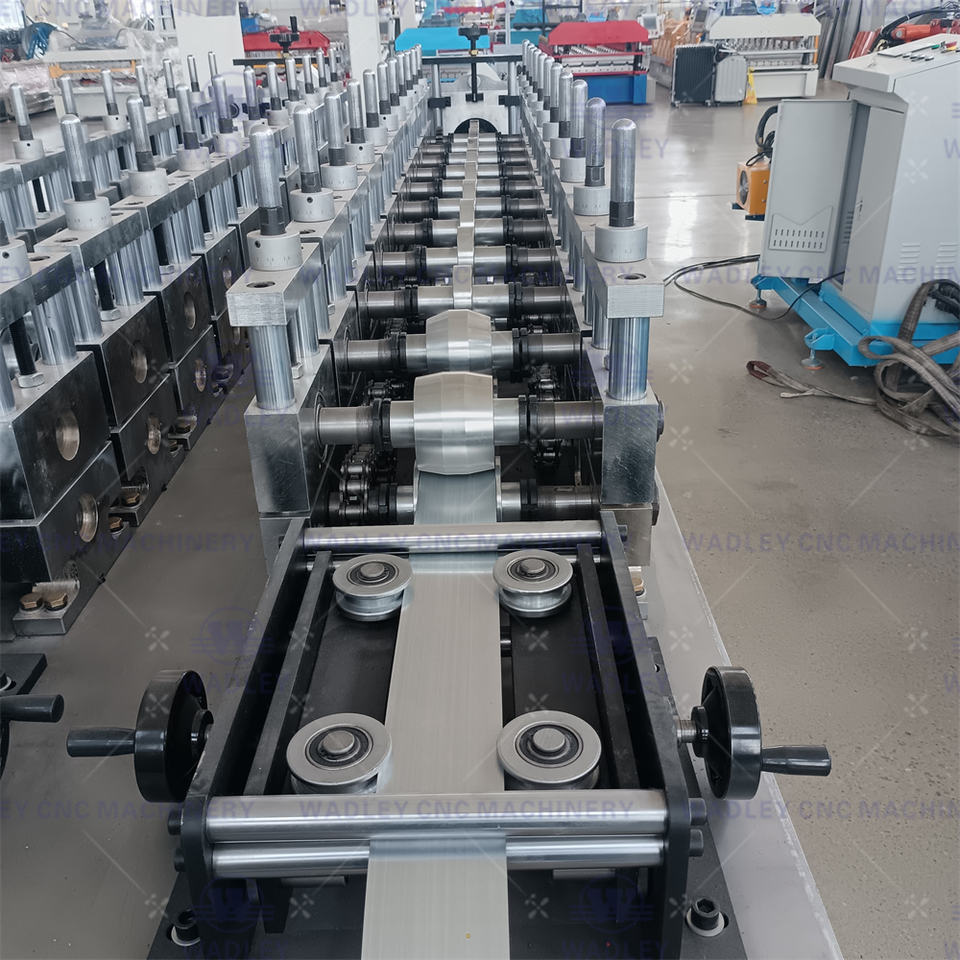

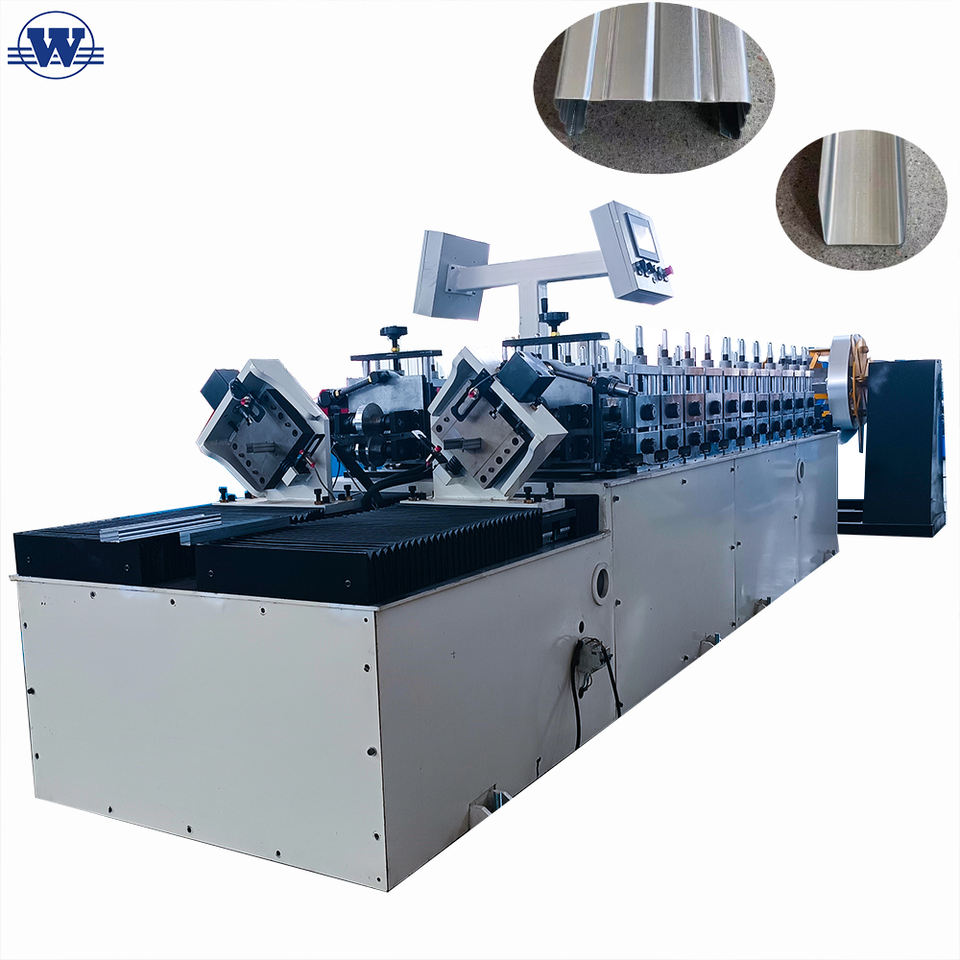

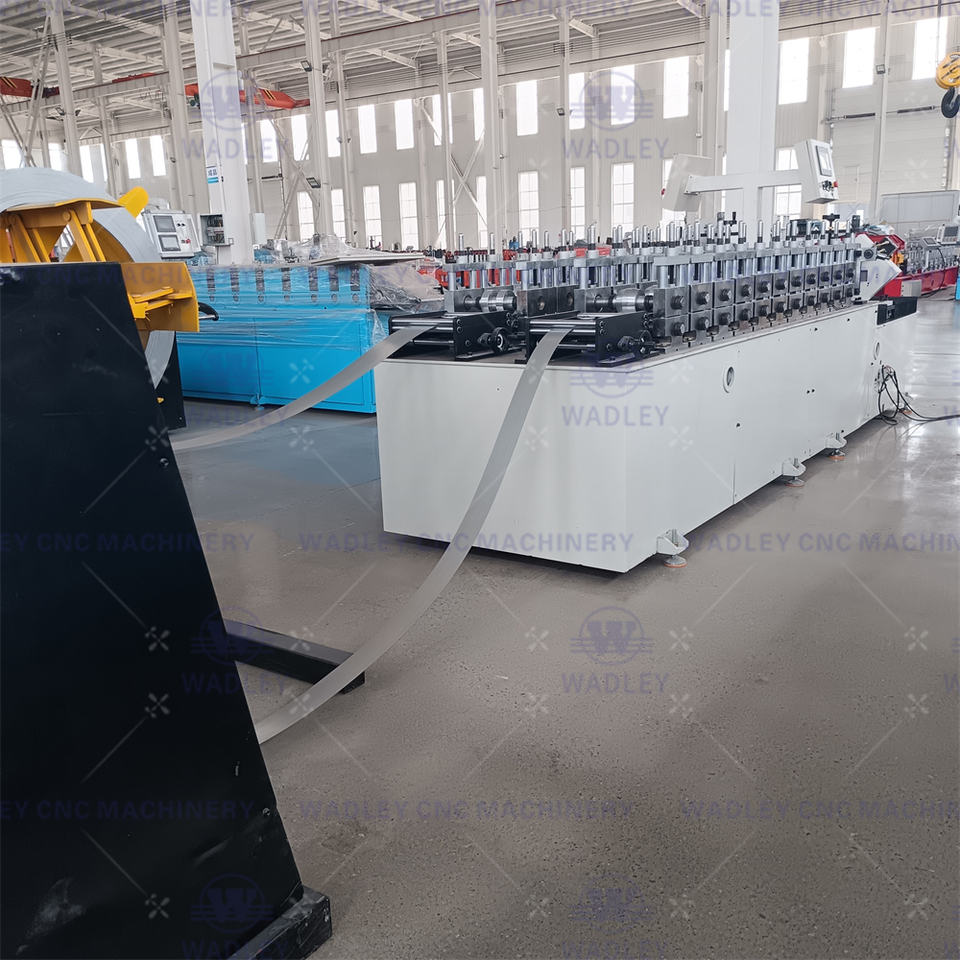

Ceiling Light Gauge Steel Keel Profile Framing Cold Roll Forming Machine Channel Sheet Light Steel Stud Track Forming Machine
No reviews yet
Attributes
Tile Forming MachineType
SteelTile Type
500mmFeeding width
0.3-0.8mmRolling thinckness
380V 50HZ 3PVoltage
Motor, PLCCore Components
Use:Wall
Place of Origin:China
Weight:2300
Warranty:1 Year
Key Selling Points:Long Service Life
Dimension(L*W*H):5000*1500*1500mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Product name:C & U Channel Dry Wall Metal Steel Frame & Purlin Machine
Cutting blade material:Cr12 Heat Treatment
Roller material:45#steel Chrome Plated
Shaft material:45# Steel Outer Diameter: 50mm
Main frame:350mm H-Beam

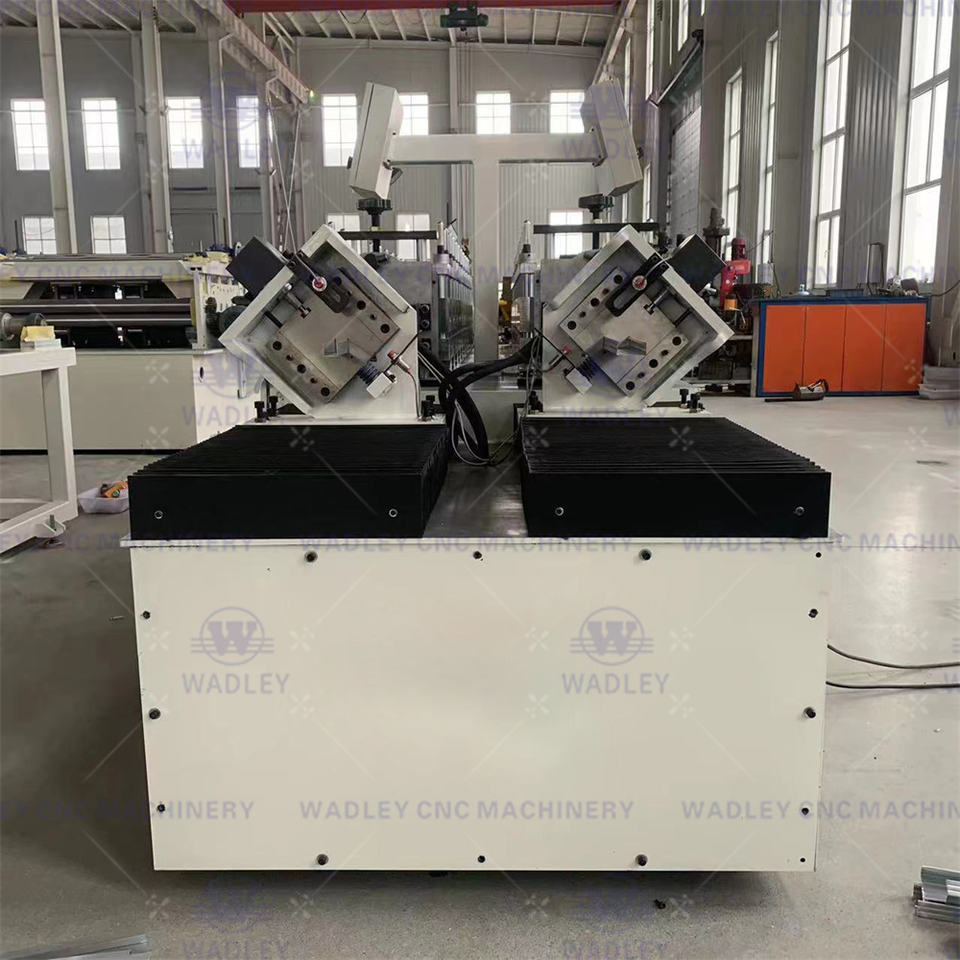

Cutting type:Hydraulic Cutting
Profiles:Ceiling Light Keel Roll Forming
Color:Customized Color

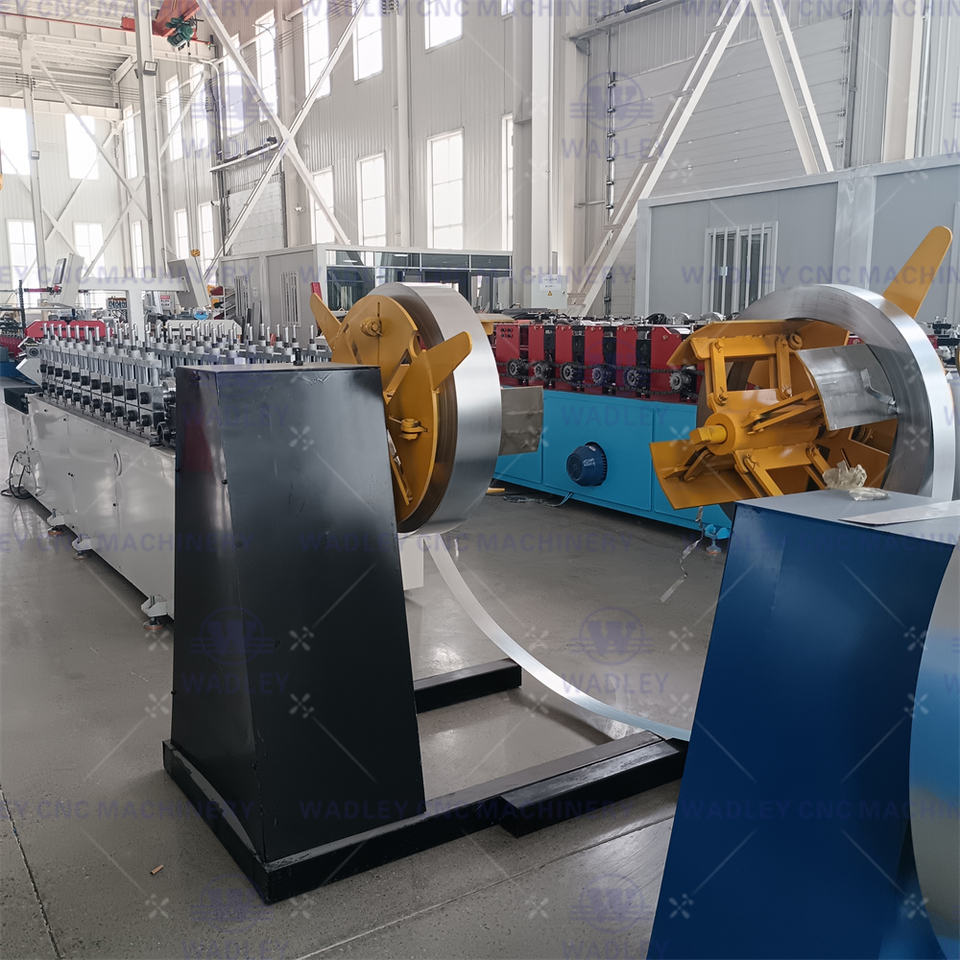

Decoiler:3T Manual Decoiler
Plc:DETLA
Key attributes
Type
Tile Forming Machine
Tile Type
Steel
Feeding width
500mm
Rolling thinckness
0.3-0.8mm
Voltage
380V 50HZ 3P
Core Components
Motor, PLC
Use
Wall
Warranty
1 Year
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Key Selling Points
Long Service Life
Place of Origin
China
Weight
2300
Dimension(L*W*H)
5000*1500*1500mm
Product name
C & U Channel Dry Wall Metal Steel Frame & Purlin Machine
Cutting blade material
Cr12 Heat Treatment
Roller material
45#steel Chrome Plated
Shaft material
45# Steel Outer Diameter: 50mm
Main frame
350mm H-Beam
Cutting type
Hydraulic Cutting
Profiles
Ceiling Light Keel Roll Forming
Color
Customized Color
Decoiler
3T Manual Decoiler
Plc
DETLA
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Name plate(+ from /Min. order: 5 sets)
View details
Product descriptions from the supplier
1 - 4 sets
$23,000
≥ 5 sets
$19,000
Variations
Select nowProduction Capacity: 15 m/min(49.21ft/min)
15 m/min(49.21ft/min)
Model Number: Light Keel Roll Forming Machine
Light Keel Roll Forming Machine
Power(W)
5.5kw(7.38hp)
Customization options
Name plate (Min. order: 5 sets)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
