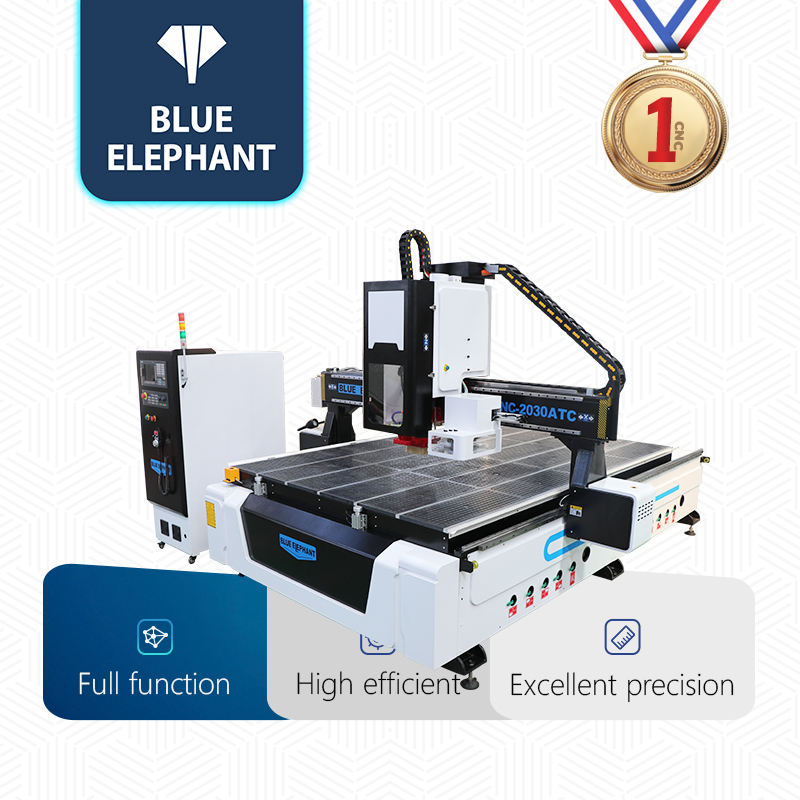

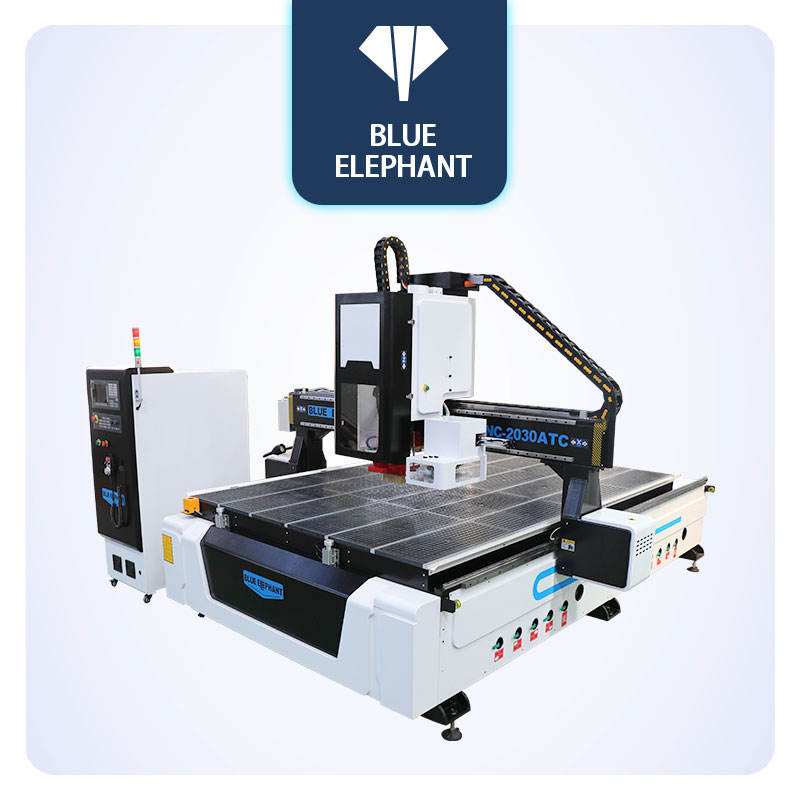

Cheap Wood Cnc Machine Atc 4a 3000x2000 Electric Spindle 2030 4x8 Cnc Router 4th Axis 3d Wood Carving Cutting Machinery Price
See reviewsComplies with EU standards
Complies with EU standards
Attributes
2000×3000Working Table Size(mm)
1number of axes
380V/220V, 3phase (option)voltage
CNC Routermachine type
ATCNo. of Spindles
Multifunctionalkey selling points
core components:Motor, Pump
warranty:12 months for whole machine
cnc or not:CNC
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:Shandong, China
weight (kg):2000
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.02 mm
travel (x axis)(mm):2000 mm
travel (y axis)(mm):3000 mm
repeatability (x/y/z) (mm):0.02 mm
Spindle Motor Power (kw):9.6
brand name:Blue Elephant
dimension(l*w*h):3600*2500*1650mm
application:wood, mdf, acrylic, aluminum, furniture
spindle:air cooling spindle atc 9.6kw with dust hood
inverter:11kw Delta inverter
motor and drive:850w YASKAWA servo motor and 1kw drive
table:t slot and vacuum adsorption table
control:PM95A-3A control system with XHC wireless handwheel
transmission:helical rack and ball screw, and Taiwan HIWIN linear guide
positioning cylinder:3 piece on x axis, 4 piece on y axis
tool changer design:8 linear tool magazines with ISO30 tool holder
tool sensor calibration:Auto tool sensor calibration
Key attributes
Working Table Size(mm)
2000×3000
number of axes
1
voltage
380V/220V, 3phase (option)
machine type
CNC Router
No. of Spindles
ATC
key selling points
Multifunctional
core components
Motor, Pump
warranty
12 months for whole machine
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
weight (kg)
2000
range of spindle speed(r.p.m)
1 - 24000 rpm
positioning accuracy (mm)
0.02 mm
travel (x axis)(mm)
2000 mm
travel (y axis)(mm)
3000 mm
repeatability (x/y/z) (mm)
0.02 mm
Spindle Motor Power (kw)
9.6
brand name
Blue Elephant
dimension(l*w*h)
3600*2500*1650mm
application
wood, mdf, acrylic, aluminum, furniture
spindle
air cooling spindle atc 9.6kw with dust hood
inverter
11kw Delta inverter
motor and drive
850w YASKAWA servo motor and 1kw drive
table
t slot and vacuum adsorption table
control
PM95A-3A control system with XHC wireless handwheel
transmission
helical rack and ball screw, and Taiwan HIWIN linear guide
positioning cylinder
3 piece on x axis, 4 piece on y axis
tool changer design
8 linear tool magazines with ISO30 tool holder
tool sensor calibration
Auto tool sensor calibration
Packaging and delivery
Selling Units
Single item
Single package size
200X300X20 cm
Single gross weight
68.000 kg
Lead time
Customization options
Customized logo(+ from /Min. order: 1 set)
Customized packaging(+ from /Min. order: 1 set)
Graphic customization(+ from /Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
FREE shipping capped at $20
1 - 29 sets
$18,89440
30 - 49 sets
$15,55260
≥ 50 sets
$9,800
