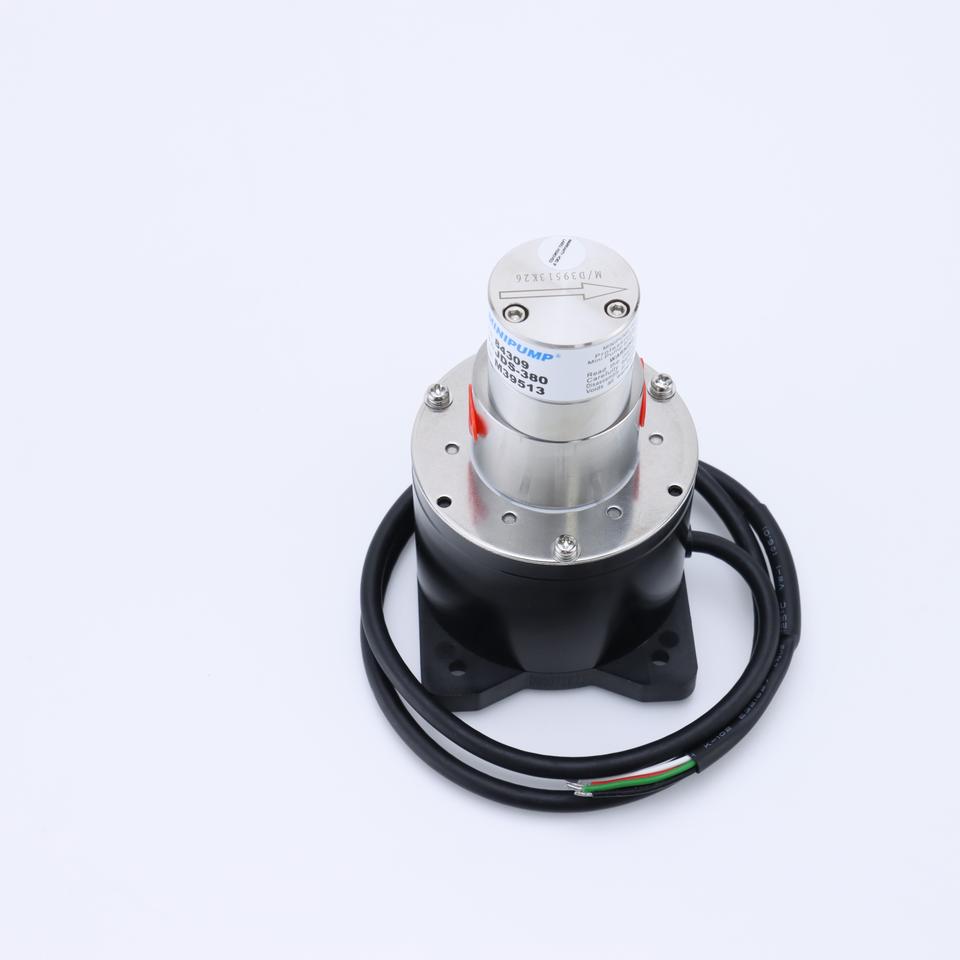

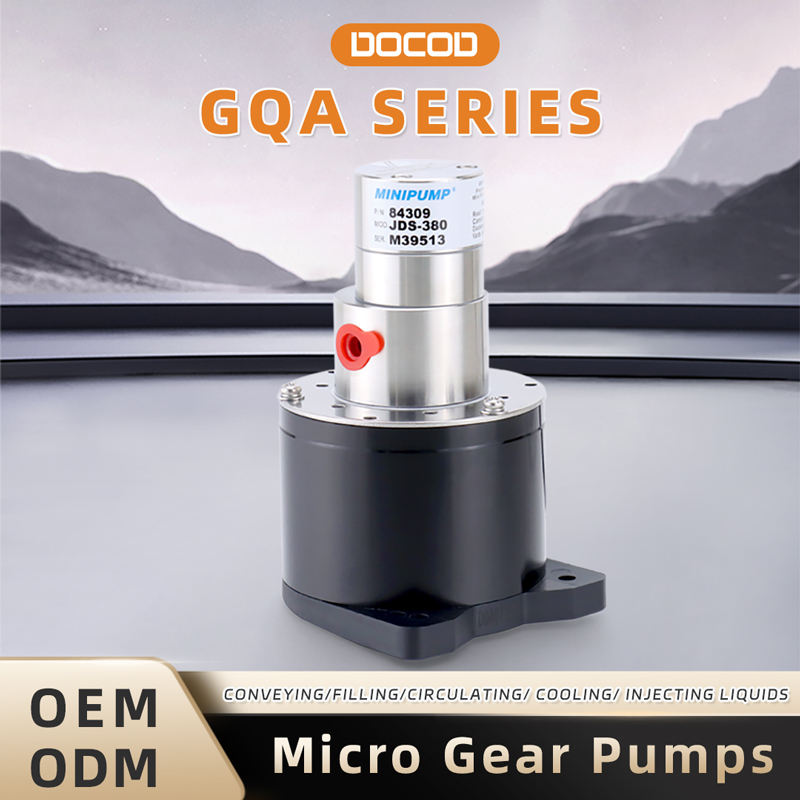

Chemical 24V DC Hot Water Transfer Pump Circulation Magnet Drive Pump Gear Lubrication Oil Pump With 40W BLDC Motor
No reviews yet
DOCOD PRECISION GROUP LIMITED
HK1 yr on Alibaba.com
Response Time ≤ 5hOn-time delivery rate ≥ 100%
Attributes
Pharmaceutical Industryapplication
Gear Pumpstructure
3.6L/minMax Flow Rate
0.4MPaMax Pressure
Electricpower source
Water, Alcohol, Diesel, Gasoline, Kerosene, oilsChemical Compatibility
Sealing Material:PTFE, Stainless Steel, Magnetic
Impeller Material:PEEK
Applicable temperature:-40 to 105 degrees Celsius
outlet size:G1/8-28
Connection Type:Flange Connection
Outlet Type:Universal Style
Discharge Pipe Size:G1/8-28
Flow Rate:0.95mL/rev
Material:Stainless Steel
Control Method:Fully Automatic Control
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Membrane material:PEEK
warranty:1 Year
customized support:OEM, ODM, OBM
cable length:OEM
horsepower:0.5 HP
pressure:Low Pressure
model number:GQA095ESLB01
place of origin:Guangdong, China
brand name:DOCOD
Nominal Displacement:0.95mL/rev
Viscosity Range:0.5-1500CP
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:40W

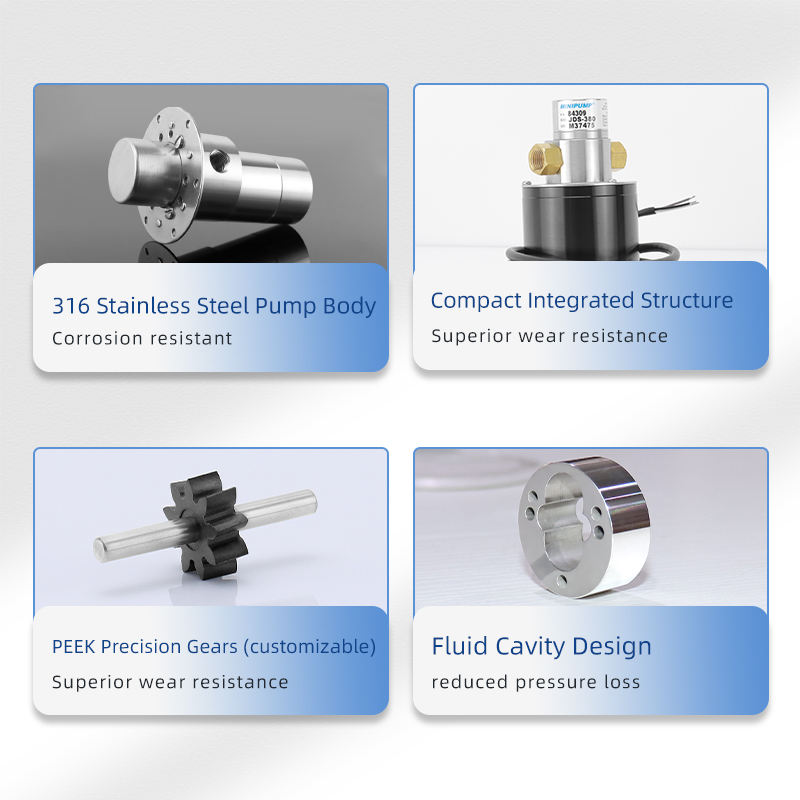

Gear Material:PEEK

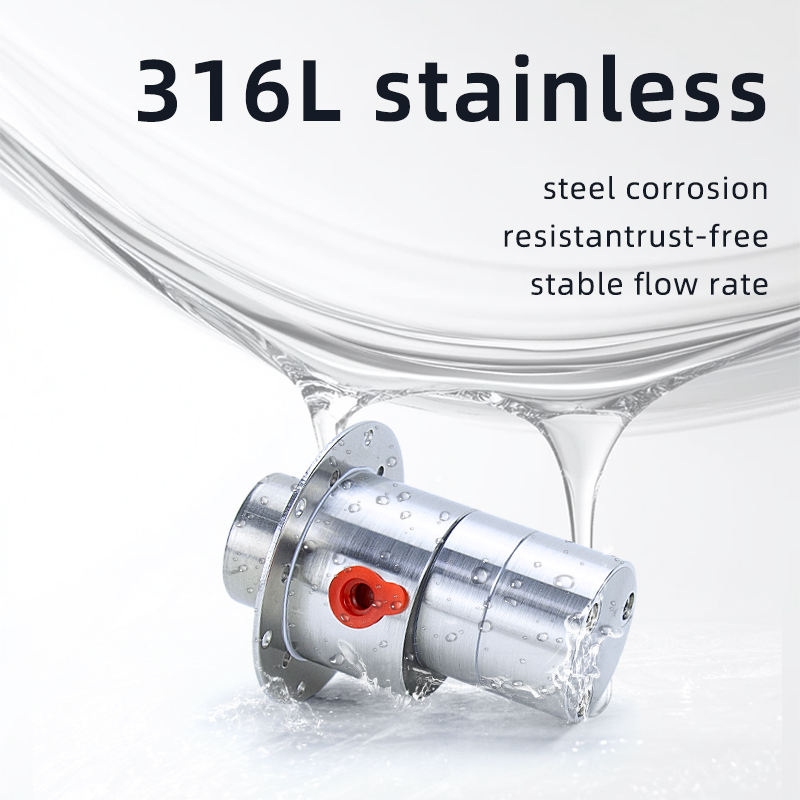

Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)
thread specifications:G1/8-28
Max. Flow Rate:3.6L/min(water as medium)
Max. Pressure:0.4MPa
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Key attributes
application
Pharmaceutical Industry
structure
Gear Pump
Max Flow Rate
3.6L/min
Max Pressure
0.4MPa
power source
Electric
Chemical Compatibility
Water, Alcohol, Diesel, Gasoline, Kerosene, oils
Sealing Material
PTFE, Stainless Steel, Magnetic
Impeller Material
PEEK
Applicable temperature
-40 to 105 degrees Celsius
outlet size
G1/8-28
Connection Type
Flange Connection
Outlet Type
Universal Style
Discharge Pipe Size
G1/8-28
Flow Rate
0.95mL/rev
Material
Stainless Steel
Control Method
Fully Automatic Control
motor
Servo Motor, Brushless DC Motor, Stepper Motor
Membrane material
PEEK
warranty
1 Year
customized support
OEM, ODM, OBM
cable length
OEM
horsepower
0.5 HP
pressure
Low Pressure
model number
GQA095ESLB01
place of origin
Guangdong, China
brand name
DOCOD
Nominal Displacement
0.95mL/rev
Viscosity Range
0.5-1500CP
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
40W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
G1/8-28
Max. Flow Rate
3.6L/min(water as medium)
Max. Pressure
0.4MPa
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
motor(+ from /Min. order: 1 piece)
View details
Product descriptions from the supplier
Customizable
1 - 99 pieces
$24231
100 - 499 pieces
$19385
>= 500 pieces
$16154
Variations
Select nowFlow Rate: 500-4000rpm
500-4000rpm
maximum head: other
other
type: Gear pump
Gear pump
voltage
24VDC
Customization options
motor (Min. order: 1 piece)
