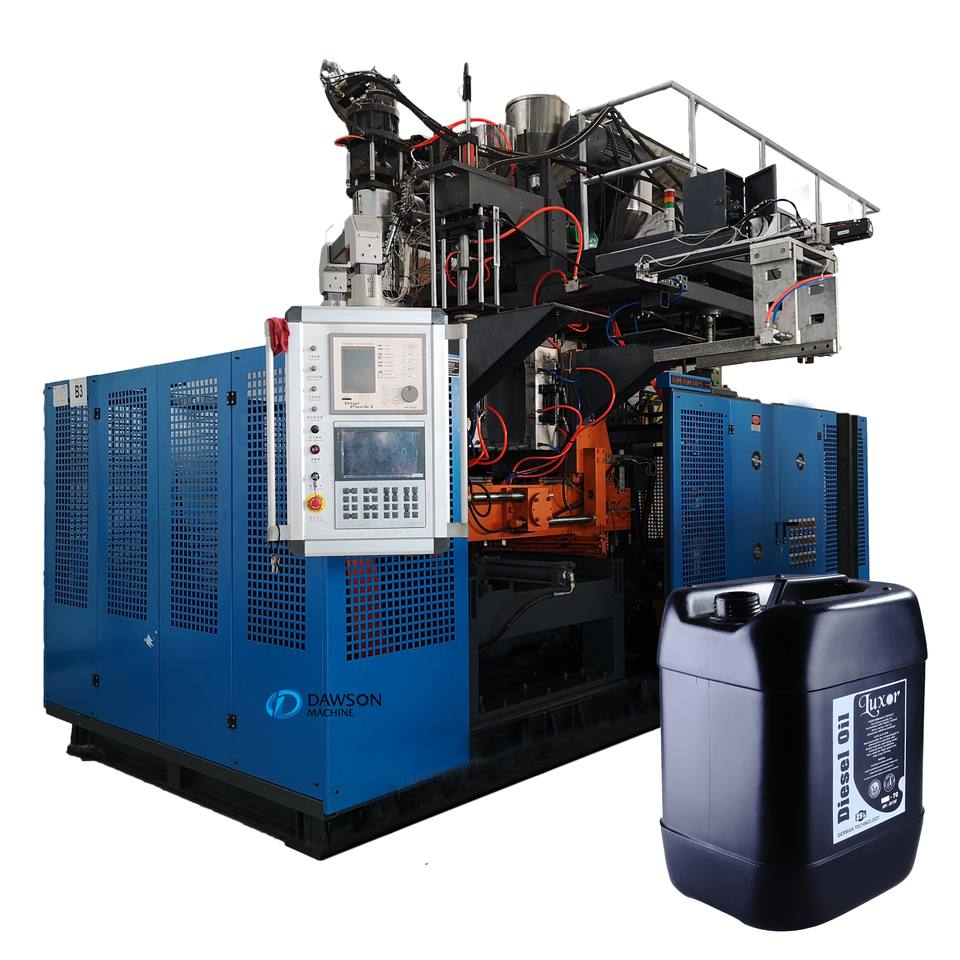

China Factory 25L 30 Liter Full Automatic Plastic Bottle Machinery 20L Drum Making Machines Jerry Can Blow Molding Machine

See reviews
$58,800
1-2 sets
$56,800
3-4 sets
$52,800
≥5 sets
Sample price: $100
Select now

max.product volume (l)

30
Customization options
Customized logo (Min. order: 1 set)
Color customization (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

plastic processed

PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP

Clamping Force (kN)

270

automation

Automatic

voltage

440V/415V/380V/220V

key selling points

Easy To Operate

warranty

1 Year

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Service

Free replacement parts & online technical support
Free replacement parts & online technical support

Key attributes

plastic processed
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Clamping Force (kN)
270
automation
Automatic
voltage
440V/415V/380V/220V
key selling points
Easy To Operate
warranty
1 Year
No. of Screw Heating Zone
4
core components
PLC, Engine, Bearing, Gearbox, Gear
machinery test report
Provided
video outgoing-inspection
Provided
output (kg/h)
130 kg/h
place of origin
Jiangsu, China
power (kw)
67
weight (t)
11.3
brand name
DAWSON
dimension(l*w*h)
4.4*3.4*3.6
screw diameter (mm)
90 mm
screw heating power(kw)
10 kW
extruder motor power(kw)
30 kW
mold platen size(width)(mm)
660 mm
mold platen size(height)(mm)
680 mm
air pressure(mpa)
0.8 MPa
air comsumption(m³/min)
2.2 m³/min
die head heating power(kw)
8 kW
Blow Molding Type
Extrusion Blow Molding Machine
Maximum Application Size
30L
Cooling water pressure
0.6 MPA
Water Consumption
100 L/Min
Mould Lifespan
> 1,000,000 Cycles
Mold Material
P20, 2316, S136H, Aluminum with beryllium copper.
Language settings
Chinese and English operation panel
Instructions provided
Instructions in Chinese and English
Labor demand
1~2 operetor
After-sales Service Provided
Online support

Packaging and delivery

Packaging Details
Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to our customers for reference.
