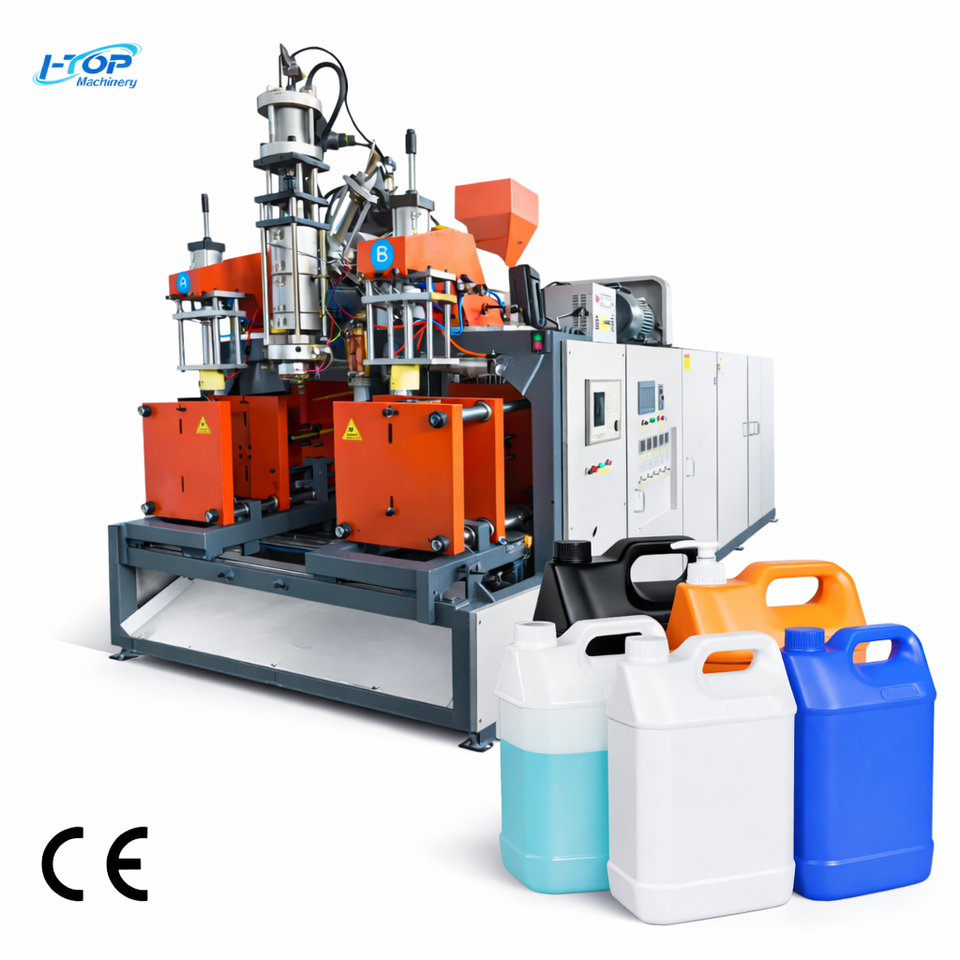

China Semi Automatic Blow Molding Machine for HDPE PP Jerry Cans, Water Bottles and Detergent Bottles with Easy Operation
No reviews yet1 sold#6Hot selling in Extrusion Blow Molding MachinesEU Machinery Compliance

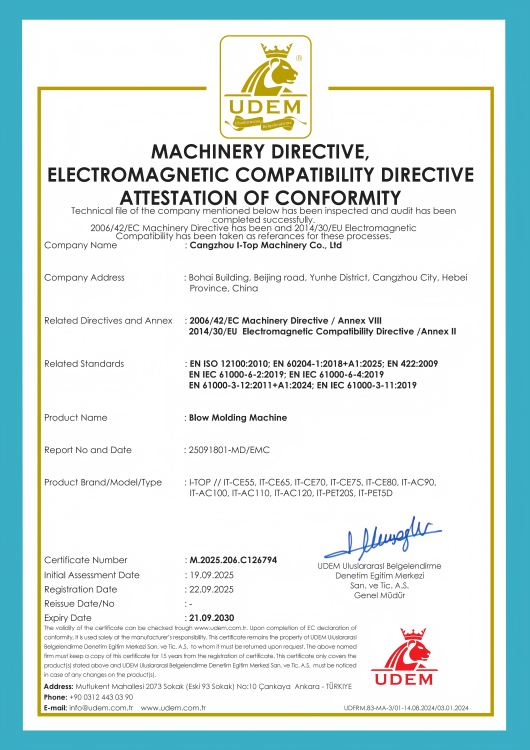

EU Machinery Compliance
Attributes
HDPE, LDPE, PP, PVC, ABSplastic processed
50Clamping Force (kN)
380 Vvoltage
Semi-Automaticautomation
5No. of Screw Heating Zone
Mitsubishiplc brand
core components:PLC, Engine, Motor, Pressure Vessel, Pump
warranty:1 Year
key selling points:Long Service Life, Easy To Operate, Multifunctional, High Productivity, Energy Saving, Low Maintenance Cost, Multilayer, Automatic
machinery test report:Provided
video outgoing-inspection:Provided
output (kg/h):70
place of origin:Hebei, China
power (kw):30
weight (t):3
brand name:I-TOP
dimension(l*w*h):3000x1900x1680
Screw L/D Ratio:25
screw diameter (mm):65
screw heating power(kw):11
extruder motor power(kw):11
mold platen size(width)(mm):370
mold platen size(height)(mm):460
air pressure(mpa):0.6
air comsumption(m³/min):0.5
die head heating power(kw):8
model number:IT-CE65

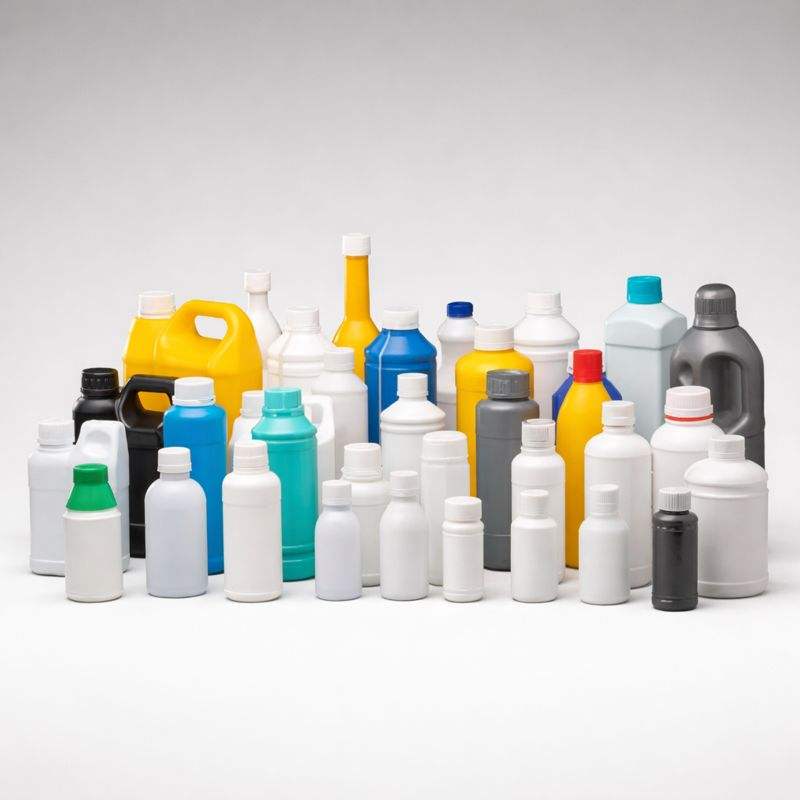

Suitable Products:Jerry Can, Detergent/laundry liquid bottles
Volume Range:0.5-5 L (customizable)
Mold Cavity:1 cavity standard, 2 cavities optional
Control System:PLC+HMI, recipe storage
Wall Thickness Control:Suitable for handle bottles
Optional Functions:Leak test/deflashing/take-out
Mold Service:OEM/ODM, drawing/sample accepted
After-Sales:Training + 24/7 online support
Packing & Delivery:Export packing, lead time by config
Auxiliary Machines:Loader, mixer, air compressor, chiller (optional)
Product spotlightsPLC Control System: The PLC+HMI control system with recipe storage ensures precise and consistent operation, improving production efficiency and reducing human error.
Volume Range: A customizable volume range of 0.5-5 L allows for flexibility in producing various sizes of bottles, meeting diverse customer needs.
Multilayer Capability: The multilayer feature enables the production of high-quality, durable, and barrier-resistant bottles, enhancing the product's performance and shelf life.
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
plastic processed
HDPE, LDPE, PP, PVC, ABS
Clamping Force (kN)
50
voltage
380 V
automation
Semi-Automatic
No. of Screw Heating Zone
5
plc brand
Mitsubishi
core components
PLC, Engine, Motor, Pressure Vessel, Pump
warranty
1 Year
key selling points
Long Service Life, Easy To Operate, Multifunctional, High Productivity, Energy Saving, Low Maintenance Cost, Multilayer, Automatic
machinery test report
Provided
video outgoing-inspection
Provided
output (kg/h)
70
place of origin
Hebei, China
power (kw)
30
weight (t)
3
brand name
I-TOP
dimension(l*w*h)
3000x1900x1680
Screw L/D Ratio
25
screw diameter (mm)
65
screw heating power(kw)
11
extruder motor power(kw)
11
mold platen size(width)(mm)
370
mold platen size(height)(mm)
460
air pressure(mpa)
0.6
air comsumption(m³/min)
0.5
die head heating power(kw)
8
model number
IT-CE65
Suitable Products
Jerry Can, Detergent/laundry liquid bottles
Volume Range
0.5-5 L (customizable)
Mold Cavity
1 cavity standard, 2 cavities optional
Control System
PLC+HMI, recipe storage
Wall Thickness Control
Suitable for handle bottles
Optional Functions
Leak test/deflashing/take-out
Mold Service
OEM/ODM, drawing/sample accepted
After-Sales
Training + 24/7 online support
Packing & Delivery
Export packing, lead time by config
Auxiliary Machines
Loader, mixer, air compressor, chiller (optional)
