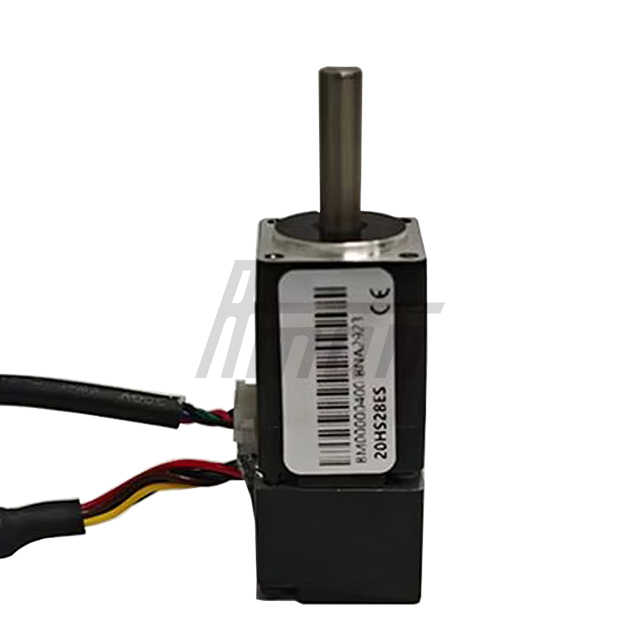

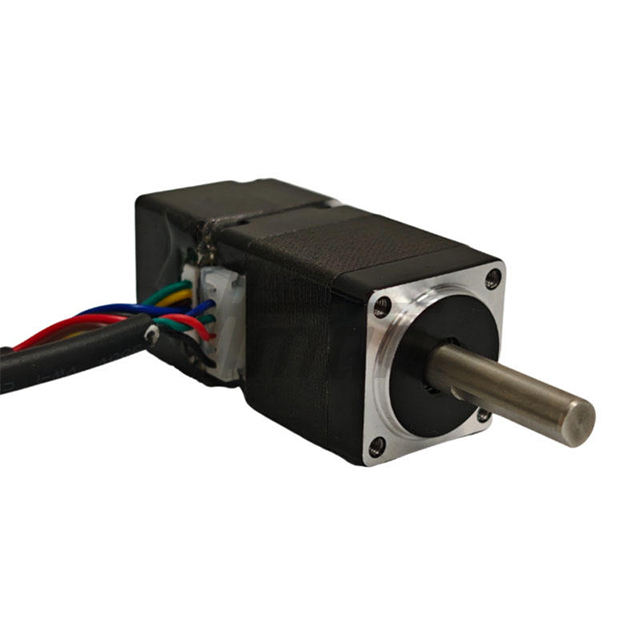

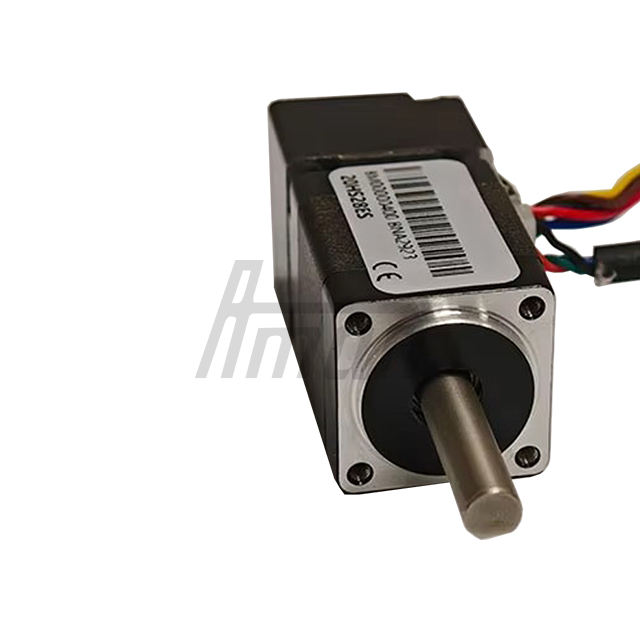

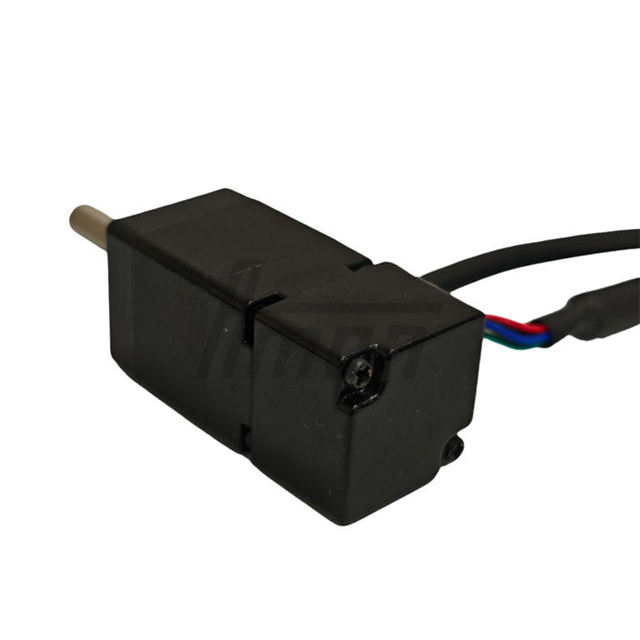

Closed Loop Stepper Motor 20HS28ES Mode 2-Phase Hybrid NEMA 8 1.4N.cm Torque Application to Engraving Machine Printer
No reviews yet
Attributes
NEMA 8Nema Frame Size
-Voltage
HybridType
2Phase
5.0mmShaft Diameter
1.4N.cmTorque
Place of Origin:Jiangsu, China
Model Number:20HS28ES
Current / Phase:0.8A
Warranty:1 year
Step Accuracy:±5%
Resistance Accuracy:±10%
Inductance Accuracy:±20%
Temperature Rise:60°(Max)
Ambient Temperature:-20℃~+50℃
Insulation Resistance:100MOhm(500VDC)
Pressure Resistance:500V AC 1minute
Encoder Resolution:1000 lines
Resistor:2.52Ω
Inductance:3.2mH
Static Torque:1.4N.cm
Moment of Inertia:9g.cm2
Motor Length:44mm
Weight:78g
Application:Engraving Machine, Printer, Dispensing Machine
Application2:Industrial Robot, AGV, Medical Equipment
Key attributes
Nema Frame Size
NEMA 8
Voltage
-
Type
Hybrid
Phase
2
Shaft Diameter
5.0mm
Torque
1.4N.cm
Warranty
1 year
Current / Phase
0.8A
Model Number
20HS28ES
Place of Origin
Jiangsu, China
Step Accuracy
±5%
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
60°(Max)
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100MOhm(500VDC)
Pressure Resistance
500V AC 1minute
Encoder Resolution
1000 lines
Resistor
2.52Ω
Inductance
3.2mH
Static Torque
1.4N.cm
Moment of Inertia
9g.cm2
Motor Length
44mm
Weight
78g
Application
Engraving Machine, Printer, Dispensing Machine
Application2
Industrial Robot, AGV, Medical Equipment
Packaging and delivery
Selling Units
Single item
Package size per batch
13X8X9 cm
Gross weight per batch
1.000 kg
Lead time
Product descriptions from the supplier
1 - 9 pieces
$2890
10 - 99 pieces
$28
>= 100 pieces
$2710
