Attributs
Vanne à bille, Vanne papillonType de valve
OEMSupport personnalisé
3 ansGarantie
Shanghai, ChinaPoint d'origine

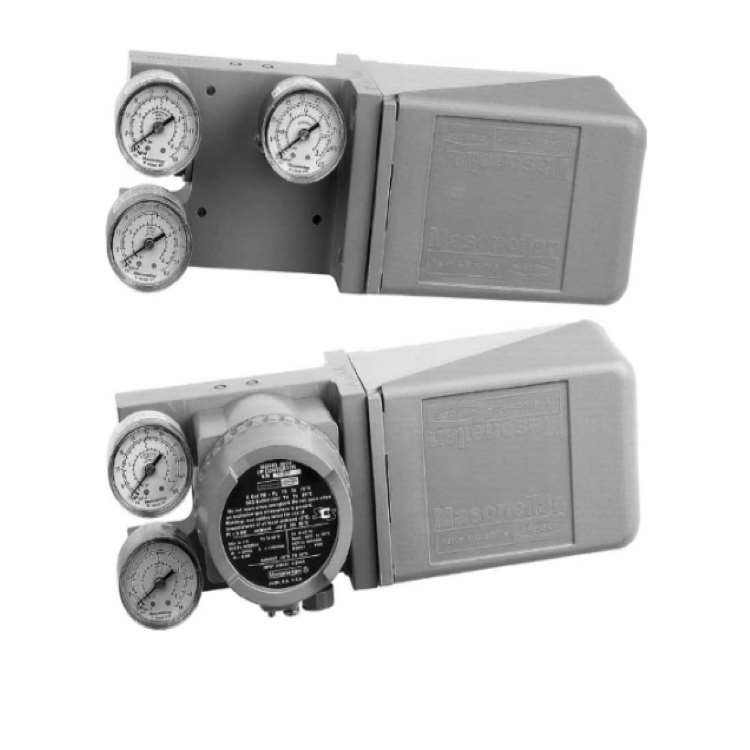

Masoneilan 4700E/4800ENuméro de Type
MasoneilanMarque nom
Model:Masoneilan 4700E/4800E
Characteristics:Linear/Equal Percentage/Custom
4700 Maximum Air Consumption:0.3 scf/min - 25 psig supply
4800 Maximum Air Consumption:0.5 scf/min - 25 psig supply
Supply Pressure Influence:Less than 0.25% stroke change per psi supply change
Maximum Air Supply Rating:Dictated by actuator, but never greater than 100 psig
Connections:Pneumatic: 1/4" NPT (4700) or 3/8" (4800) Electrical: 1/2" NPT or M20
4700 Weight:4700P: 3.5 lbs (1.6 kg)/4700E: 4.7 lbs (2.1 kg)
4800 Weight:4800P: 4.2 lbs (1.9 kg)/4800E: 5.3 lbs (2.4 kg)
vente Unités:Article unique
seul paquet taille:50X50X30 cm
unique poids brut:50.000 kg
