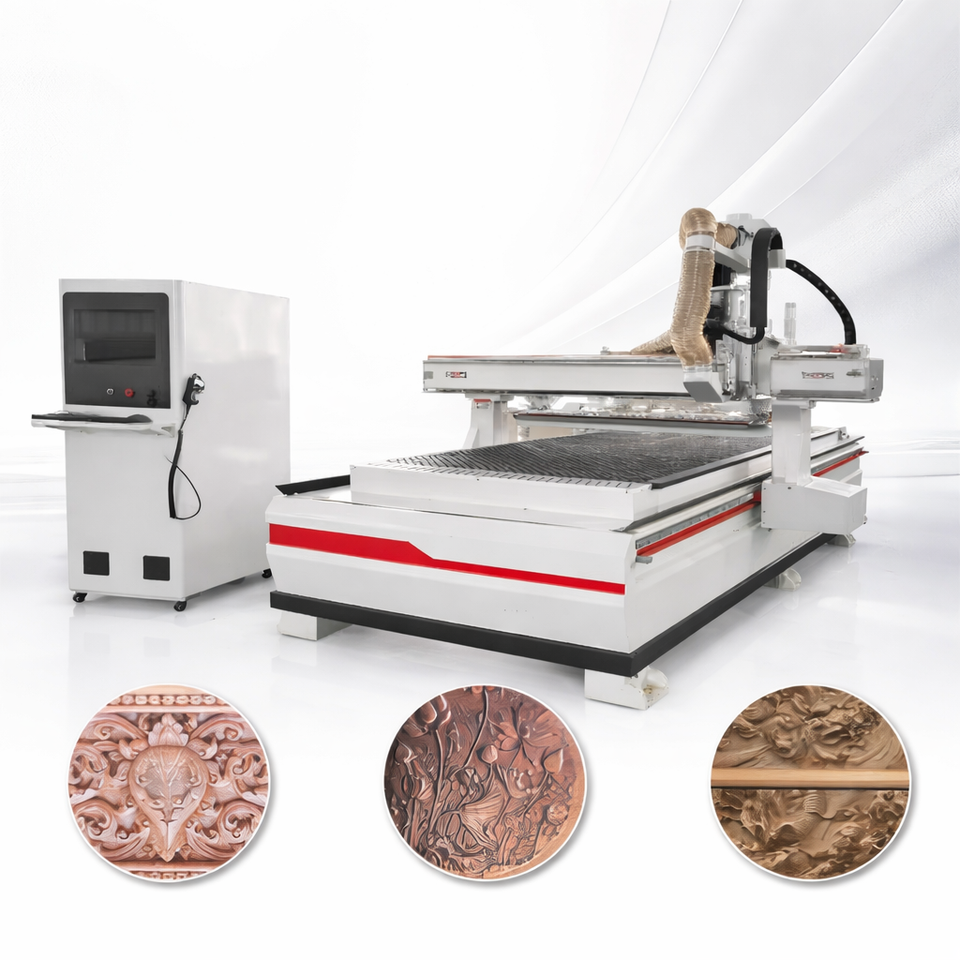

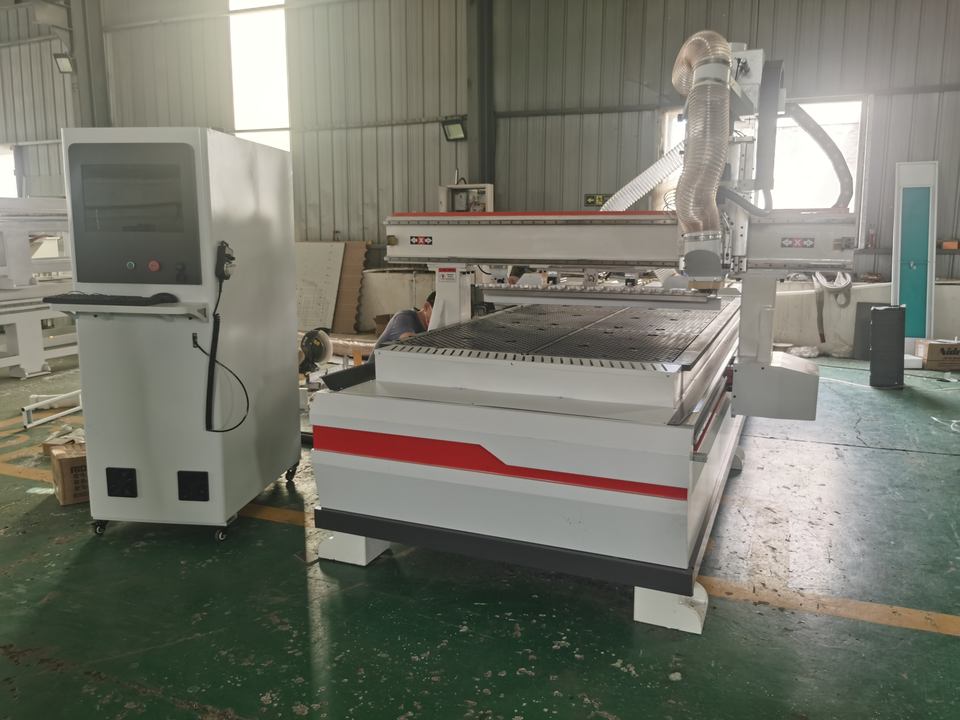

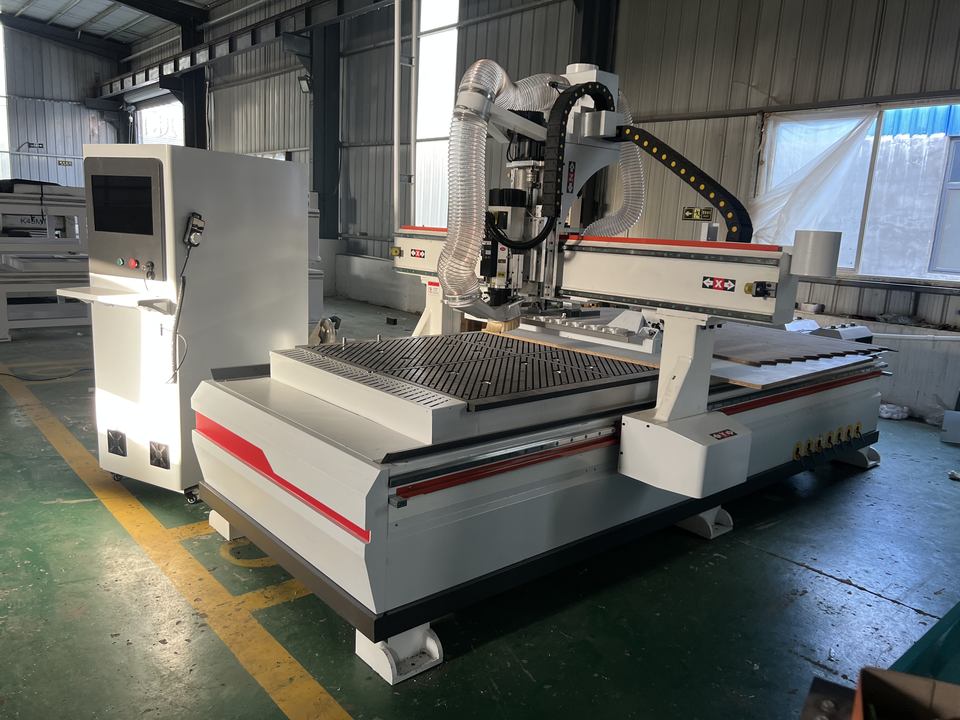

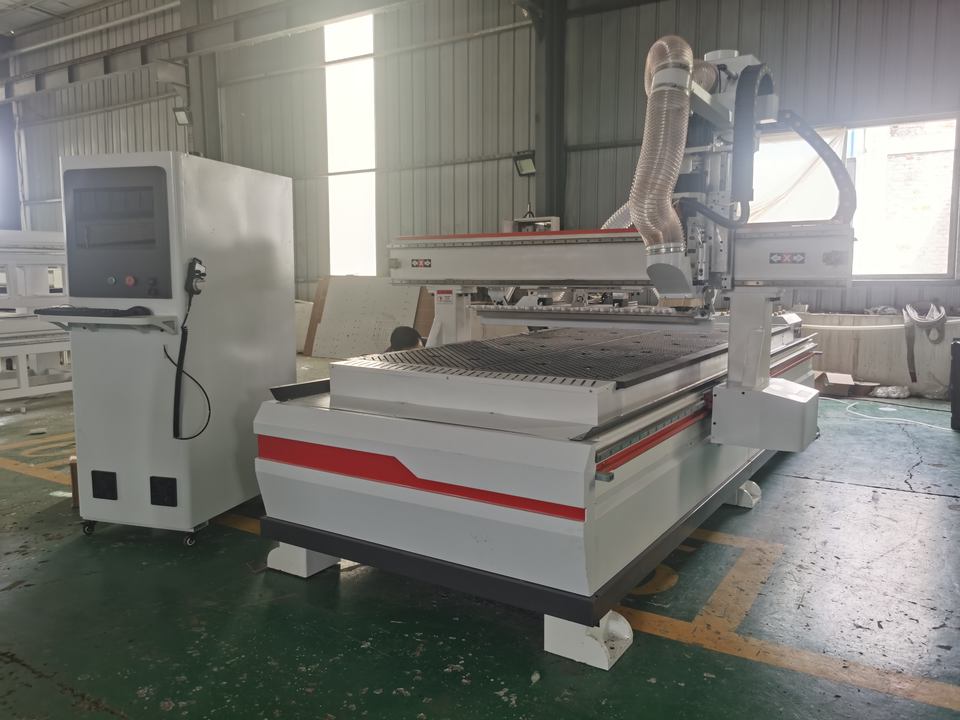

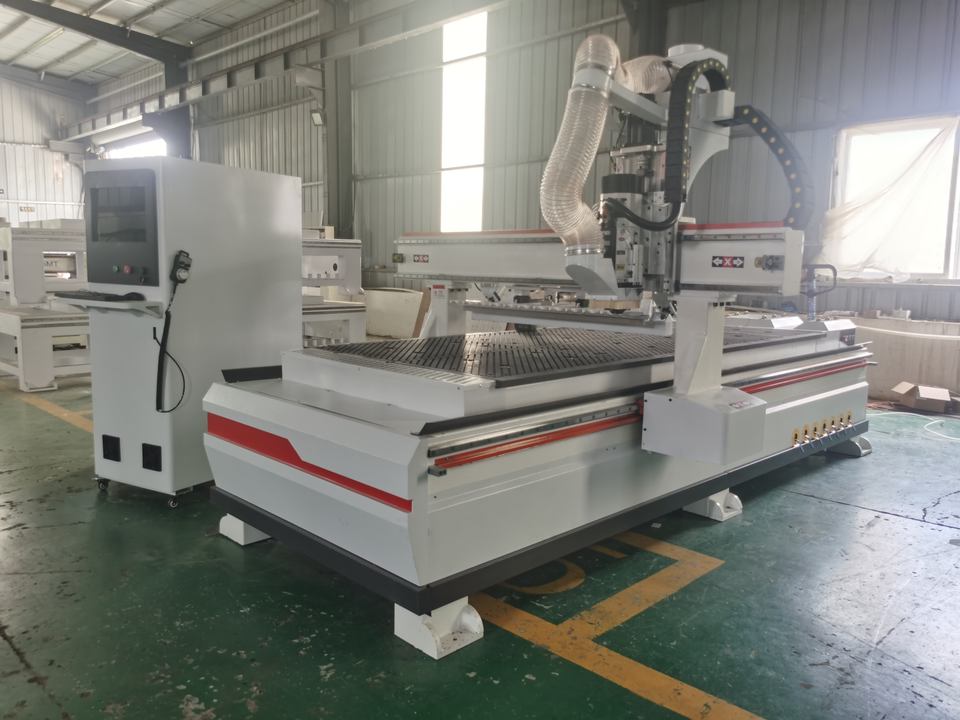

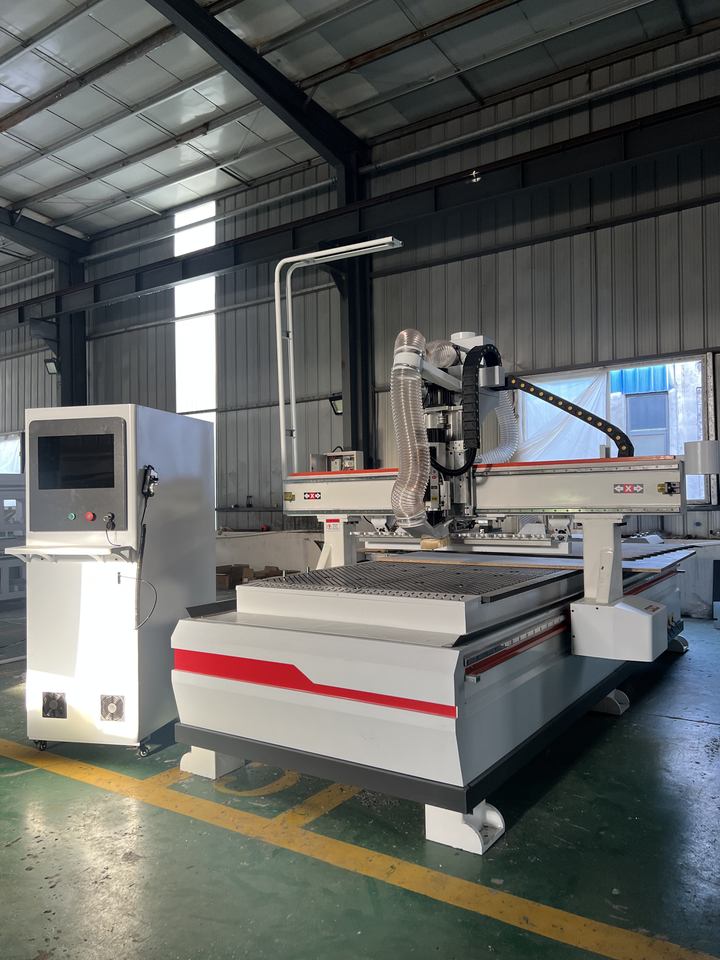

Cost-Effective 1325 CNC Woodworking Machine, High Efficiency ATC CNC Router for Small & Medium Enterprises
No reviews yet
Attributes
3number of axes
380V 50/60HZvoltage
CNC Routermachine type
4No. of Spindles
Easy To Operatekey selling points
NoneAccessory Type
core components:Gear, Engine, Pump, MOTOR
warranty:1 Year
cnc or not:CNC
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:China
weight (kg):1800
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.05
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.05
Spindle Motor Power (kw):9kw
brand name:MEOKON
dimension(l*w*h):1300*2500*200mm
Product name:CNC Wood Working Machine
Control system:LNC Controller
Working size:1300*2500*200mm+ (optional)automatic feeding
voltage:AC380V/3PH/50HZ
Spindle power:9KWautomatic tool change spindle +twelve tools
Driver system:leadshine/riding motor and driver with reduction box 1500W
Vacuum system:UPVC vacuum line+ vacuum hose
Guide+screw:ltaly PEK+Taiwan JT screw
Table structure:Double vacuum adsorption table
Inverter:YELTDA
Service
1-year warranty
Key attributes
number of axes
3
voltage
380V 50/60HZ
machine type
CNC Router
No. of Spindles
4
key selling points
Easy To Operate
Accessory Type
None
core components
Gear, Engine, Pump, MOTOR
warranty
1 Year
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
China
weight (kg)
1800
range of spindle speed(r.p.m)
1 - 24000 rpm
positioning accuracy (mm)
0.05
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
repeatability (x/y/z) (mm)
0.05
Spindle Motor Power (kw)
9kw
brand name
MEOKON
dimension(l*w*h)
1300*2500*200mm
Product name
CNC Wood Working Machine
Control system
LNC Controller
Working size
1300*2500*200mm+ (optional)automatic feeding
voltage
AC380V/3PH/50HZ
Spindle power
9KWautomatic tool change spindle +twelve tools
Driver system
leadshine/riding motor and driver with reduction box 1500W
Vacuum system
UPVC vacuum line+ vacuum hose
Guide+screw
ltaly PEK+Taiwan JT screw
Table structure
Double vacuum adsorption table
Inverter
YELTDA
