Attributes
otherMounting Type
not haveManufacturing Date Code
ZT-FH00E ZT-FH01E ZT-FH02E ZT-FH04EModel Number
Zhenzhong TestBrand Name
SensorUsage
±0.1%, ±0.05%Accuracy
Description:other, Impact hammer

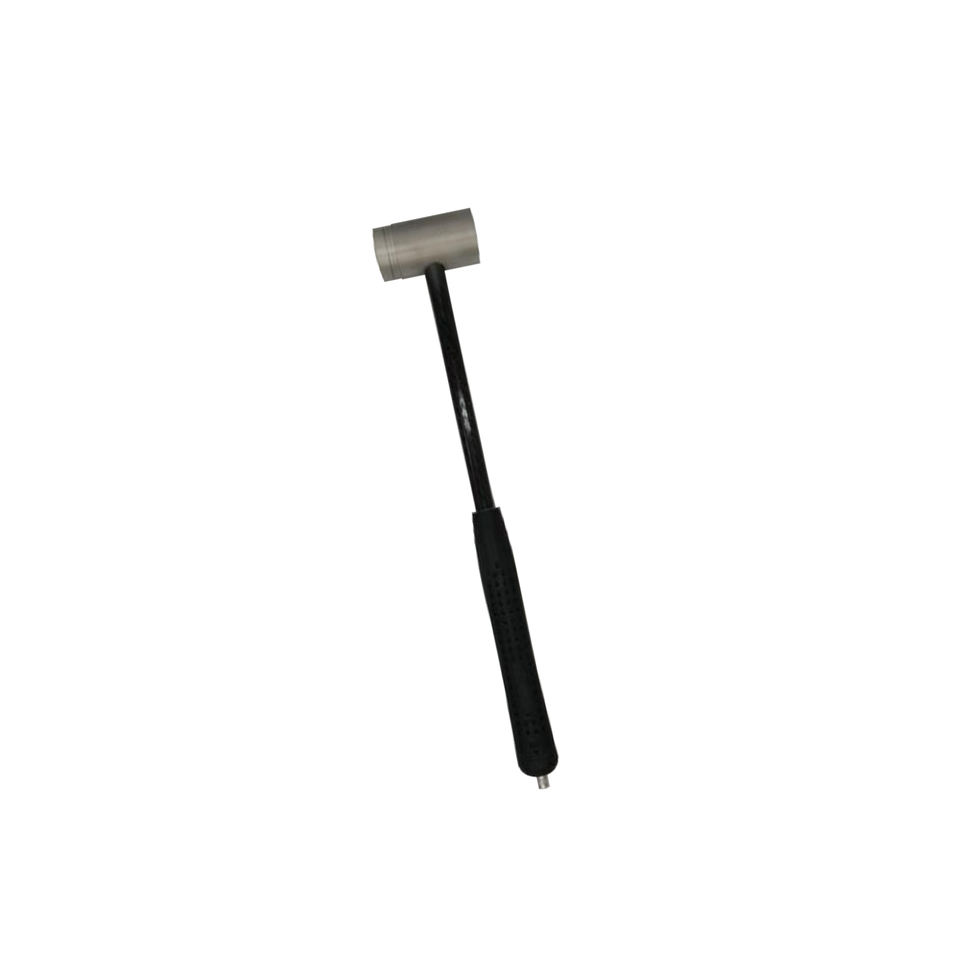

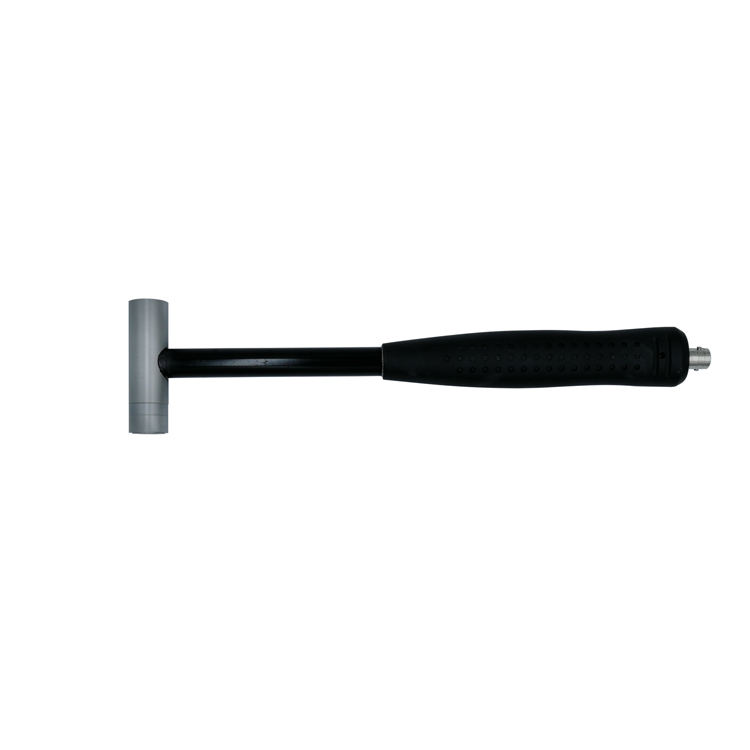

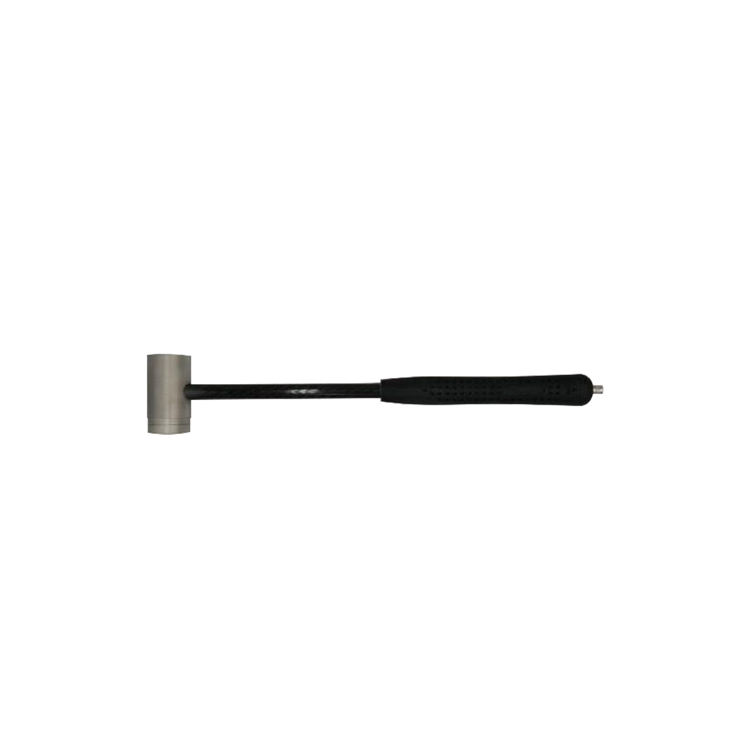

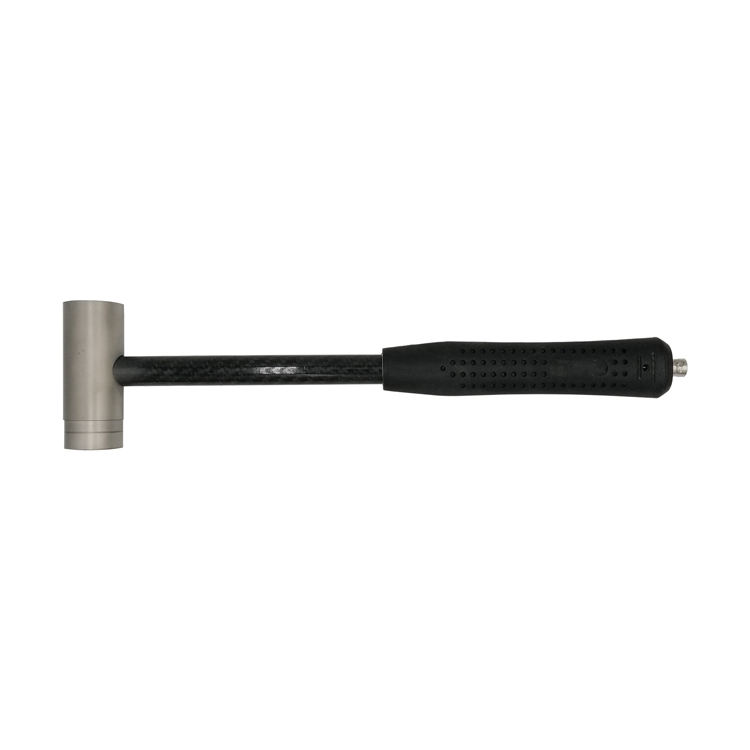

Type:Impact hammer
Place of Origin:Jiangsu, China
Series:Pressure sensor
Features:Measure pressure
Theory:not have
Output:L5 Socket BNC Socket
Product model:ZT-FH00E ZT-FH01E ZT-FH02E ZT-FH04E
Charge sensitivity (20 ± 5 ℃):~25mV/N ~5mV/N ~2.5/1mV/N ~160/88mV/KN
measuring range:0~200N 0~1KN 0~2KN /5KN 0~30KN /60KN
Overload capacity:120 %
Working voltage (VDC):+18~28V
Working current:2~10mA
Resonant frequency:>70kHz >40kHz >40kHz >30kHz
Working temperature range:-54~+80℃
Hammerhead weight:3.7g 65g 65g 350g
Hammer handle length:110mm 240mm 240mm 280mm
