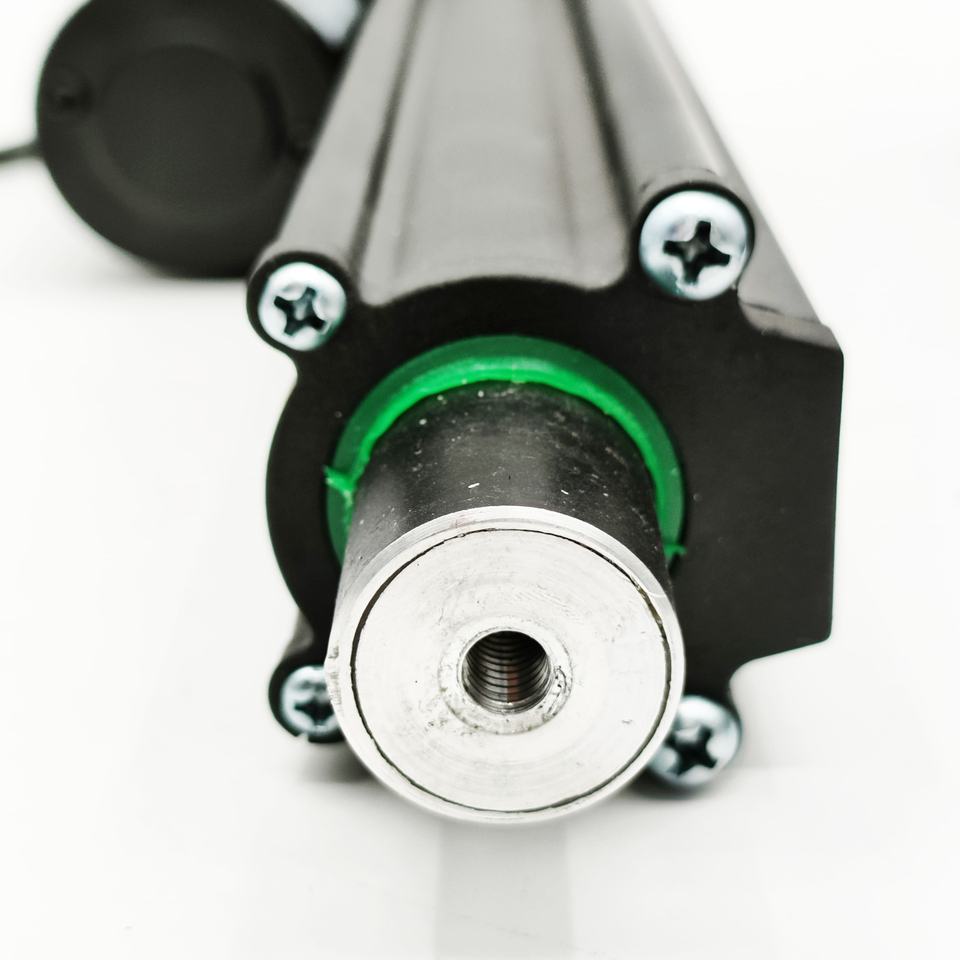

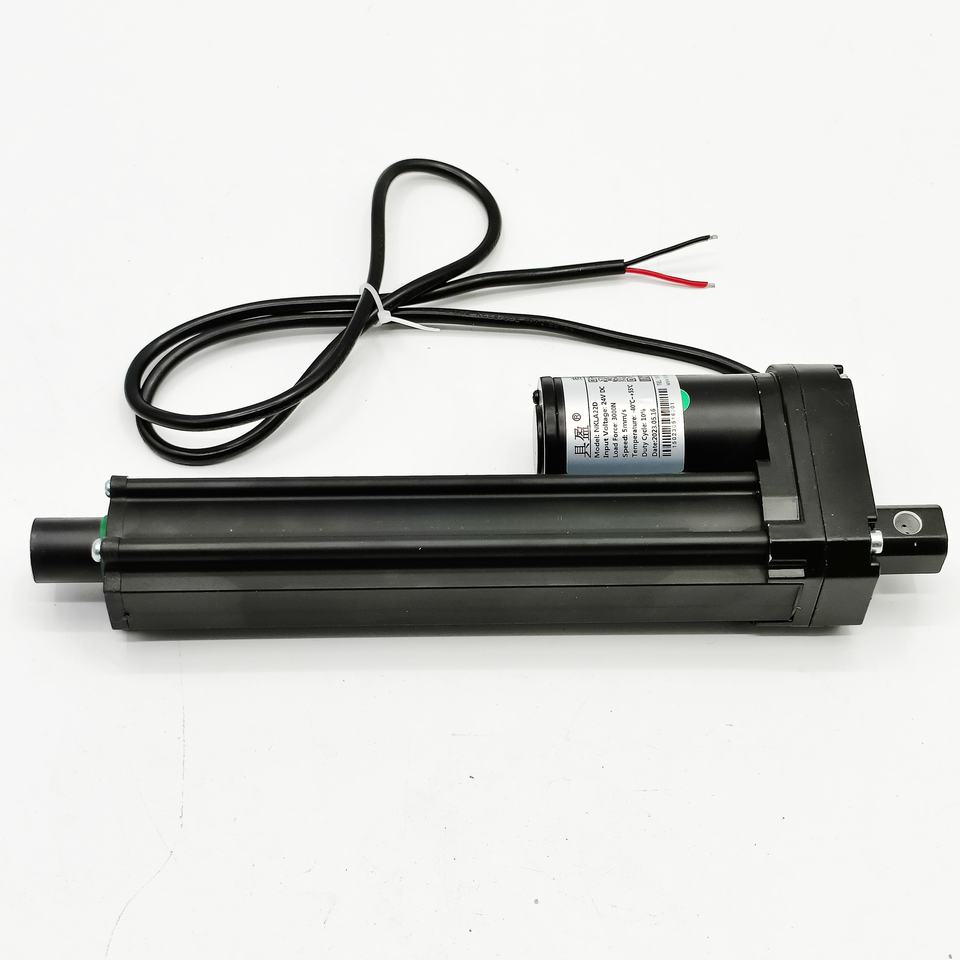

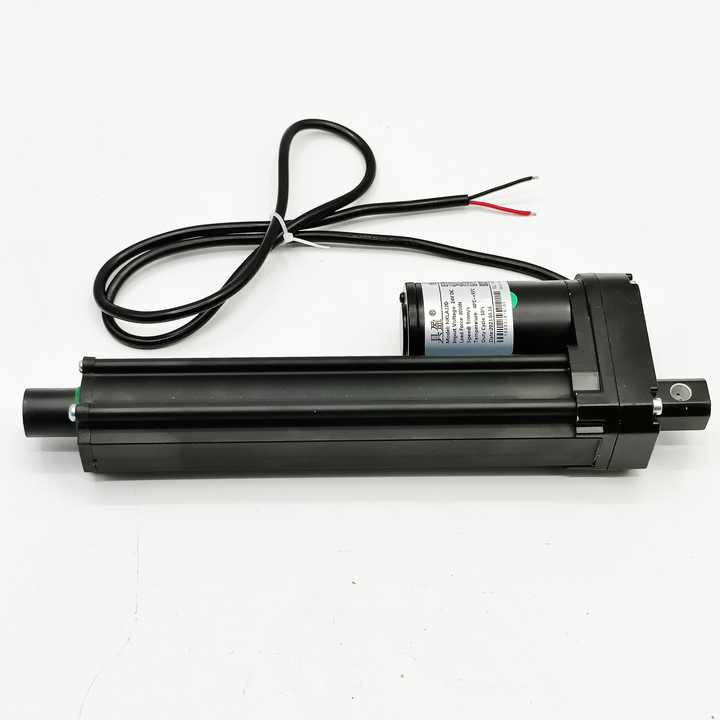

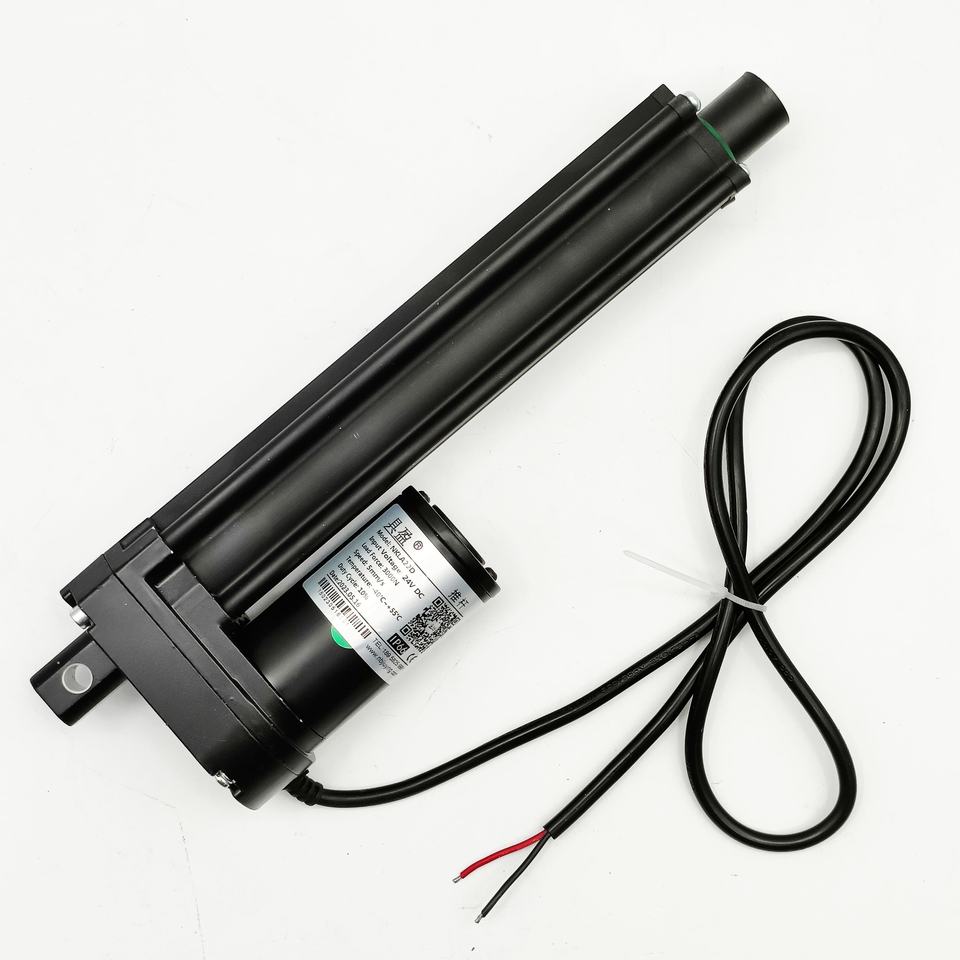

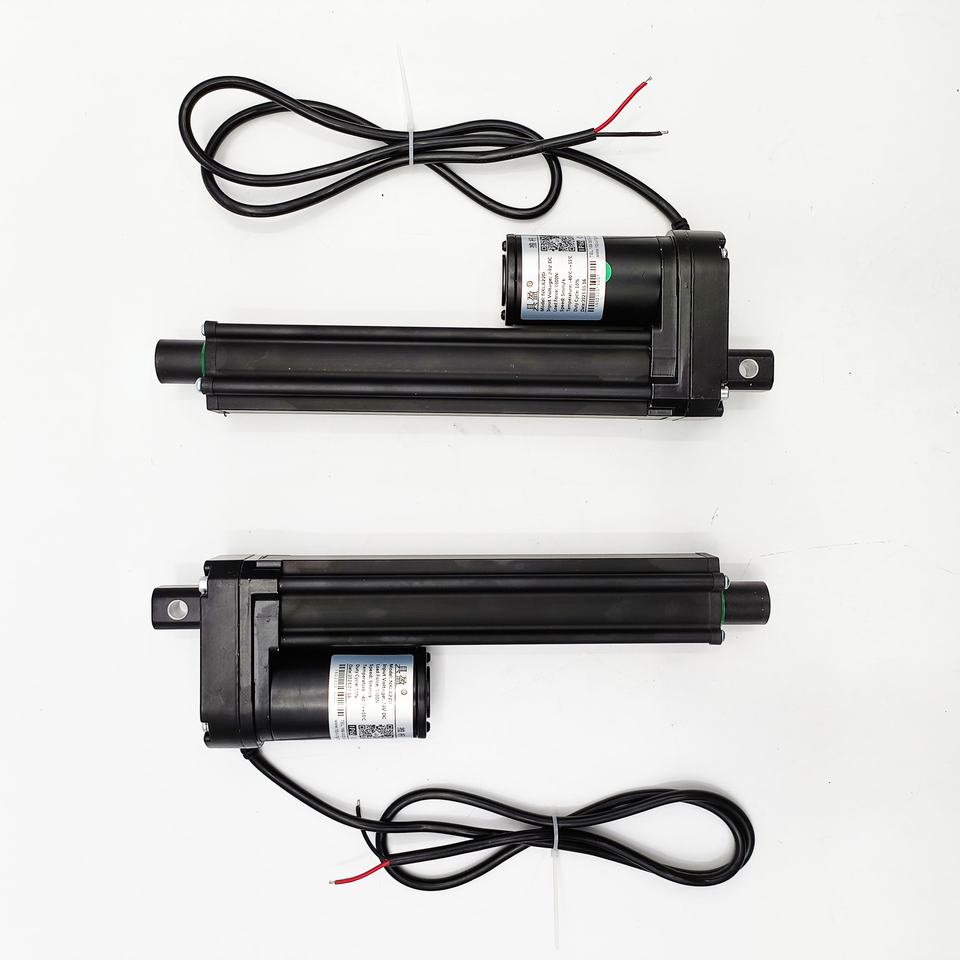

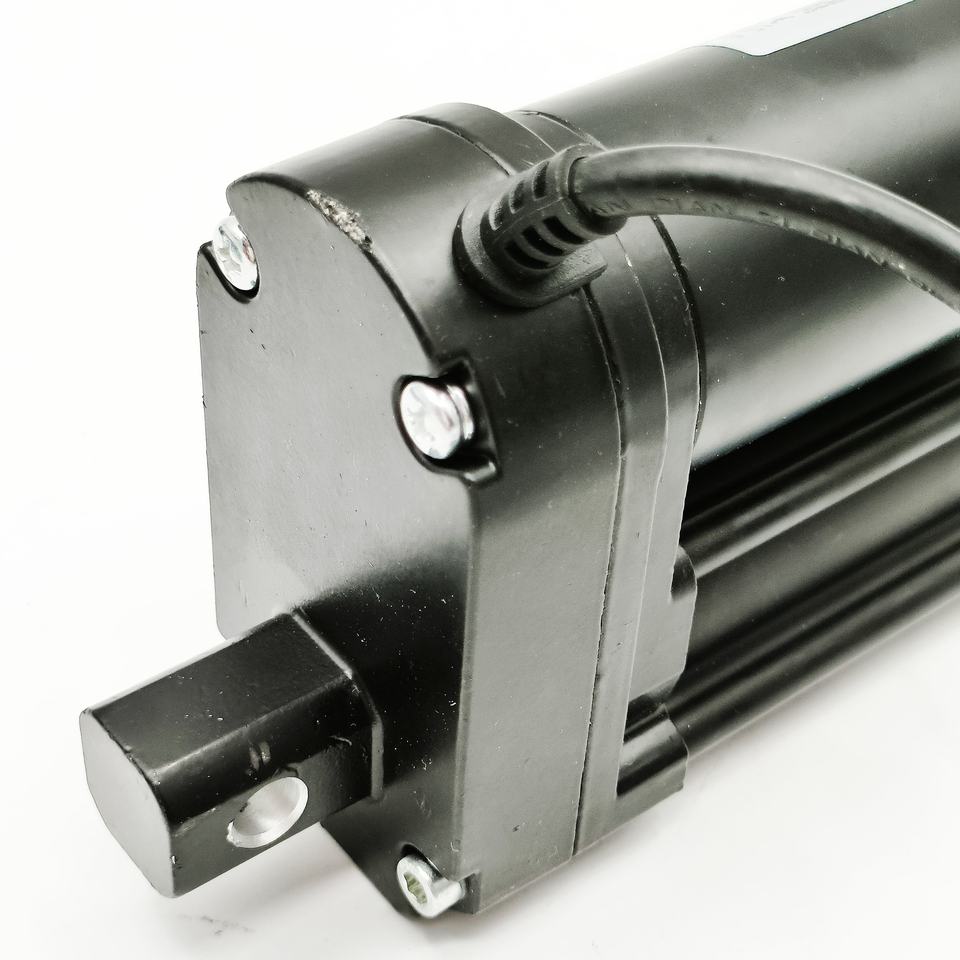

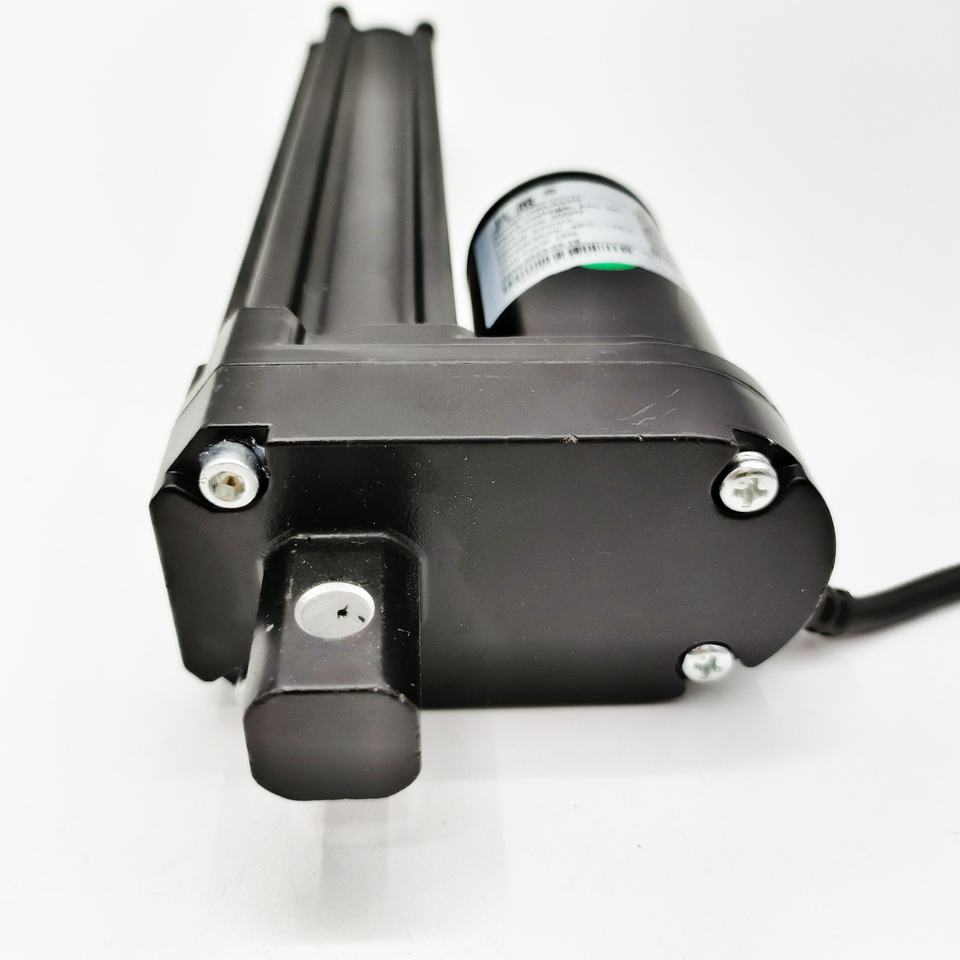

DC 24V Electric Motor Controller 50mm-400mm Stroke Load Linear Actuator with Permanent Magnet Construction 100/200/300/500/700n

No reviews yet
$99
2-99 pieces
$59
≥100 pieces
Sample price: $99
Select now

Voltage(V)

12/24/36/48 VDC

Output Power

1000~3500N load
Flatten the bottom option
max 770 lb load

Speed of Revolution

3~20mm/s speed
More customization options
IP Rating

Key attributes

Continuous Current(A)

1A~7A

Efficiency

IE 1

Speed(RPM)

customize

Place of Origin

Zhejiang, China

Frame

Linear Actuator

Motor Mounting Type

Linear Actuator

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

1-year warranty

Access to free parts replacement and repair coverage

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Service

1-year warranty
1-year warranty

Key attributes

Continuous Current(A)
1A~7A
Efficiency
IE 1
Speed(RPM)
customize
Place of Origin
Zhejiang, China
Frame
Linear Actuator
Motor Mounting Type
Linear Actuator
Rated Power
50 W
Rated voltage
Dc 24V
Model Number
NKLA22D
Brand Name
ewelift
Commutation
Brush
Construction
Permanent Magnet
Protect Feature
Waterproof
Speed Rpm
3 000 RPM
Torque
HIGH
Type
Brush Motor
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical Application
Warranty
3 months ~ 1 year
Stroke Length
50~1000mm
Limit Switch
Built-in Limit Switch
Duty Cycle
20%(high Speed 10%)
IP Grade
IP65
Operating Temperature
-40℃~+65℃
Dynamic Load Push(N)
3500N~1000N
Dynamic Load Pull(N)
3500N~1000N
Input(VDC)
12/24/36/48 vdc
Speed at Full Load(mm/s)
3~20mm/s
feature
copper nut

Packaging and delivery

Selling Units
Single item
Single package size
30X10X10 cm
Single gross weight
2.0 kg
