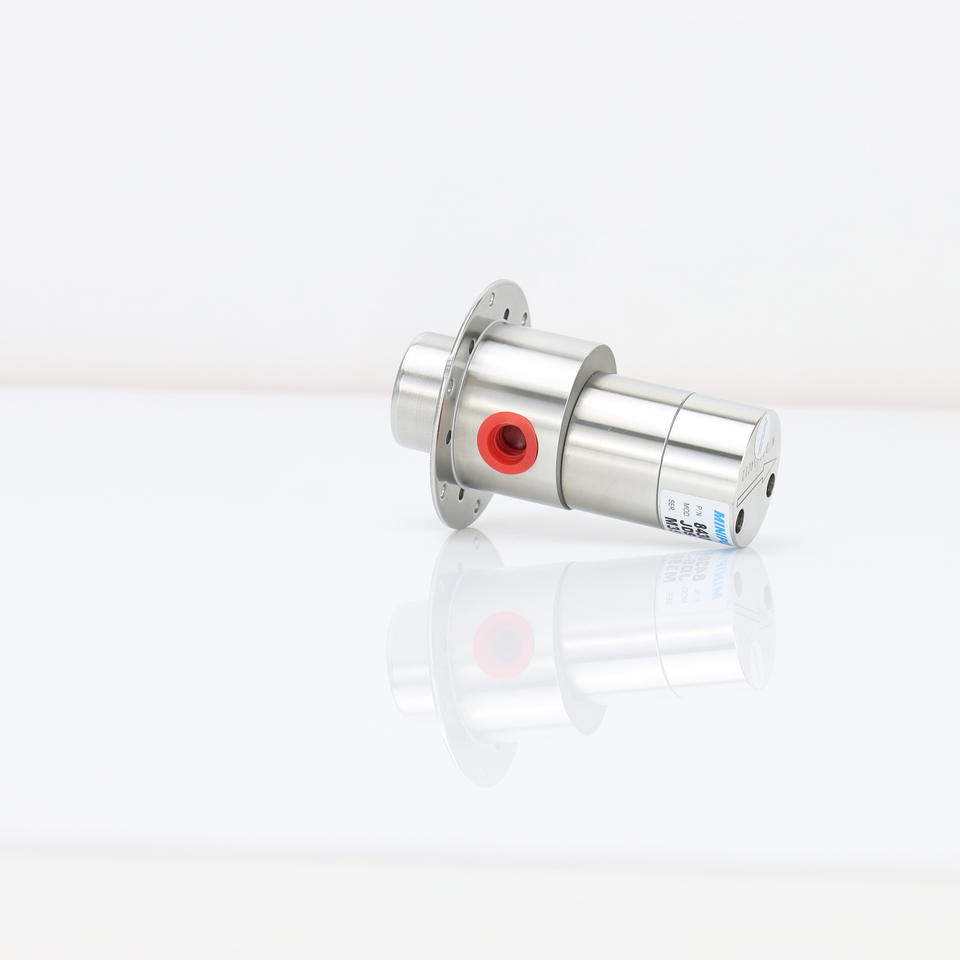

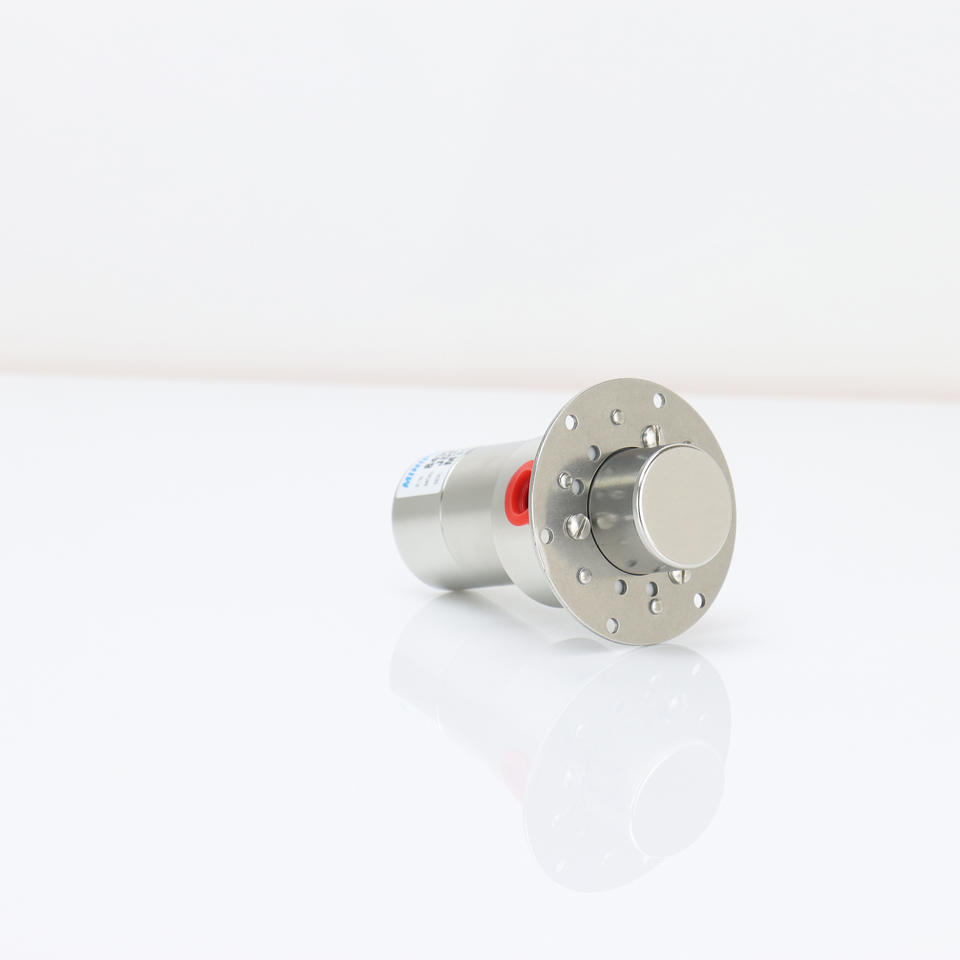

DOCOD New Arrival Dc12V-24V 316 Stainless Steel Gear Dosing Pump Chemical Gear Pump Head

No reviews yet

Attributes

Automotive Industryapplication
Gear Pumpstructure
6L/min(water as medium)Max Flow Rate
0.25MPaMax Pressure
Electricpower source
Alcohol, Diesel, Gasoline, Kerosene, oils, WaterChemical Compatibility
pressure:0.25Mpa
customized support:OEM, ODM, OBM
place of origin:Guangdong, China
warranty:1 Year
model number:GQA125ESLD01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
Displacement:0.32mL/rev
motor:Servo Motor, Stepper Motor, Brushless DC Motor
Sealing Material:Ceramic
Material:Stainless Steel
Operating Speeds:500-4500rpm
Rated Voltage:24VDC
Rated Power:70W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)

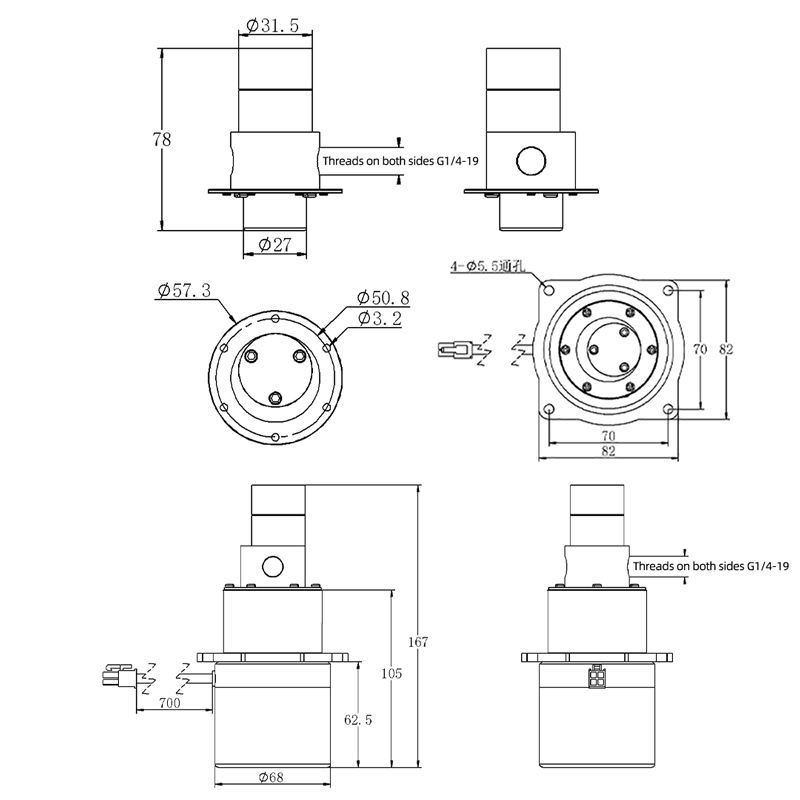

thread specifications:Standard configuration NPT1/4-18(customizable)
Compatible Drive:Brushless DC, Stepper, Servo
Max. Flow Rate:6L/min(water as medium)
Max. Pressure:0.25MPa
Viscosity Range:0.5-1500CP
Shaft Material:Stainless steel
Temperature resistance:-40 to 105 degrees Celsius
Product spotlights

SUS316L Pump Body: Constructed from SUS316L stainless steel, the pump body ensures high resistance to corrosion and durability, making it suitable for a wide range of chemical applications.

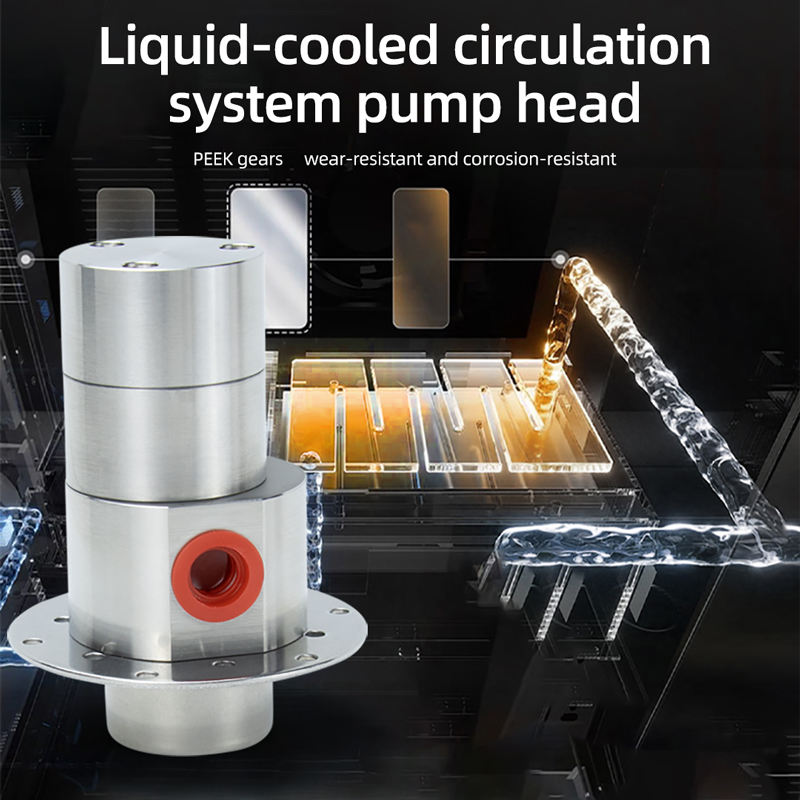

PEEK Gear Material: The use of PEEK for the gear material provides excellent wear resistance and chemical compatibility, ensuring reliable performance in demanding environments.

Wide Viscosity Range: With a viscosity range of 0.5-1500CP, this pump can handle a variety of fluids, from thin solvents to thicker oils, providing versatility in different applications.

High Operating Speeds: Operating at speeds between 500-4500rpm, the pump offers flexibility in flow rate and pressure, allowing for precise control in various industrial processes.

Key attributes

application
Automotive Industry
structure
Gear Pump
Max Flow Rate
6L/min(water as medium)
Max Pressure
0.25MPa
power source
Electric
Chemical Compatibility
Alcohol, Diesel, Gasoline, Kerosene, oils, Water
Sealing Material
Ceramic
Applicable temperature
-40 to 105 degrees Celsius
Displacement
0.32mL/rev
Material
Stainless Steel
motor
Servo Motor, Stepper Motor, Brushless DC Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
0.25Mpa
model number
GQA125ESLD01
place of origin
Guangdong, China
brand name
DOCOD
Operating Speeds
500-4500rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration NPT1/4-18(customizable)
Compatible Drive
Brushless DC, Stepper, Servo
Max. Flow Rate
6L/min(water as medium)
Max. Pressure
0.25MPa
Viscosity Range
0.5-1500CP
Shaft Material
Stainless steel
Temperature resistance
-40 to 105 degrees Celsius

Packaging and delivery

Selling Units
Single item
Single package size
13.5X12X12 cm
Single gross weight
0.800 kg

Lead time

Customization options

motor(+ from /Min. order: 1 piece)
View details
