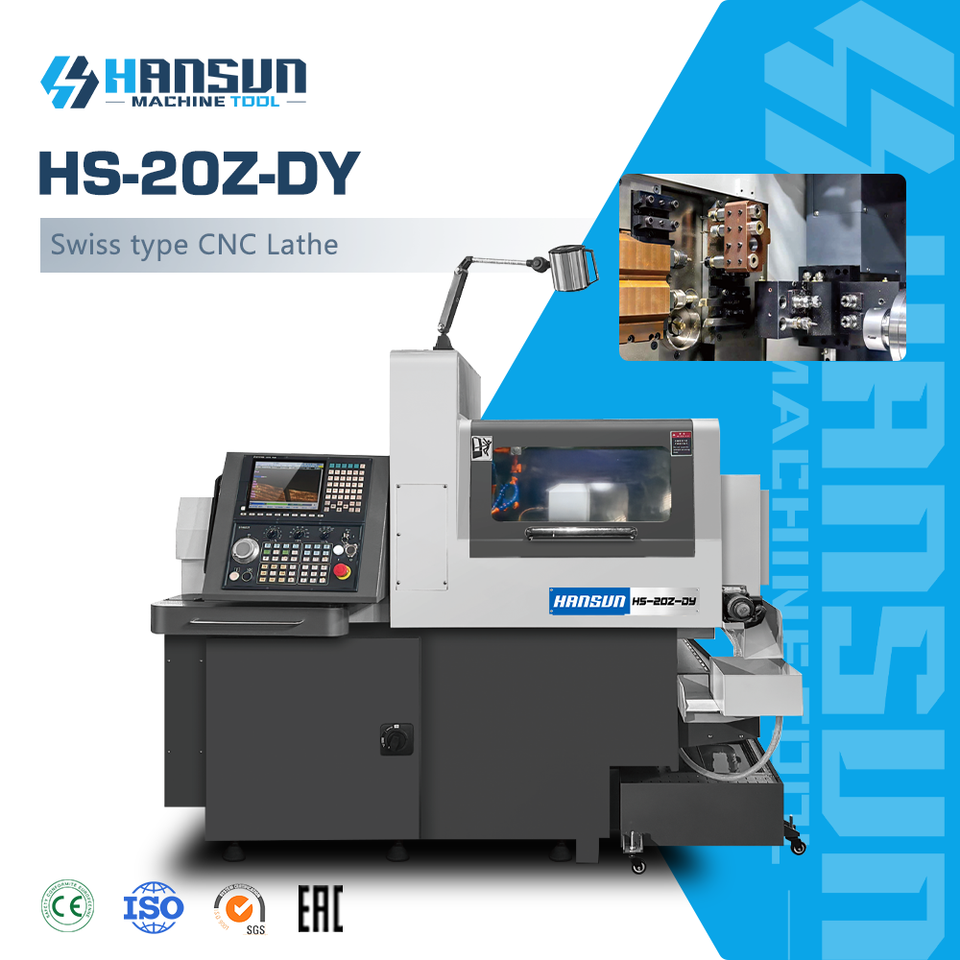

Double Spindle 6 Axis for Type CNC Automatic Lathe for Turning Metal

No reviews yet
$59,800
1-2 sets
$58,200
≥3 sets
Sample price: $500
Select now

max. swing diameter (mm)

20

spindle motor power(kw)

3.7kw
Customization options
cnc control system (Min. order: 1 set)

Key attributes

voltage

380 V, 220 V

cnc control system

FANUC

machining capacity

Light Duty

number of axes

6

no. of spindles

2

tool post stations

12

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

voltage
380 V, 220 V
cnc control system
FANUC
machining capacity
Light Duty
number of axes
6
no. of spindles
2
tool post stations
12
max. length of workpiece (mm)
200
key selling points
Multifunctional, Automatic, Competitive Price, High-Accuracy
repeatability (x/y/z) (mm)
other
positioning accuracy (mm)
other
warranty
1 Year
type
cnc lathe
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
50
travel (x axis)(mm)
100
travel (z axis)(mm)
100
place of origin
Guangdong, China
dimension(l*w*h)
2100x1100x1700
brand name
HANSUN
model number
20Z-DY
weight
2880
range of spindle speed
0 - 8000
single feed travel
80mm
main spindle max RPM
8000
main spindle max turning diameter
20mm
main spindle additional positive brake
stepless
spindle bore
22mm
sub-spindle max RPM
8000rpm
number of O.D tools
5
O.D tool size
12x12
number of front work tools
4
max drilling diameter(front)
8mm
max tapping diameter(front)
M8
number of cross driven tools
4
max drilling diameter(cross)
8mm
max tapping diameter(cross)
M6
max blade diameter ofr side milling
32mm
end face drilling fixed tool holder
4xER11
main spindle motor
3.7/2.2kw
rapid traverse rate
25m/min
