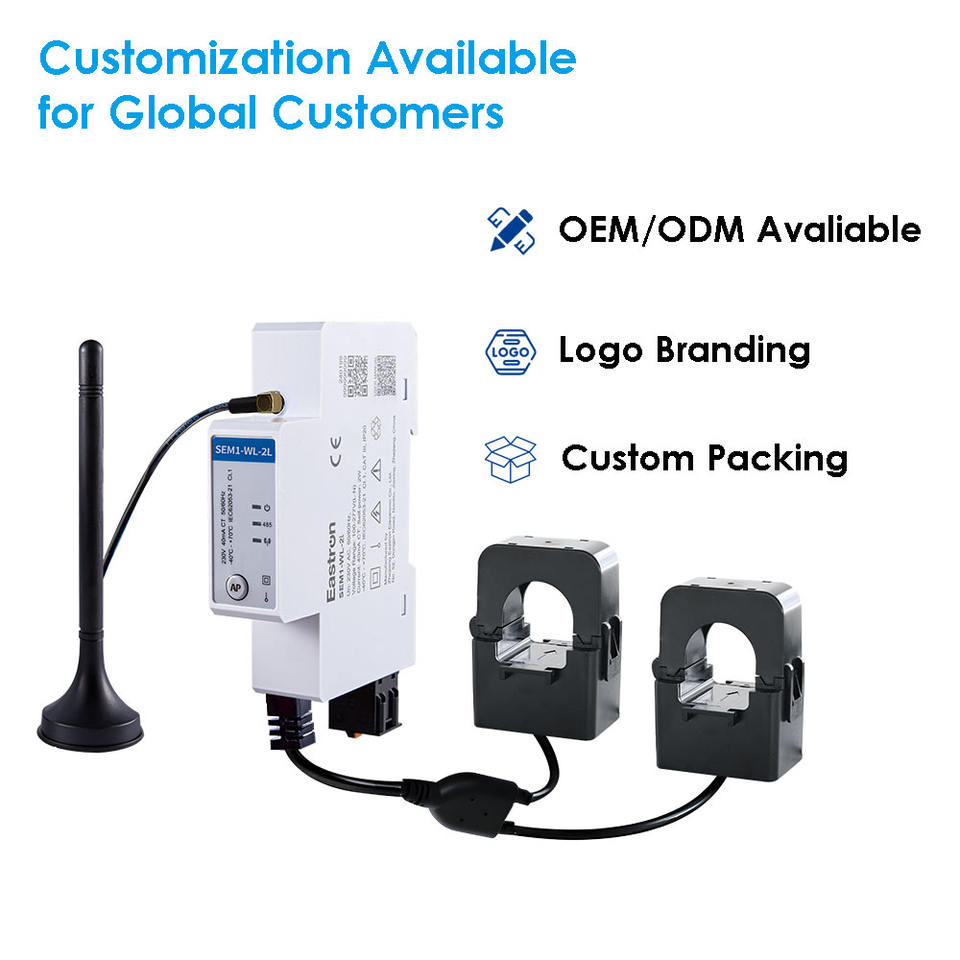

Eastron SEM1-WL-2L CT Connection Two Channels Wifi Energy Meter Solar PV Energy Measuring 50mS Update Rate Din Rail Smart Meter
Eastron SEM1-WL-2L CT Connection Two Channels Wifi Energy Meter Solar PV Energy Measuring 50mS Update Rate Din Rail Smart MeterStore rating:5.0
(19 reviews)certified
certified
Attributes
Single PhasePhase
230 VOutput Voltage
Class 1.0 / BAccuracy Class
20ABasic Current
120AMax. Current
40mA CT InputRated Current
Measuring Energy Range:0 ~ 9999999.9 kWh
Operating Temperature:-40 °C to +70°C
Display Type:Digital Only

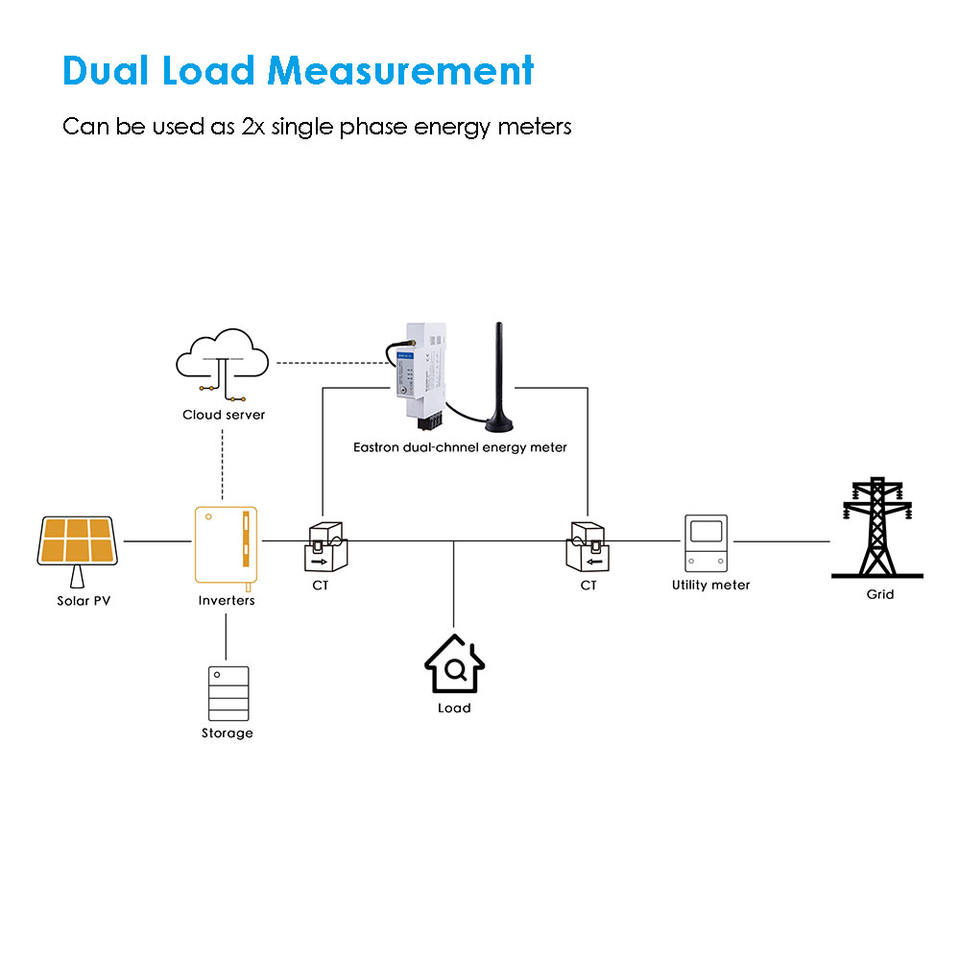

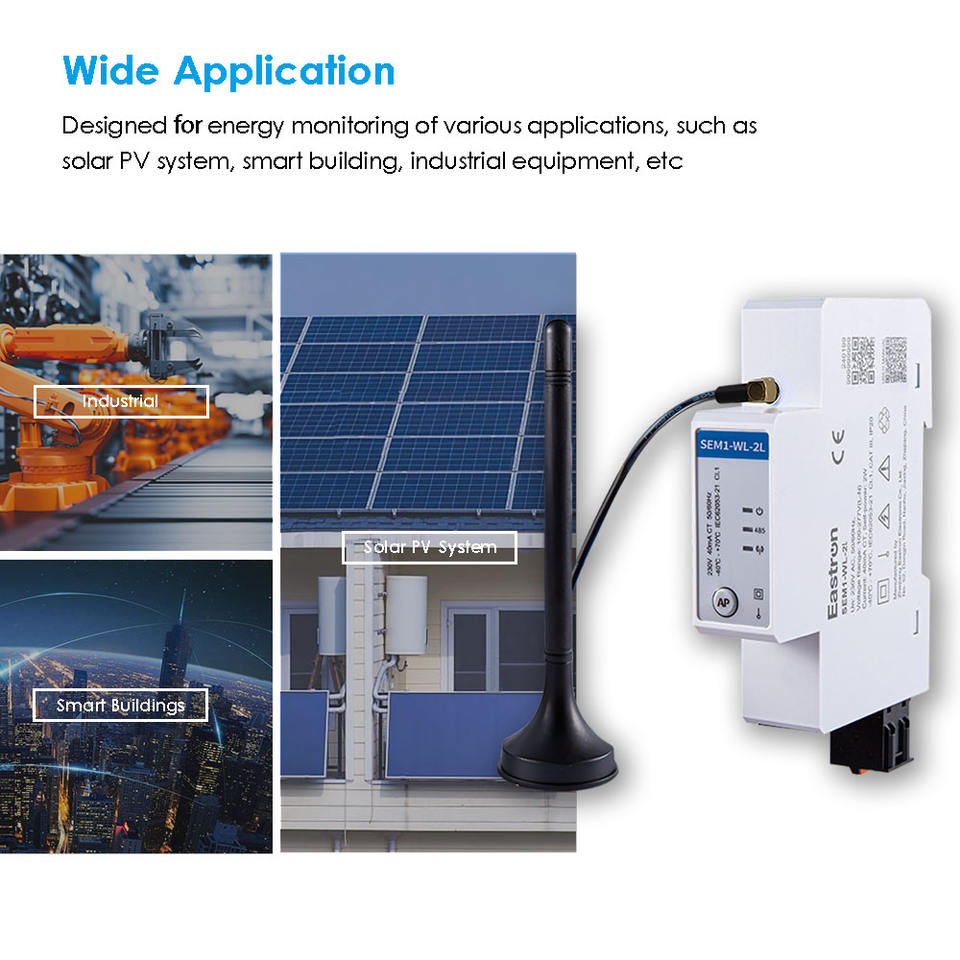

Application:Industrial, Solar PV Metering, Zero Export Metering, Balcony photovoltaic, Smart Building
Feature:Easy Click Solution with RJ12 CT, 50mS Power Update, Easy Connection Solution, Two Channels Measurement
Place of Origin:Zhejiang, China
Model Number:SEM1-WL-2L
Brand Name:Eastron
Dimensions:68.5*94.5*19 mm
Product Name:Eastron SEM1-WL-2L CT Connection Two Channels Wifi Energy Meter
Tpye:Solar PV Energy Measuring 50mS Update Rate Din Rail Smart Meter

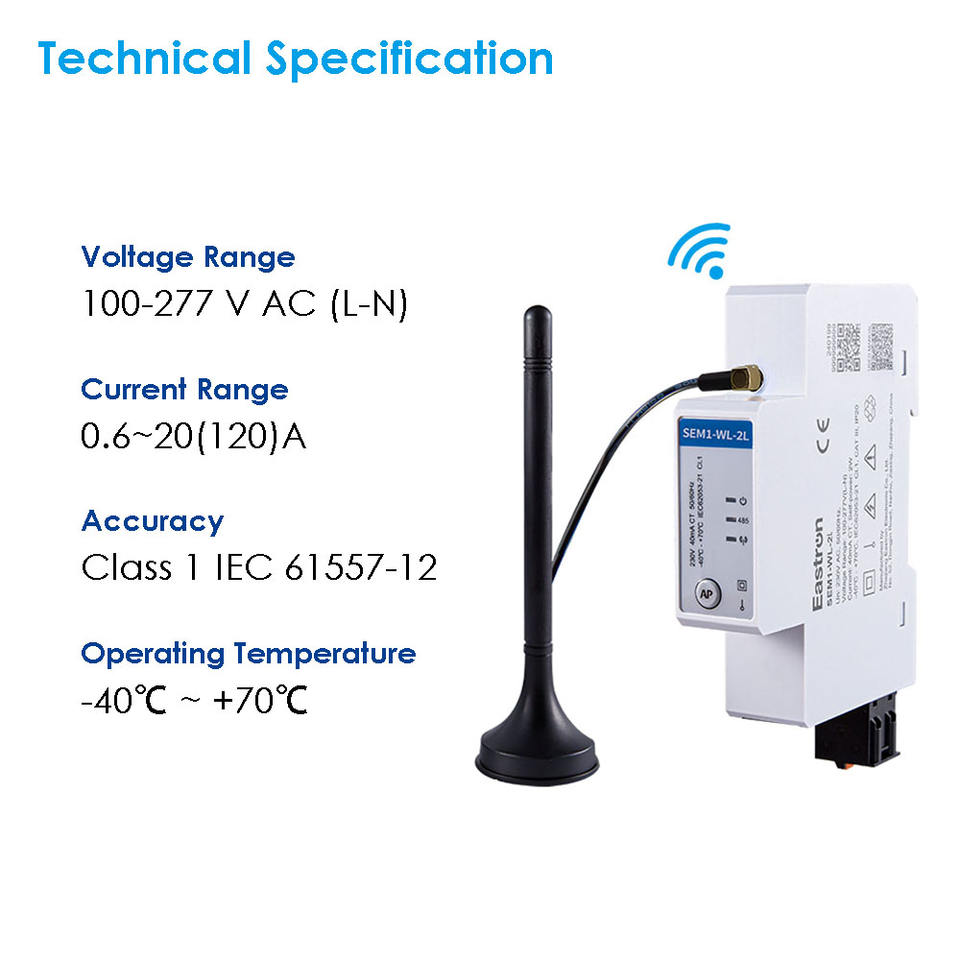

Voltage AC (Un):230V
Voltage Range:100-277 V AC (L-N)
Frequency Range:50/60Hz
Data Update Rate (Channel 1):50mS(RS485), 100mS(WiFi)
Data Update Rate (Channel 2):100mS(RS485), 150mS(Wi-Fi)
Operation Humidity:≤90% Non-condensing
Current Inputs:Require External Current Transformer for Insulation

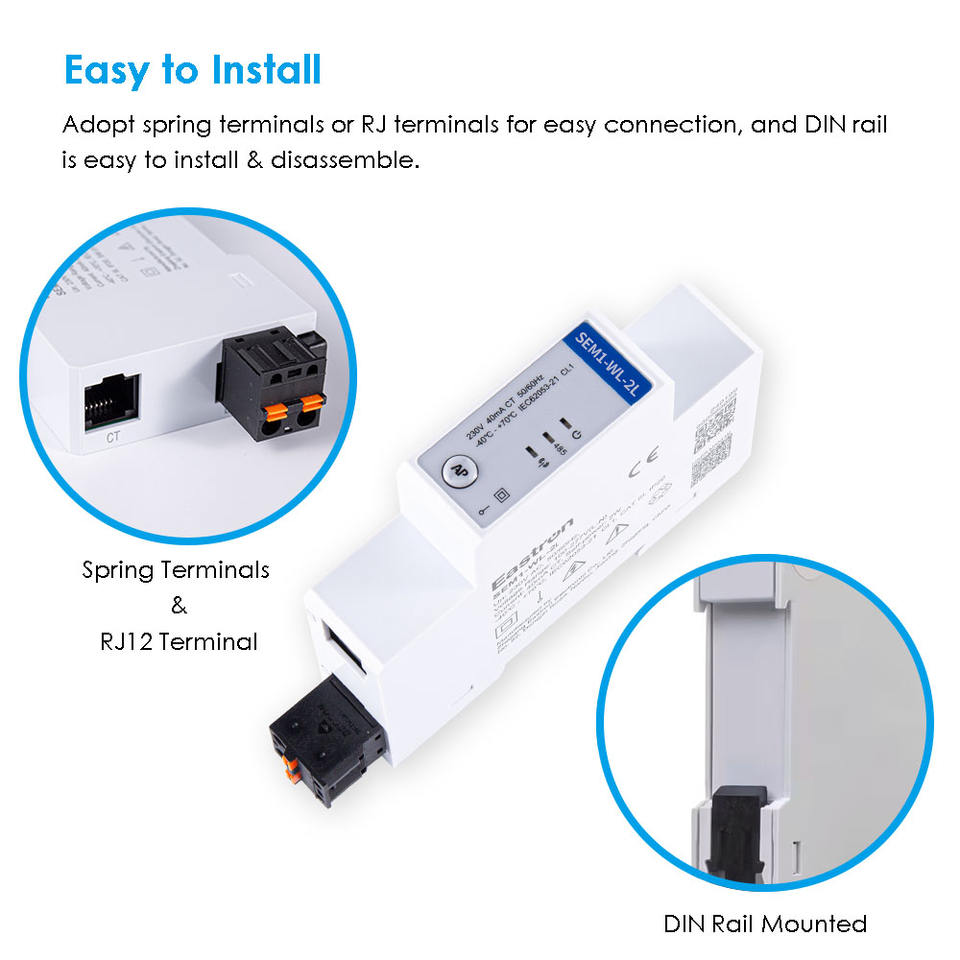

Mounting:DIN rail 35mm
Key attributes
Phase
Single Phase
Output Voltage
230 V
Accuracy Class
Class 1.0 / B
Basic Current
20A
Max. Current
120A
Rated Current
40mA CT Input
Measuring Energy Range
0 ~ 9999999.9 kWh
Operating Temperature
-40 °C to +70°C
Display Type
Digital Only
Application
Industrial, Solar PV Metering, Zero Export Metering, Balcony photovoltaic, Smart Building
Feature
Easy Click Solution with RJ12 CT, 50mS Power Update, Easy Connection Solution, Two Channels Measurement
Place of Origin
Zhejiang, China
Model Number
SEM1-WL-2L
Brand Name
Eastron
Dimensions
68.5*94.5*19 mm
Product Name
Eastron SEM1-WL-2L CT Connection Two Channels Wifi Energy Meter
Tpye
Solar PV Energy Measuring 50mS Update Rate Din Rail Smart Meter
Voltage AC (Un)
230V
Voltage Range
100-277 V AC (L-N)
Frequency Range
50/60Hz
Data Update Rate (Channel 1)
50mS(RS485), 100mS(WiFi)
Data Update Rate (Channel 2)
100mS(RS485), 150mS(Wi-Fi)
Operation Humidity
≤90% Non-condensing
Current Inputs
Require External Current Transformer for Insulation
Mounting
DIN rail 35mm
