Eastron SEM1-WL-2L Dual Channel Remote Monitoring Class 1 Smart Electricity Meter Energy Monitoring Solution Wifi Energy Meter

No reviews yet
certified
$55
100-1,000 pieces
$45
≥1,001 pieces
Select now

Size

68.5*94.5*19 mm
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

Accuracy Class

Class 1.0 / B

Max. Current

120A

Measuring Energy Range

0 ~ 9999999.9 kWh

Phase

Single Phase

Rated Current

40mA CT Input

Place of Origin

Zhejiang, China

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Accuracy Class
Class 1.0 / B
Max. Current
120A
Measuring Energy Range
0 ~ 9999999.9 kWh
Phase
Single Phase
Rated Current
40mA CT Input
Place of Origin
Zhejiang, China
Model Number
SEM1-WL-2L
Brand Name
Eastron
Application
Industrial, Solar PV Metering, Zero Export Metering, Balcony photovoltaic, Smart Building
Basic Current
20A
Dimensions
68.5*94.5*19 mm
Display Type
Digital Only
Feature

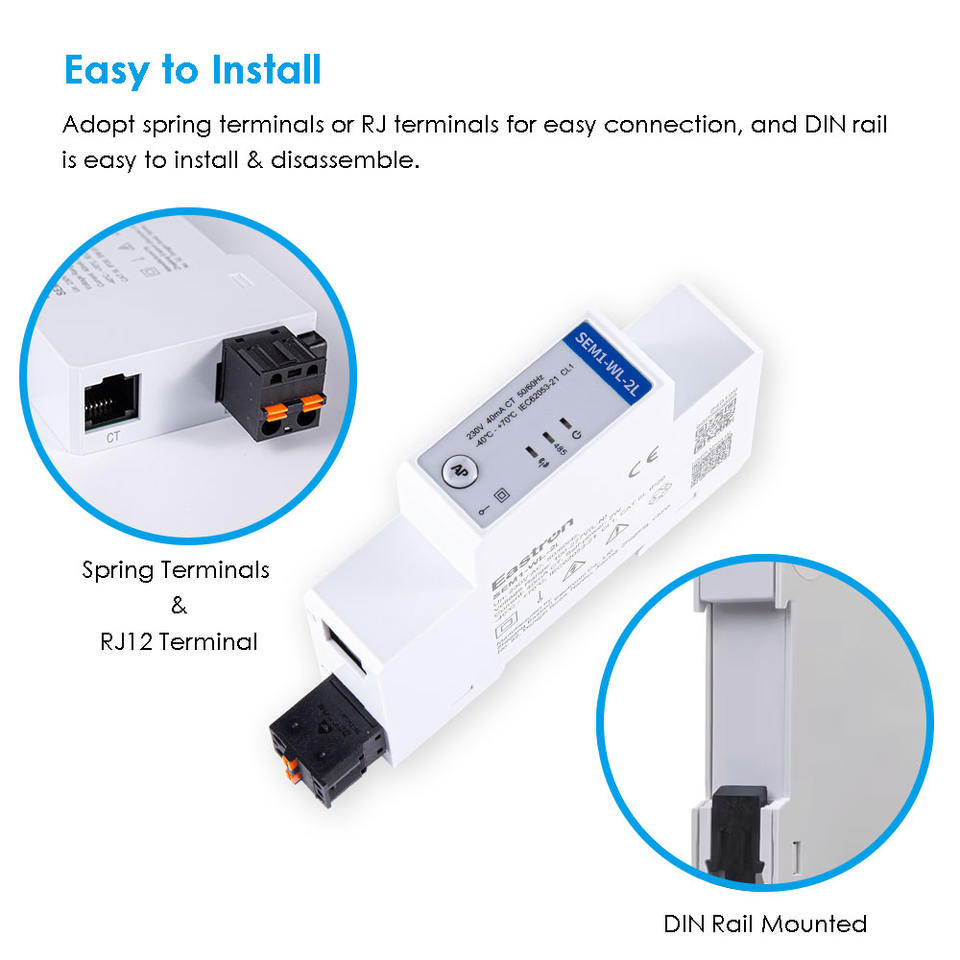

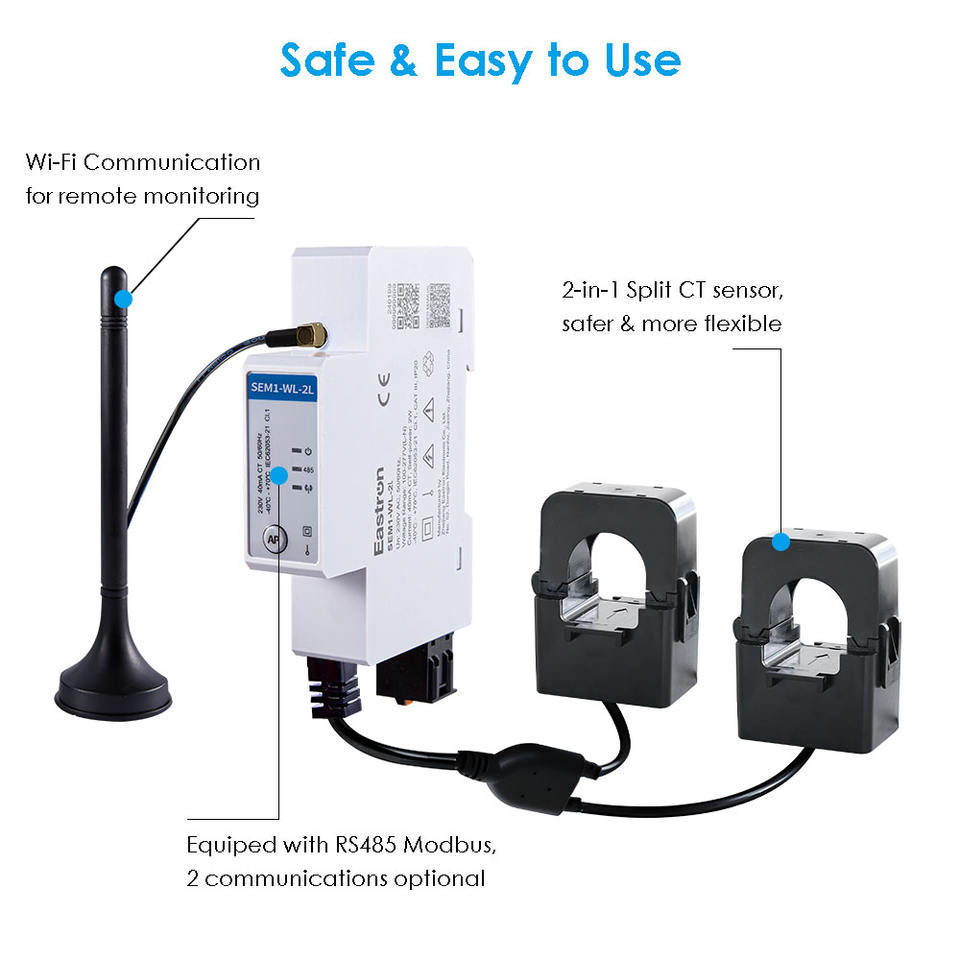

Easy Click Solution with RJ12 CT, 50mS Power Update, Easy Connection Solution, Two Channels Measurement
Operating Temperature
-40 °C to +70°C
Output Voltage
230 V
Product Name

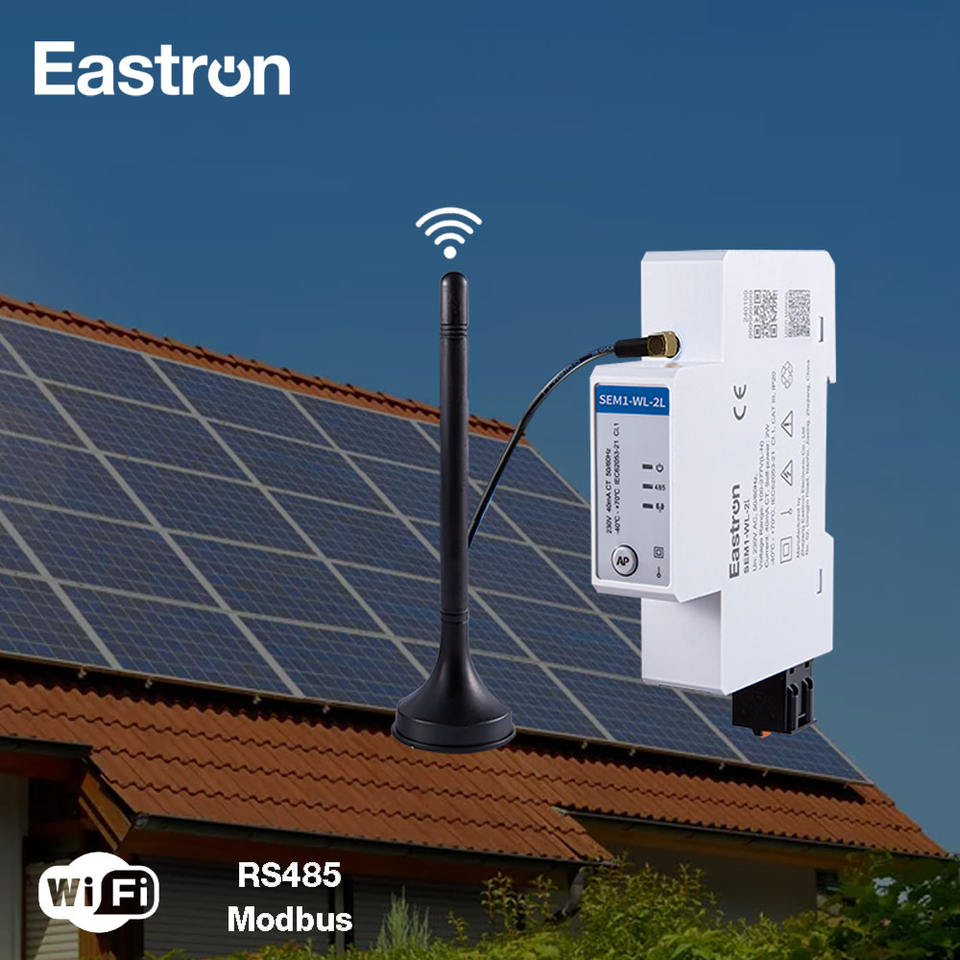

Eastron SEM1-WL-2L 50mS Power Update RS485 & WIFI Energy Meter
Tpye

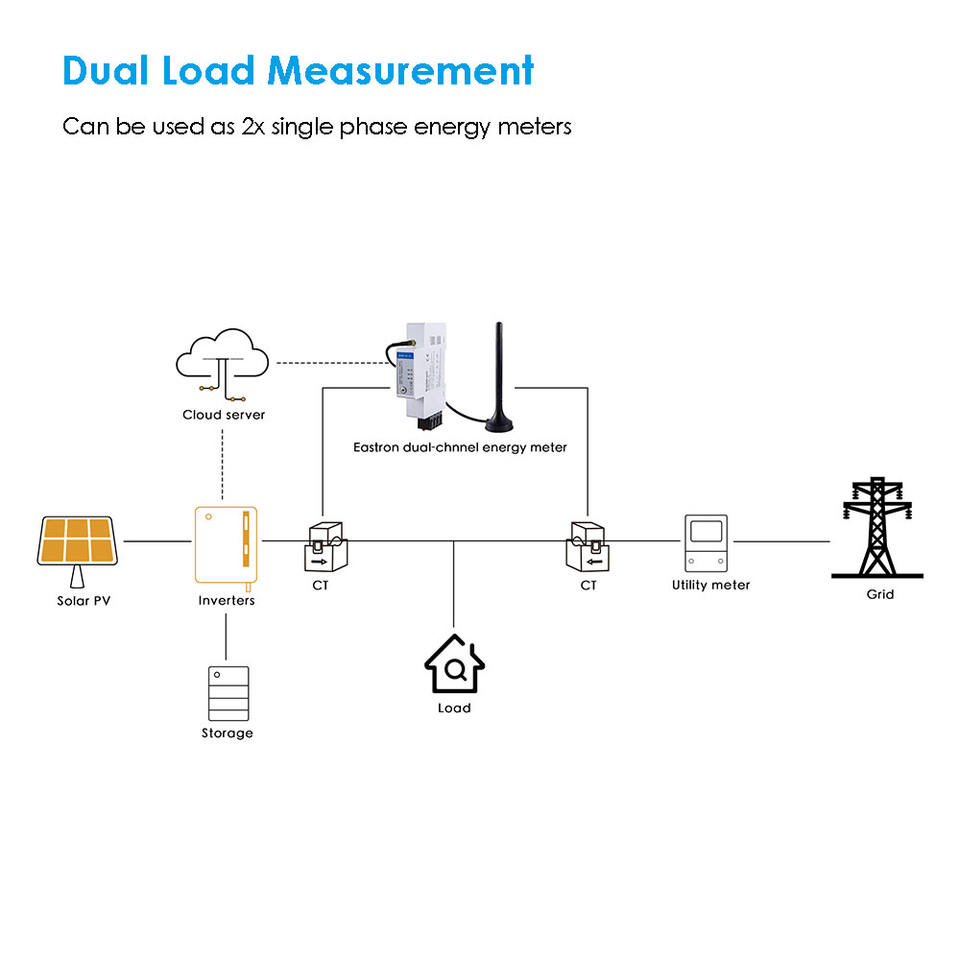

Zero Export Metering CT Operated 1P2W Two Loads Energy Meter
Voltage AC (Un)
230V

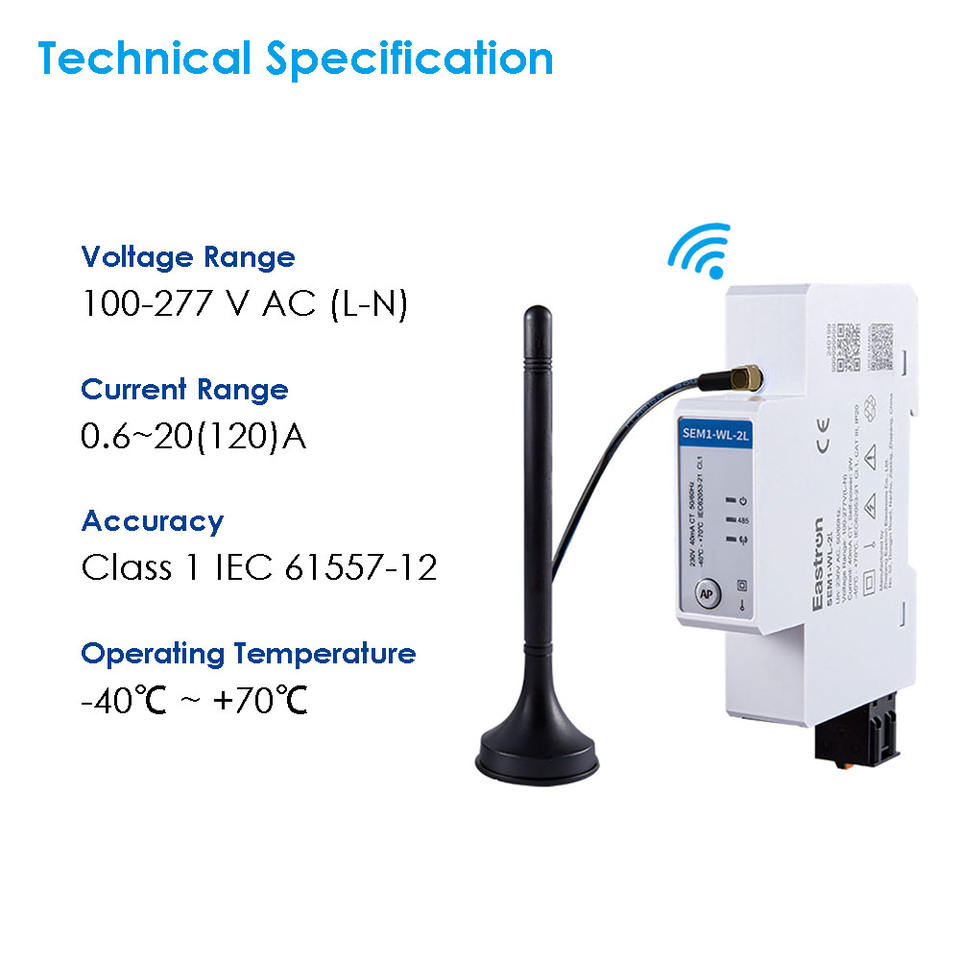

Voltage Range
100-277 V AC (L-N)
Frequency Range
50/60Hz
Data Update Rate (Channel 1)
50mS(RS485), 100mS(WiFi)
Data Update Rate (Channel 2)
100mS(RS485), 150mS(Wi-Fi)
Operation Humidity
≤90% Non-condensing
Current Inputs
Require External Current Transformer for Insulation
Mounting
DIN rail 35mm
