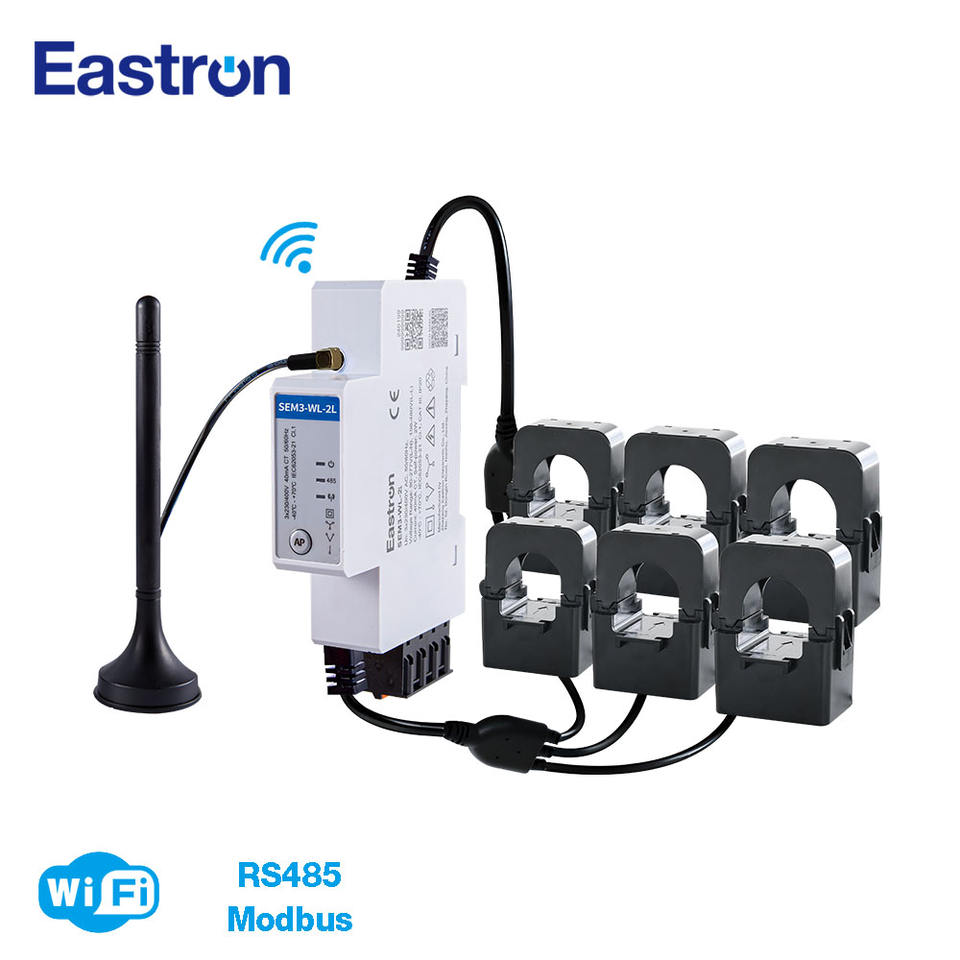

Eastron SEM3-WL-2L Dual Channel Measurement Electric Meter Wireless Remote Monitoring Wifi Energy Meter for Solar Storage System
See store reviewscertified
certified
Attributes
Three PhasePhase
230 VOutput Voltage
Class 1.0 / BAccuracy Class
20ABasic Current
120AMax. Current
40mA CT InputRated Current
Measuring Energy Range:0 ~ 9999999.9 kWh
Operating Temperature:-40 °C to +70°C
Display Type:Digital Only

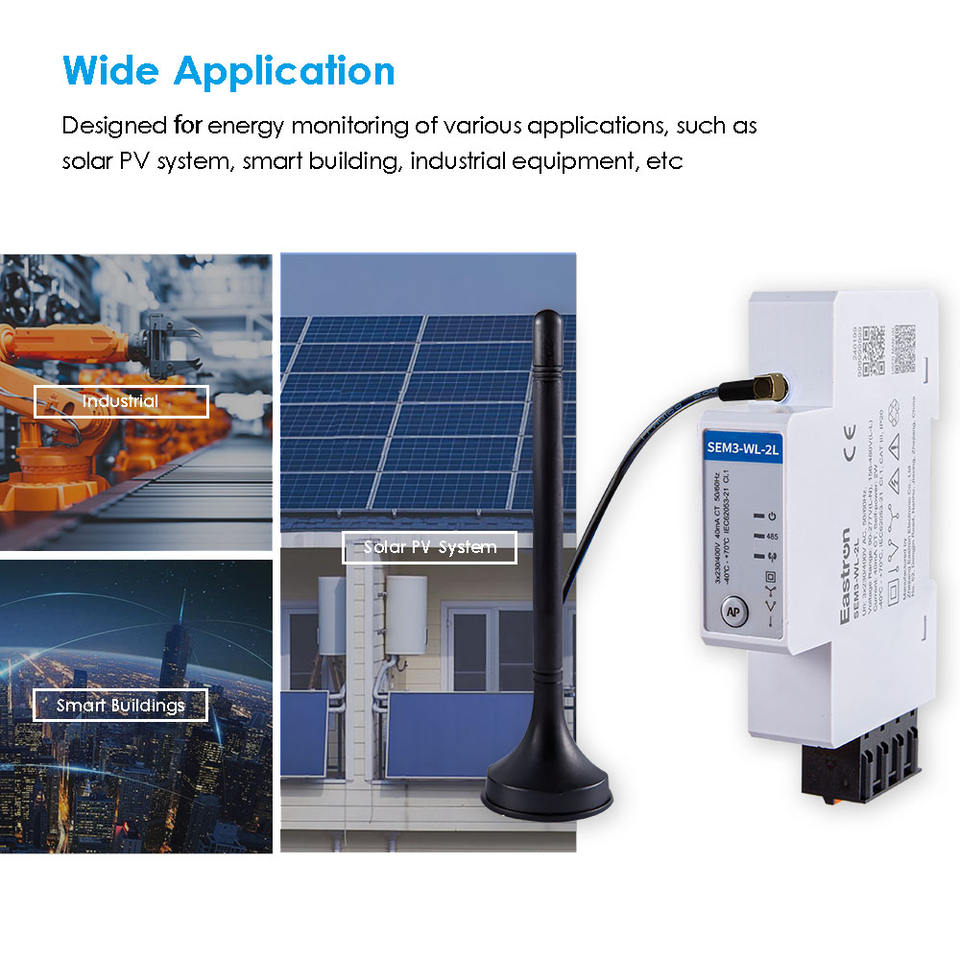

Application:Industrial, Solar PV Metering, Zero Export Metering, Balcony photovoltaic, Smart Building

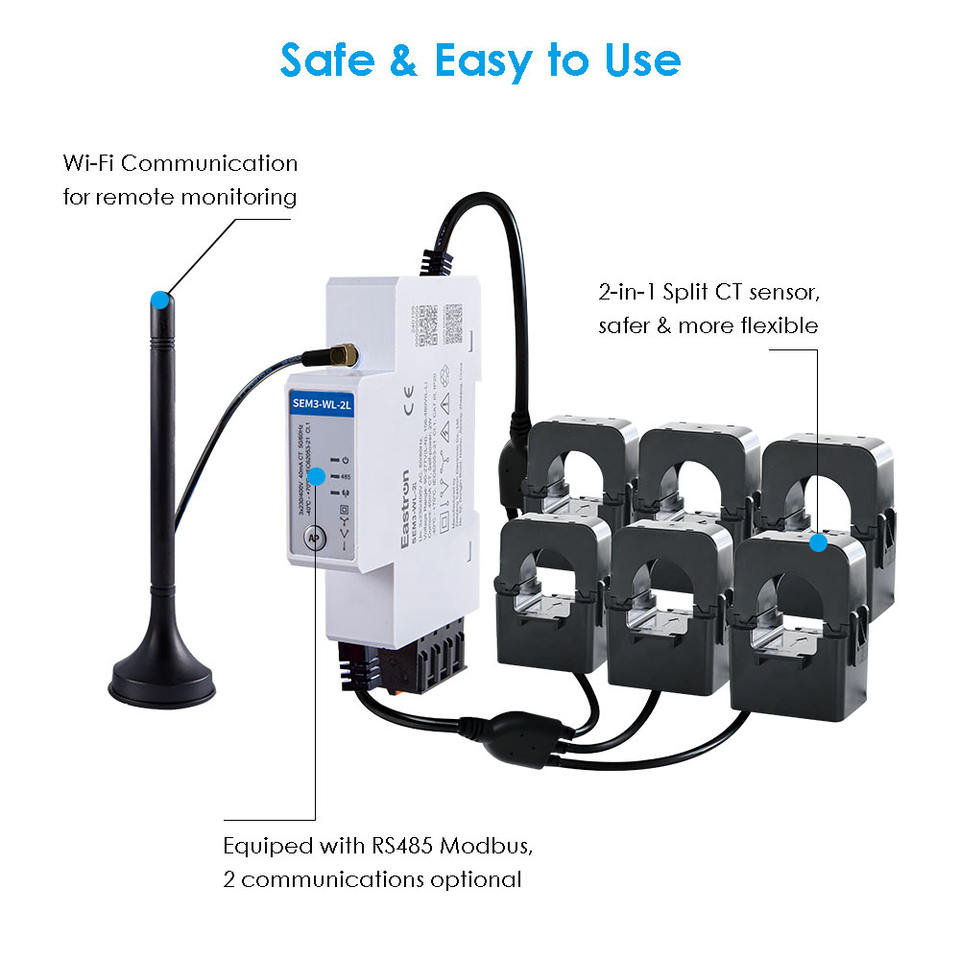

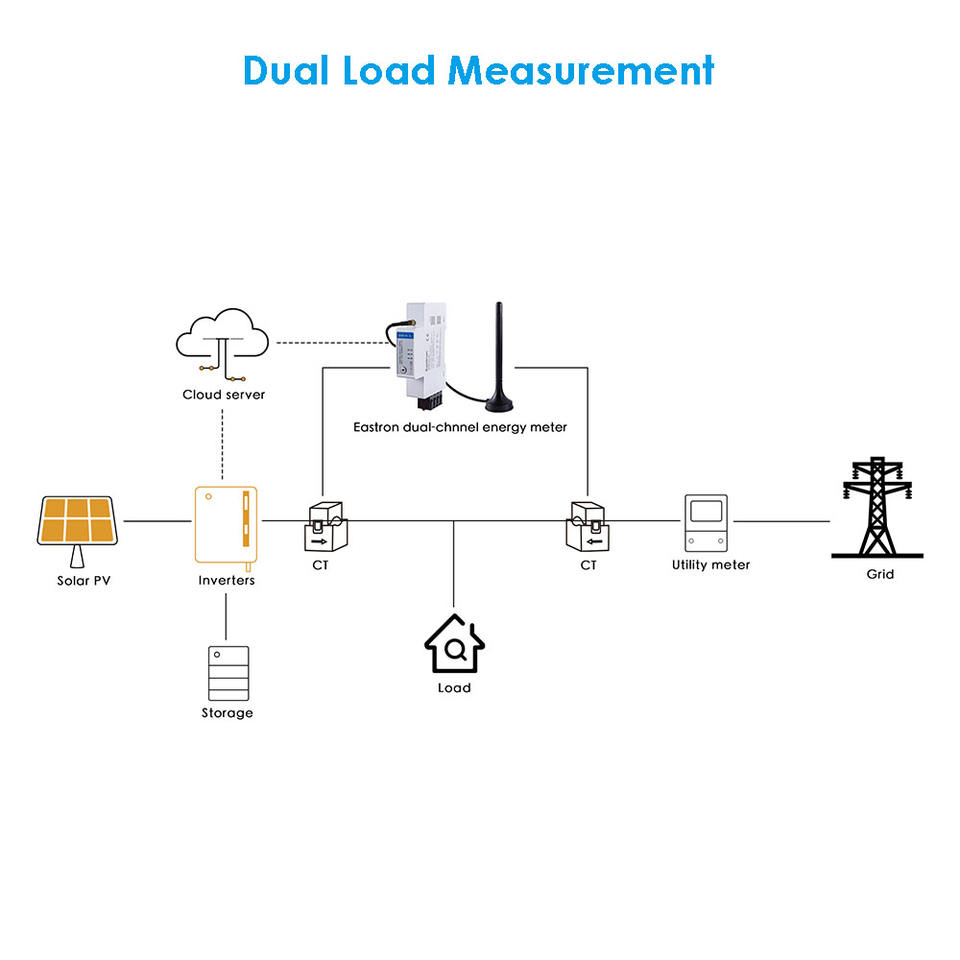

Feature:Easy Click Solution with RJ12 CT, 50mS Power Update, Easy Connection Solution, Two Channels Measurement
Place of Origin:Zhejiang, China
Model Number:SEM3-WL-2L
Brand Name:Eastron
Dimensions:68.5*94.5*19 mm
Product Name:Eastron SEM3-WL-2L Dual Channel Measurement Electric Meter
Tpye:Wireless Remote Monitoring Wifi Energy Meter for Solar Storage System
Voltage AC (Un):3*230V(L-N)/400V(L-L)
Voltage Range:90-277 V AC (L-N), 156-480 V AC (L-L)
Frequency Range:50/60Hz
Data Update Rate (Channel 1):50mS(RS485), 100mS(WiFi)
Data Update Rate (Channel 2):100mS(RS485), 150mS(Wi-Fi)
Operation Humidity:≤90% Non-condensing
Current Inputs:Require External Current Transformer for Insulation

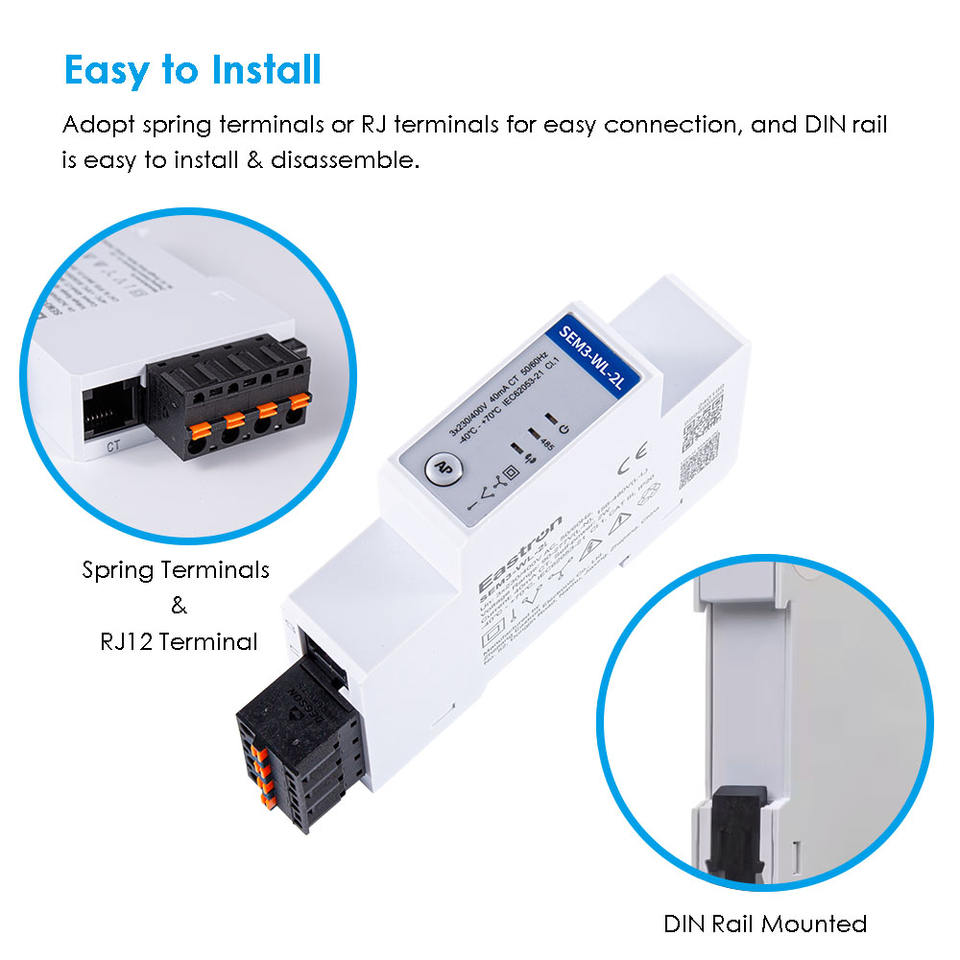

Mounting:DIN rail 35mm
Key attributes
Phase
Three Phase
Output Voltage
230 V
Accuracy Class
Class 1.0 / B
Basic Current
20A
Max. Current
120A
Rated Current
40mA CT Input
Measuring Energy Range
0 ~ 9999999.9 kWh
Operating Temperature
-40 °C to +70°C
Display Type
Digital Only
Application
Industrial, Solar PV Metering, Zero Export Metering, Balcony photovoltaic, Smart Building
Feature
Easy Click Solution with RJ12 CT, 50mS Power Update, Easy Connection Solution, Two Channels Measurement
Place of Origin
Zhejiang, China
Model Number
SEM3-WL-2L
Brand Name
Eastron
Dimensions
68.5*94.5*19 mm
Product Name
Eastron SEM3-WL-2L Dual Channel Measurement Electric Meter
Tpye
Wireless Remote Monitoring Wifi Energy Meter for Solar Storage System
Voltage AC (Un)
3*230V(L-N)/400V(L-L)
Voltage Range
90-277 V AC (L-N), 156-480 V AC (L-L)
Frequency Range
50/60Hz
Data Update Rate (Channel 1)
50mS(RS485), 100mS(WiFi)
Data Update Rate (Channel 2)
100mS(RS485), 150mS(Wi-Fi)
Operation Humidity
≤90% Non-condensing
Current Inputs
Require External Current Transformer for Insulation
Mounting
DIN rail 35mm
Packaging and delivery
Selling Units
Single item
Lead time
100 - 1,000 pieces
$75
>= 1,001 pieces
$60
Variations
Select nowSize
68.5*94.5*19 mm
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
