Attributes
1000x550table size
800table travel (x) (mm)
550table travel (y) (mm)
Singleno. of spindles
5weight (t)
550table travel (z) (mm)
repeatability (x/y/z) (mm):±0.004
max. table load(kg):500
min. time of tool change(s):2
place of origin:Jiangsu, China
spindle taper:BT40

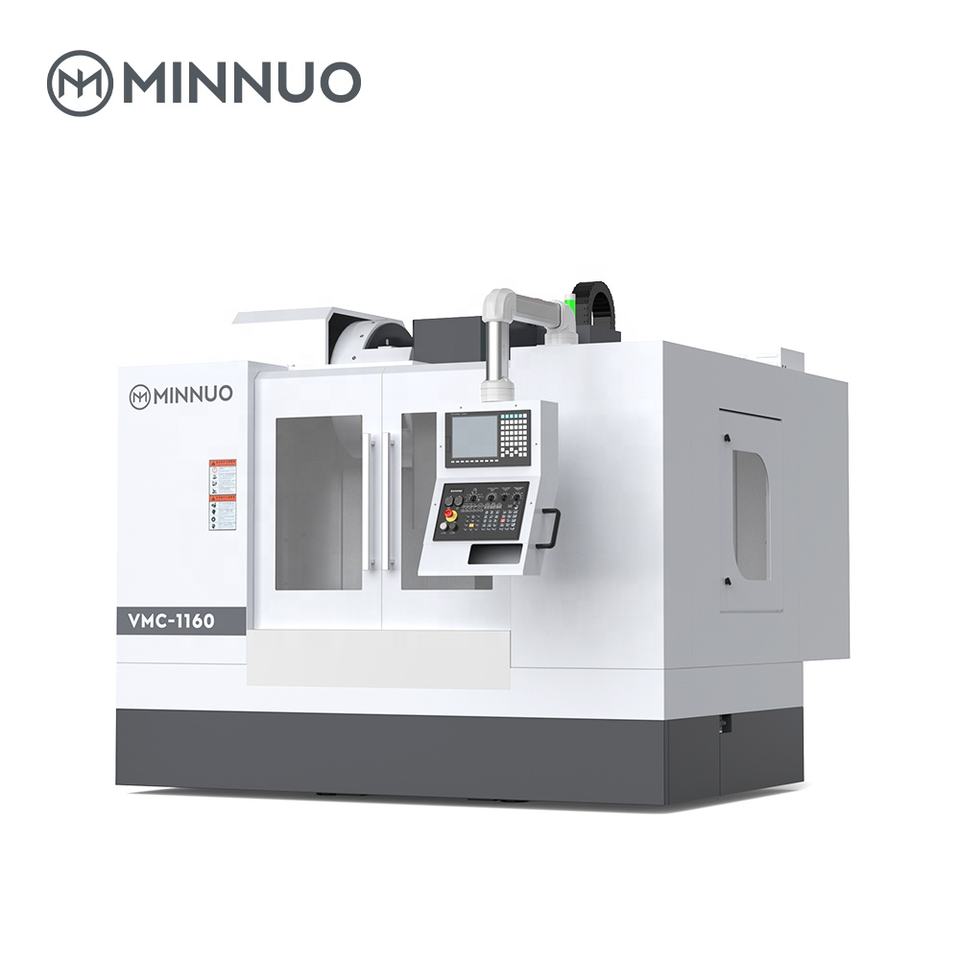

type:VERTICAL
dimension(l*w*h):2600*2380*2700
cnc control system:GSK
positioning accuracy:±0.004
range of spindle speed:1 - 8000 r.p.m
tool magazine capacity:24
key selling points:High-Accuracy
warranty:1 Year
brand name:Minnuo
voltage:customizable
machinery test report:Provided
video outgoing-inspection:Provided
machining capacity:Medium Duty
rapid feed speed:1 - 6000 mm/min

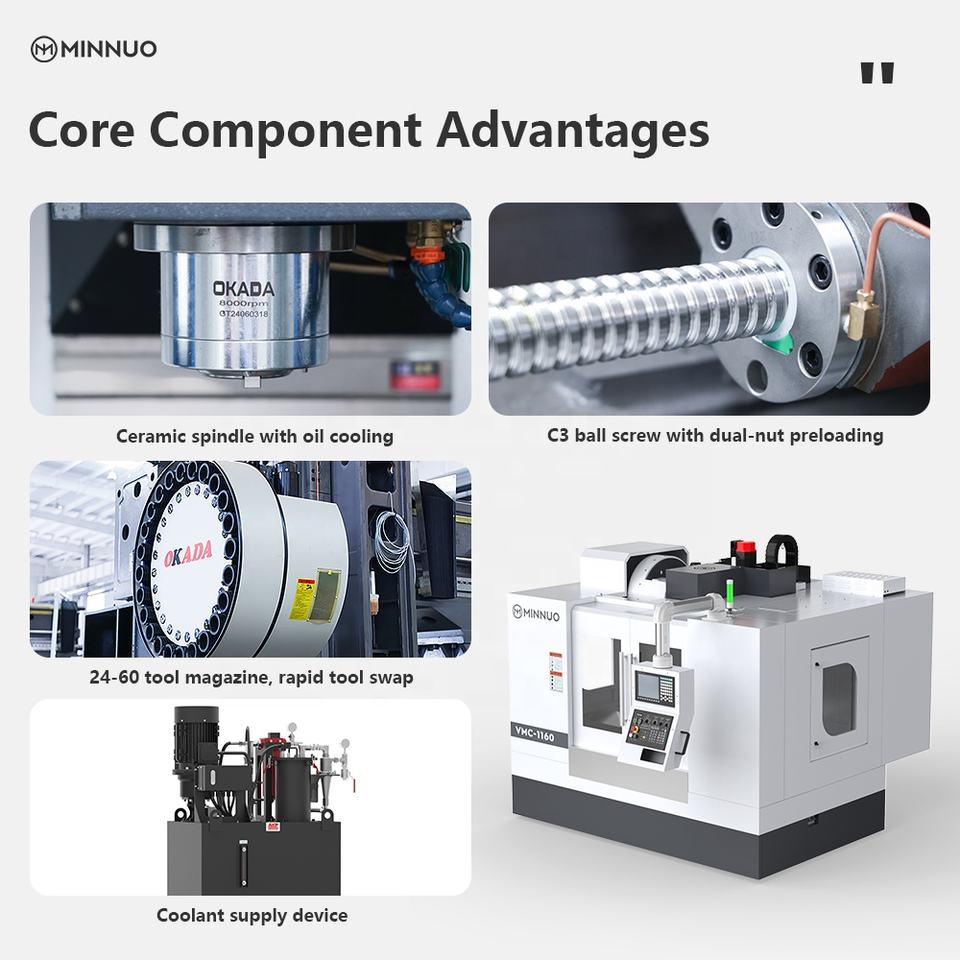

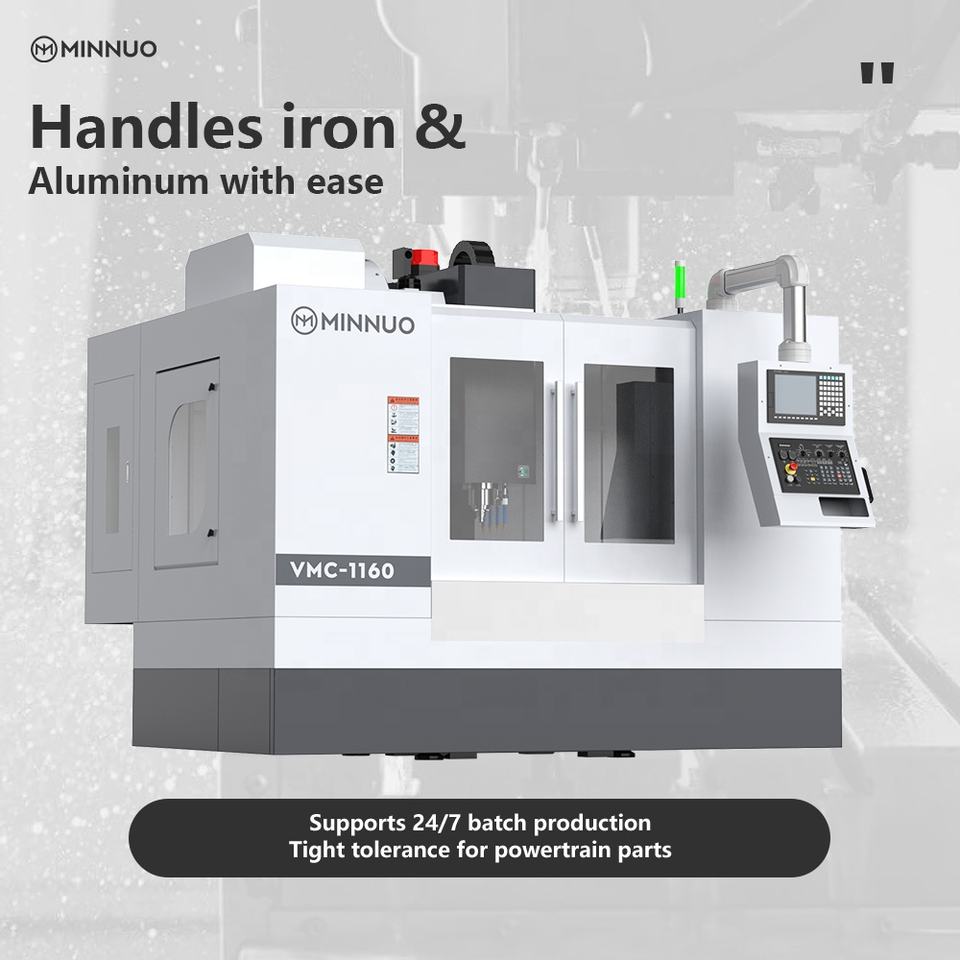

Spindle Speed & Torque:12000rpm/ 50N.m for aluminum & iron
Spindle Cooling System:Oil-cooled, ±0.5°C thermal control
Tool Change Time:≤1.5s with 24-60 arm type tool magazine
Positioning Accuracy:≤±0.005mm with linear guide rails
High-Pressure Coolant:7-10MPa internal coolant for deep holes
Rigid Casting Base:HT300 cast iron with dual ribbed design
Servo Motor Power:≥5kW, suitable for rigid tapping
Automatic Chip Removal:Chain/screw type, 1m/min removal speed
CNC System:FANUC 0i-MF / Siemens 828D with MES ready
Automation Interface:Robot & 4th-axis ready for line integration
Selling Units:Single item
