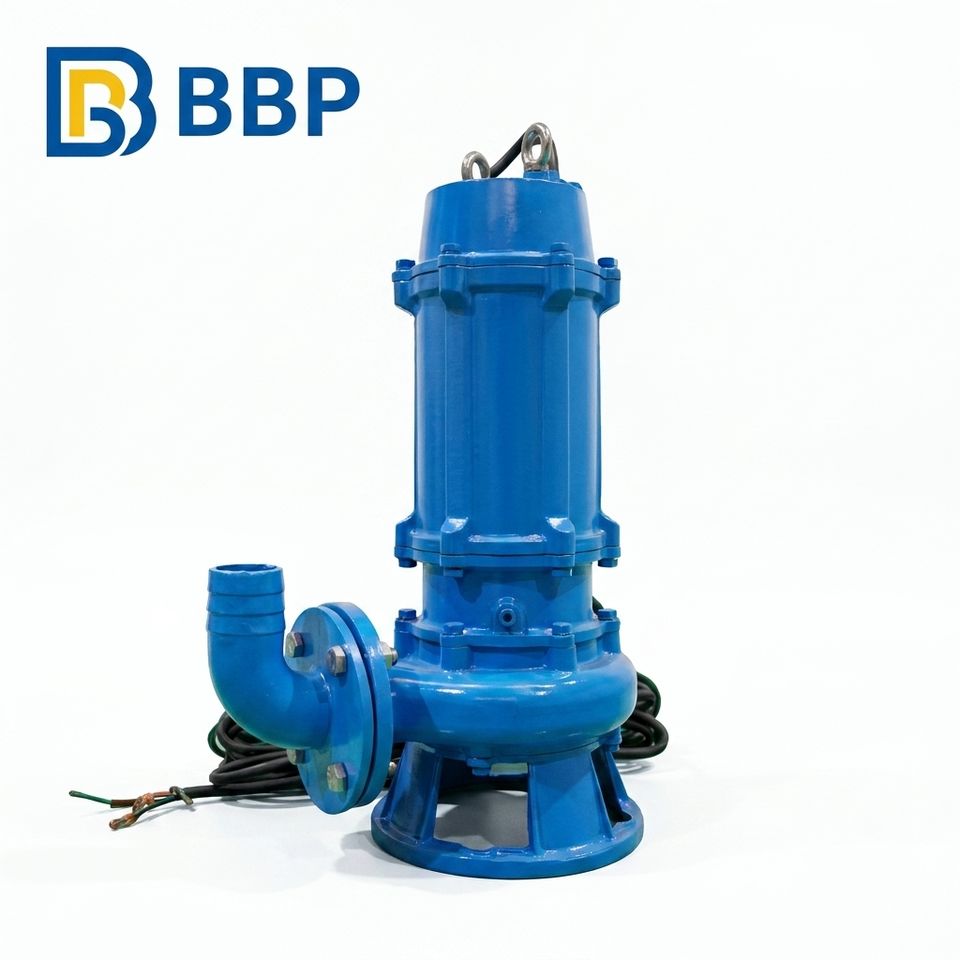

Electric Non Clogging Submersible Pump High Performance 3 Phase Sewage Pump for Utility Service

No reviews yet
certified
$698
1-9 sets
$572
≥10 sets
Select now

Flow Rate

8-6000 m3/h

maximum head

65 m (100ASW100-65-55J)

type

Centrifugal Pumps
SEWAGE PUMPS
Submersible Pump
Stainless Steel Submersible Sewage Pump

+ 1 more variants

Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

application

Chemical, petroleum, pharmaceutical, mining, paper

pressure

7 to 65 m

customized support

OBM, ODM, OEM

place of origin

Beijing, China

power source

Single phase or three phase

warranty

3 Years

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

application
Chemical, petroleum, pharmaceutical, mining, paper
pressure
7 to 65 m
customized support
OBM, ODM, OEM
place of origin
Beijing, China
power source
Single phase or three phase
warranty
3 Years
model number

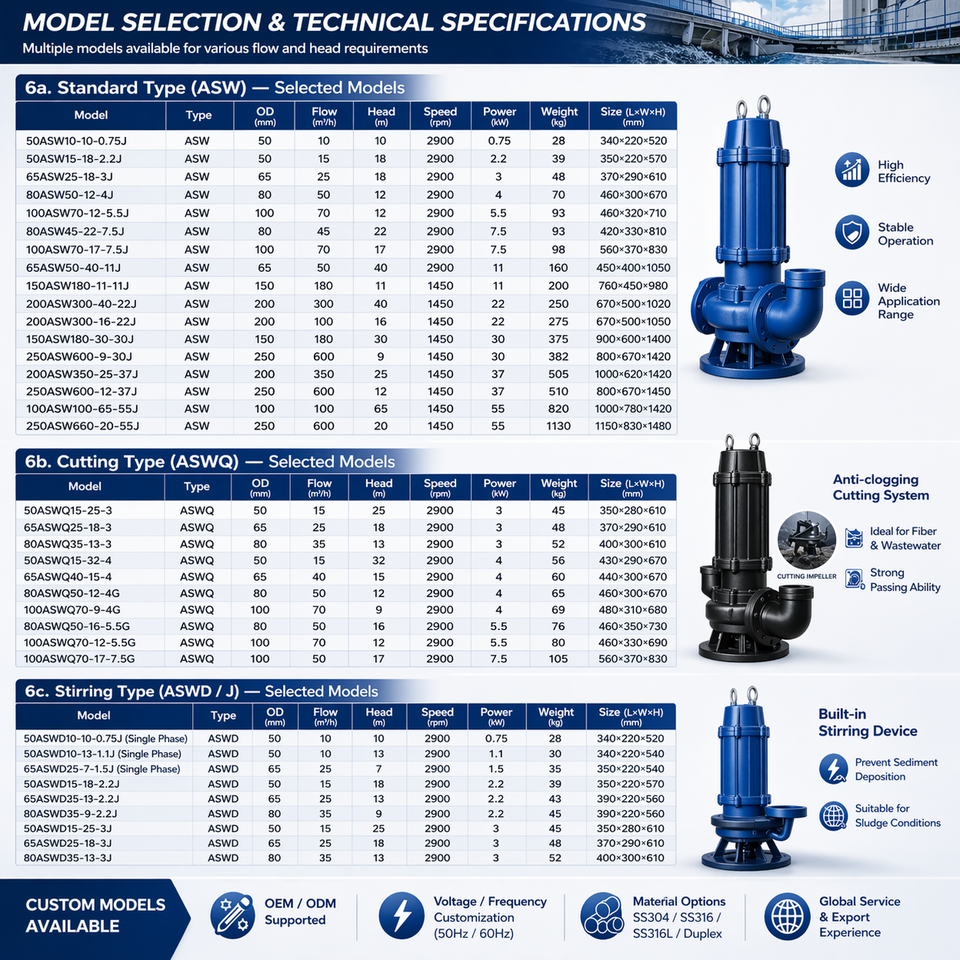

ASW series: 50ASW10-10-0.75 to 250ASW600-20-55; AS
brand name
BBP
Applicable temperature
0-300°C
cable length
Customizable
Chemical Compatibility
SS304 for general corrosive media; SS316 / SS316L
Control Method
Float level control switch (automatic start/stop b
Discharge Pipe Size
OD 50 mm to 250 mm (model-dependent)
horsepower
0.75 to 55 kW (model-dependent)
Impeller Material
selected per media corrosivity
Import Size
OD 50 mm to 250 mm (model-dependent)
Max Flow Rate
6000 m³/h (250ASW600-20-55J)
Max Pressure
see Max Head: 65 m
Membrane material
Customizable
motor
Dry-type waterproof motor; insulation class F; pro
outlet size
OD 50 mm to 250 mm
Outlet Water Oil Content
Customizable
Sealing Material
Mechanical seal (standard)
structure
Customizable
Surface Treatment
Silica sol casting, glossy finish
Material
Wetted parts: SS304 / SS316 / SS316L / SS2205 dupl
Pump Type
Stainless Steel Submersible Sewage Pump
Material Options
SS304 SS316 SS316L SS2205 Duplex Stainless Steel
Flow Range
10 to 6000 m3 per hour
Head Range
7 to 65 m
Motor Power Range
0.75 to 55 kW
Motor Protection
IP68 Insulation Class F Dry Type Waterproof
Seal Type
Mechanical Seal
Variants Available
Standard Cutting Type Stirring Type

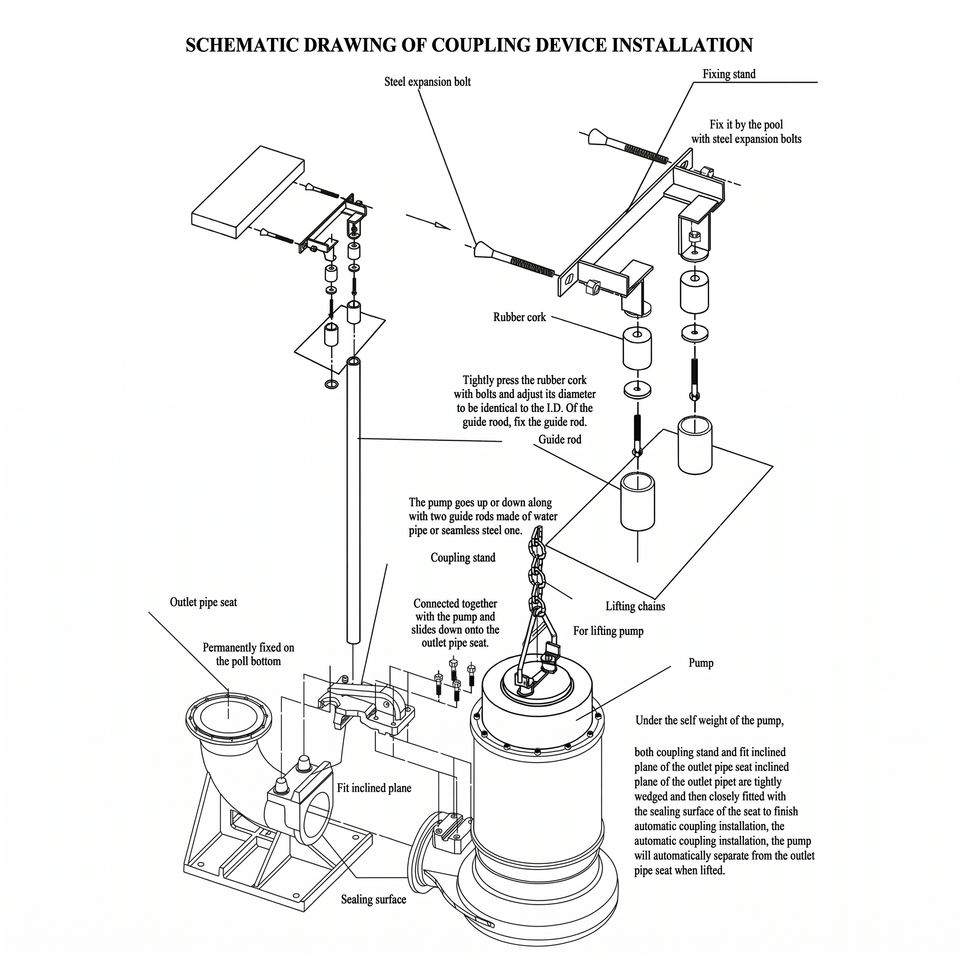

Installation
Fixed Coupling or Hoisted Mobile Installation
Certification
ISO 9001 ISO 14001 OHSAS 18001 CE
