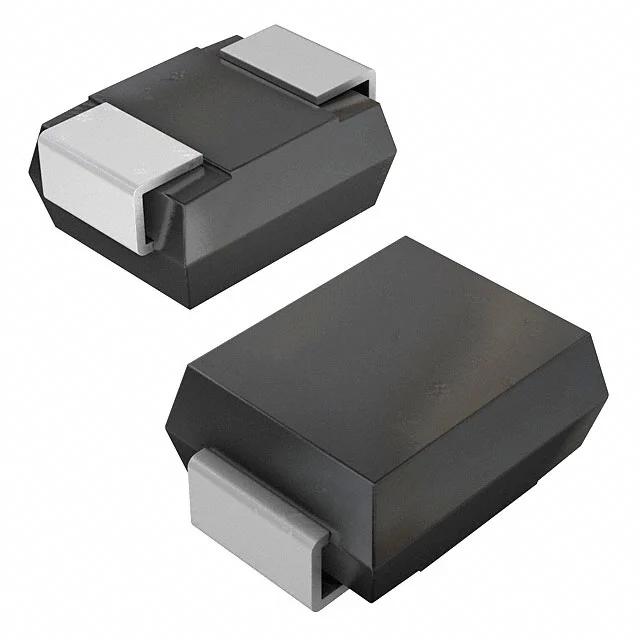

Electronic Component 49.9V Clamp 12.2A Ipp Bipolar TVS Diode Surface Mount DO-214AA (SMBJ) TPSMB36CA

No reviews yet
$0.10
10-99 pieces
$0.07
100-999 pieces
$0.06
≥1,000 pieces
Sample price: $1
Select now

Specification

TPSMB36CA

Key attributes

Mounting Type

Surface Mount

Manufacturer Part Number

TPSMB36CA

Brand Name

5chips

Description

TVS DIODE 30.8VWM DO214AA

Type

Zener Diode

Place of Origin

Other

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Mounting Type
Surface Mount
Manufacturer Part Number
TPSMB36CA
Brand Name
5chips
Description
TVS DIODE 30.8VWM DO214AA
Type
Zener Diode
Place of Origin
Guangdong
Package Type
Surface Mount
Package / Case
DO-214AA, SMB
Operating Temperature
-65°C ~ 175°C (TJ)
Series
TPSMB36CA
Mfg Date Code
25+
Application
Automotive electronics, Industrial power supply
Supplier Type
Retailer
Cross Reference
N/A
Media Available
Datasheet
Max. Forward Voltage
Vf=1.1V @ If=1A
Max. Reverse Voltage
VRWM=30.8V
Max. Forward Current
Refer to datasheet
Max. Reverse Current
Ir≤1uA @VRWM=30.8V
Diode Type
Bidirectional TVS Diode
Technology
TVS
Voltage - Forward (Vf) (Max) @ If
Vf=1.1V @If=1A
Current - Reverse Leakage @ Vr
Ir≤1uA @VRWM=30.8V
Diode Configuration
Bidirectional TVS Diode
Voltage - DC Reverse (Vr) (Max)
VRWM=30.8V
Current - Average Rectified (Io) (per Diode)
N/A
Speed
600W SMB TVS, 36V nominal series
Reverse Recovery Time (trr)
N/A
Capacitance @ Vr, F
Refer to datasheet
Current - Max
IPP=12.2A (10/1000us)
Resistance @ If, F
Refer to datasheet
Power Dissipation (Max)
600W (Peak Power, 10/1000us pulse)
Capacitance Ratio
Refer to datasheet
Capacitance Ratio Condition
Refer to datasheet
Q @ Vr, F
Refer to datasheet
Configuration
Surface Mount SMB (D0-214AA), Bidirectional
Voltage - Zener (Nom) (Vz)
Nominal 36V VBR
Tolerance
±5%
Power - Max
600W
Impedance (Max) (Zzt)
Refer to datasheet
Packaging
Tape & Reel (TR) / Cut Tape (CT) / Digi-Reel
Bidirectional Channels
1
Voltage - Breakdown (Min)
34.2V
Voltage - Clamping (Max) @ Ipp
49.9V
Power Line Protection
No
Grade
Automotive
Qualification
AEC-Q101
