Attributs
CoupeUtilisation
AutomatiqueMode de fonctionnement
SR-HC500Numéro de Type
380Poids (KG)
Guangdong, ChinaPoint d'origine
SinradMarque nom
Dimension (L*W*H):1390*770*1350
Model:ST350DT

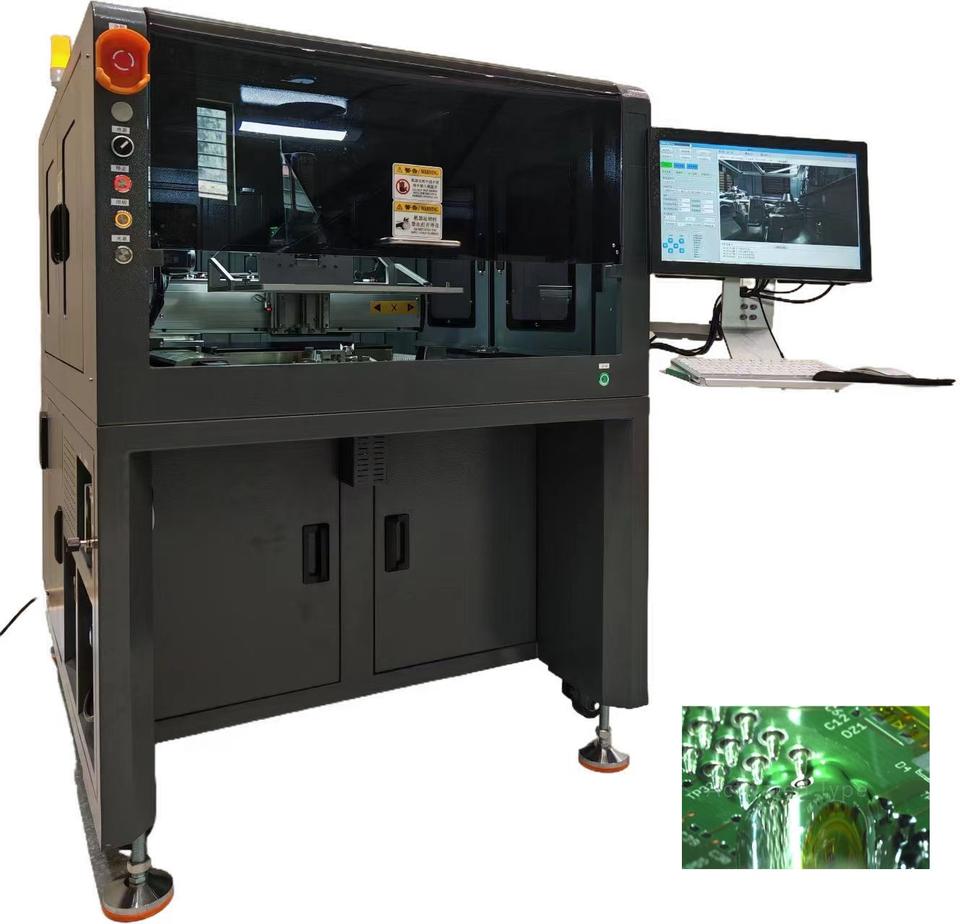

Model Name:Selective Wave Soldering Machine
Control System:Industrial PC + Motion Control Card
Drive Method:Servo Motor + Ball Screw
Repeat Positioning Accuracy:±0.02 mm
Max. Motion Speed:X/Y: 500 mm/s, Z: 250 mm/s
Max. PCB Size:350 x 300 mm (Customizable)
Wave Generation Method:Electromagnetic Pump
Solder Pot Capacity:15 kg
Flux Spraying:Selective Jet Spray
Preheating Method:Bottom-side IR Preheating
Preheat Temperature:Ambient to 350°C
Solder Pot Temperature:Max. 420°C
Temp. Control Accuracy:±3°C (PID)
Solder Type:Lead-Free
Positioning System:Vision Guidance
Camera Resolution:1080P HD
Programming Method:Offline w/ CAD import + Online
Power Supply:220V / 50Hz / 5KW
Compressed Air:0.4 - 0.6 MPa
