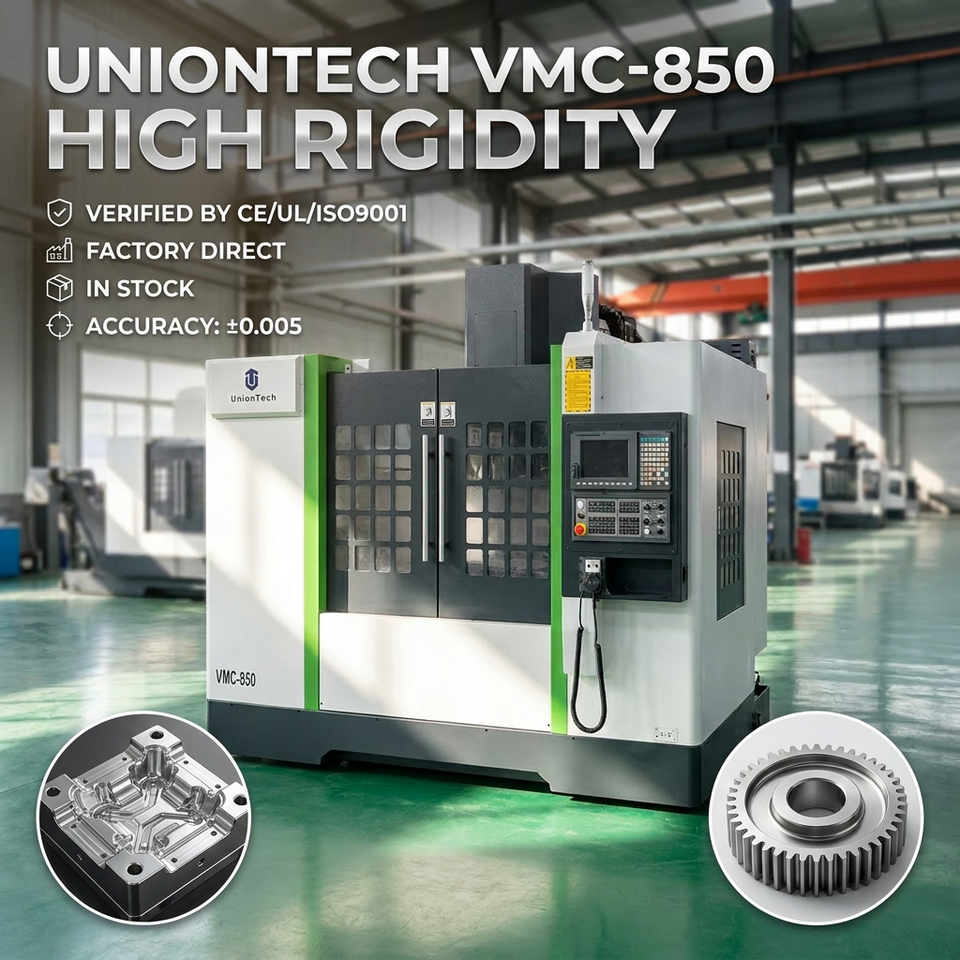

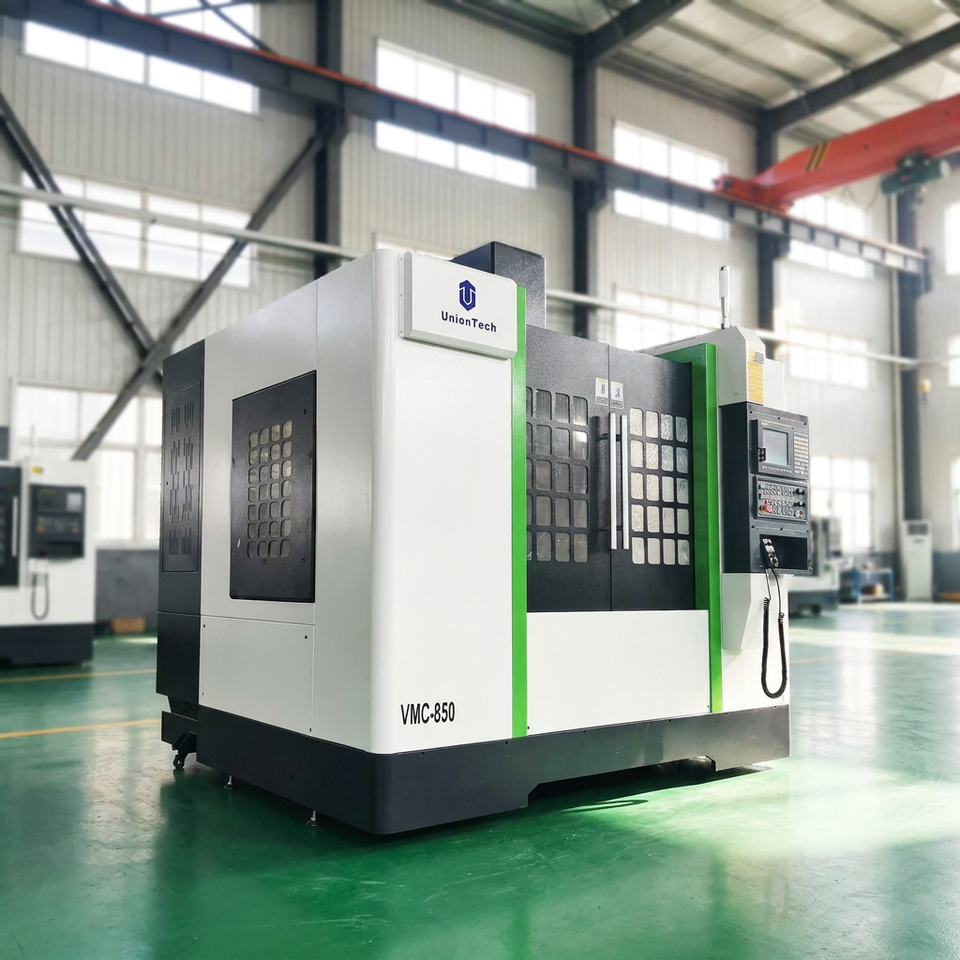

FACTORY DIRECTLY VMC850 VMC 1160 Factory Direct Cnc Vertical Machining Center With Low Price

No reviews yet
Complies with EU standards
$17,000
1-2 sets
$15,000
3-9 sets
$12,000
≥10 sets
Sample price: $15,000
Select now

model number

VMC-850

number of axes

3

spindle motor power

7.5
Customization options
spindle taper (Min. order: 1 set)
cnc control system (Min. order: 1 set)
number of axes (Min. order: 1 set)
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

type

VERTICAL

positioning accuracy

±0.008

repeatability (x/y/z) (mm)

0.075

table travel (x) (mm)

800

table travel (y) (mm)

500

table travel (z) (mm)

500

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

1-year warranty

Access to free parts replacement and repair coverage

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Service

On-site service & free replacement parts
On-site service & free replacement parts
1-year warranty
1-year warranty
Custom design in 3 days
Custom design in 3 days

Key attributes

type
VERTICAL
positioning accuracy
±0.008
repeatability (x/y/z) (mm)
0.075
table travel (x) (mm)
800
table travel (y) (mm)
500
table travel (z) (mm)
500
table size
1000X500
spindle taper
BT40
machining capacity
Heavy Duty

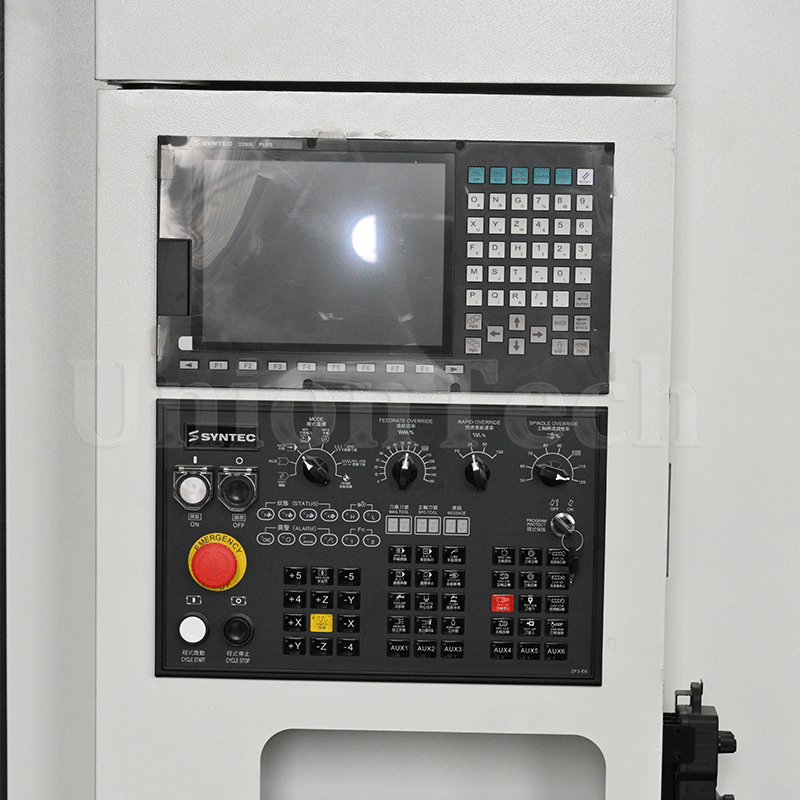

cnc control system
SYNTEC
tool magazine capacity
24, 32
min. time of tool change(s)
2
voltage
380v/220v
no. of spindles
Single
key selling points
Automatic
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
weight (t)
5
max. table load(kg)
500
place of origin
Shandong
dimension(l*w*h)
2600*2300*2800mm
range of spindle speed
1 - 12000 r.p.m
brand name
UnionTech
rapid feed speed
1 - 6000
Model
Customized UnionTech VMC850 milling machine
Warranty
1 year for the whole machine, 1/2 year warranty for core parts
Certification
Certified by CE/TUV/ISO
Accuracy
±0.005
Bed structure
High-quality HT300/Mehanite cast iron with a reinforced rib structure
Application
Automotive Parts/Aerospace /General Machinery & Valve Industry
Voltage
380/3ph/50hz (220v as optional)
After sales
24/7 Online Technical Support/Overseas Engineer On-site Service
Optional parts
Chip Removal System / Renishaw Edge Finder / Center Water Outlet
Optional model
VMC650/VMC850/VMC1160/VMC1370/VMC1580 machining center

Packaging and delivery

Selling Units
Single item
Single package size
260X230X280 cm
Single gross weight
5000.000 kg

Lead time

Customization options

spindle taper(+ from /Min. order: 1 set)
cnc control system(+ from /Min. order: 1 set)
number of axes(+ from /Min. order: 1 set)
spindle motor power(+ from /Min. order: 1 set)
