Attributes
Industryapplication
N/Aport size
Pneumaticpower
Regulatingstructure
Othertemperature of media
OEMcustomized support
place of origin:China
model number:1301F and 1301G
warranty:1 Year

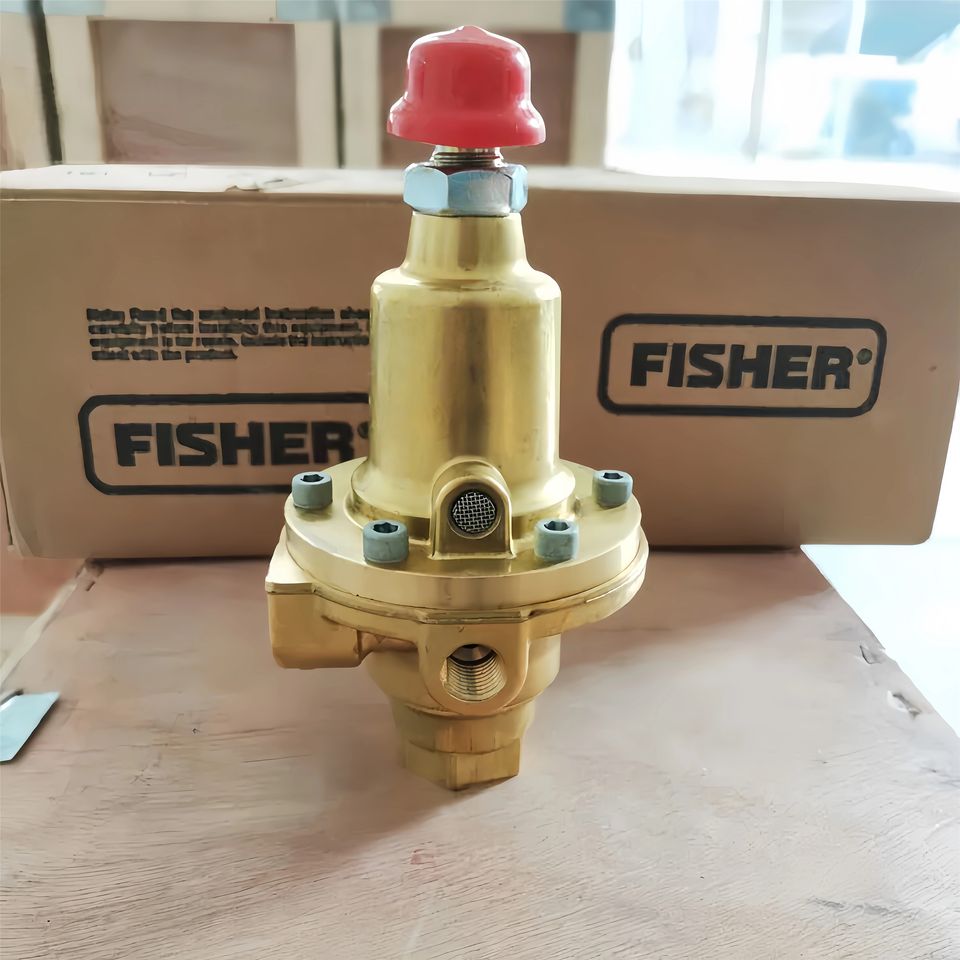

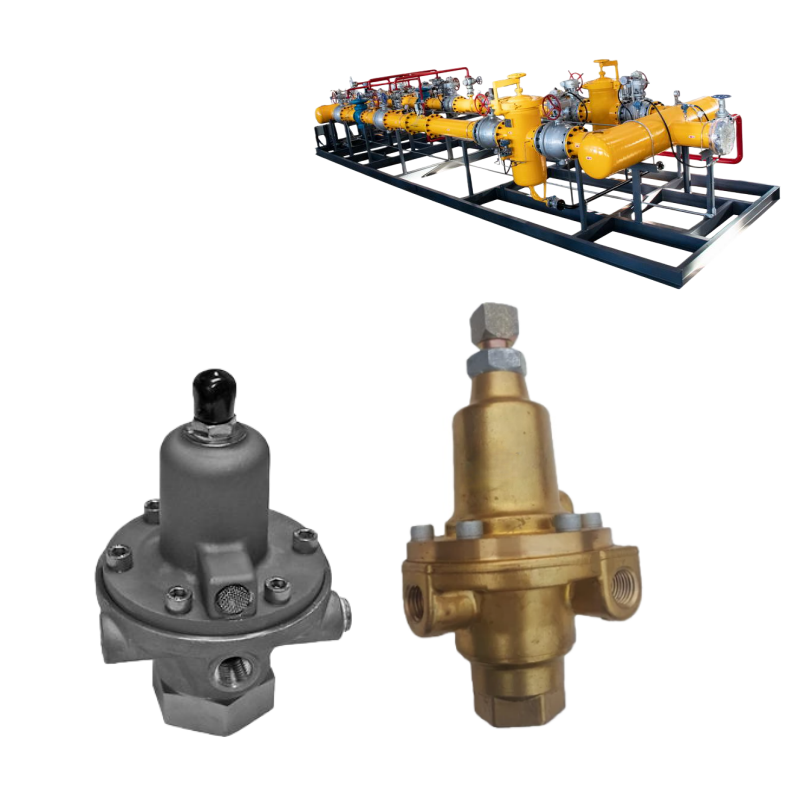

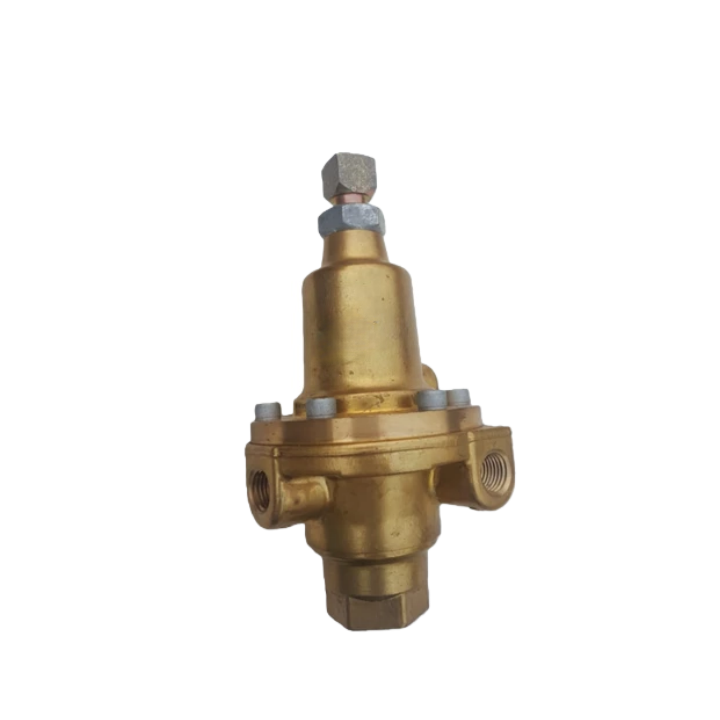

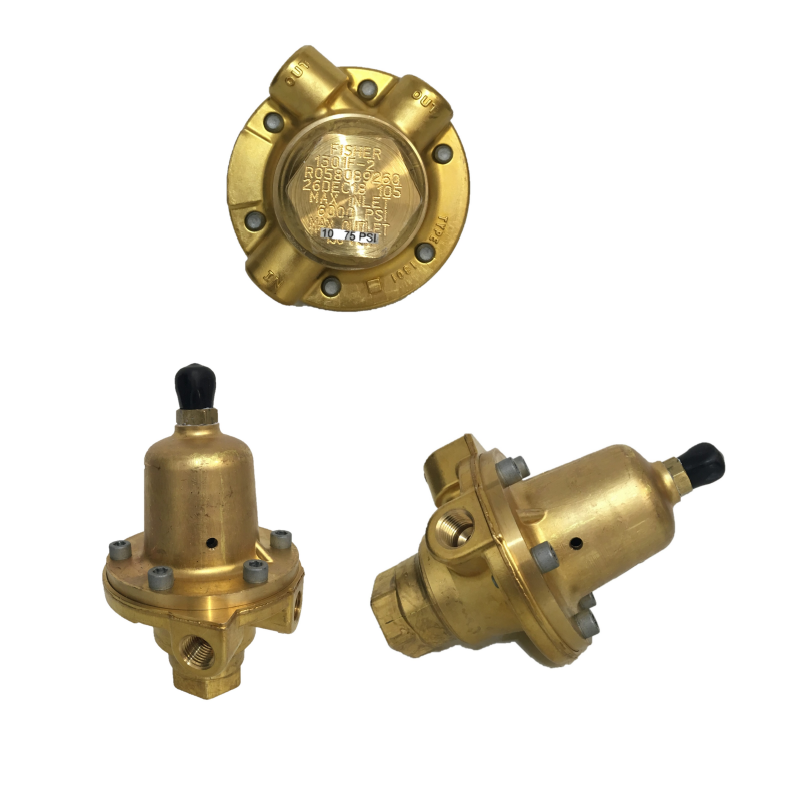

Product name:Gas regulator Types 1301F and 1301G pressure regulators
Available Constructions:1301F Series: inlet 6000 psig/1301G Series: inlet 6000 psig
Body Size and End Connection Style:1/4 NPT
Maximum Inlet Pressure:Air and Gas: 6000 psig / 414 bar
Outlet Pressure Ranges:Type 1301F: 10 to 225 psig /Type 1301G: 200 to 500 psig
Standard Temperature Capabilities:Nylon Disk & Neoprene Gaskets: -20 to 180°F / -29 to 82°C
High Temperature Capbailities:PTFE Disk & FKM Gaskets: -20° to 400°F / -29 to 204°
Pressure Registration:Internal
Approximate Weight:8 Pounds / 3.6 kg
Orifice Size:5/64-inch / 2.0 mm
