Food Grade Low Pressure Liquid Filling Machine Dosing Pump 70W BLDC Micro Pump Stainless Steel Magnetic Gear Pump DOCOD
No reviews yet2 sold
Attributes
Chemical Industryapplication
Gear Pumpstructure
7.3L/minMax Flow Rate
0.05-1.2MPa (preset value0.7MPa)Max Pressure
Electricpower source
Alcohol, Diesel, Gasoline, Kerosene, oils, WaterChemical Compatibility
pressure:0.35MPa
customized support:OEM, ODM, OBM
place of origin:Guangdong, China
warranty:1 Year
model number:GQA175FSLD01
brand name:DOCOD
Applicable temperature:-40 to 105 degrees Celsius
motor:Servo Motor, Brushless DC Motor, Stepper Motor
Material:Stainless Steel
Nominal Displacement:1.75ml/rev
Max. Flow Rate:7.3L/min(water as medium)
Max. Pressure:0.35MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4200rpm
Rated Voltage:24VDC
Rated Power:70W

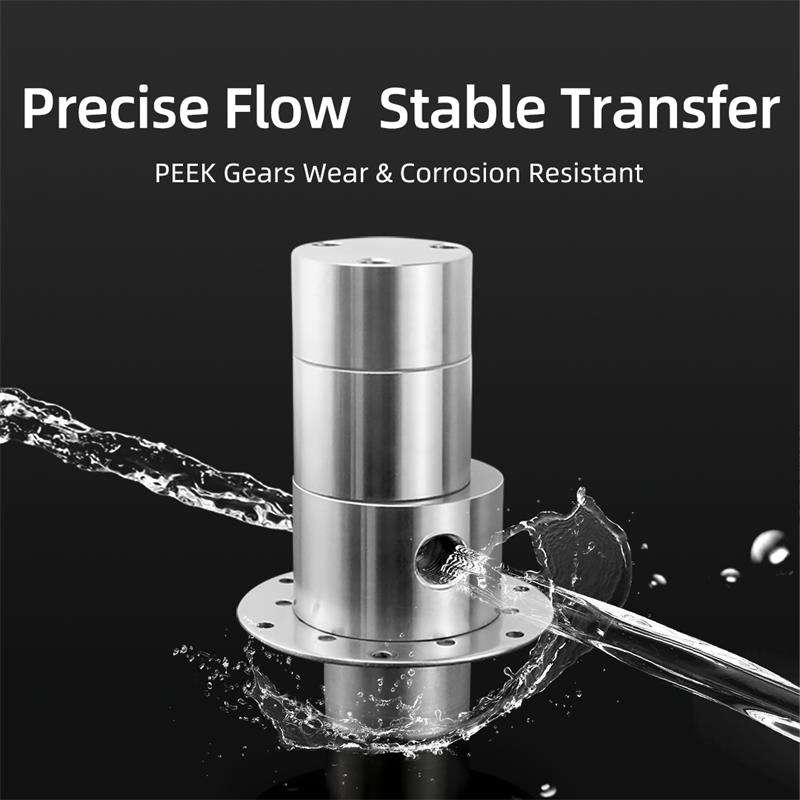

Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:PTFE (gaskets), EPDM (O-rings)

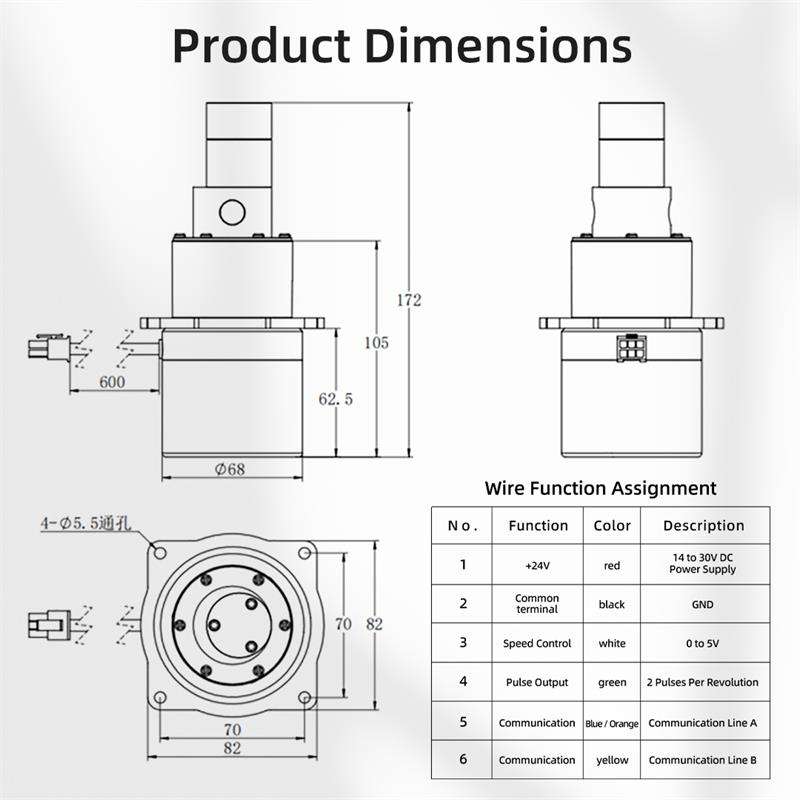

thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Key attributes
application
Chemical Industry
structure
Gear Pump
Max Flow Rate
7.3L/min
Max Pressure
0.05-1.2MPa (preset value0.7MPa)
power source
Electric
Chemical Compatibility
Alcohol, Diesel, Gasoline, Kerosene, oils, Water
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
0.35MPa
model number
GQA175FSLD01
brand name
DOCOD
place of origin
Guangdong, China
Nominal Displacement
1.75ml/rev
Max. Flow Rate
7.3L/min(water as medium)
Max. Pressure
0.35MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4200rpm
Rated Voltage
24VDC
Rated Power
70W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
PTFE (gaskets), EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Easy Return
1 - 99 pieces
$31846
100 - 499 pieces
$25477
>= 500 pieces
$21231
