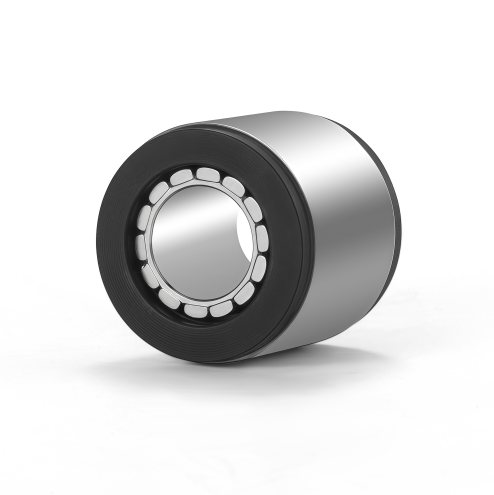

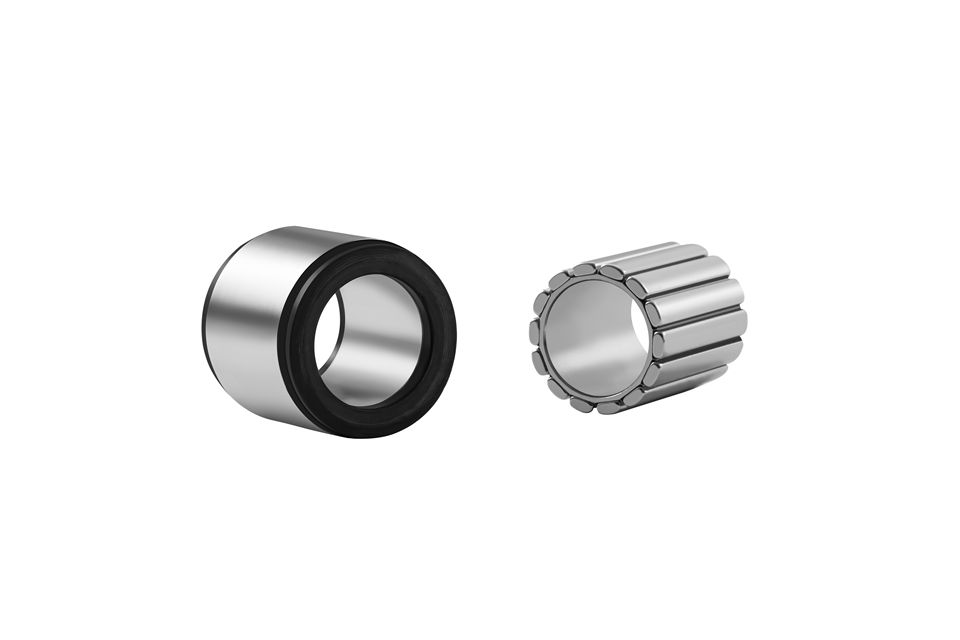

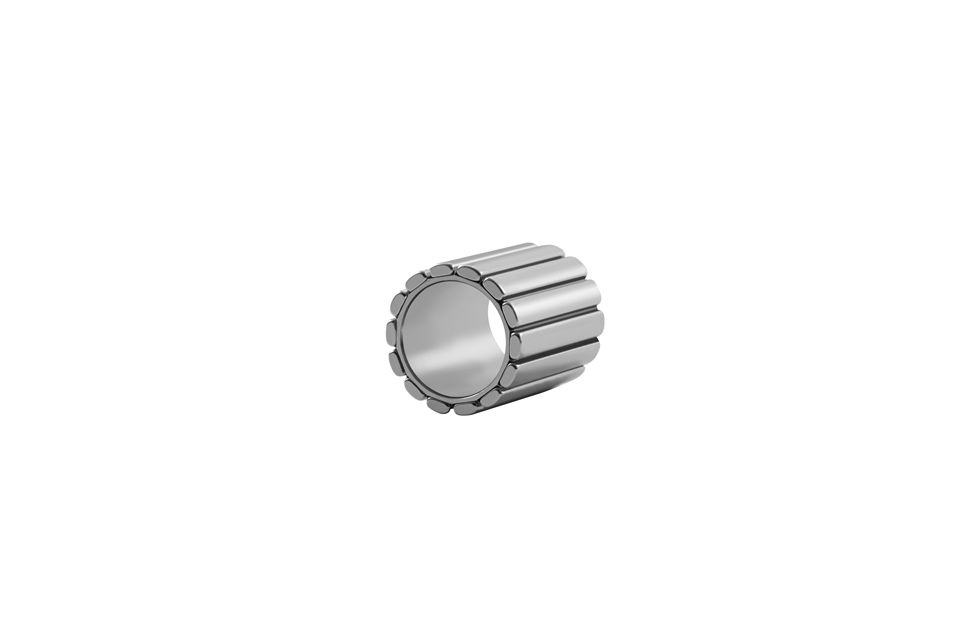

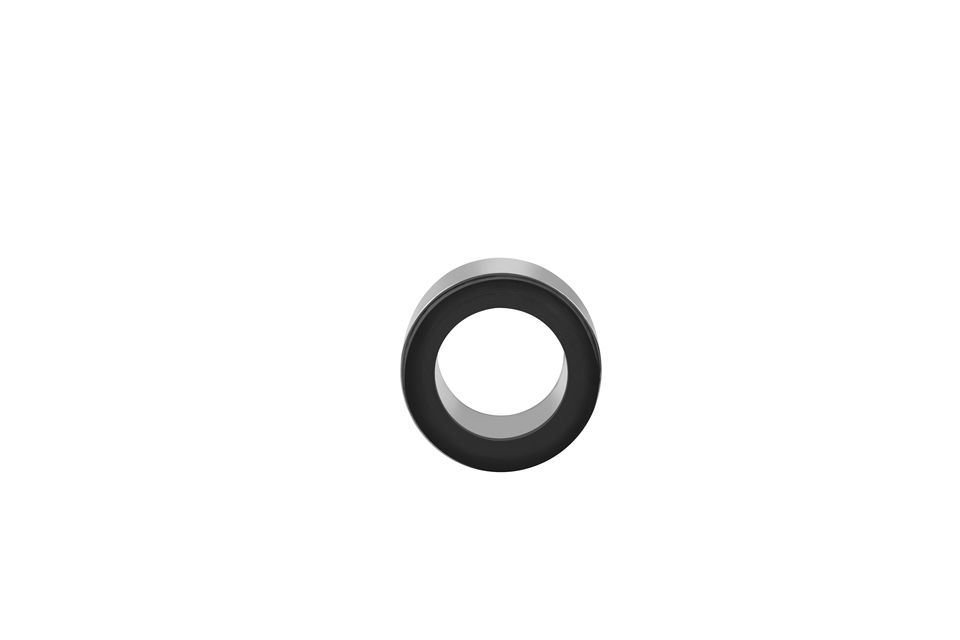

Frameless BLDC Permanent Magnet 24V Direct Drive Torque Motor OD25mm Height15mm 0.075NM for Medical Surgery Robotic Arm
Store rating:4.4
(16 reviews)
Attributes
BrushlessCommutation
31.5WRated Power
4000rpmSpeed Rpm
4000Speed(RPM)
otherIP Rating
IE 4Efficiency
Continuous Current(A):custom
Place of Origin:Guangdong, China
Frame:NO
Motor Mounting Type:Glue
Model Number:U2515
Brand Name:other
Construction:Permanent Magnet
Protect Feature:Totally Enclosed
Torque:0.075NM
Type:DD Motor
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty:Other

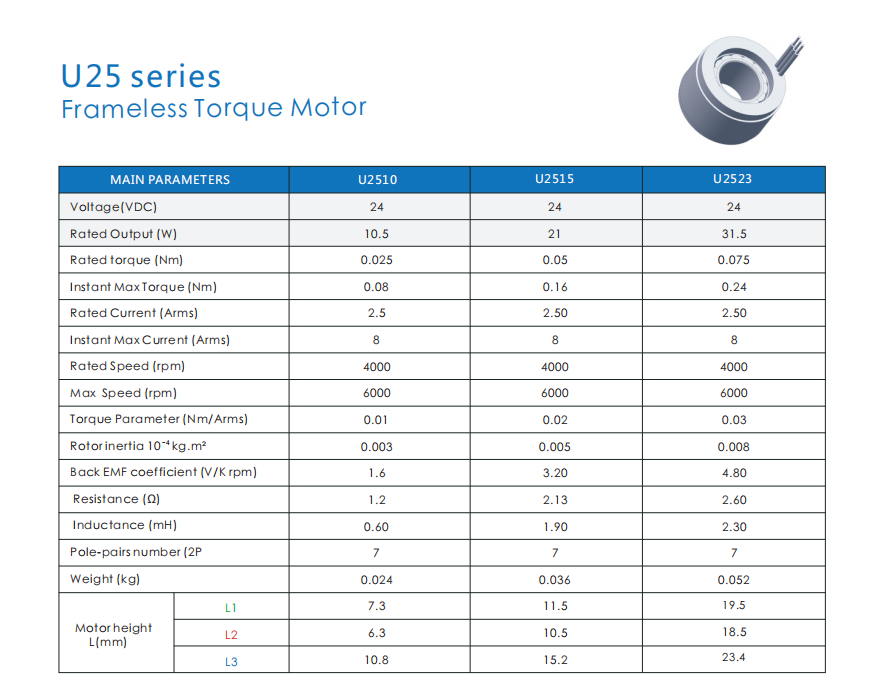

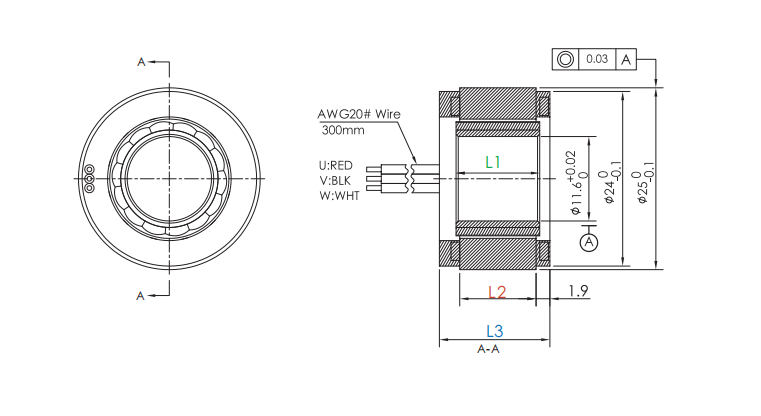

OD(mm):25
Height(mm):15
Voltage(VDC):24
Rated Output*1 (W):31.5W
Rated torque*1 (Nm):0.075
Instant Max Torque*1 (Nm):0.24
Instant Max Current*1 (Arms):8
Rated Current*1 (Arms):2.5
Rated Speed*1 (Rpm):4000
Max Speed*1 (Rpm):6000
Key attributes
Commutation
Brushless
Rated Power
31.5W
Speed Rpm
4000rpm
Speed(RPM)
4000
IP Rating
other
Efficiency
IE 4
Type
DD Motor
Construction
Permanent Magnet
Frame
NO
Motor Mounting Type
Glue
Protect Feature
Totally Enclosed
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Medical machinery
Warranty
Other
Continuous Current(A)
custom
Model Number
U2515
Torque
0.075NM
Place of Origin
Guangdong, China
Brand Name
other
OD(mm)
25
Height(mm)
15
Voltage(VDC)
24
Rated Output*1 (W)
31.5W
Rated torque*1 (Nm)
0.075
Instant Max Torque*1 (Nm)
0.24
Instant Max Current*1 (Arms)
8
Rated Current*1 (Arms)
2.5
Rated Speed*1 (Rpm)
4000
Max Speed*1 (Rpm)
6000
Packaging and delivery
Selling Units
Single item
Single package size
12X12X12 cm
Single gross weight
30.000 kg
Lead time
Product descriptions from the supplier
2 - 299 pieces
$120
>= 300 pieces
$32
Variations
Select nowRated voltage: /
/
Output Power: 31.5
31.5
Speed of Revolution
4000RPM
