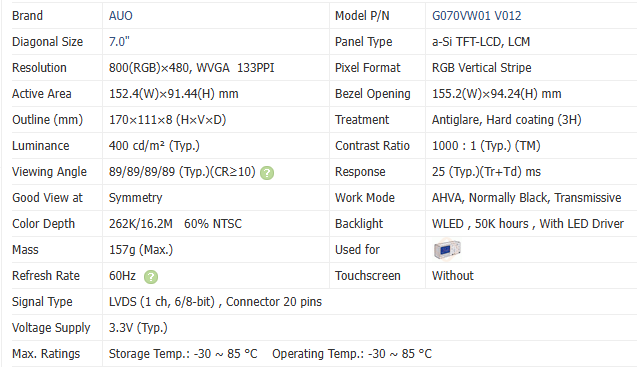

Attributes
StandardType
7.0 InchDisplay Size
Guangdong, ChinaPlace of Origin
SupplierSupplier Type
AUOBrand Name
WLEDBacklight Type
Resolution:800X480
Brightness:400 cd/m² (Typ.)
Operating Temperature:-30 ~ 85 °C
Brand:AUO
Display Type:TFT
Mounting Type:Panel Mounting
Screen Size:7.0 Inch
Communication Interface:LVDS (1 ch, 6/8-bit) , Connector 20 pins
Driver Ic:LED Driver
Resolution:800((RGB)*480
Display area:154.08(W)*85.92(H) mm
Interface:LVDS (1 ch, 6/8-bit) , Connector 20 pins
Viewing Angle:89/89/89/89
Contrast Ratio:800:1
Response Time:20ms
Weight:TBD
Panel brightness:400 cd/m² (Typ.)
Panel Type:a-Si TFT-LCD
Outline Dimension:164.9(W*100(H)*6(D) mm
Max. Ratings:Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C
